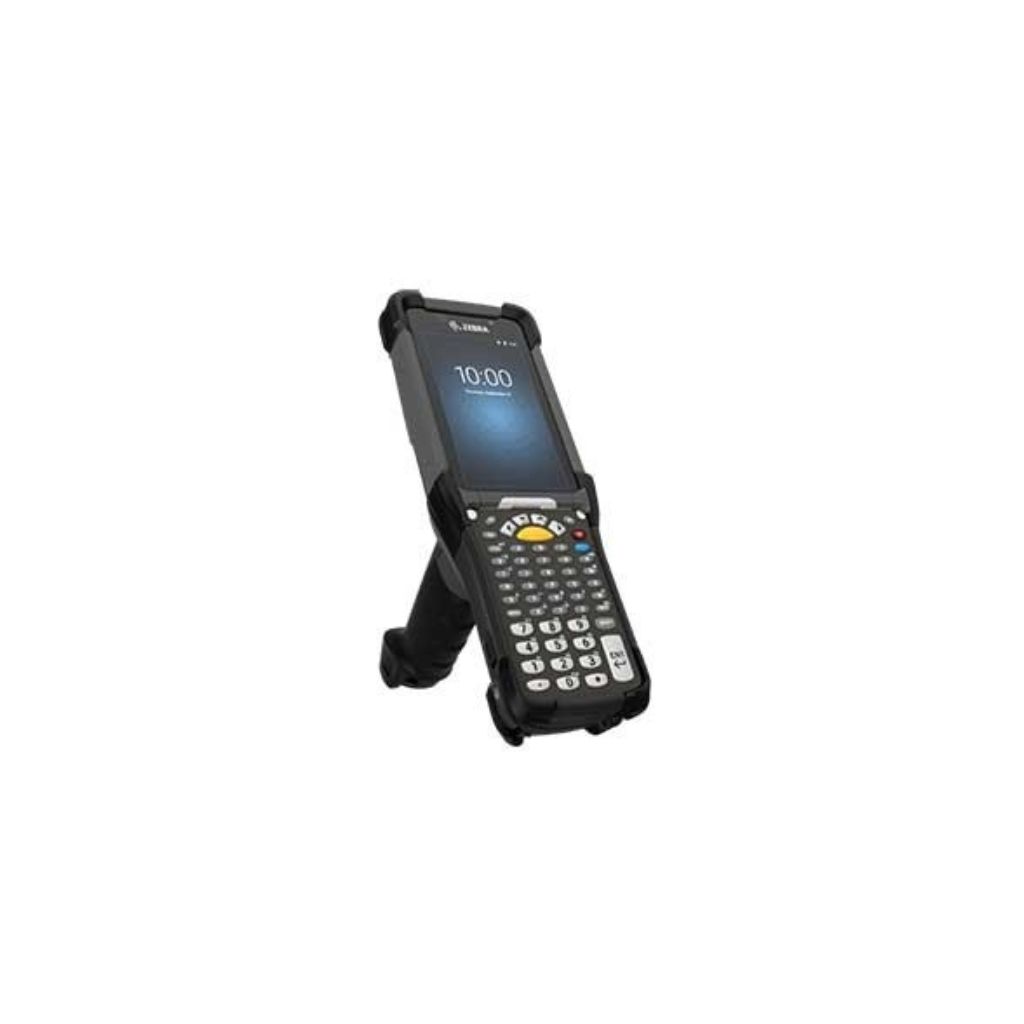

Zebra MC930B-GSEHG4R Android Dual-touch Handheld Mobile Computer
MC9300 HANDHELD MOBILE COMPUTER
THE ULTIMATE ANDROID™ ULTRA-RUGGED COMBINATION KEYPAD/TOUCH MOBILE COMPUTER
The PowerPrecision Console is a Zebra Mobility DNA solution providing centralized battery management to help eliminate staff disruptions and erratic battery expenses caused by an unreliable battery pool of varying state of health.
Over three million MC9000 Series mobile computers streamline processes in warehouse and manufacturing plants worldwide. But today’s demanding customers require you to ship more orders every day, faster than ever. Introducing the mobile computer that can get it done, the ultimate ultra-rugged MC9300 — the next evolution of the world’s best-selling and most trusted Android enterprise mobile computer, delivering the ultimate Android platform for business and the ultimate in application support. Validated by Microsoft Teams to now run the Walkie Talkie app.
Full description Zebra.
- Display diagonal: 10.9 cm (4.3″)
- Display resolution: 800 x 480 pixels
- Touch technology: Dual-touch
- Internal memory: 4 GB
- Flash memory: 32 GB
- Compatible memory cards: MicroSD (TransFlash), SDHC, SDXC
- Processor frequency: 2.2 GHz
- Processor manufacturer: Qualcomm
- Processor family: Snapdragon
- Processor model: 660
- Operating system installed: Android
- Wi-Fi standards: 802.11a,802.11b,802.11g
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
Introducing the MC9300 mobile computer — the next evolution of the world’s best-selling and most trusted Android enterprise mobile computer from Zebra. When your business deserves the best, the MC9300 delivers, providing the ultimate Android platform, the ultimate in application support, the ultimate ultra-rugged design and the ultimate accessory system. And since you can run your existing TE apps right out of the box, migrating to Android couldn’t be easier.
Power a full shift and beyond with maximum battery power
The PowerPrecision+ battery delivers the most battery power in its class — nearly twice the battery run time of the MC9200, plus fast charging and a wealth of battery statistics to better manage your battery pool. And with PowerPrecision Console, a free PC-based Mobility DNA tool, it’s easy to identify and discard aging batteries, before they impact workforce productivity and your operations.
Dependably superior WiFi connections
With 2×2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology and WorryFree WiFi, a free Mobility DNA tool, you get increased WiFi range and speed, near instant application response times, unmatched roaming, exceptional voice quality and network diagnostics that help keep your WiFi network up and running at peak performance.
A lifetime security guard for Android
With LifeGuardTM for AndroidTM, you get the security updates you need to keep your Zebra Android devices secure every day they are in service — along with easy end-to-end control of the OS update process, plus support for future versions of Android.
THE ULTIMATE ANDROID PLATFORM
Maximum processor power and memory
The ultra-powerful 8-core processor combines with up to eight times the RAM and 16 times the Flash memory of the MC9200 to deliver superior performance on all your voice and data apps.
THE ULTIMATE IN APPLICATION SUPPORT
Run your Terminal Emulation (TE) apps, right out of the box
Integrated support for your TE apps makes it easy to migrate from Windows to Android — no backend modification or user training required. And when you’re ready to turn your ‘green screen’ TE apps into elegant touch-centric intuitive screens to boost productivity, Mobility DNA’s All-touch TE makes it easy.
Larger touchscreen with advanced technology
The large multi-touch 4.3 in. WVGA display allows your workers to view more business data, while providing best-in-class indoor/outdoor readability and data input flexibility. Use a finger — even with a thick glove — or a stylus. And users can interact with the screen even if the display is wet.
Bluetooth Low Energy (BLE) 5.0 for twice the speed and four times the range
Bluetooth peripheral performance is improved, while power requirements are reduced, extending battery cycle times.
Ultra high-resolution photos and videos improve productivity
The optional 13 MP color rear-facing camera captures highly detailed photos and videos to document proof of condition, proof of compliance and more.
Rich locationing support
Easily implement locationing to boost operational efficiency with support for many technologies, including Visible Light Communication (VLC) via the optional front facing 5MP camera, plus WiFi, Bluetooth 5.0 BLE and Zebra’s locationing solutions.
Advanced industrial scanning and an extraordinary scan range
With our advanced scan engines, your workers can capture virtually any barcode in any condition, the first time every time. The SE4850 Extended Range Imager captures barcodes in hand and on your uppermost warehouse racks — from 3 inches to as far as 70 feet away. Our SE4770 and SE4750 imagers are ideal for standard range scanning. The SE4750 DPM enables dependable lightning-fast capture of virtually every direct part mark. And our ‘tried and true’ 1D SE965 engine offers Adaptive Scanning technology with the widest working range in its class.
Vibrate feedback mode
The optional vibrate mode is ideal in noisy warehouse environments, where the beep tone that signifies a successful scan can be virtually impossible to hear.
The best of both worlds — touchscreen and keypad input
Two data entry modes support TE apps today and Android intuitive, interactive apps tomorrow. Maximize key-based data entry simplicity with your choice of keypads and enable touch input for TE or Android apps now or in the future. And since you can easily swap keypads right in your facility, you can re-purpose devices or replace broken keypads instantly — no trip to the service depot and no device downtime.
Capture multiple barcodes and entire forms with a single scan
SimulScan makes it easy to capture labels on boxes and pallets that contain many barcodes, plus text fields.
Doubles as a walkie-talkie
With Voice-over-IP (VoIP) support and pre-loaded PTT Express, your workers get push-to-talk capability. (License Required)
All day comfort in the most scan intensive apps
When you give your workers the MC9300, you give them a mobile computer designed for comfort, with the most proven ergonomics — a perfectly weighted device with a pistol-style grip.
NFC for simple pairing
With a quick tap, workers can pair the MC9300 with a ring scanner, mobile printer, headset and more with optional NFC.
THE ULTIMATE ULTRA-RUGGED DESIGN FOR EVERY ENVIRONMENT
The most rugged device in its class
When it comes to handling the harshest environments, the MC9300 is at the top of its class. The MC9300 is virtually waterproof, drop-proof, dust-proof and tumble-proof, offering superior reliability. And Corning Gorilla Glass brings maximum scratch-and-impact resistance to two of the most vulnerable device features — the display and exit window.
A model for the most challenging environments
Regardless of whether your environment includes freezers, coolers or the presence of hazardous materials, there is an MC9300 model to meet your needs. The freezer model includes a heated scanner exit window and a freezer-rated battery. And the Class 1 Div 2 non-incendive model1 enables mobile computing in areas with flammable gases and materials.
THE ULTIMATE ACCESSORY ECOSYSTEM
New accessories minimize charging time, maximize backroom space and more
All new charging cradles take advantage of the new fast charging feature, enabling a 90% charge in four hours or less. New cradle configurations allow you to increase density and device flexibility to make the most of your backroom area. And the universal ShareCradle base is rack mountable and can accommodate the MC9300 and other Zebra mobile computers with the addition of the right adapter cup.
Cost-effectively upgrade with backwards accessory compatibility
Use your existing MC9200 device charging solutions by simply adding an adapter cup, as well as the soft holster and handstrap.
|Dimensions||9.4 in. L x 3.5 in. W x 7.4 in. H
240 mm L x 88 mm W x 189 mm H
|Weight||26.9 oz./765g with battery|
|Display||4.3 in. WVGA (800 x 480), color display|
|Imager Window||Corning Gorilla Glass|
|Touchpanel||Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model).|
|Backlight||LED backlit display|
|Power||Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery — 5000mAh)
Both batteries offer: PowerPrecision+ with improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, fast charging (up to 2.4A); hot swap battery backup with temporary session persistence
|Expansion Slot||User accessible MicroSD with 32GB SDHC and up to 256GB SDXC|
|Network Connections||USB 2.0 High Speed (Host & Client), WLAN and WPAN (Bluetooth)|
|Notification||Audible tone; Multi-color LED bar (between keyboard & display), haptic feedback|
|Keypad||Backlit, Field replaceable keypads; 58 Key Alpha-Numeric, 53 Key Alpha-Numeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key, 34 Key Numeric/Function, 29 Key Numeric/Calculation|
|Voice & Audio||Speaker, Microphone, PTT Voice (Internal Speaker and Bluetooth Wireless Headset Support).|
|CPU||Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz|
|Operating System||Android 11; upgradeable to Android 14|
|Memory||4 GB RAM/32 GB Flash pSLC|
|Operating Temp.||Standard: -4°F to 122°F/-20°C to +50°C,
Freezer: -22°F to 122°F/-30°C to +50°C
|Storage Temp.||-40°F to 158°F/-40°C to 70°C|
|Humidity||Standard: 5% to 95%, non-condensing;
Freezer: 5% to 95%, condensing (Condensation resistant model with integrated exit window heater)
|Drop Specification||Standard: 10 ft. (3.1m) drops at room temperature per MIL-STD-810G, 8 ft. (2.4m) drops to concrete across temperature per MIL-STD-810G
Freezer: 7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G.
|Tumble Specification||6,000 3.3 ft. (1m) tumbles; meets and exceeds IEC tumble specification.|
|Sealing||IP67 and IP65 per applicable IEC sealing specifications|
|Vibration||4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis|
|Thermal Shock||-40°F to 158°F (-40° C to 70°C) rapid transition|
|Electrostatic Discharge (ESD)||± 15kVdc air discharge; ± 8kVdc direct discharge;
± 8kVdc indirect discharge
|Ambient Light Sensor||Automatically adjusts display and keypad backlight brightness|
|Motion Sensor||3-axis Accelerometer with MEMS Gyro|
|Scanning||SE965: 1D standard range laser scanner
SE4750: 1D/2D standard range omnidirectional imager
SE4770: 1D/2D standard range omnidirectional imager
SE4750 DPM: Direct Part Mark (DPM) imager
SE4850: 1D/2D extended range imager
|Camera||Front: 5MP fixed focus, 2.0 aperture
Rear: 13MP autofocus, 2.2 aperture, flash LED generates balanced white light, support torch mode, supports rear camera barcode scanning
|NFC||Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support|
|Radio||IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w; Wi-Fi certified; IPv4, IPv6, 2×2 MU-MIMO|
|Data Rates||5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
|Operating Channels||Channel 1-13 (2412-2472 MHz); Chan 36-165 (5180-5825 MHz)
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency
|Security and Encryption||WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES) ); WPA3 Enterprise (AES) —EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE)
FIPS 140-2 Level 1: Data in Motion and Data at Rest
|Multimedia||Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC)|
|Certifications||WFA (802.11n, WMM-PS, 802.11ac, PMF, WMM-AC, Voice Enterprise, WiFi Direct and WPS 2.0)|
|Fast Roam||PMKID caching; Cisco CCKM; 802.11r; OKC|
|Bluetooth||Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support|
|TAA (Optional on select configurations)||Trade Agreement Act optional on select configurations Compliant, FIPS 140-2 (DIM and DAR) support; FIPS 140-2 Level 1: Data in Motion and Data at Rest|
|Non-Incendive (NI)1 (Optional on select configurations)||Suitable for use in Class I, II, III Div 2
Safety: cULus Listing — ISA/ANSA 12.12.01
Gases: Class I — Groups A, B, C, D
Dusts: Class II — Groups F, G
Fibers and Flyings: Class III
-20°C ≤ Ta ≥ +50°C T6
|Workforce Connect PTT Express (included) provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro (supported) provides a scalable network agnostic push-to-talk solution which also includes messaging, location services and two-way radio integration. Workforce Connect Voice client (supported) enables the MC9300 to function as a full featured mobile telephone with multi-line capability across Wi-Fi networks featured mobile telephone with multi-line capability across Wi-Fi networks.|
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
A complete list of product and materials compliance, please visit:
|Subject to the terms of Zebra’s hardware warranty statement, the MC9300 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
