ThermalTake Toughpower GF3 1000W Gold Fully Modular Power Supply – Premium Edition
Full description ThermalTake.
- Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.
- The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1000W can deliver up to 600W for PCIe 5.0 graphics cards.
- PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications.
- Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.
- Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

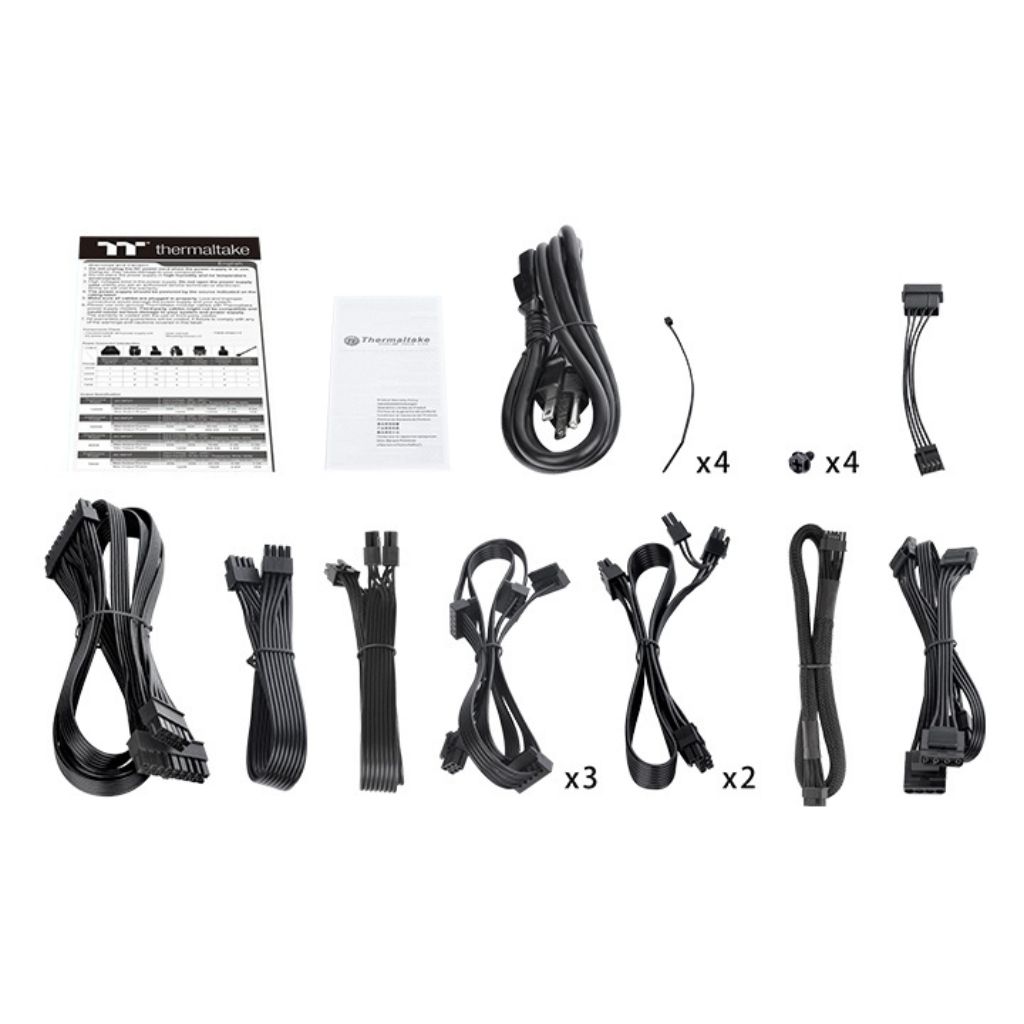

- Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
- Tough power GF3 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
| P/N | PS-TPD-1000FNFAGU-4 |
|---|---|
| WATTS | 1000W |
| MODEL | TPD-1000AH3FCG |
| MAX. OUTPUT CAPACITY | 1000W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| WEIGHT | 1.72 KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-150 msec |
| HOLD UP TIME | > 17msec at 100% of full load |
| INPUT CURRENT | 13.0A / 6.5A |
| INPUT FREQUENCY RANGE | 50/60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 13.5cm fluid bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/UKCA/cTUVus/TÜV /FCC/IC/BSMI/ EAC/CB/CCC |
| PROTECTION | OCP, OVP, UVP, OPP, SCP, OTP |
| PCI-E CONNECTOR | PCIe 6+2pin x 4 PCIe 12+4pin x 1 |
