ThermalTake AH T200 Case

R2631,00 Inc. VAT

  • The Thermaltake AH T200 is a helicopter styled open frame micro chassis
  • The AH T200, a smaller version of the AH T600
  • The first micro case from the AH Series which is forged with a sturdy
  • Thermaltake developed “TT Premium” with the essence of combining supreme quality products

Browse More Products

Description

ThermalTake AH T200 Case

Full description ThermalTake.

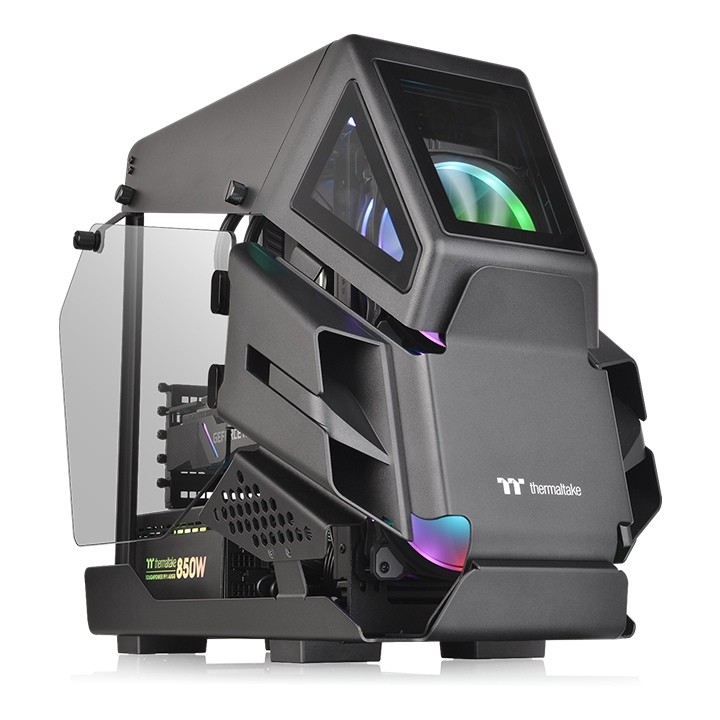

The Thermaltake AH T200 is a helicopter styled open frame micro chassis which comes with two 4mm tempered glass panels on left and right sides and can support motherboards up to Micro ATX.

ThermalTake AH T200 Case

Thermaltake AH T200 Micro Chassis

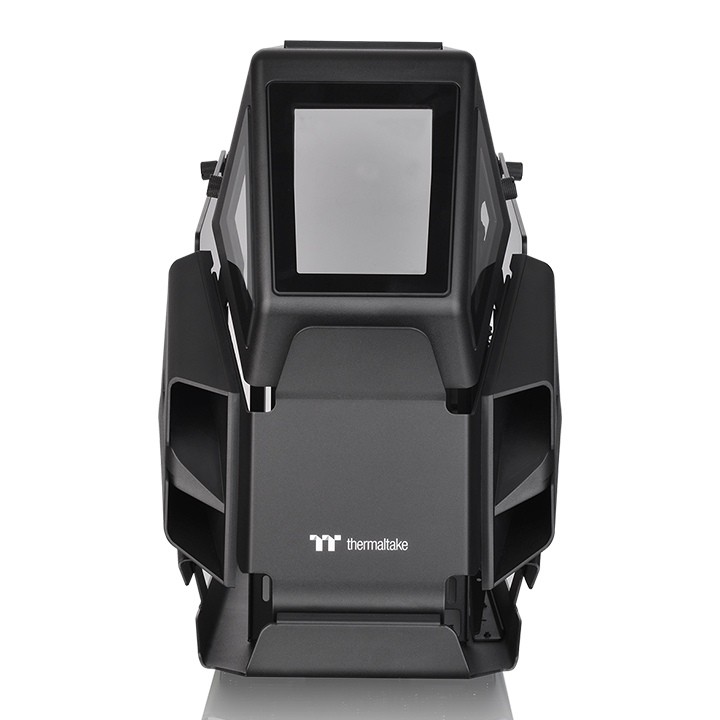

The AH T200, a smaller version of the AH T600. The first micro case from the AH Series which is forged with a sturdy. Air-force styled architecture with two large 4mm tempered glass panels on the left and right sides, and three 3mm tempered glass windows on the front.

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience. Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality.

Tempered Glass Panels

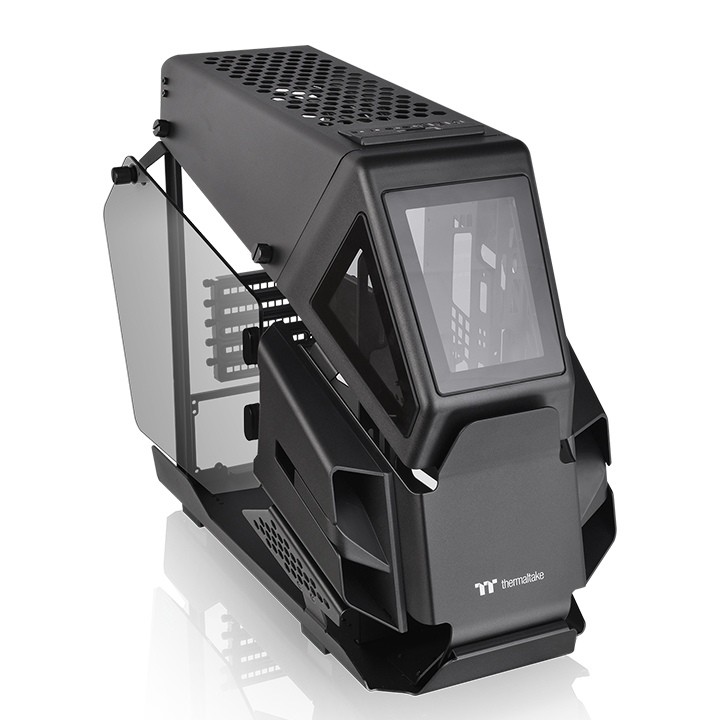

The AH T200 comes with two 4mm tempered glass panels, thicker and more scratch resistant when compared to standard acrylic. Swinging doors on the left and right sides allow users to easily access. The internal components as well as the ability to remove the doors entirely for complete access to the internals. On top of this, the enlarged window design enables you to display and admire all your components in their full RGB glory.

P/N CA-1R4-00S1WN-00
SERIES AH Series
MODEL AH T200
CASE TYPE Micro Case
DIMENSION (H X W X D) 444.2 x 282 x 551.5 mm
(17.5 x 11.1 x 21.7 inch)
NET WEIGHT 10.8 kg / 23.8 lb
SIDE PANEL Tempered Glass x 2
COLOUR Black
MATERIAL SPCC
COOLING SYSTEM N/A
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
2 x 3.5″ or 3 x 2.5” (3.5” HDD thickness limitation: 22mm)
EXPANSION SLOTS 5
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O PORT USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mmTop:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
RADIATOR SUPPORT Front:
1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
CLEARANCE CPU cooler max height: 150mm
VGA max length: 320mm
PSU max length: 180mm
3.5” HDD thickness limitation: 22mm

Thermal Take AH T200

Contact us if you would like to enquire about this product.

Additional information

Case Brands

ThermalTake Cases

Case Colour

Black

Case Form Factor

Mini (Micro-ITX)

Case 2.5" Drive Bays

3 x SSD Bays

Case 3.5" Drive Bays

2 x HDD Bays
