Description

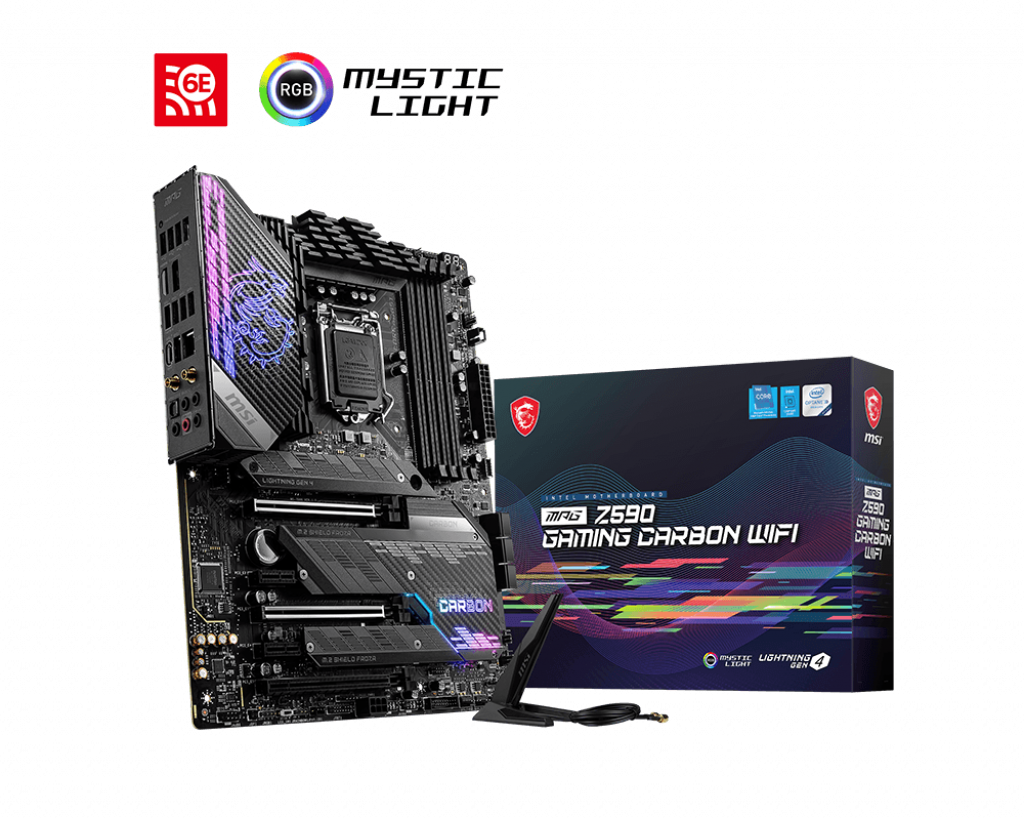

MSI Z590 Gaming Carbon Wifi Gaming

Full description MSI.

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

FEATURES:

• Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5333(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
• Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/MK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high-performance system and non-stop gaming experience
• MYSTIC LIGHT: 16.8 million colours / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade-level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

SPECIFICATIONS:

• CPU (Max Support): i9
• Socket: 1200
• Chipset: Intel® Z590 Chipset
• DDR4 Memory: 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E X16: 3
• PCI-E X1: 2
• SATAIII: 6
• M.2 Slot: 3
• RAID: 0/1/5/10
• LAN: 1x Intel® I225-V 2.5G LAN
• Wi-Fi & Bluetooth: Intel® Wi-Fi 6E AX210
• Audio Ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
• DisplayPort: 1
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• Crossfire: Yes
• Operating System: Support for Windows® 10 64-bit

WHAT’S IN THE BOX:

• MSI MPG Z590 GAMING CARBON WIFI Intel ATX Motherboard x1
• Wi-Fi Antenna x1
• Cleaning Brush x1
• Screwdrivers x2
• MPG Stickers x1
• Cable Stickers x
• USB Drive x1
• 1 to 2 RGB LED Extension Cable x1
• Corsair RGB LED Extension Cable x1
• Rainbow RGB LED Extension Cable x1
• SATA Cables x2
• M.2 Standoff Sets/screws x3
• User Manual x1
• Quick Installation Guide x1

Contact us if you would like to enquire about this product
