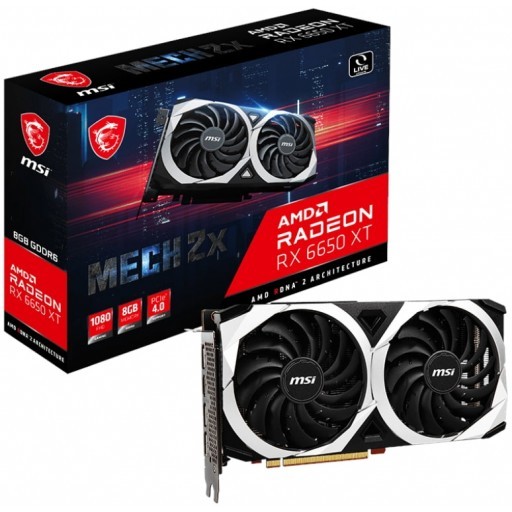

MSI RX6650XT Mech 2X 8GB
Full description MSI.
- The new AMD Radeon™ RX 6650 XT graphic cards are optimized for DirectStorage to help reduce load times in games and bring expansive worlds to life in amazing detail. The Radeon™ RX 6000 Series graphic cards take full advantage of the latest innovations in upscaling technologies such as AMD FidelityFX™ Super Resolution2 or the new Radeon™ Super Resolution1. Whether it is AAA gaming or eSports, experience all your games without compromise.
- MSI MECH brings a performance-focused design that maintains the essentials to accomplish any task. Rocking a trusted dual-fan arrangement into a rigid industrial design lets this sharp-looking graphics card fit into any build. For extra protection, a clean-looking brushed-finish backplate reinforces the length of the card.
-
MECH has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through its custom PCB. Not all circuit boards are created equal. A custom PCB Design provides more excellent reliability and beefed up power circuitry for pushing the card to its limits..
SPECIFICATIONS |
|
| Brand | MSI |
| Series | MECH 2X |
| Model | RX 6650 XT MECH 2X 8G (RX-6650-XT-MECH-2X-8G) |
Chipset |
|
| GPU | Radeon |
| Chipset Manufacturer | AMD |
| Interface | PCIe 4.0 x8 |
| Compute Units | 32 |
| Ray Accelerators | 32 |
| ROPs | 64 |
| Base Clock | 2153MHz |
| Game Clock | Up to 2410MHz |
| Boost Clock | Up to 2635MHz |
| Stream Processors | 2048 |
| Texture Units | 128 |
| GPU Architecture | AMD RDNA 2 Architecture |
Memory |
|
| Infinity Cache | 32 MB |
| Effective Memory Clock | 17.5 Gbps |
| Memory Size | 8GB |
| Memory Interface | 128-bit |
| Memory Type | GDDR6 |
| Memory Bandwidth | Up to 288 GB/s |
| 3D API | |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| OpenCL | 2.0 |
| Vulkan | 1.3 |
| Connectivity | |
| Ports | 3x DisplayPort 1.4 (with DSC) |
| 1x HDMI 2.1 (2.1 VRR and FRL) | |
| HDMI 4K Support | Yes |
| VR Ready | Yes, Radeon VR Ready Premium |
| General | |
| Features | 7nm GPU |
| PCI Express 4.0 Support | |
| AMD FreeSync Technology | |
| DisplayPort 1.4 with DSC | |
| HDMI 2.1 VRR | |
| HDMI 4K Support | |
| 4K H264 Decode | |
| 4K H264 Encode | |
| H265/HEVC Decode | |
| H265/HEVC Encode | |
| AV1 Decode | |
| Video Streaming up to 8K | |
| Game Driver Optimizations | |
| AMD Radeon VR Ready Premium | |
| AMD FidelityFX | |
| Radeon Image Sharpening | |
| AMD Radeon Anti-Lag | |
| AMD Radeon Software | |
| Hardware-Accelerated Ray Tracing | |
| Power Requirements | |
| Total Graphics Power (TGP) | 175W |
| Minimum Recommended Power Supply | 500W |
| Recommended Power Supply | 550W PSU |
| Power Connector | 1x 8-Pin PCI PEG |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 2 Slot |
| Dimensions | 235 x 125 x 47mm (L x H x W) |
| Weight | 675g |
| Warranty Information | |
| Warranty | 3 Year Warranty |
MSI RX6650XT Mech 2X 8GB
Contact us if you would like to enquire about this product.
