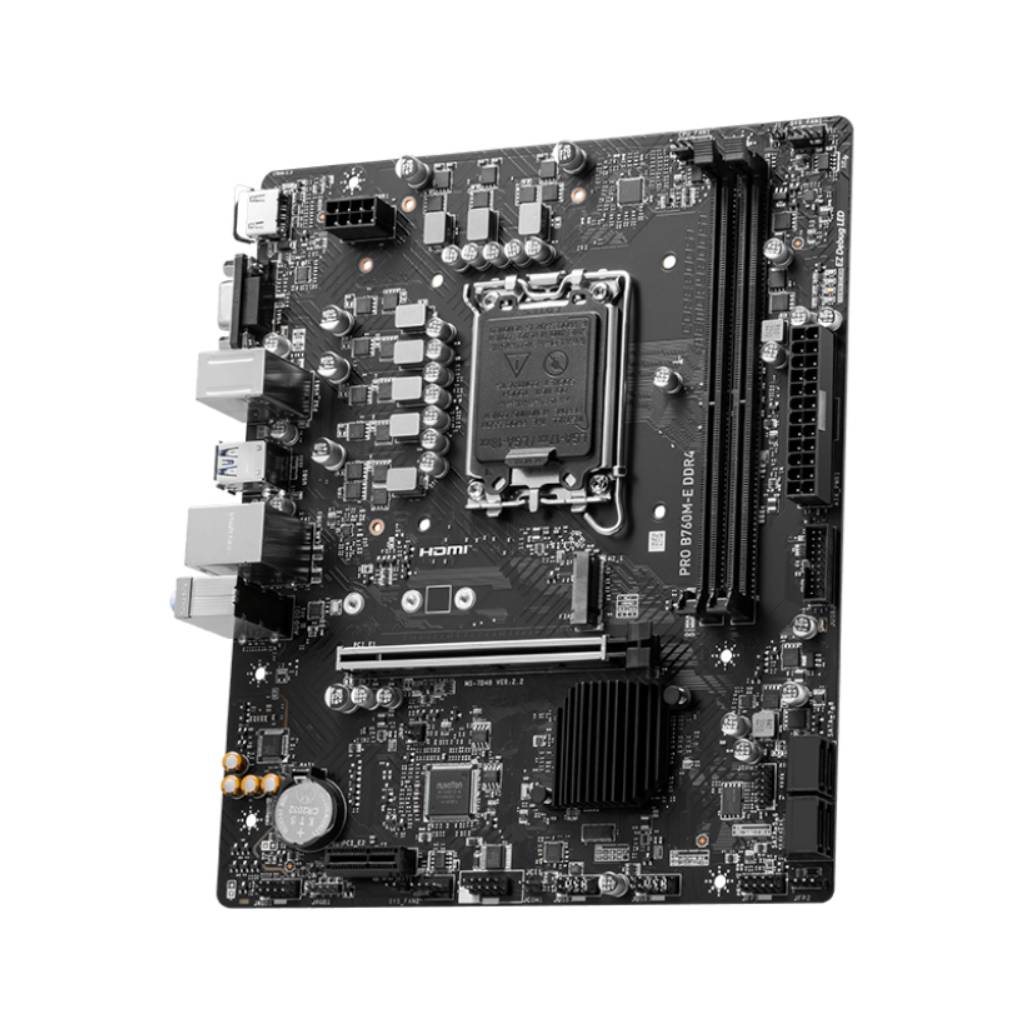

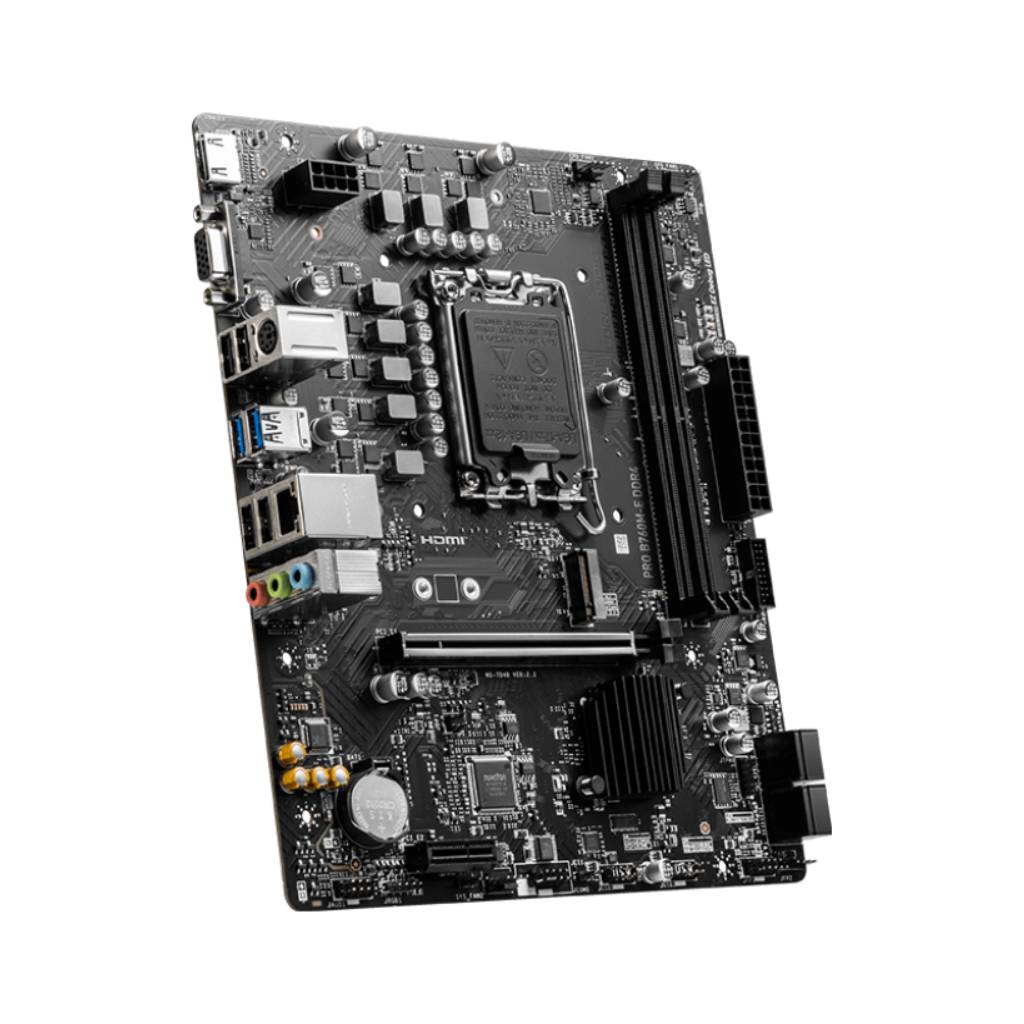

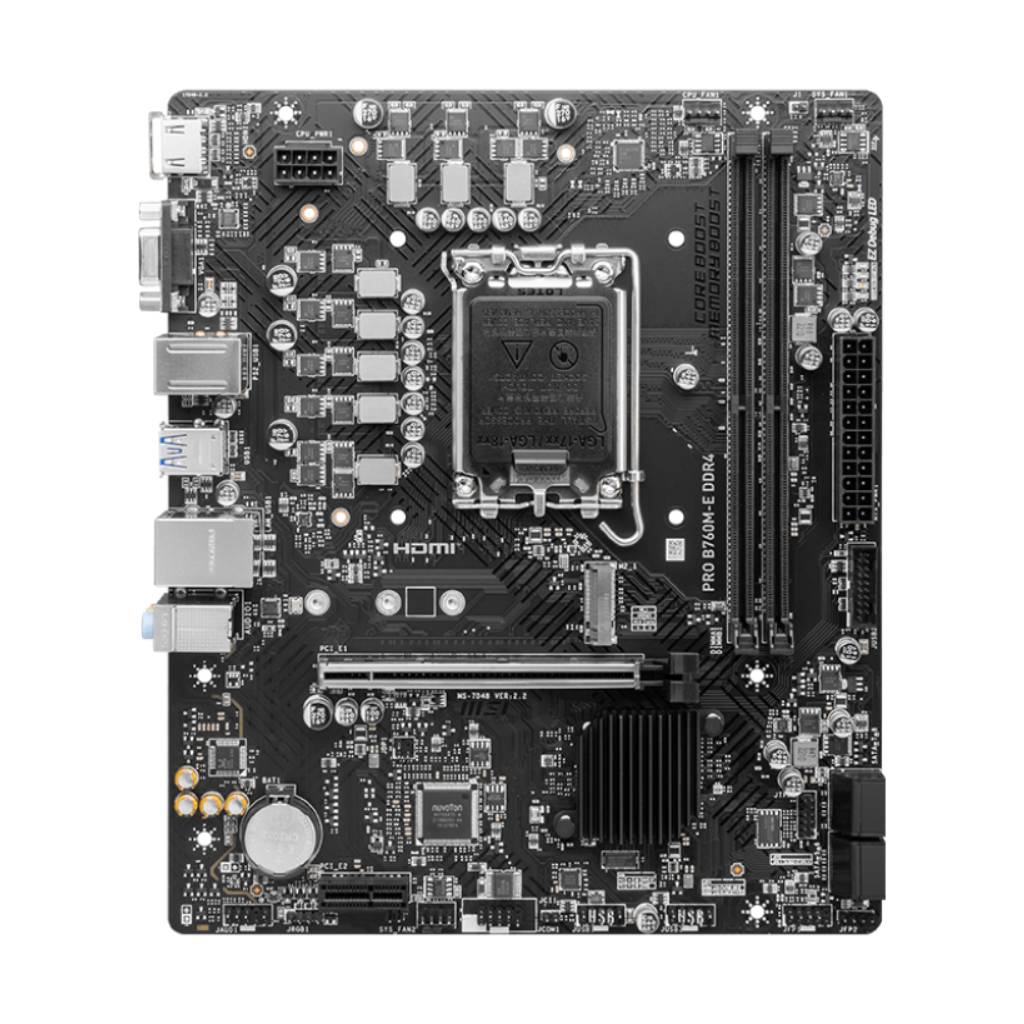

MSI PRO B760M-E DDR4 Motherboard

R2599,00

Brand: MSI
Series: PRO Series
Model: PRO B760M-E DDR4
Chipset: Intel B760 Express

In stock

Browse More Products

Description

MSI PRO B760M-E DDR4 Motherboard

Full description MSI.

Supports 12th/13th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket.
Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO B760M-E DDR4
CPU Support	LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
CPU Support	LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset	Intel B760 Express
Memory Support
Intel 12th & 13th Gen Series	2x DDR4, Maximum Memory Capacity 64GB
	Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
	Max. overclocking frequency:
	1DPC 1R Max speed up to 4800 MHz
	1DPC 2R Max speed up to 4600 MHz
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
	Supports Intel Extreme Memory Profile
Video
VGA	1x VGA D-Sub, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
HDMI	1x HDMI port, supporting a maximum resolution of 4096×2160 @ 30 Hz, Support for HDMI 1.4 and HDCP
HDMI	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical Slot
Intel B760 Chipset	1x PCIe 3.0 x1 Physical, x1 Electrical Slot
Storage
CPU Direct	1x M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Intel B760 Chipset	4x SATA 6Gb/s connectors
Intel B760 Chipset	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Networking
LAN	Realtek RTL8111H Gigabit LAN 10/100/1000Mbps
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek ALC897 Codec
Codec	7.1-Channel USB High Performance Audio with front-panel jack retasking

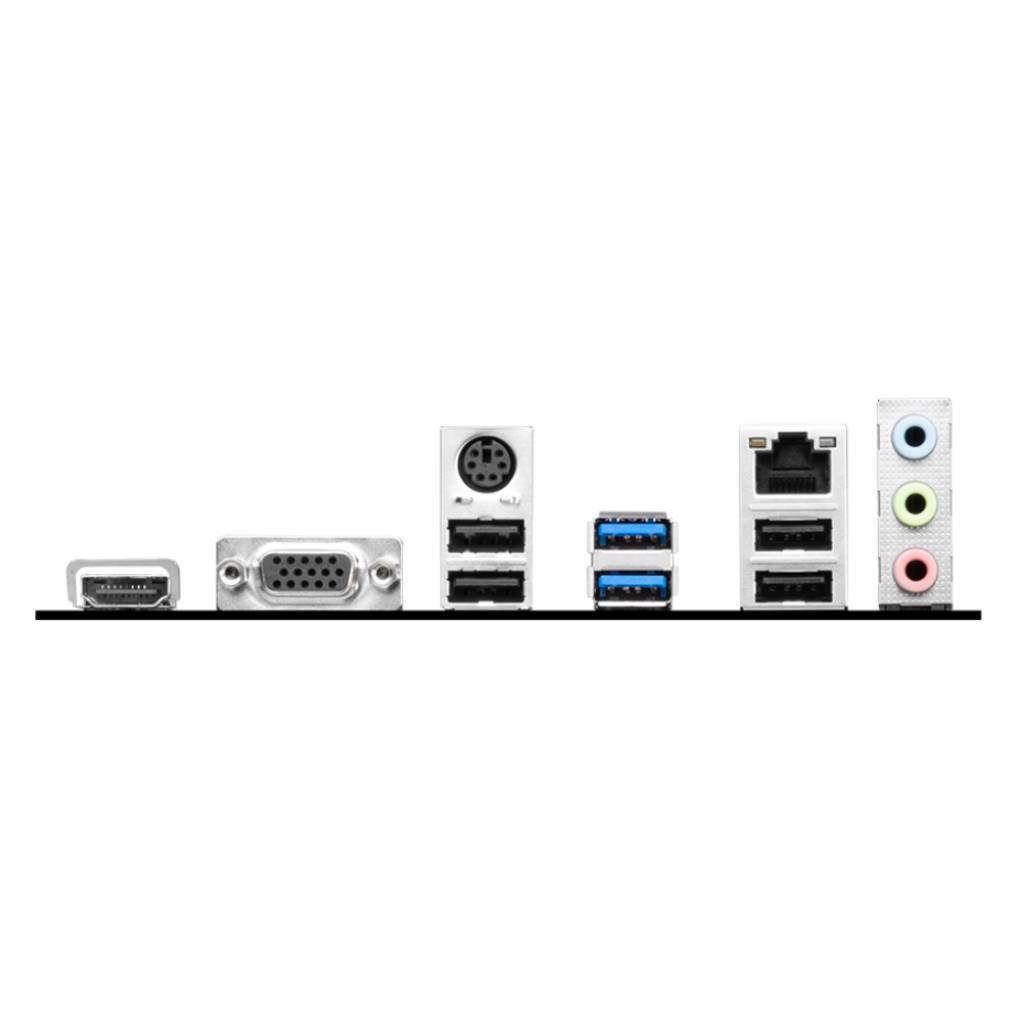

Connectivity
Ports	3x USB 2Gb/s Type-A Ports
	4x USB 2.0 Type-A Ports
	1x VGA D-Sub
	1x HDMI 1.4
	3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
	1x PS/2 Combo Port
	1x Realtek RTL8111H Gigabit LAN
Buttons	N/A
General
Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	2x USB 2.0
	1x USB 3.2 Gen1 Type A
I/O Controller	NUVOTON NCT6687D Controller Chip
LED Displays	4x EZ Debug LED
BIOS	1x 256 Mb flash
	UEFI AMI BIOS
	ACPI 6.4, SMBIOS 3.5
	Multi-language
Form Factor	Micro-ATX Form Factor, 236.16 x 200mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit
Boxed Accessories	Quick installation guide
	European Union regulatory notice
	1x SATA 6Gb/s cable
	1 x M.2 screw and standoff package (1 set/pack)
Warranty Information
Warranty	3 Year Warranty

MSI PRO B760M-E DDR4 Motherboard

Additional information

Intel Motherboard Chipset	Intel B760
Intel Motherboard Form Factor	Micro-ATX
Intel Motherboard Manufacturer	MSI
Intel Motherboard Socket	LGA 1700
