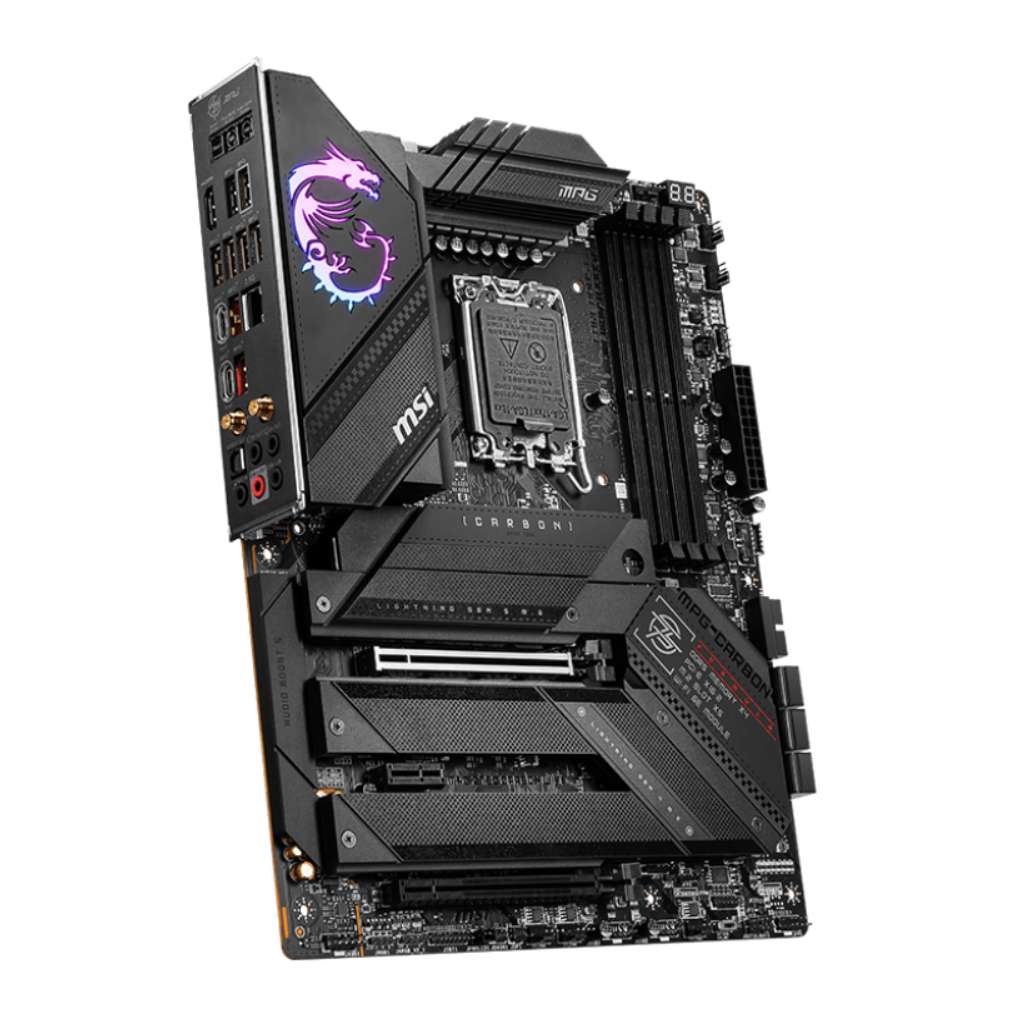

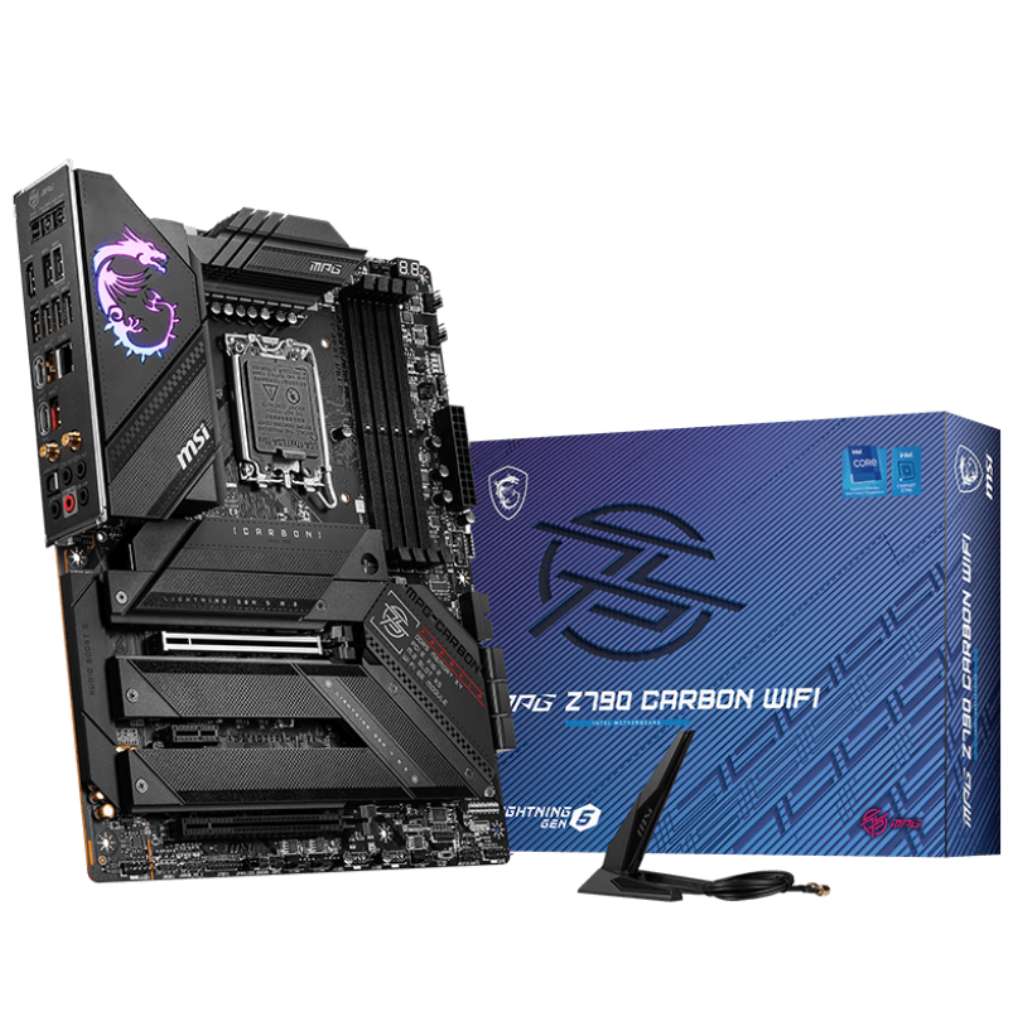

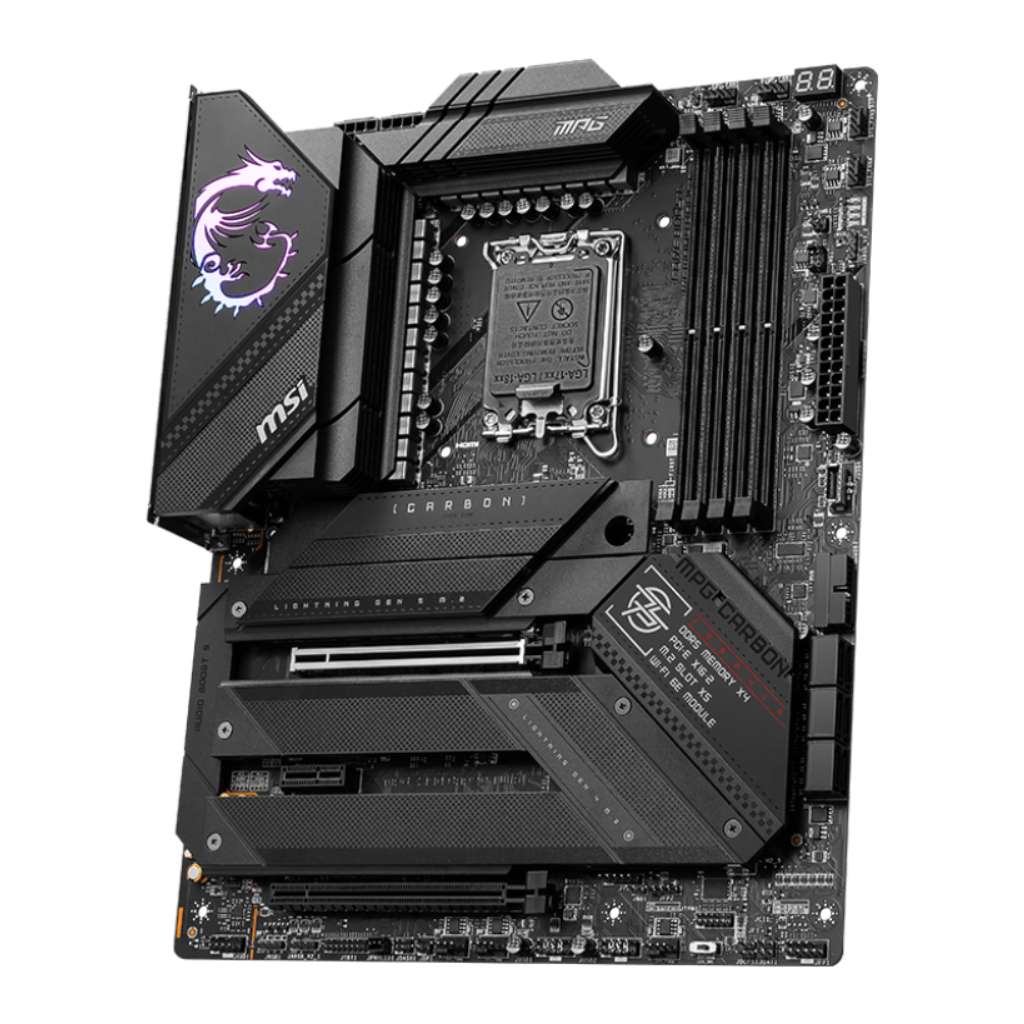

MSI MPG Z790 Carbon WiFi DDR5 Motherboard

R 10 261.00

Prices Displayed are for EFT Only.

  • Brand: MSI
  • Series: MPG Z790 Carbon WiFi
  • Model: MPG Z790 CARBON WIFI
  • Chipset: INTEL Z790
  • CPU: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Socket: LGA 1700
SKU Z790 CARBON WIFI Categories , ,
Add to wishlist

In stock

Only 1 items left in stock!

Gauteng: 1 - 3 Business days

Cape Town & Durban: 2 - 4 Business days

Other: 2 - 7 Business days


MSI MPG Z790 Carbon WiFi DDR5 Motherboard

Full description MSI.

  • Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7600+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 8-layer PCB made by server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation



Specifications
CPU
  1. Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
Chipset


  1. Intel® Z790 Chipset
Memory


  1. 4x DDR5, Maximum Memory Capacity 128GB
    Memory Support 7600+(OC)/7400 (OC)/7200(OC)/
    7000(OC)/6800(OC)/6600(OC)/
    6400(OC)/6200(OC)/6000(OC)/5800(OC)/
    5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC) /4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7600+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® XMP3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
Graphics



 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots



 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage



 5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
6x SATA 6G port
Ethernet


  1. Intel® 2.5Gbps LAN
Wireless & Bluetooth



 Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz /
5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.“

USB





 4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
6x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front)
Audio
  1. Realtek® ALC4080 Codec
    7.1-Channel USB High Performance Audio
    Supports up to 32-Bit/384 kHz playback on front panel

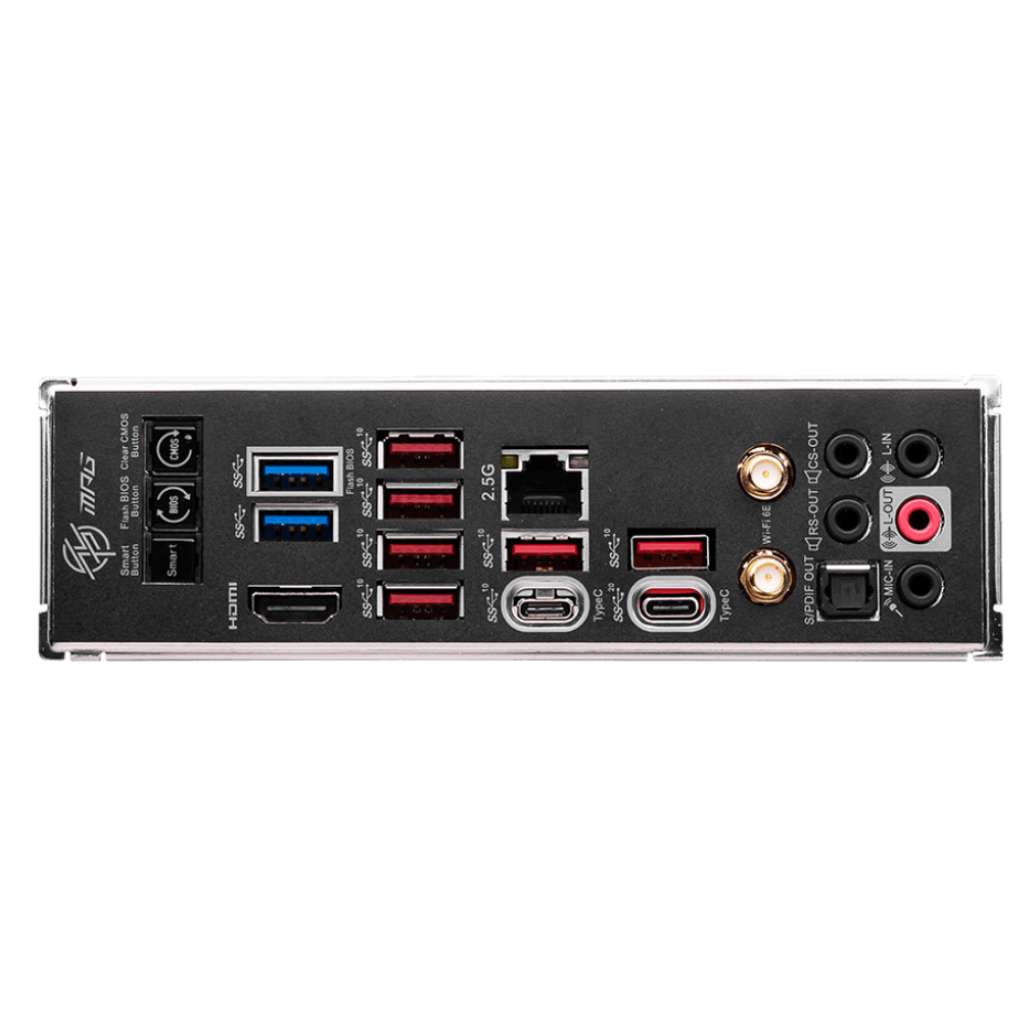

Back Panel I/O Ports




  1. Clear CMOS / Flash
  2. USB 3.2 Gen 1 5 Gbps (Type-A)
  3. 2.5G LAN
  4. USB 3.2 Gen 2 10Gbps (Type-A)
  5. Audio Connectors
  6. Smart Button
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. USB 3.2 Gen 2 10Gbps (Type-C)
  10. USB 3.2 Gen 2×2 20Gbps (Type-C)
  11. Wi-Fi / Bluetooth
  12. Optical S/PDIF Out

Internal I/O Connectors
  1. 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    5x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0
    2x USB 3.2 Gen1 Type A
    1x USB 3.2 Gen 2×2 Type C
LED Special Features


  1. 1x EZ LED Control switch
    1x 2-Digit Debug Code LED
    4x EZ Debug LED
BIOS


  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bi
Form Factor


  1. ATX
    243.84mmx304.8mm
Warranty Information
Warranty 3 Years



MSI MPG Z790 Carbon WiFi DDR5 Motherboard

Contact us if you would like to enquire about this product.

← Back

Thank you for your response. ✨

Additional information

Global Brands

MSI
Global Manufacturer

Intel
Global CPU Socket

LGA 1700
Global Motherboard Chipset

Intel Z790
Global MB Form Factor

ATX
