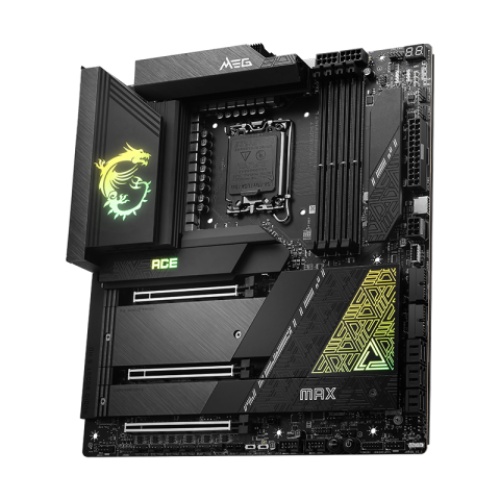

MSI MEG Z790 ACE MAX WiFi 7 DDR5 LGA1700 E-ATX Motherboard
Full description MSI.
- Unleash the power of gaming with MEG Z790 ACE MAX. Boasting premium aesthetics featuring a sleek black finish and silver embellishments, this E-ATX gaming motherboard takes Intel 14th Gen and 13th Gen Core processors to new heights.
- With exceptional hardware support and durability, it thrives in extreme settings, pushing boundaries in processor overclocking, DDR5 memory, and graphics card (GPU) performance. Elevate your gaming experience with MEG Z790 ACE MAX.
- The MEG series is revealed as a legend that represents the ultimate elegance in gaming.
With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.
Specifications |
|
| Brand: | MSI |
| Series: | Z790 MAX Series |
| Model: | MEG-Z790-ACE-MAX |
| Technical Specs | |
| CPU Support: | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Chipset: | INTEL Z790 |
| Memory: | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6800+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 6000+ MHz Supports Intel® XMP3.0 OC |
| Onboard Graphics: | 1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz. |
| Audio: | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Connectivity | |
| LAN: | 2x Intel® 2.5Gbps LAN |
| Wireless: | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Bluetooth: | Supports Bluetooth® 5.4 |
| Expansion Slots: | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage Interface: | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 devices 6x SATA 6G |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2×2 Type C ports V-check point 1x ARGB+FAN Header (JAF_1) |

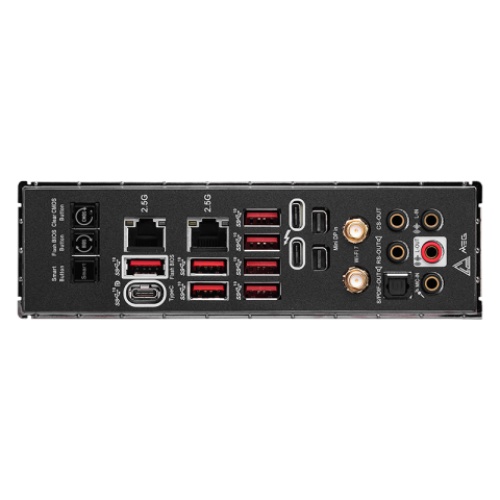

| Back Panel Connectors: |
|
| Software & Features | |
| BIOS: | – |
| Software: | MSI Center |
| Features: | Maximum 5 x M.2 Connectors |
| Dual Thunderbolt 4 ports | |
| Extreme Power Design | |
| Outstanding Cooling Solution | |
| Latest Wi-Fi 7 solution | |
| General | |
| Operating System: | Support for Windows® 11 64-bit |
| Form Factor: | E-ATX |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
MSI MEG Z790 ACE MAX WiFi 7 DDR5 LGA1700 E-ATX Motherboard
Contact us if you would like to enquire about this product.
