MSI MAG X870E TOMAHAWK WiFi ATX AM5 AMD Motherboard
Full description MSI.
- The MSI MAG X870E TOMAHAWK WiFi is a premium ATX AM5 motherboard designed for high-performance gaming and enthusiast PC builds, combining the flagship AMD X870E chipset with strong next-generation connectivity, fast storage support, and robust platform flexibility.
- Built for modern Ryzen systems, it supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors plus DDR5 memory up to 256GB, giving builders an excellent foundation for demanding gaming, multitasking, content creation, and long-term upgrade potential.
- Expansion and storage are built for speed, with PCIe 5.0 x16 graphics support, four M.2 slots including two PCIe 5.0 x4 slots, and four SATA 6Gb/s ports, making it ideal for fast SSD-based gaming and workstation builds.
- Connectivity is exceptionally strong, featuring Wi-Fi 7, 5G LAN, dual USB4 40Gbps Type-C, multiple high-speed USB ports, HDMI, and rich rear I/O, giving users excellent networking, peripheral, and display support for modern desktop systems.
- Premium usability features including EZ Debug LED, Flash BIOS Button, extensive internal fan and RGB headers, Realtek ALC4080 7.1-channel audio, and broad cooling support make this motherboard a strong choice for clean, powerful custom PC builds.
| Specifications | |
|---|---|
| Brand | MSI |
| Series | MAG |
| Model | X870E TOMAHAWK WiFi |
| Product Type | ATX AM5 AMD Motherboard |
| Platform | |
| Chipset | AMD X870E |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen 9000, 8000, 7000 Series Desktop Processors |
| Memory | |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Expansion Slots | |
| PCIe Slot 1 | 1 x PCIe 5.0 x16 |
| PCIe Slot 2 | 1 x PCIe 5.0 x1 |
| PCIe Slot 3 | 1 x PCIe 4.0 x4 |
| Storage | |
| M.2 Slots | 4 x M.2 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Networking | |
| LAN | Realtek 5G LAN |
| Wi-Fi | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| USB & Display | |
| Rear USB4 | 2 x USB4 40Gbps Type-C |
| Front USB Type-C | 1 x USB 20Gbps Type-C |
| HDMI | 1 x HDMI |
| Audio | |
| Audio Codec | Realtek ALC4080 7.1 Channel |
| Internal I/O Connectors | |
| Power Connectors | 1 x 24-pin ATX, 2 x CPU Power, 1 x PCIe 8-pin |
| Fan Headers | 1 x CPU Fan, 1 x Pump Fan, 6 x System Fan |
| RGB Headers | 3 x ARGB, 1 x RGB |
| Back Panel Connectors | |

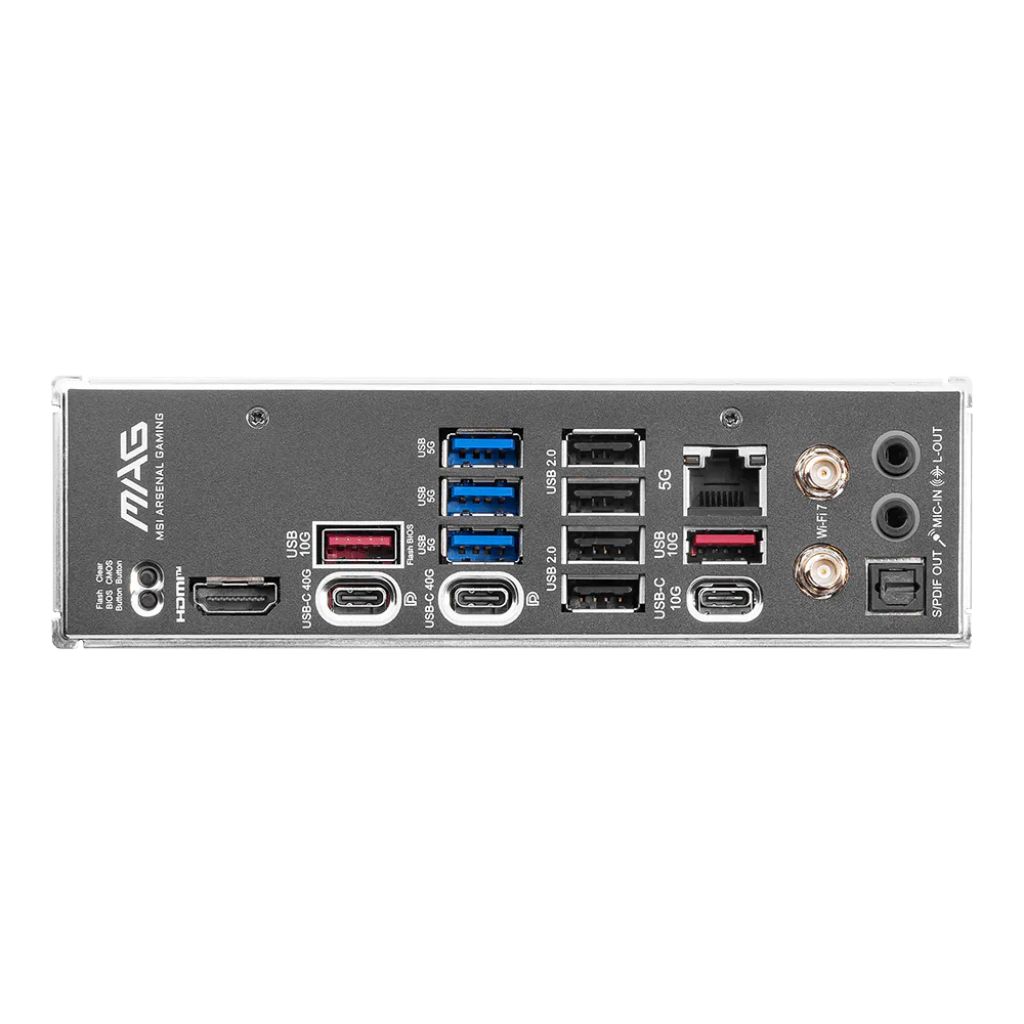

| Rear I/O | USB4 Type-C, USB Type-A, HDMI, 5G LAN, Wi-Fi antenna, Audio Jacks, Optical S/PDIF |
| Special Features | |
| Debug Features | EZ Debug LED, EZ Digi-Debug LED |
| Operating System | |
| OS Support | Windows 11 64-bit |
| Warranty Information | |
| Warranty | 3 Year Warranty |
