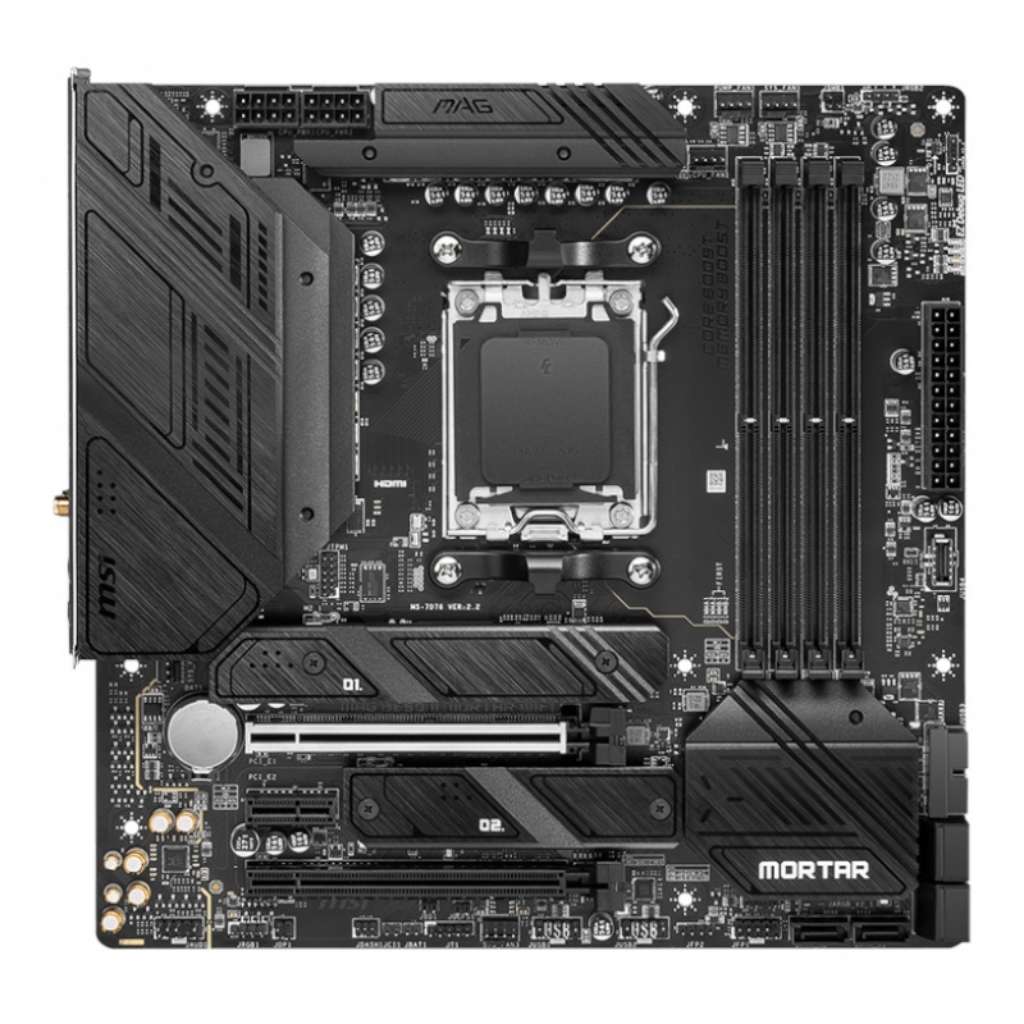

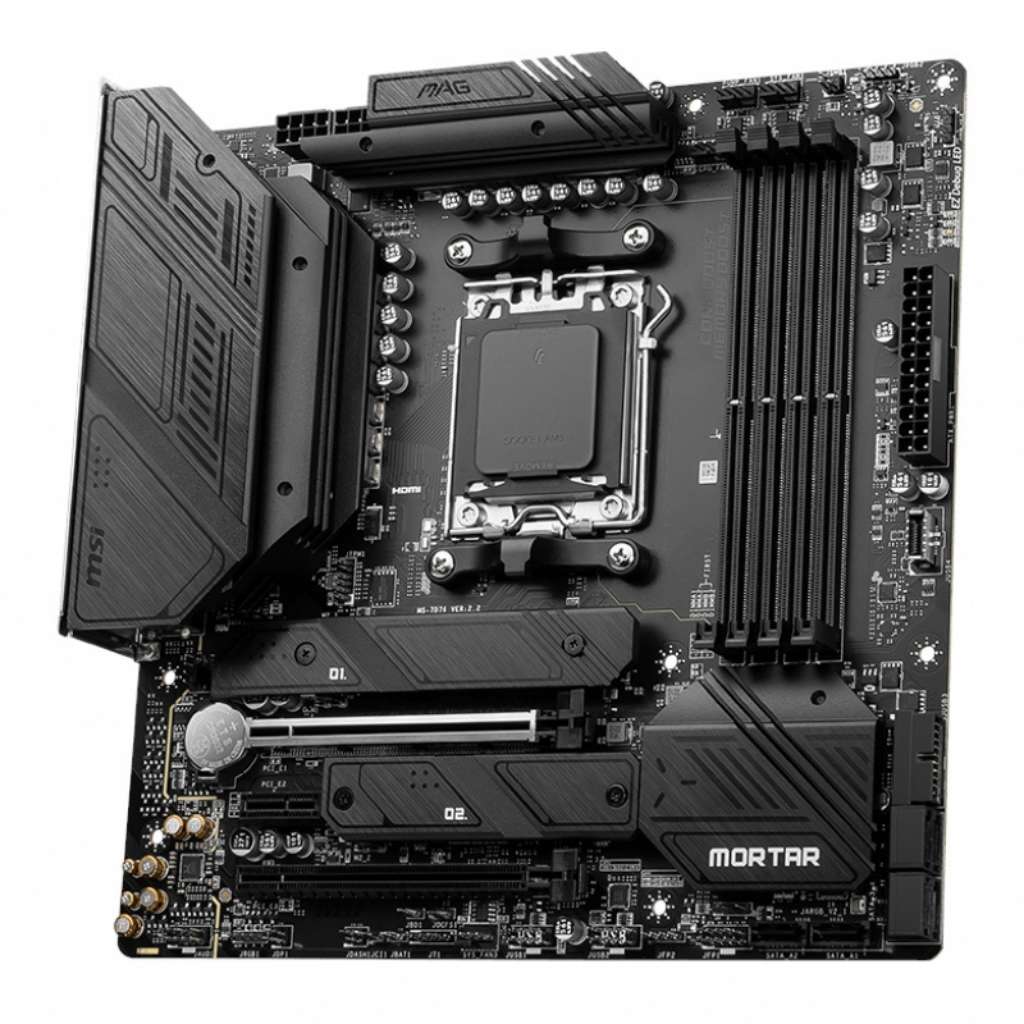

MSI MAG B650M Mortar WIFI Motherboard
Full description MSI.
FEATURES:
Specifications |
|
| Brand: | MSI |
| Series: | AMD B650 Series |
| Model: | MAG-B650M-MORTAR-WIFI |
| Technical Specs | |
| CPU Support: | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset: | AMD B650 |
| Memory: | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz |
| Onboard Graphics: | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* |
| Audio: | Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Connectivity | |
| LAN: | Realtek® RTL8125B 2.5Gbps LAN |
| Wireless: | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth: | Supports Bluetooth® 5.3* |
| Expansion Slots: | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage Interface: | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |

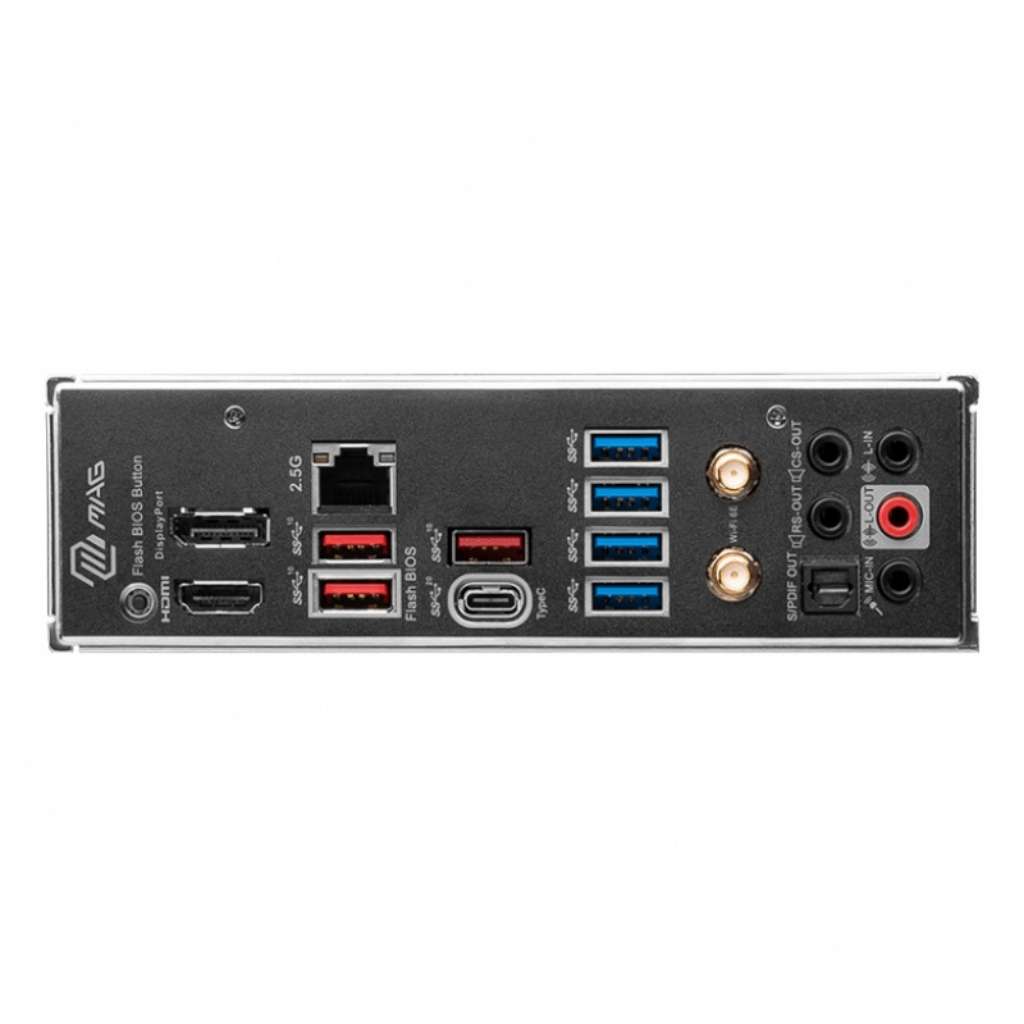

| Back Panel Connectors: | DisplayPort 1.4 2.5G LAN Port USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A Wi-Fi / Bluetooth Antenna HD Audio Connectors Flash BIOS Button HDMI™ 2.1 Port USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT |
| Software & Features | |
| BIOS: | – |
| Software: | – |
| Features: | Latest DDR5 Memory |
| Lightning Gen4 Solution | |
| M.2 Shield FROZR | |
| Lightning USB 20G | |
| Audio Boost 5 | |
| General | |
| Operating System: | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor: | mATX 243.84mmx243.84mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
MSI MAG B650M Mortar WIFI Motherboard
Contact us if you would like to enquire about this product.
| AMD MB Manufacturer | MSI |
|---|---|
| AMD Motherboard Chipset | AMD B650 |
| AMD Motherboard Form Factor | Micro-ATX |
| AMD Motherboard Socket | AM5 |
