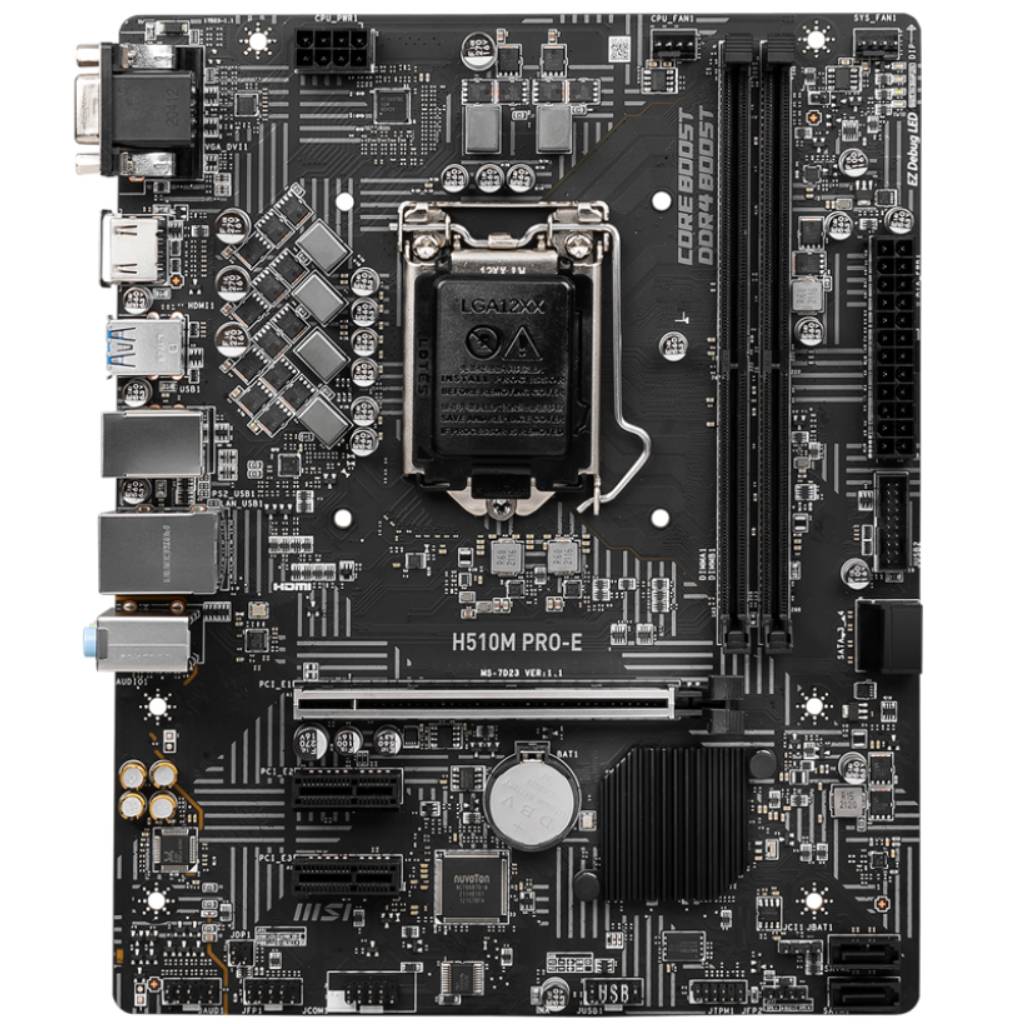

MSI H510M PRO-E Motherboard

MSI H510M PRO-E Motherboard

Full description MSI.

• MSI PRO series motherboards help users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
• MSI motherboards feature tons of convenient and smart designs for DIY users, and countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. This makes it so easy to install your own motherboard without any issues.
• MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FEATURES:

• Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket.
• Supports DDR4 Memory, up to 3200MHz(Max).
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
• Lightning Fast Experience: PCIe 4.0.
• Audio Boost: Reward your ears with studio grade sound quality.
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

SPECIFICATIONS:

• Socket: 1200
• CPU Support: Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
• Chipset: Intel® H510 Chipset
• DDR4 Memory: Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR), Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Memory Channel: Dual Channel
• DIMM Slots: 2
• Max Memory (GB): 64
• PCI-E x16: 1
• PCI-E x1: 2
• SATAIII: 4
• TPM (Header): 1
• LAN: 1x Realtek® RTL8111 Gigabit LAN controller
• USB 3.2 ports (Front): 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 2(Gen 1, Type A)
• USB 2.0 ports (Front): 2
• USB 2.0 ports (Rear): 4
• Audio ports (Rear): Realtek® ALC897 Codec
• VGA: 1
• HDMI: 1
• DirectX: 12
• Form Factor: mATX
• Operating System: Windows® 10 64-bit

WHAT’S IN THE BOX:

• MSI H510M PRO-E DDR4 Intel 1200 mATX Motherboard – Black x1
• SATA Cables x2
• Driver DVD x1
• I/O Shield x1
• Quick Install Guide x1

MSI H510M PRO-E Motherboard

Contact us if you would like to enquire about this product.
