MSI A520M-A PRO AM4 Micro-ATX Motherboard

R 1 317.00

Discounted Price When Paying By EFT

  • Brand: MSI
  • Series: Pro Series
  • Model: A520M-A PRO
  • CPU: Supports AMD Ryzen
    5000 & 3000 Series Desktop Processors
    and AMD Ryzen 4000 G-Series Desktop Processors
  • Chipset: AMD A520 Chipset

In stock

SKU A520M-APRO Categories , ,


MSI A520M-A PRO AM4 Micro-ATX Motherboard

Full description MSI.

  • MSI PRO Series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.
  • MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.



Brand MSI
Series Pro Series
Model A520M-A PRO
CPU Supports AMD Ryzen
5000 & 3000 Series Desktop Processors
and AMD Ryzen 4000 G-Series Desktop Processors
Chipset AMD A520 Chipset
Memory 2x DDR4 Memory Slots, Support Up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/
2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /
3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266
/4400/ 4600 MHz by A-XMP OC MODE
1DPC 1R Max Speed 4600 MHz
1DPC 2R Max Speed 3866 MHz
Dual Channel Memory Architecture
Supports Non-ECC UDIMM Memory
Supports ECC UDIMM Memory (Non-ECC Mode)
Supports Un-Buffered Memory
Expansion Slots 1x PCIe 3.0 x1 Slot *1
1x PCIe x16 Slot
On-Board Graphics 1x HDMI 1.4 Port, Supports a Maximum
Resolution of 4096×2160 @60Hz *2, *3
Support for HDMI 1.4 Version, HDCP 1.4 & 2.3
1x DVI-D Port, Supports a
Maximum Resolution of 1920×1200@60Hz *2
Maximum Shared Memory of 16 GB
Storage AMD A520 Chipset
4x SATA 6Gb/s Ports
1x M.2 Slot (Key M) (from AMD Processor)
Supports PCIe 3.0 *1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 Storage Devices
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA Storage Devices
Supports RAID 0 and RAID 1 for M.2 NVMe Storage Devices
USB AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps Ports are Available Through
the Internal USB 3.2 Gen 1 5Gbps Connector
6x USB 2.0 Ports (2 Type-A Ports on the Back Panel,
4 Ports Through the Internal USB 2.0 Connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the Back Panel
Audio Realtek ALC892/ALC897 Codec
7.1-Channel High Definition Audio
LAN 1x Realtek RTL8111H Gigabit LAN Controller
Internal Connectors 1x 24-pin ATX Main Power Connector
1x 4-pin ATX 12V Power Connector
4x SATA 6Gb/s Connectors
1x M.2 Slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Connector (Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports)
2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports)
1x 4-pin CPU Fan Connector
1x 4-pin System Fan Connectors
1x Front Panel Audio Connector
2x System Panel Connectors
1x Chassis Intrusion Connector
1xTPM Module Connector
1x Clear CMOS Jumper

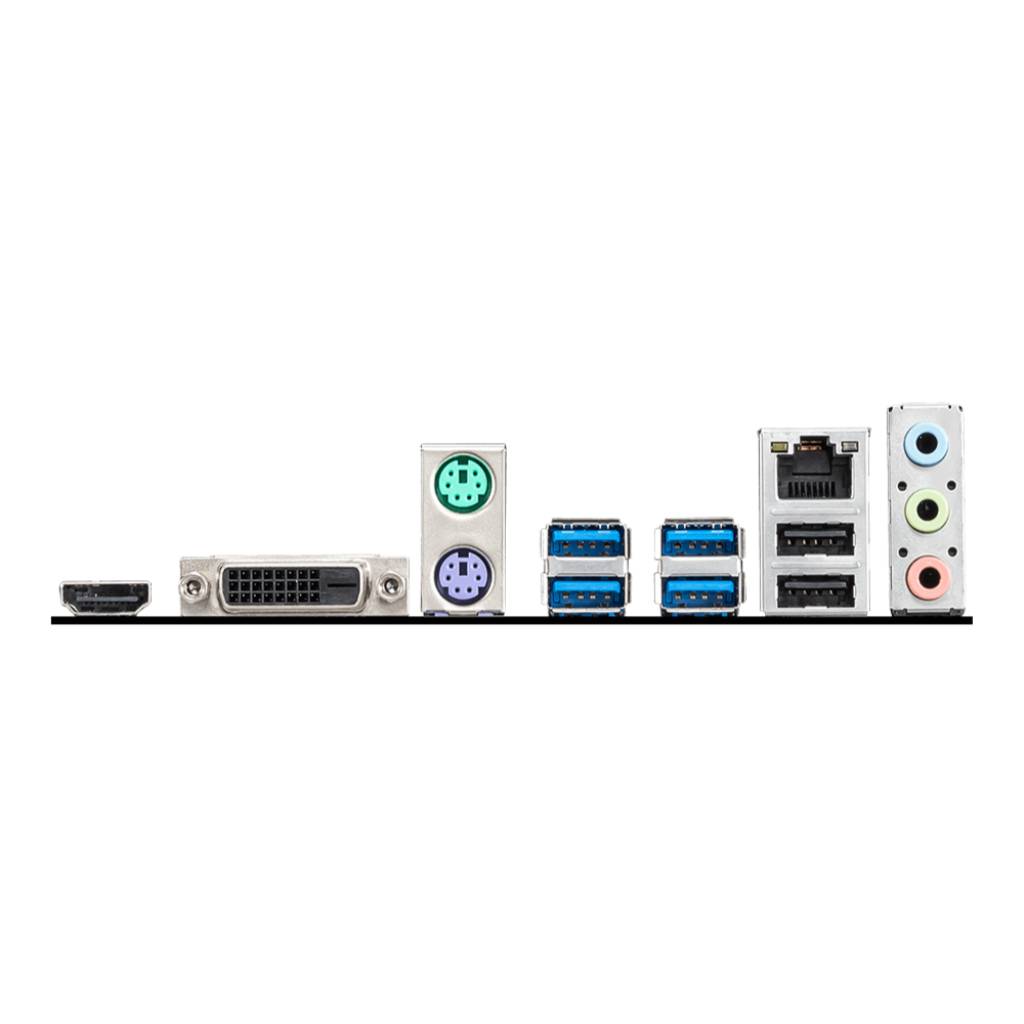

Back Panel Ports 1x LAN Port
1x DVI-D
Keyboard / Mouse
4x USB 3.2 Type-A Gen 1 5Gbps
2x USB 2.0 Type-A Ports
3x Audio Connectors
Mounting 8x Mounting Holes
Dimensions Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Notes *1 The supported specification depends on installed processor.
*2 Available for the processor with integrated graphics.
*3 Graphics specifications may vary depending on the CPU installed.
Warranty Information
Warranty 3 Year Warranty
