Mecer Axpert V 5kW Pure Sine Wave Inverter

R10999,00 Inc. VAT

  • Configurable AC/Solar Input priority via LCD setting
  • PWM Solar charger Type
  • 2400W Maximum PV Array power
  • 105 VDC Maximum PV Array open Circuit voltage
  • USB & RS-232 communication Port
  • 48 VDC battery voltage
  • 10 MS transfer time

8 in stock

Browse More Products

Description

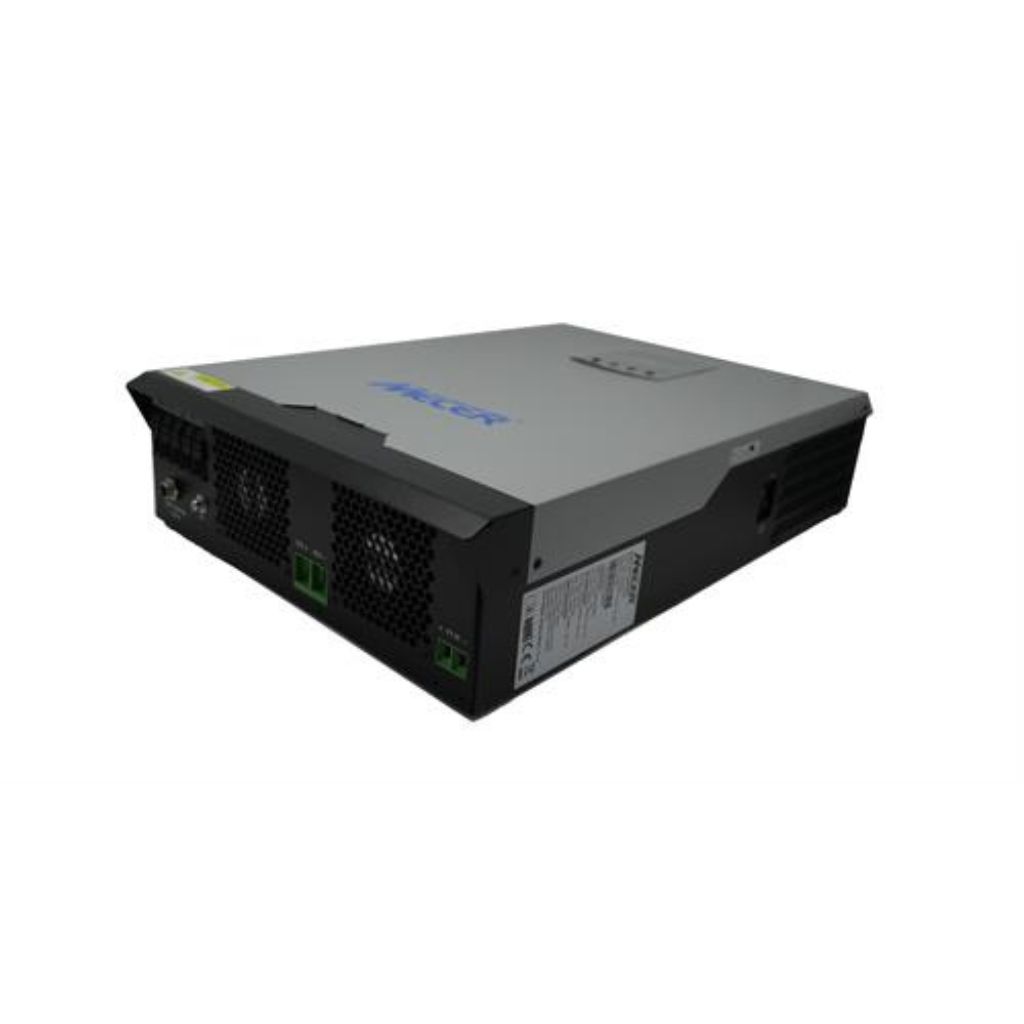

Mecer Axpert V 5kW Pure Sine Wave Inverter

SOL-I-AX-5VP

Mecer Axpert V 5kW Pure Sine Wave Inverter with 2400W PWM controller – Configurable AC/Solar Input priority via LCD setting, PWM Solar charger Type, 2400W Maximum PV Array power, 105 VDC Maximum PV Array open Circuit voltage, USB & RS-232 communication Port, 48 VDC battery voltage, 10 MS transfer time, Retail Box , 1 year Limited Warranty

Product Overview

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
There are two different types of built-in solar chargers: PWM and MPPT solar charger.

Features

• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting • Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Optional anti-dust kit

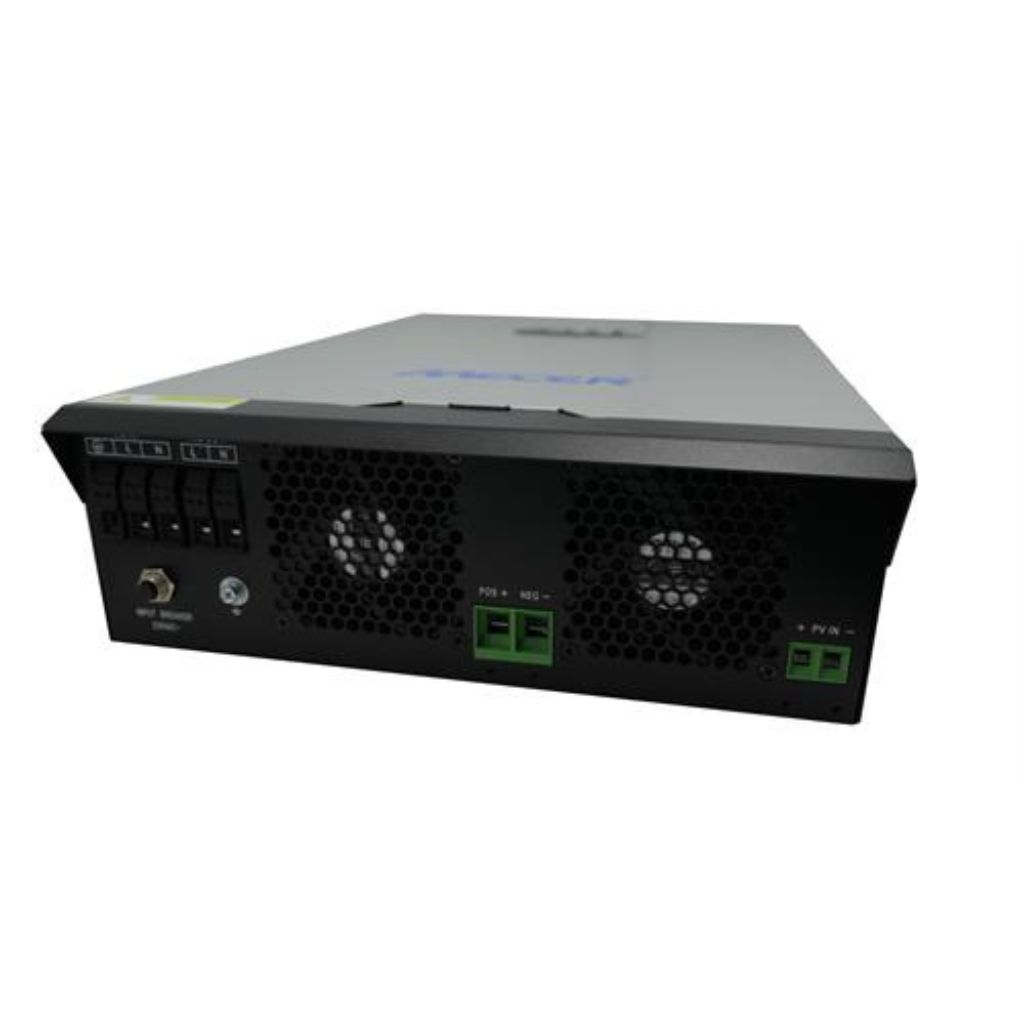

1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input
8. AC output
9. PV input
10. Battery input
11. Circuit breaker

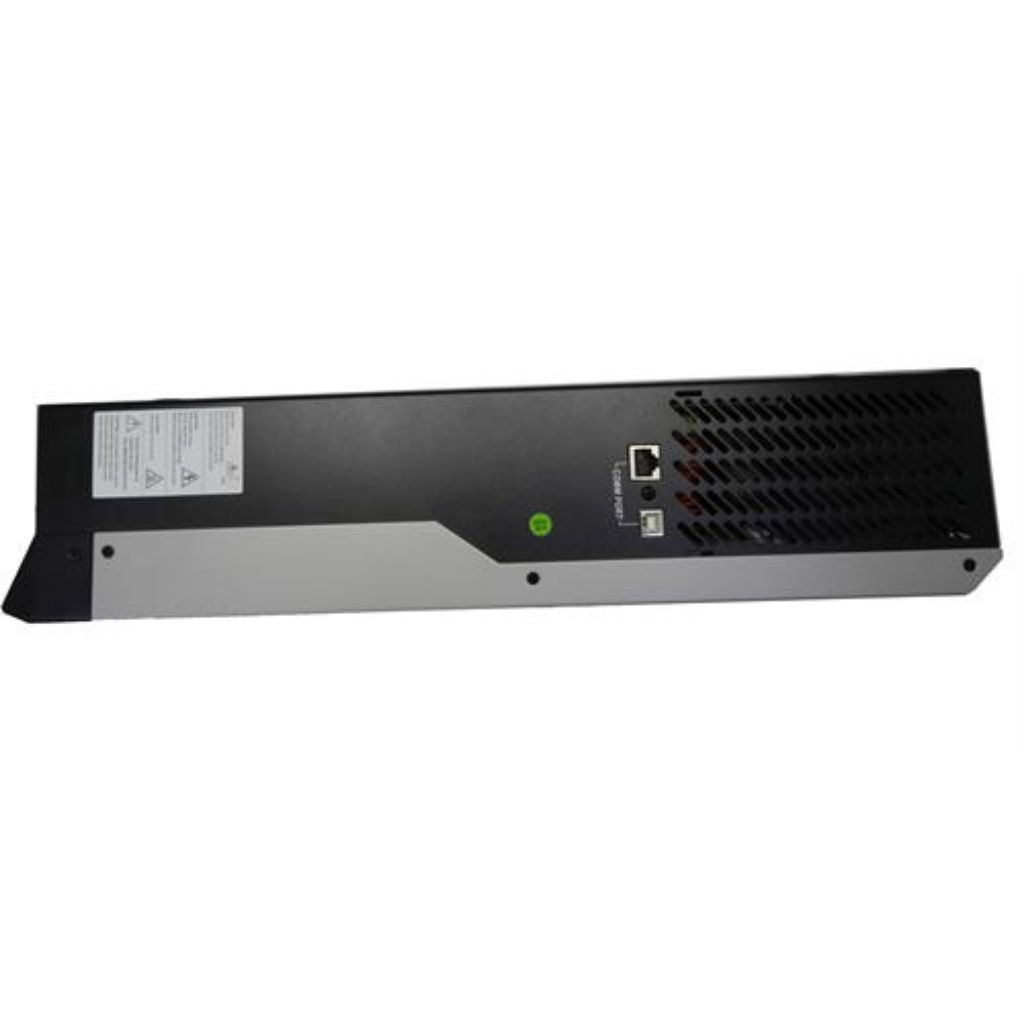

12. USB communication port
13. RS-232 communication port
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. power on/off switch
7. AC input
8. AC output
9. PV input
10. Battery input
11. Fuse
12. USB communication port
13. R5-232 communication port

Specifications

• Stock Code: SOL-I-AX-5VP
• Description: Mecer Axpert V 5kW Pure Sine Wave Inverter with 2400W PWM controller
• Input Voltage Waveform: Sinusoidal (utility or generator)
• Nominal Input Voltage: 230Vac
• Low Loss Voltage: 170Vac±7V (UPS); 90Vac±7V (Appliances)
• Low Loss Return Voltage: 180Vac±7V (UPS); 100Vac±7V (Appliances)
• High Loss Voltage: 280Vac±7V
• High Loss Return Voltage: 270Vac±7V
• Max AC Input Voltage: 300Vac
• Nominal Input Frequency: 50Hz / 60Hz (Auto detection)
• Low Loss Loss Frequency: 40±1Hz
• Low Loss Loss Return Frequency: 42±1Hz
• High Loss Frequency: 65±1Hz
• High Loss Return Frequency: 63±1Hz
• Output Short Circuit Protection: Circuit Breaker
• Efficiency (Line Mode): >95% (Rated R Load, Battery Full Charged)
• Transfer Time: 10ms Typical (UPS); 20ms Typical (Appliances)
• Rated Output Power: 5KVA/5KW
• Output Voltage Waveform: Pure Sine Wave
• Output Voltage Regulation: 230Vac±5%
• Output Frequency: 50Hz
• Peak Efficiency: 93%
• Overload Protection: 5s@≥150% LOAD; 10S@105%~150% Load
• Surge Capacity: 2* rated Power for 5 seconds
• Nominal DC Input Voltage: 48Vdc
• Cold Start Voltage: 46.0Vdc
• Low DC Warning Voltage:
• @load < 50%: 46.0Vdc
• @load> 50%: 44.0Vdc
• Low DC Warning Return Voltage:
• @load < 50%: 47.0Vdc
• @load> 50%: 46.0Vdc
• Low DC Cut-off Voltage:
• @load < 50%: 43.0Vdc
• @load> 50%: 42.0Vdc
• High DC recovery Voltage: 62Vdc
• High DC Cut-off Voltage: 63Vdc
• No Load Power Consumption: <55W
Utility Charging Mode
• Charging Algorithm: 3-Step
• AC Charging Current (max): 60Amp (@Vi/p=230vac)
• Bulk Charging Voltage
• Flooded Battery: 58.4
• AGM / Gel Battery: 56.4
• Floating Charging Voltage: 54Vdc
PWM Solar Charging Mode
• Charging Current: 50Amp
• System DC Voltage: 48Vdc
• Operation Voltage range: 60~72Vdc
• Max. PV Array Open Circuit Voltage: 100Vdc
• DC Voltage Accuracy: ±0.3%
• Max Charging Current (AC Charger plus Solar Charger): 110Amp

MPPT Solar Charging Mode

• Charging Current: 60Amp
• PV Array MPPT Voltage Range: 60~115Vdc
• Max. PV Array Open Circuit Voltage: 145Vdc
• Max Charging Current (AC Charger Plus Solar Charger): 120Amp
• Safety Certification: CE
• Operating Temperature Range: -10°C to 50°C
• Storage temperature: -15°C~60°C
• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Dimension (D*W*H), mm: 100x300x400
• Net Weight, kg (PWM Model): 8.5
• Net, kg (MPPT Model): 9.7
Contact us if you would like to enquire about this product
