HAVN BF 360 Flow Mid-Tower E-ATX Desktop Gaming PC Case White – HVN-CA-BF360-03
Full Description HAVN.
- The HAVN BF 360 Flow Mid-Tower E-ATX Desktop Gaming PC Case is built for premium airflow-focused PC builds, combining broad hardware compatibility, clean internal layout options, and strong cooling performance in a sleek white showcase design.
- With support for E-ATX, ATX, Micro-ATX, and ITX motherboards, plus clearance for graphics cards up to 410mm long and CPU air coolers up to 195mm high, the BF 360 Flow is well suited to powerful modern gaming systems.
- The case supports up to 6 fans and radiator compatibility up to 360mm on the top, giving builders strong cooling flexibility for high-performance air or liquid-cooled systems while maintaining a refined mid-tower footprint.

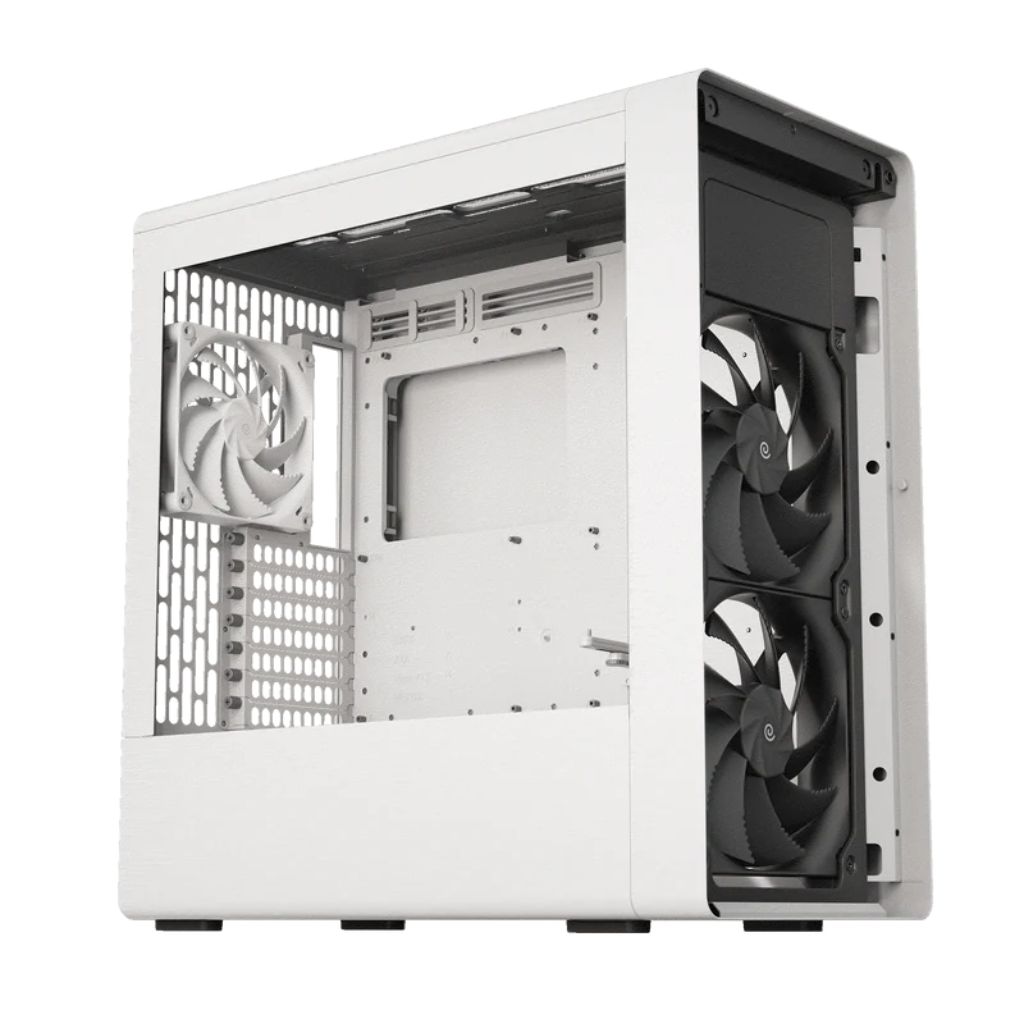

- A built-in PWM fan repeater with 6 total ports helps simplify fan control and cable management, while the included 2 x H18 front fans and 1 x H14 rear fan improve out-of-box airflow for case-version builds.

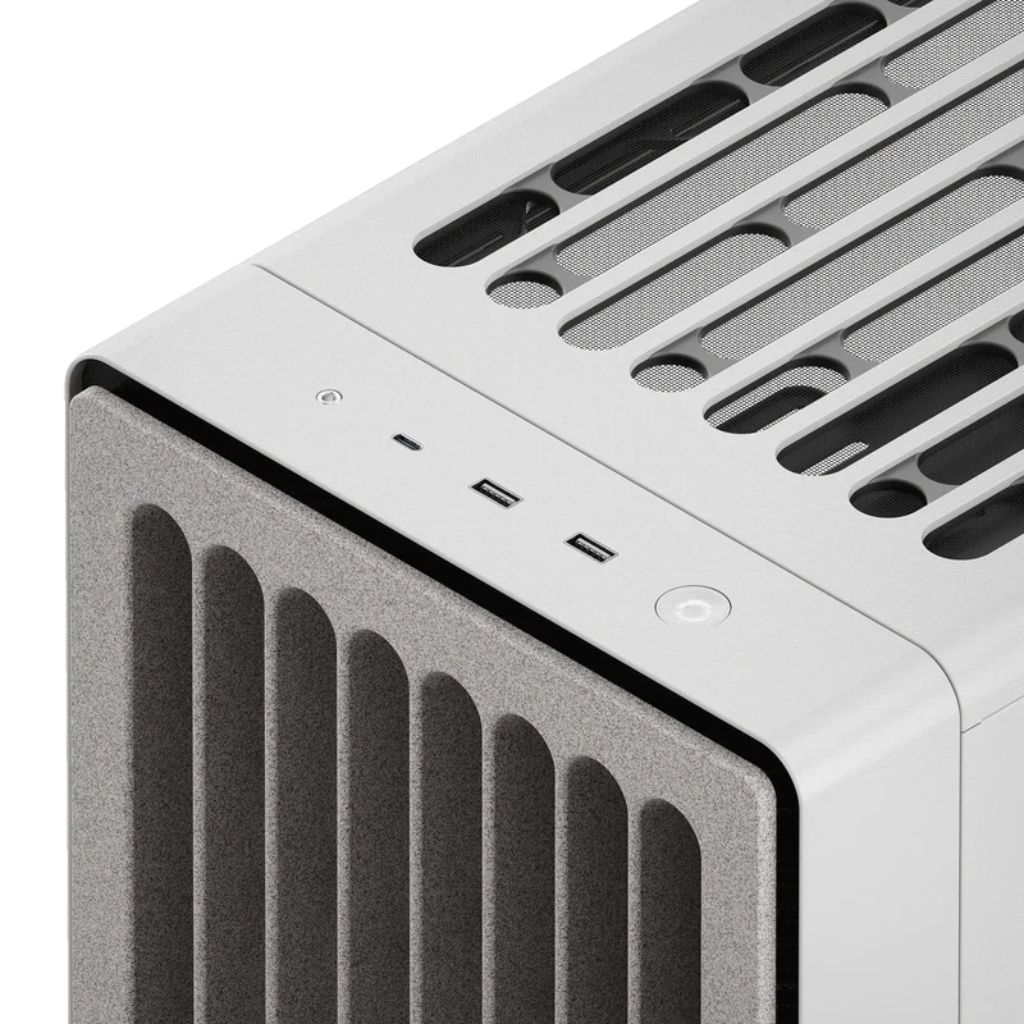

- Premium touches such as USB Type-C front I/O, integrated dust filters, tempered glass, and support for up to 4.5-slot GPUs make the BF 360 Flow an excellent option for enthusiasts wanting clean aesthetics and strong thermal performance.
| Specifications | |
|---|---|
| Brand | HAVN |
| Series | BF 360 Flow |
| Model | HVN-CA-BF360-03 |
| Product Type | Mid-Tower Desktop Gaming PC Case |
| Colour | White |
| Case Information | |
| Form Factor | Mid Tower |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| Motherboard Support | E-ATX, ATX, Micro-ATX, ITX |
| Expansion Slots | 7 |
| GPU Support | 1 – 4.5 Slots |
| Dimensions & Clearance | |
| Case Dimensions | 515 x 254 x 522.6 mm |
| Net Weight | 14.79 kg |
| Graphics Card Clearance | Length: Up to 410 mm, Width: Up to 195 mm |
| CPU Tower Cooler Clearance | Height: Up to 195 mm |
| RAM Clearance | If the radiator and fans thickness is greater than 80 mm: 280 mm – 40 mm / 360 mm – 60 mm |
| Power Supply Support | ATX |
| PSU Clearance | Length: Up to 200 mm (Clearance – 260mm) |
| Cooling Support | |
| Fan Support | Maximum Amount: 6 |
| Top Fan Support | 2 x 180 mm, 2 x 140 mm, 3 x 120 mm |
| Front Fan Support | 2 x 180 mm |
| Rear Fan Support | 1 x 140 mm, 1 x 120 mm |
| Fan PWM Repeater | 1 x PWM repeater, 6 ports total |
| Repeater Location | 1 x Cable Management Tray |
| Fan Connectors | 6 ports per repeater x 4-pin PWM |
| Fan Rated Voltage | 12V |
| Fan Safety Current | Up to 2.6A across 6 ports |
| Power Connector | 1 x SATA Power |
| Power Safety Current | 1 x SATA connector power input, 12V – 2.6A (max) |
| Liquid Cooling Support | Top: 240, 280, 360 mm |
| AIO Thickness Support | Up to 60 mm |
| Pre-installed Fans | 2 x H18 Fan (Front), 1 x H14 Fan (Rear) |
| Storage | |

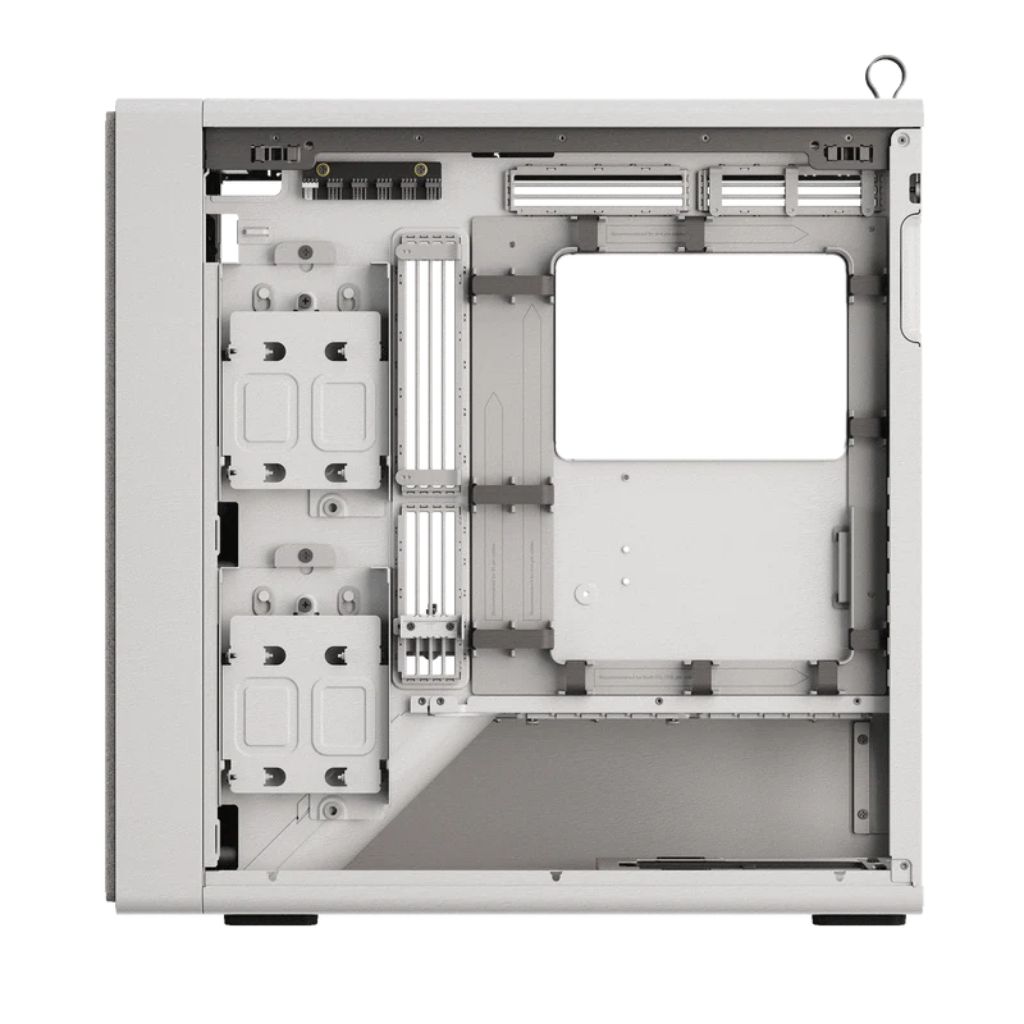

| Right Mount Storage Bays | 2 x 3.5″, 4 x 2.5″ |
| Cable Management Tray Storage Bay | 1 x 3.5″, 2 x 2.5″ |
| Storage Bays Included | 2 x (2 x 3.5″ / 4 x 2.5″) |
| Front I/O | |
| USB Type-C | 1 x USB 3.2 Gen 2 Type-C |
| USB Type-A | 2 x USB 3.2 Gen 1 Type-A |
| Audio | Audio Jack x1 |
| Buttons | Power & Reset Button x1 |
| Dust Management | |
| Front Dust Filter | 1 (Built-in) |
| Top Dust Filter | 1 (Built-in) |
| Rear Bottom Dust Filter | 1 (Removable) |
| Warranty Information | |
| Warranty | 1 Year Warranty |
