Gigabyte X870 GAMING X WiFi 7 DDR5 ATX AM5 AMD Motherboard – GA-X870-GAMING-X-WIFI7
Full description Gigabyte.
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
| Specifications | |
| Brand: | Gigabyte |
| Series: | X870 Series |
| Model: | GA-X870-GAMING-X-WIFI7 |
| Technical Specs | |
| CPU Support: | AMD Socket AM5, support for: – AMD Ryzen™ 9000 Series Processors – AMD Ryzen™ 8000 Series Processors – AMD Ryzen™ 7000 Series Processors |
| Chipset: | AMD X870 |
| Memory: | Support for DDR5: 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) /6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules – 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory – Dual channel memory architecture – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and – Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics: | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. |
| Audio: | – Realtek® Audio CODEC – High Definition Audio – 2/4/5.1/7.1-channel |
| Connectivity | |
| LAN: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless: | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standardRealtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard |
| Bluetooth: | – BLUETOOTH 5.4 |
| Expansion Slots: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset: – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Storage Interface: | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
– AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| On-Board Connectors | |
| USB: | CPU+ASMedia USB4® controller: – 2 x USB4® USB Type-C® ports on the back panel CPU: – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors: | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

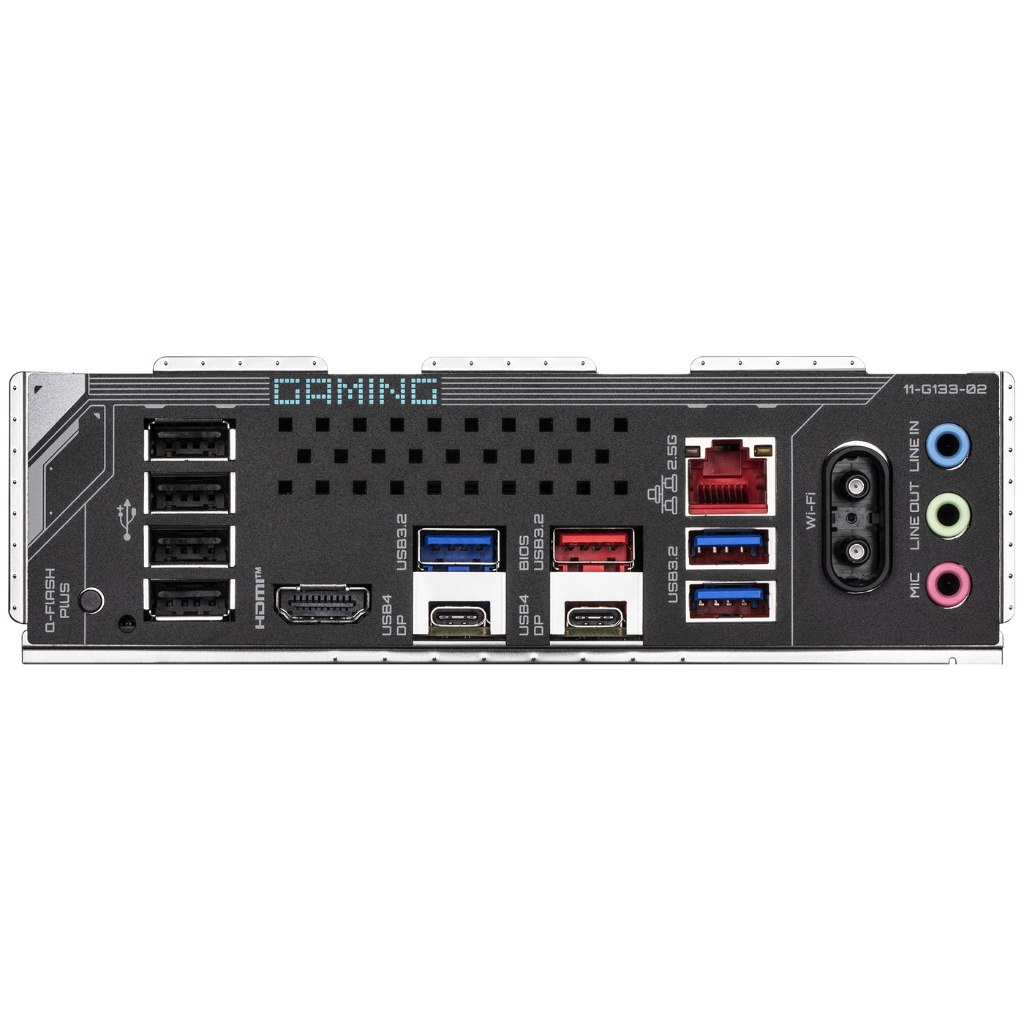

| Back Panel Connectors: | 1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port(Note) 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Software & Features | |
| BIOS: | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Features: | PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card |
| Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI | |
| Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna | |
| Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Extention | |
| Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4 | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
