R3349,00
In stock

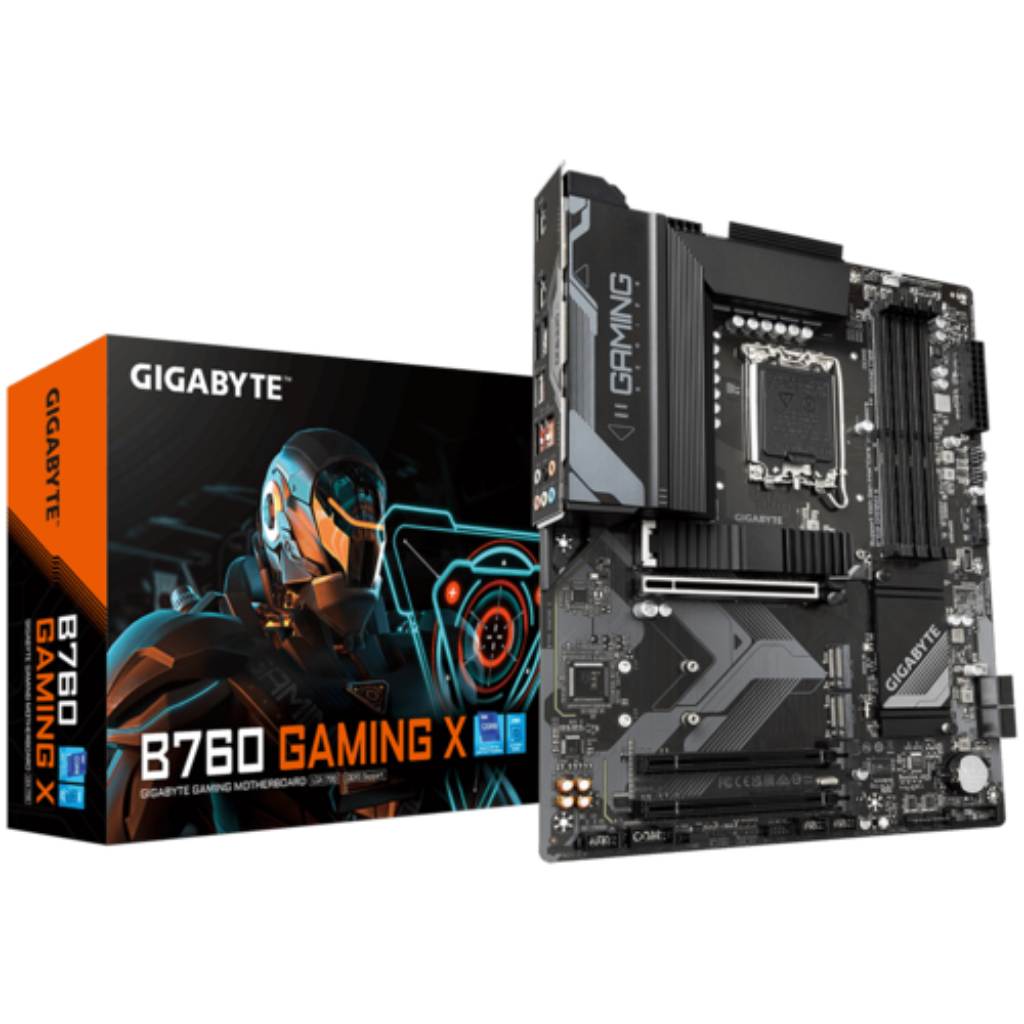

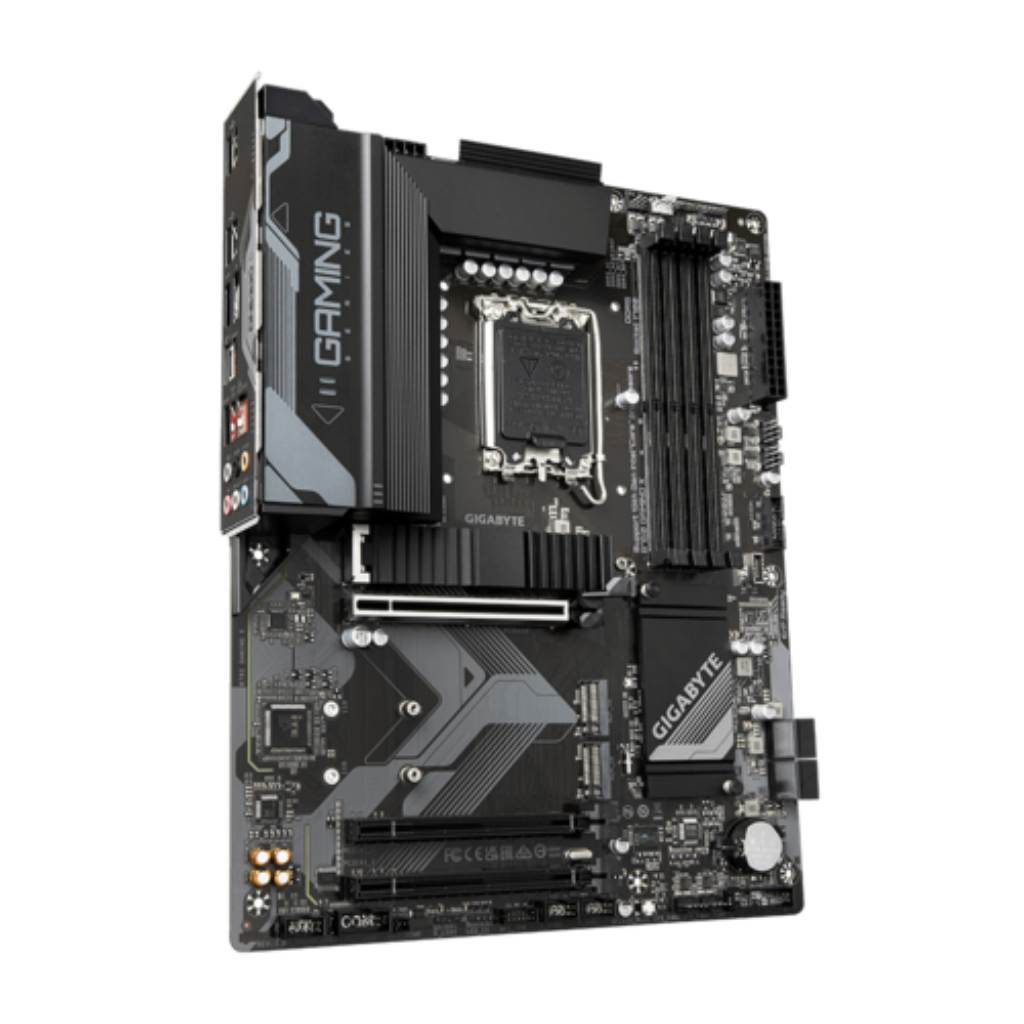

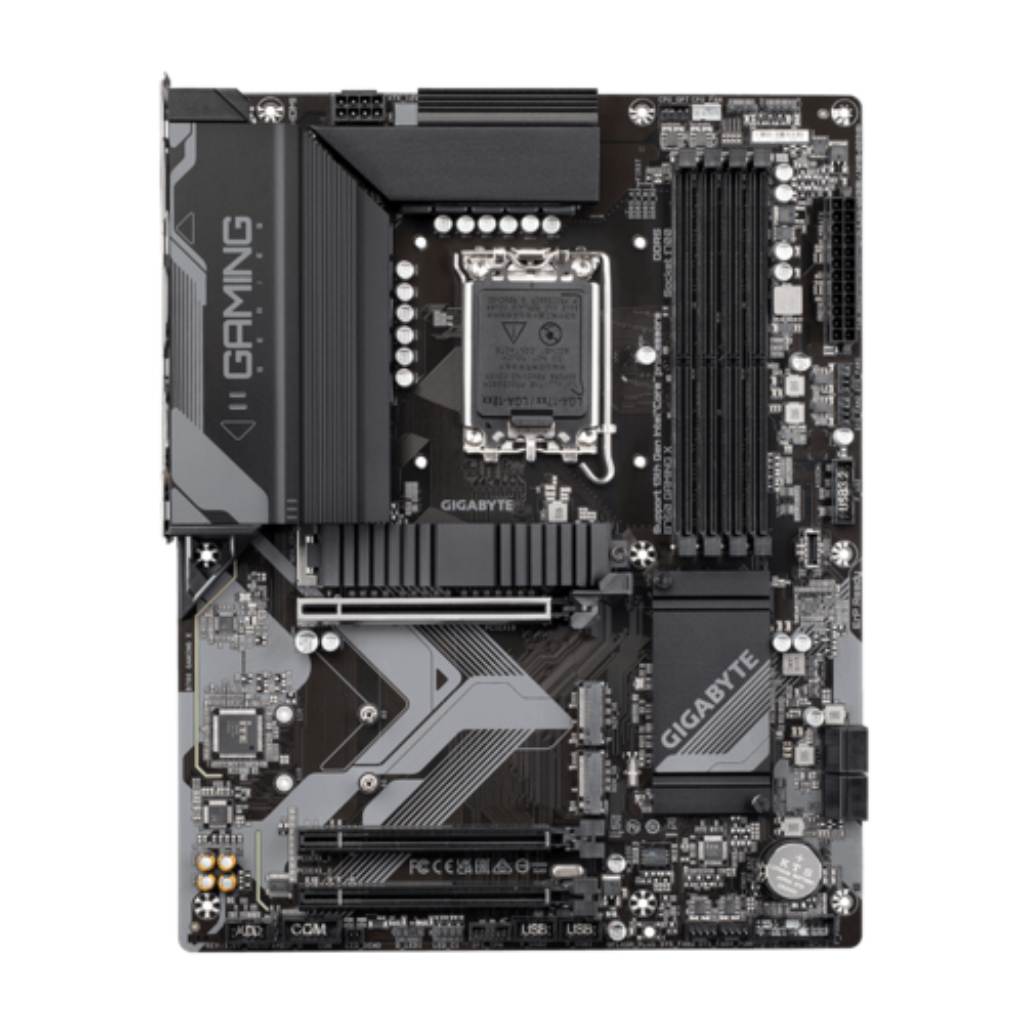

Gigabyte B760 Gaming X DDR5 Motherboard
Full description Gigabyte.
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | B760 Gaming X |
| Model | GA-B760-GAMING-X |
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| L3 cache varies with CPU | |
| Chipset | Intel B760 Express Chipset |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header | |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support | |
| 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) | |
| 1 x USB 2.0/1.1 port on the back panel | |
| Chipset 2 USB 2.0 Hubs: | |
| 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 3x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x S/PDIF Out header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x serial port header | |
| 1x Q-Flash Plus button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |

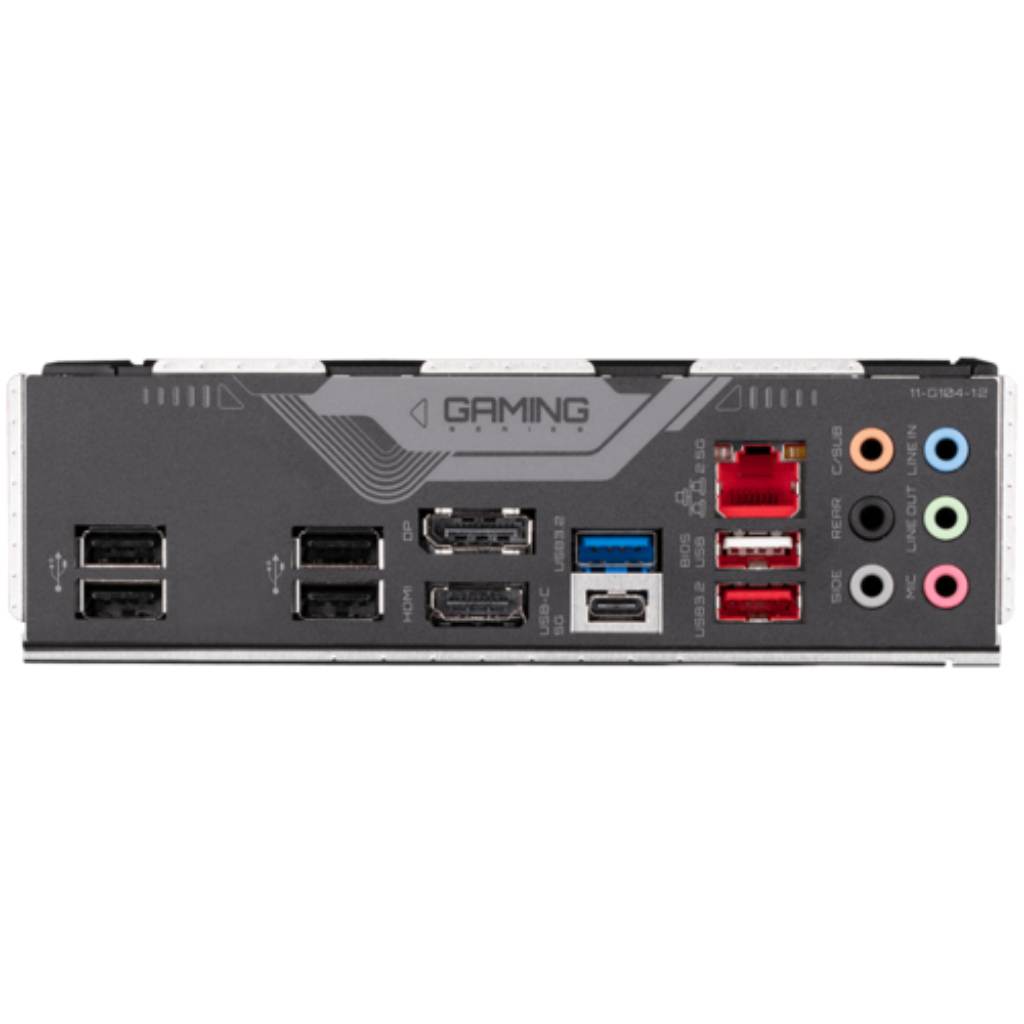

| Back Panel Connectors | 1x USB 3.2 Gen 2 Type-A port (red) |
| 1x USB Type-C port, with USB 3.2 Gen 1 support | |
| 1x USB 3.2 Gen 1 port | |
| 5x USB 2.0/1.1 ports | |
| 1x DisplayPort | |
| 1x HDMI port | |
| 1x RJ-45 port | |
| 6x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
Gigabyte B760 Gaming X DDR5 Motherboard
Contact us if you would like to enquire about this product.
| Intel Motherboard Chipset | Intel B760 |
|---|---|
| Intel Motherboard Form Factor | ATX |
| Intel Motherboard Manufacturer | Gigabyte |
| Intel Motherboard Socket | LGA 1700 |
