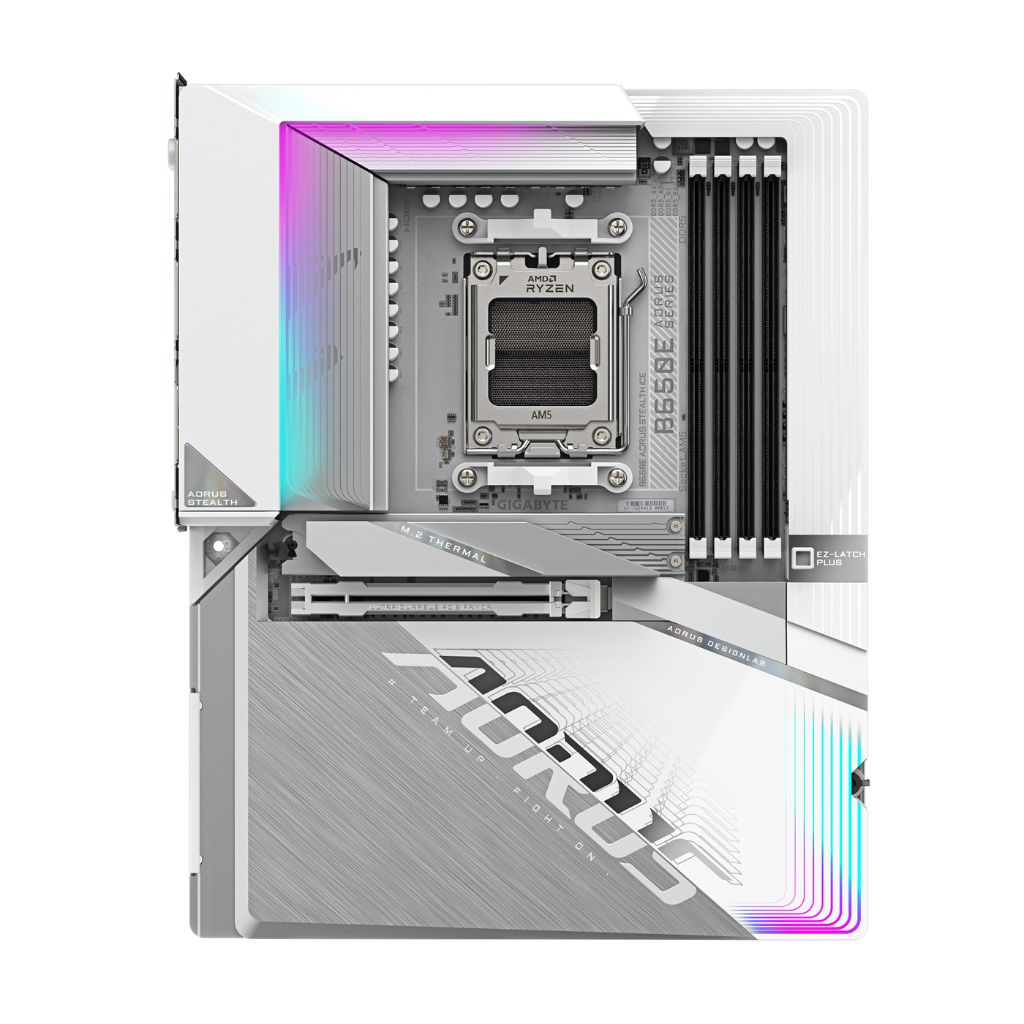

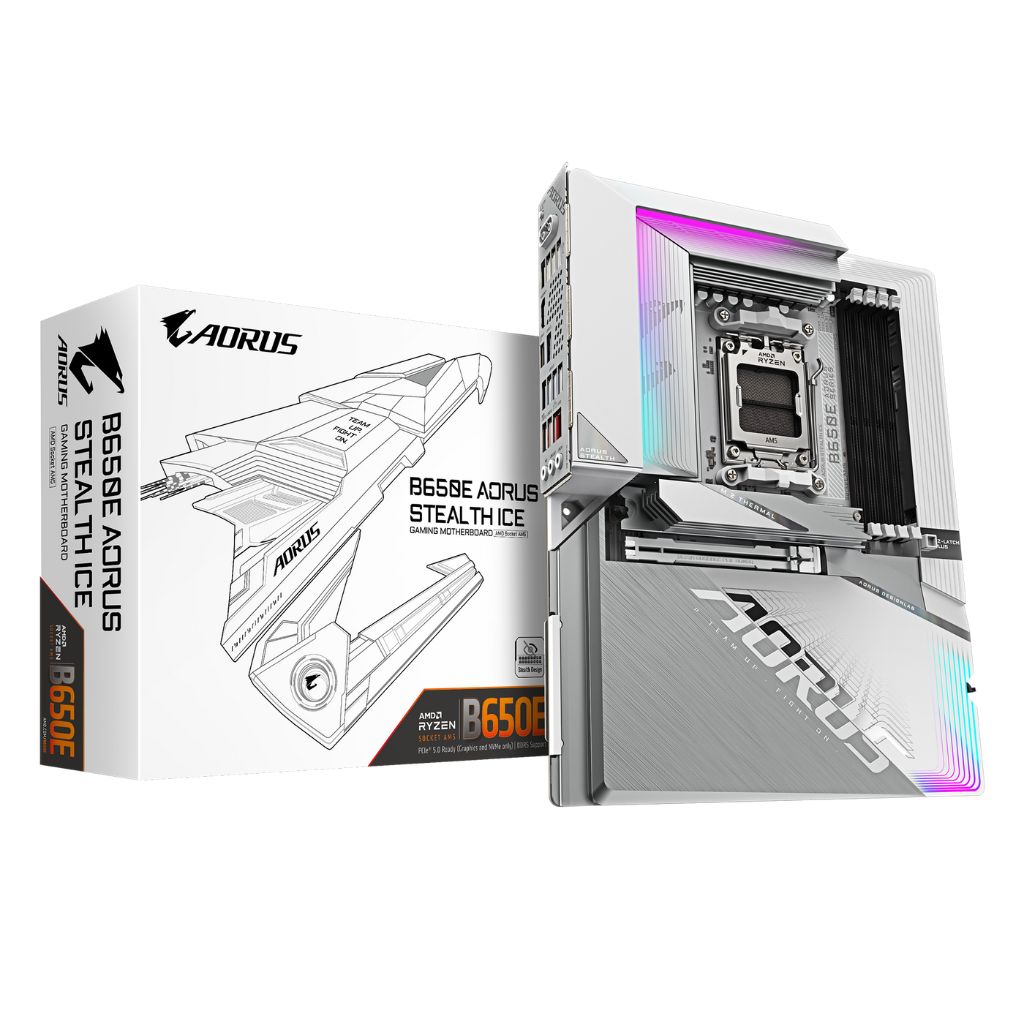

Gigabyte B650E AORUS STEALTH ICE WiFi DDR5 ATX AM5 AMD Motherboard – GA-B650E-AORUS-STEALTH-ICE
Full description Gigabyte.
- AMD Socket AM5：Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
| Specifications | |
| Brand: | Gigabyte |
| Series: | B650 Series |
| Model: | GA-B650E-AORUS-STEALTH-ICE |
| Technical Specs | |
| CPU Support: | AMD Socket AM5, support for: – AMD Ryzen 9000 Series Processors – AMD Ryzen 8000 Series Processors – AMD Ryzen 7000 Series Processors |
| Chipset: | AMD B650 |
| Memory: | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules – 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architecture – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics: | Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz |
| Audio: | – Realtek Audio CODEC – High Definition Audio – 2/4/5.1/7.1-channel |
| Connectivity | |
| LAN: | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless: | MediaTek Wi-Fi 7 MT7925 |
| Bluetooth: | BLUETOOTH 5.4 |
| Expansion Slots: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Storage Interface: | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: – AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0×4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD |
| On-Board Connectors | |
| USB: | CPU: – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 (Note1) – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel |
| Internal I/O Connectors: | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note2) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

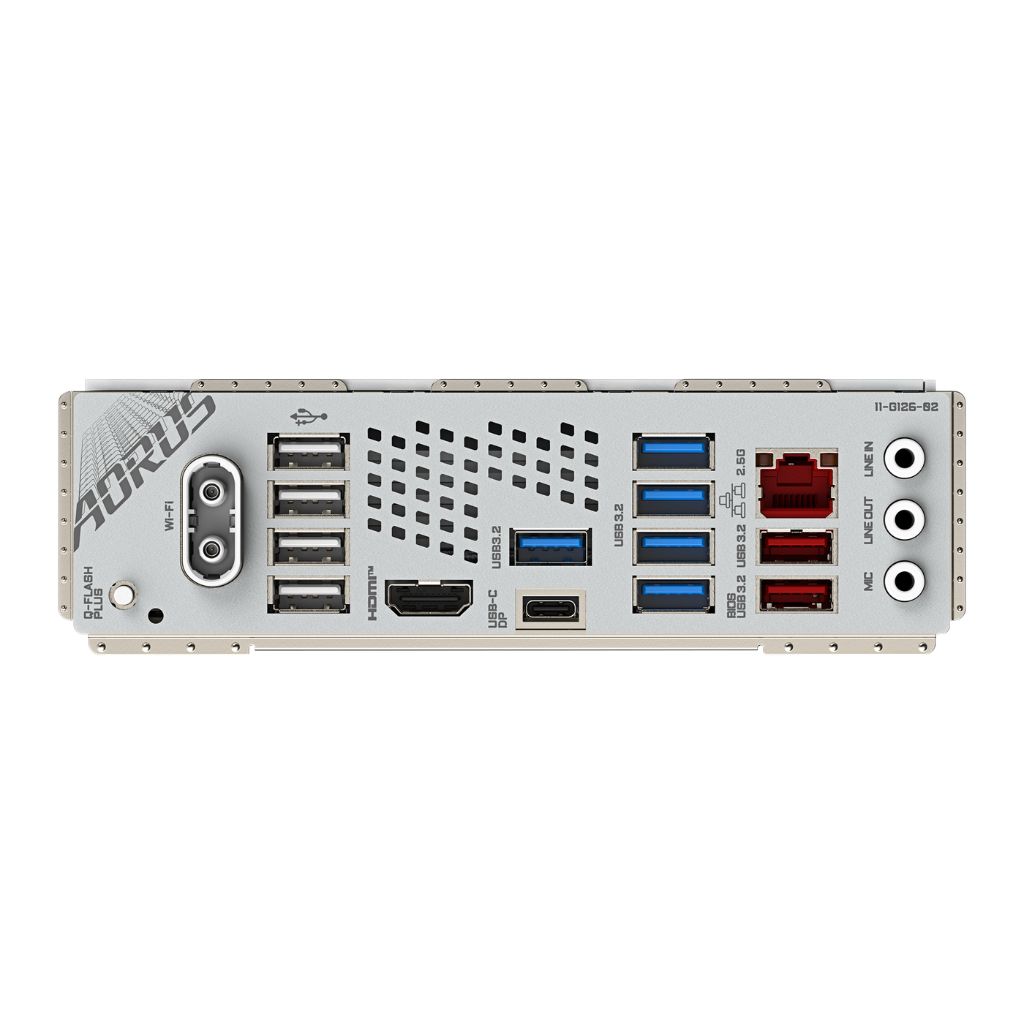

| Back Panel Connectors: | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C® port (DisplayPort) 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Software & Features | |
| BIOS: | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software: | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Features: | Rear I/O Design: Clean look with hidden cable connectors. |
| Advanced Cooling: VRM armor and M.2 thermal guards keep temps low. | |
| Next-Gen Connectivity: PCIe 5.0, Gen5 M.2, Wi-Fi 7, USB-C. | |
| Fast DDR5 Support: Up to 256GB, speeds up to 8000MT/s (OC). | |
| Strong VRM Setup: 12+2+2 phases for stable AMD CPU power. | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
Gigabyte B650E AORUS STEALTH ICE WiFi DDR5 ATX AM5 AMD Motherboard – GA-B650E-AORUS-STEALTH-ICE
Contact us if you would like to enquire about this product.
