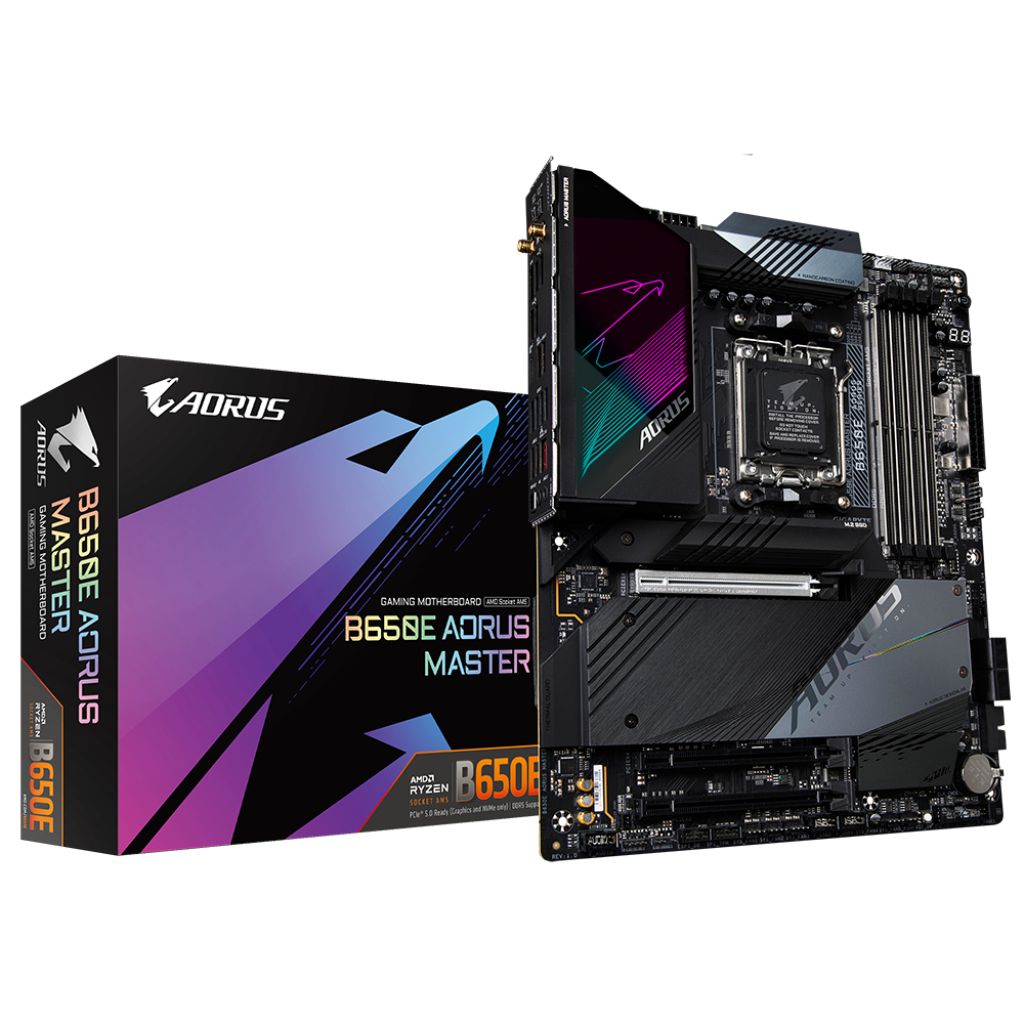

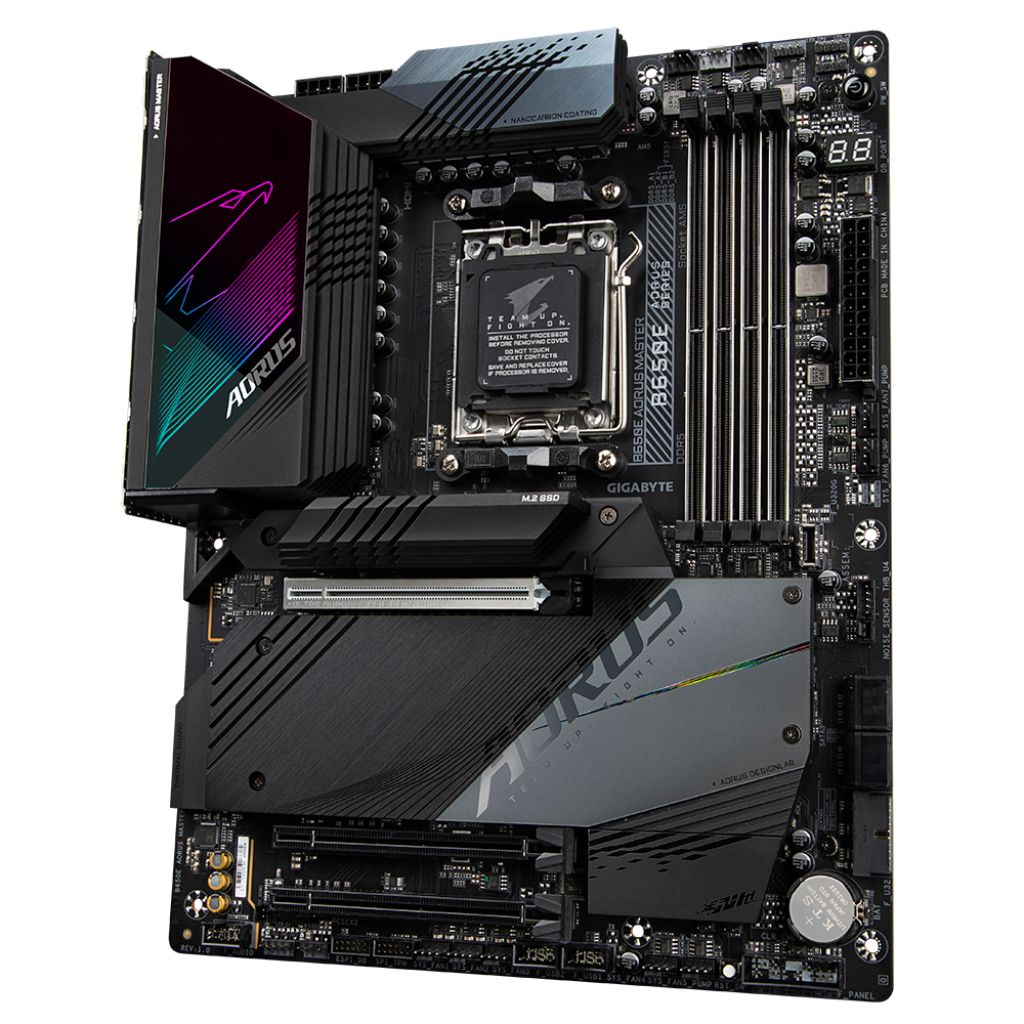

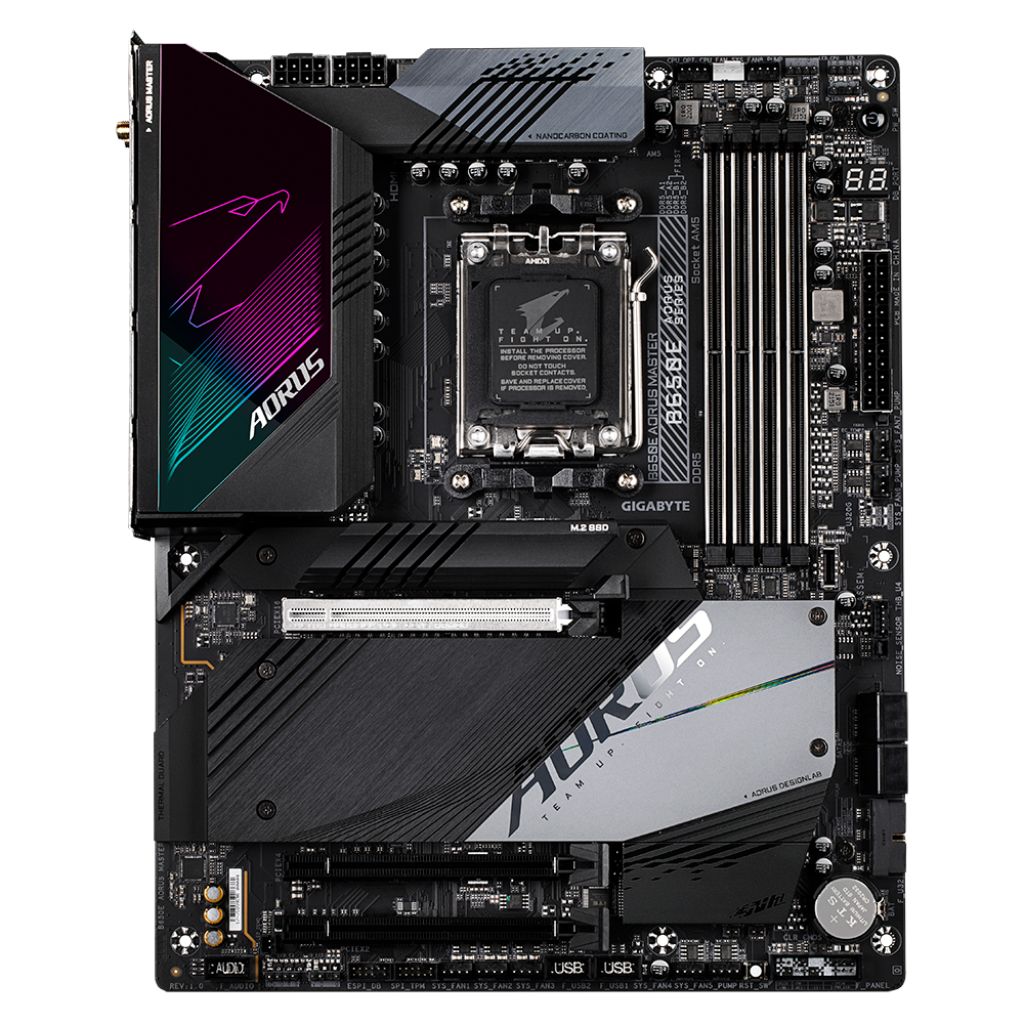

Gigabyte B650E Aorus Master WiFi Motherboard
Full description Gigabyte.
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：Twin* 16+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Next Generation Storage：4*PCIe 5.0 x4 M.2 Connectors
- Mega-Heatpipe & M.2 Thermal Guard III：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
- Hi-Fi Audio with DTS:X® Ultra：ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC
- Fast Networks：Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Front USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications |
|
| CPU: | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Model Number: | |
| Chipset: | AMD B650 |
| Memory: | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking |
| Onboard Graphics: | Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 7680×4320@60 Hz |
| Audio: | Realtek® ALC1220-VB CODEC |
| LAN: | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module: | AMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard |
| Expansion Slots: | CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0* and Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and 1 x PCI Express x16 slot, supporting PCIe 4.0 and |
| Storage Interface: | CPU:
1 x M.2 connector (Socket 3, M key, 3 x M.2 connectors (Socket 3, M key, Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 |
| USB: | CPU:
1 x USB Type-C® port on the back panel, CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors: | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors: | 1 x Q-Flash Plus button
1 x Clear CMOS button 1 x HDMI 2.1 port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| I/O Controller: | iTE® I/O Controller Chip |
| H/W Monitoring: | Voltage detection
Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Noise detection |
| BIOS: | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features: | Support for GIGABYTE Control Center (GCC) |
| Bundled Software: | Norton® Internet Security (OEM version)
LAN bandwidth management software |
| Operating System: | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| Form Factor: | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | |
| Warranty: | 3 Years |
