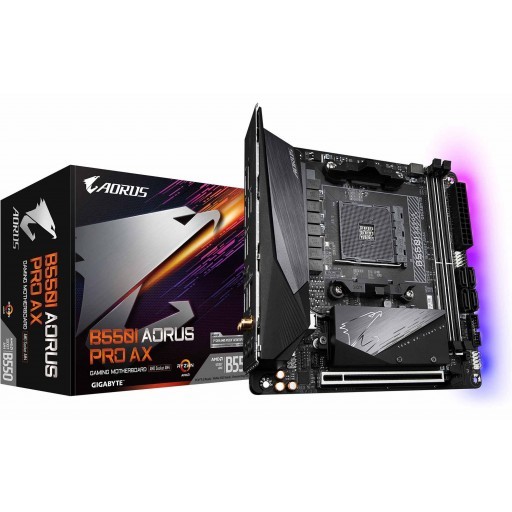

Gigabyte B550I Aorus Pro AX

R4225,00 Inc. VAT

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
  • Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot

Browse More Products

Description

Gigabyte B550I Aorus Pro AX

Full description Gigabyte.

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
  • Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • USB 3.2 Gen2 Type-C™ & DisplayPort + Dual HDMI Support

GIGABYTE B550 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 motherboards for enthusiast. No Compromise and never stop to achieve higher.

SPECIFICATIONS

Brand Gigabyte
Series AMD B550
Model GA-B550-I-AORUS-PRO-AX
CPU AMD Socket AM4
Chipset AMD B550
Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen Processors:
Support for DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated in the New Generation AMD Ryzen with Radeon Graphics processors:
1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio Realtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication Module
Intel Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots 1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
– 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
– New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
– Support for RAID 0, RAID 1, and RAID 10
USB CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper



Gigabyte B550I Aorus Pro AX

Contact us if you would like to enquire about this product.

Additional information

AMD MB Manufacturer

Gigabyte

AMD Motherboard Chipset

AMD B550

AMD Motherboard Form Factor

Mini-ITX

AMD Motherboard Socket

AM4
