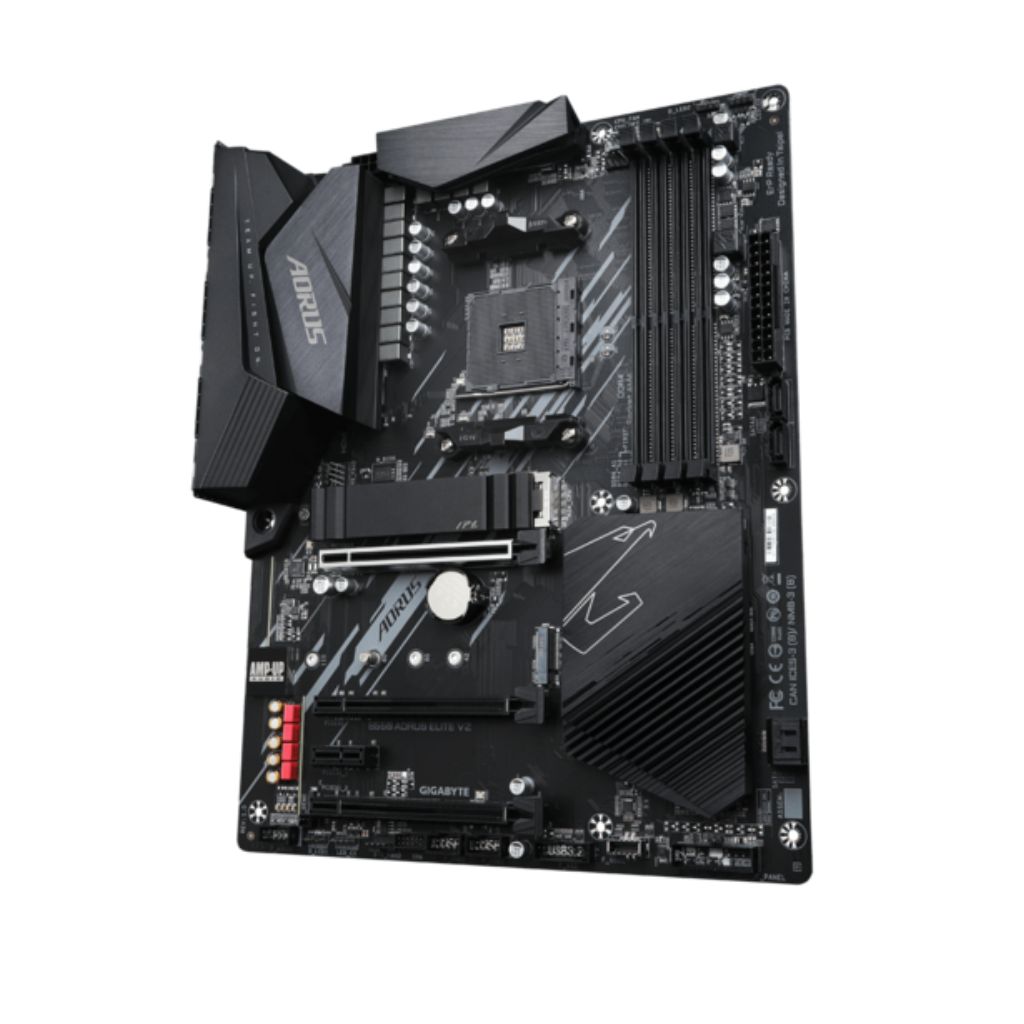

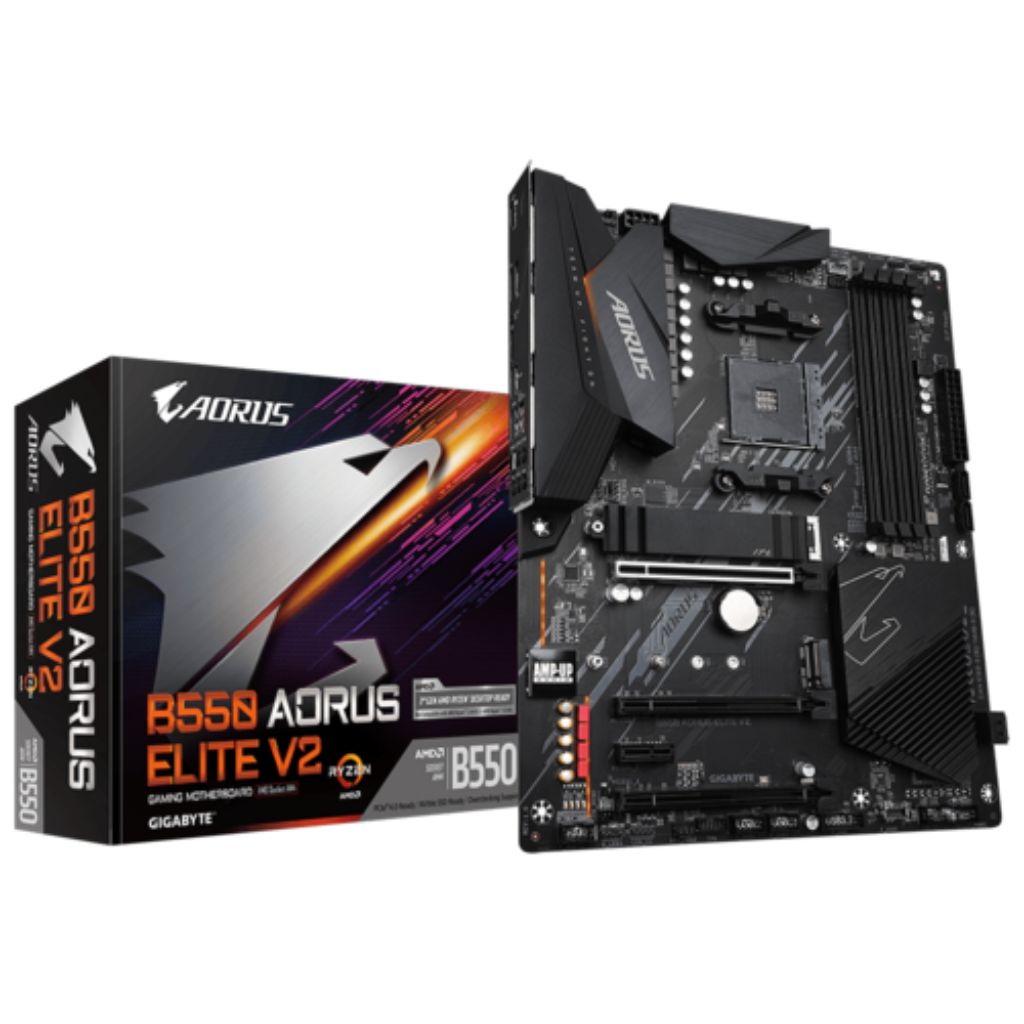

Gigabyte B550 AORUS Elite V2 AM4 ATX Motherboard
Full description Gigabyte.
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases Digital Twin Power Design with 50A DrMOS
- Advanced Thermal Design with Enlarged Surface Heatsinks
- Ultra Durable™ PCIe 4.0 x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
- AMP-UP Audio with ALC1200 and WIMA Capacitors
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | B550 Series |
| Model | GA-B550-AORUS-ELITEV2 |
| CPU | AMD Socket AM4 |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 Dimm Sockets Supporting Up to 128 GB (32 GB Single Dimm Capacity) of System Memory |
| 3rd Gen AMD Ryzen Processors: | |
| Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz Memory Modules |
|
| New Generation AMD Ryzen With Radeon Graphics Processors: | |
| Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/ 2400/2133 MHz Memory Modules |
|
| Dual-Channel Memory Architecture | |
| Support for Ecc Un-Buffered Dimm 1Rx8/2Rx8 Memory Modules | |
| Support for Non-Ecc Un-Buffered Dimm 1Rx8/2Rx8/1Rx16 Memory Modules |
|
| Support for Extreme Memory Profile (Xmp) Memory Modules | |
| Onboard Graphics | Integrated in the New Generation AMD Ryzen With Radeon Graphics Processors: |
| 1 x DisplayPort, Supporting a Maximum Resolution of 5120×2880@60 Hz |
|
| * Support for DisplayPort 1.4 Version, Hdcp 2.3, and HDR. | |
| 1 x HDMI Port, Supporting a Maximum Resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 Version, Hdcp 2.3, and HDR. | |
| Maximum Shared Memory of 16 GB | |
| Audio | Realtek ALC1200 Codec |
| High Definition Audio | |
| 2/4/5.1/7.1-Channel | |
| Support for S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN Chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Expansion Slots | 1 x PCI Express x16 Slot (PCIEX16), Integrated in the CPU: |
| 3rd Generation AMD Ryzen Processors Support PCIe 4.0 x16 Mode | |
| New Generation AMD Ryzen With Radeon Graphics Processors Support PCIe 3.0 x16 Mode |
|
| * For Optimum Performance, if Only One PCI Express Graphics Card Is to Be Installed, Be Sure to Install It in the PCIEX16 Slot. |
|
| 1 x PCI Express x16 Slot (PCIEX2), Integrated in the Chipset: | |
| Supporting PCIe 3.0 x2 Mode | |
| 1 x PCI Express x16 Slot (PCIEX1_2), Integrated in the Chipset: | |
| Supporting PCIe 3.0 x1 Mode | |
| 1 x PCI Express x1 Slot (PCIEX1_1), Integrated in the Chipset: | |
| Supporting PCIe 3.0 x1 Mode | |
| Storage Interface | 1 x M.2 Connector (M2A_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs: |
| – 3rd Generation AMD Ryzen Processors Support SATA and PCIe 4.0 x4/x2 SSDs | |
| – New Generation AMD Ryzen With Radeon Graphics Processors Support SATA and PCIe 3.0 x4/x2 SSDs |
|
| 1 x M.2 Connector (M2B_SB), Integrated in the Chipset, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs: |
|
| – Supporting SATA and PCIe 3.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/S Connectors, Integrated in the Chipset: | |
| – Support for RAID 0, RAID 1, and RAID 10 | |
| USB | CPU: |
| – 2 x USB 3.2 Gen 2 Type-A Ports (Red) on the Back Panel | |
| – 2 x USB 3.2 Gen 1 Ports on the Back Panel | |
| Chipset: | |
| – 2 x USB 3.2 Gen 1 Ports on the Back Panel | |
| – 2 x USB 3.2 Gen 1 Ports Available Through the Internal USB Header |
|
| – 2 x USB 2.0/1.1 Ports on the Back Panel | |
| Chipset USB 2.0 Hub: | |
| – 4 x USB 2.0/1.1 Ports Available Through the Internal USB Headers | |
| Internal I/O Connectors | 1 x 24-Pin ATX Main Power Connector |
| 1 x 8-Pin ATX 12V Power Connector | |
| 2 x M.2 Socket 3 Connectors | |
| 4 x SATA 6Gb/S Connectors | |
| 1 x CPU Fan Header | |
| 1 x Water Cooling CPU Fan Header | |
| 3 x System Fan Headers | |
| 1 x CPU Cooler LED Strip/RGB LED Strip Header | |
| 2 x Addressable LED Strip Headers | |
| 2 x RGB LED Strip Headers | |
| 1 x Front Panel Header | |
| 1 x Front Panel Audio Header | |
| 1 x USB 3.2 Gen 1 Header | |
| 2 x USB 2.0/1.1 Headers | |
| 1 x Trusted Platform Module (TPM) Header (2×6 Pin, for the GC-TPM2.0_S Module Only) | |
| 1 x Clear CMOS Jumper | |
| Back Panel Connectors | 1 x DisplayPort |
| 1 x HDMI Port | |
| 2 x USB 3.2 Gen 2 Type-A Ports (Red) | |
| 4 x USB 3.2 Gen 1 Ports | |
| 2 x USB 2.0/1.1 Ports | |
| 1 x Q-Flash Plus Button | |
| 1 x RJ-45 Port | |
| 1 x Optical S/PDIF out Connector | |
| 5 x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Water Cooling Flow Rate Detection | |
| Overheating Warning | |
| Fan Fail Warning | |
| Fan Speed Control | |
| BIOS | 1 x 256 Mbit Flash |
| Use of Licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
