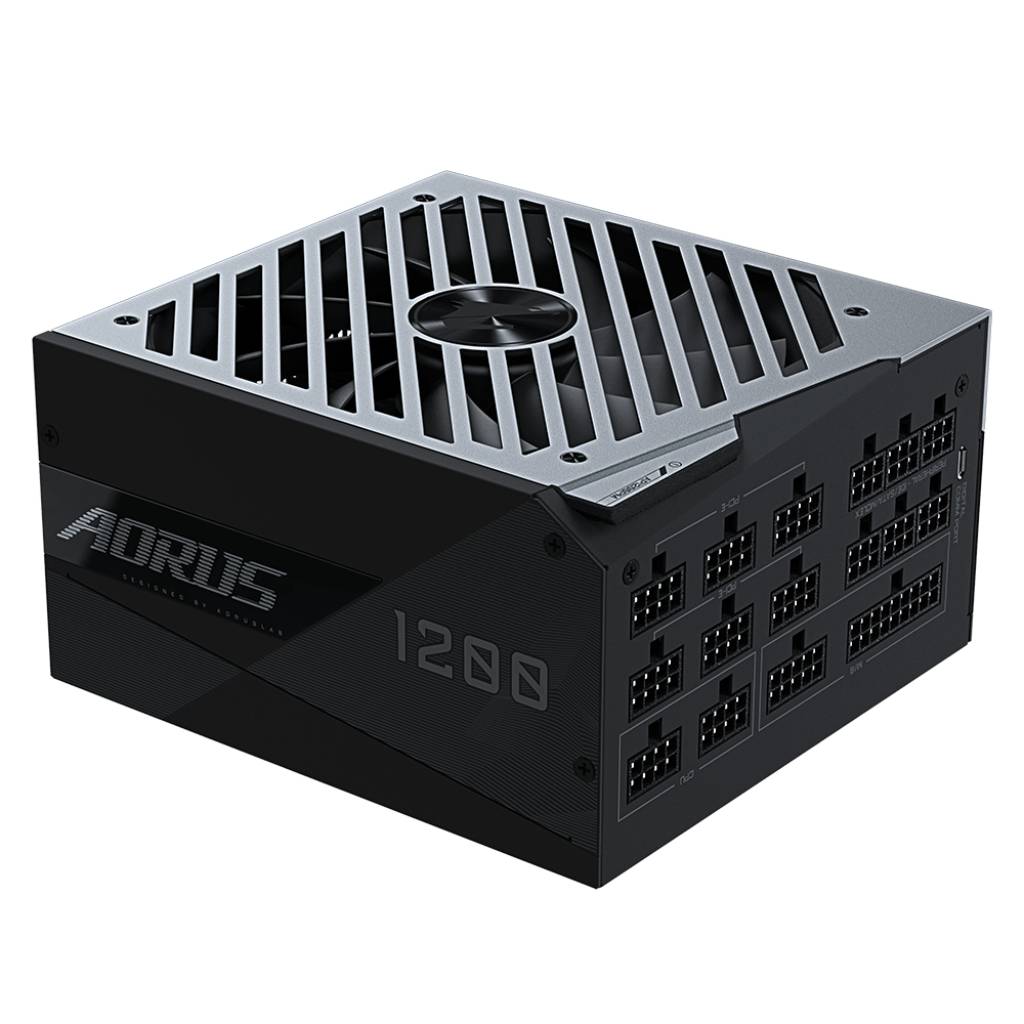

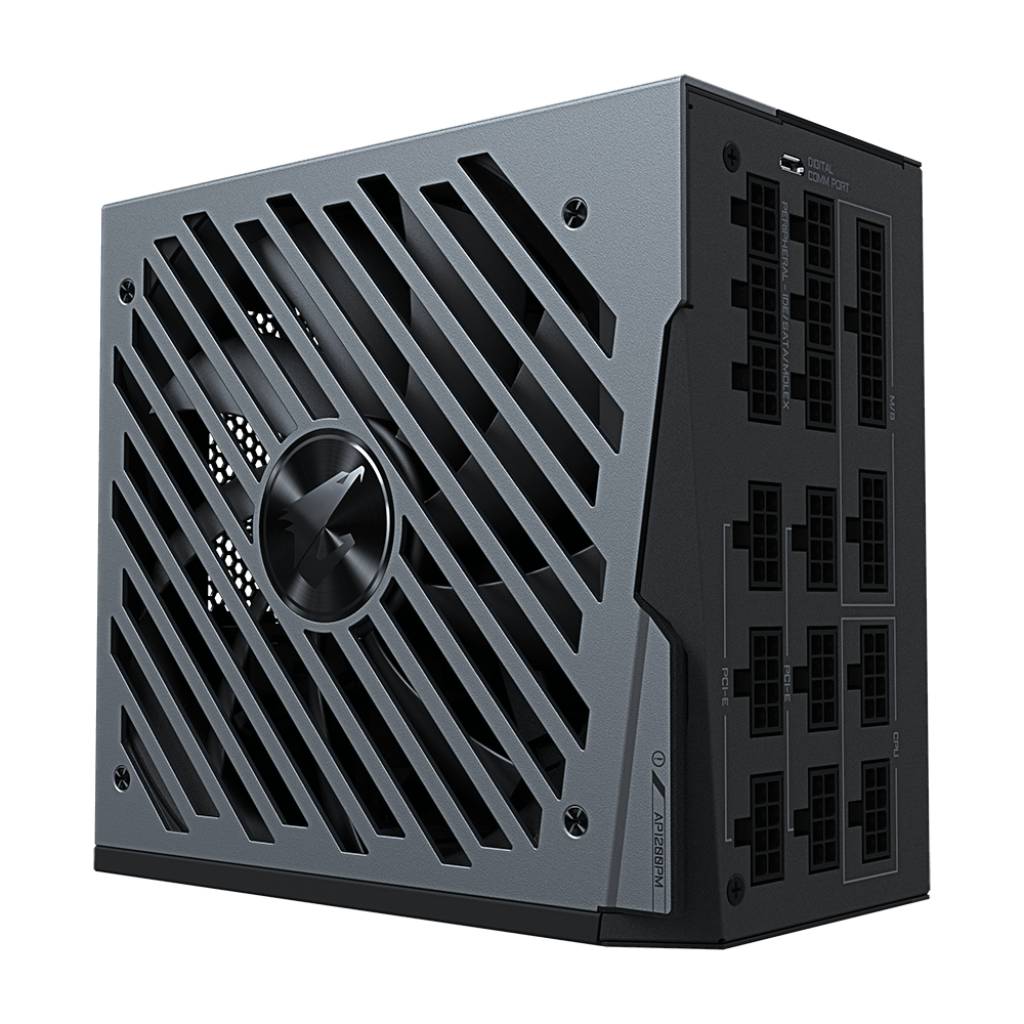

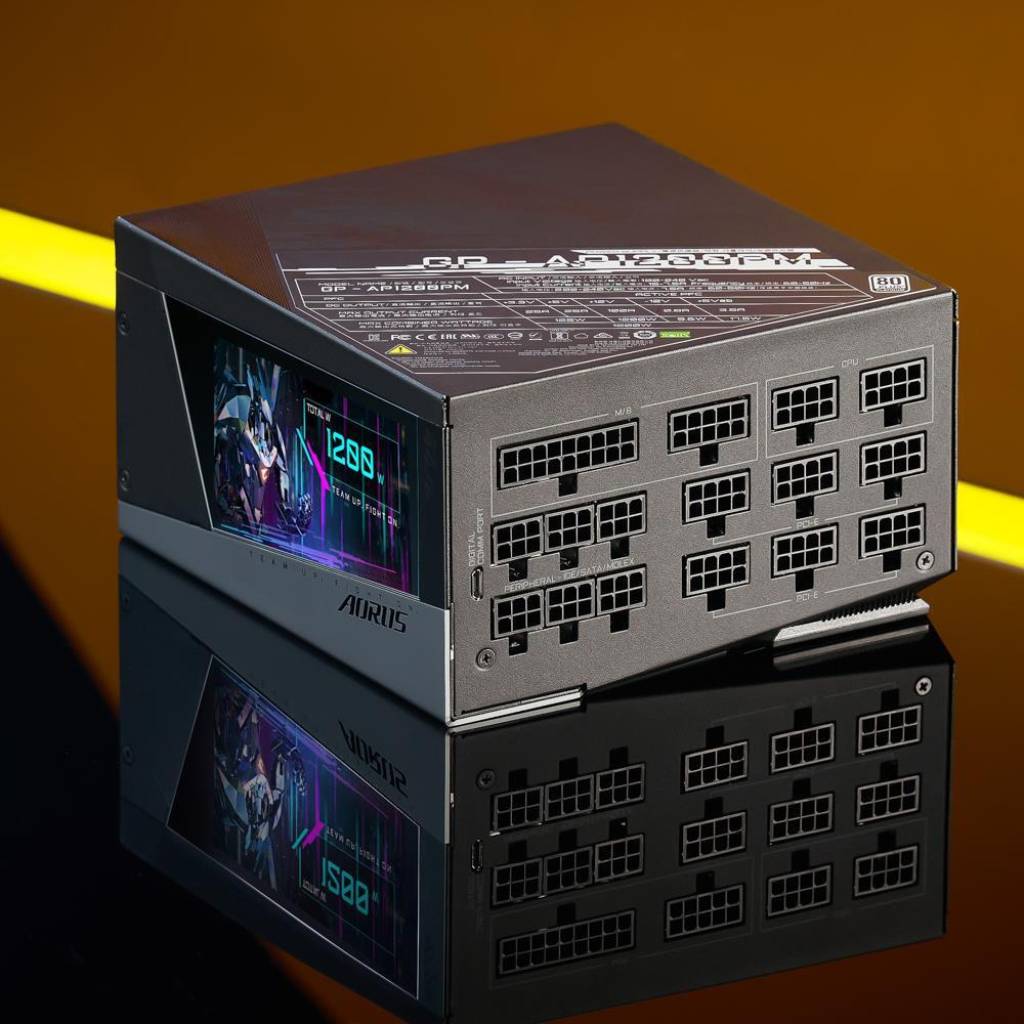

Gigabyte AORUS P1200W 1200W LCD Display 80+ Platinum Fully Modular Power Supply

R7899,00

In stock

Browse More Products

Full description Gigabyte.

In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.

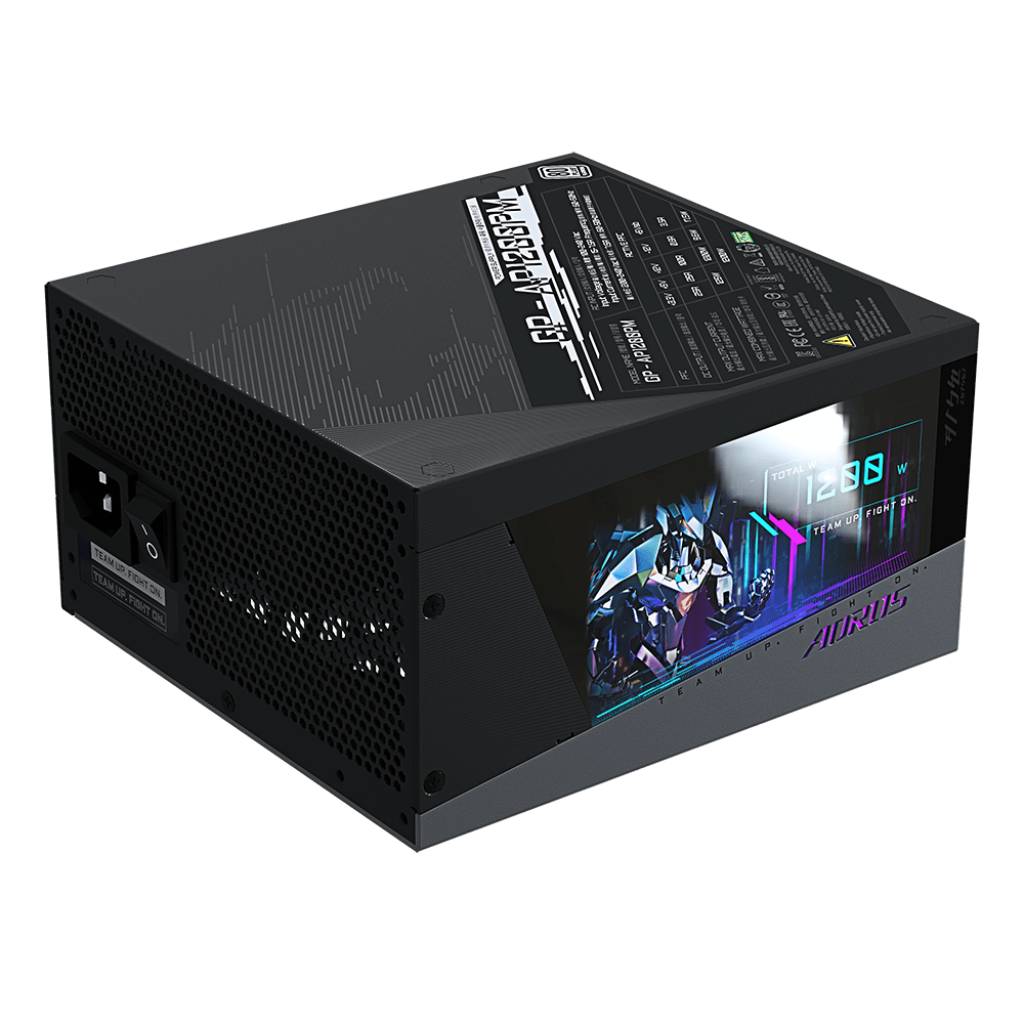

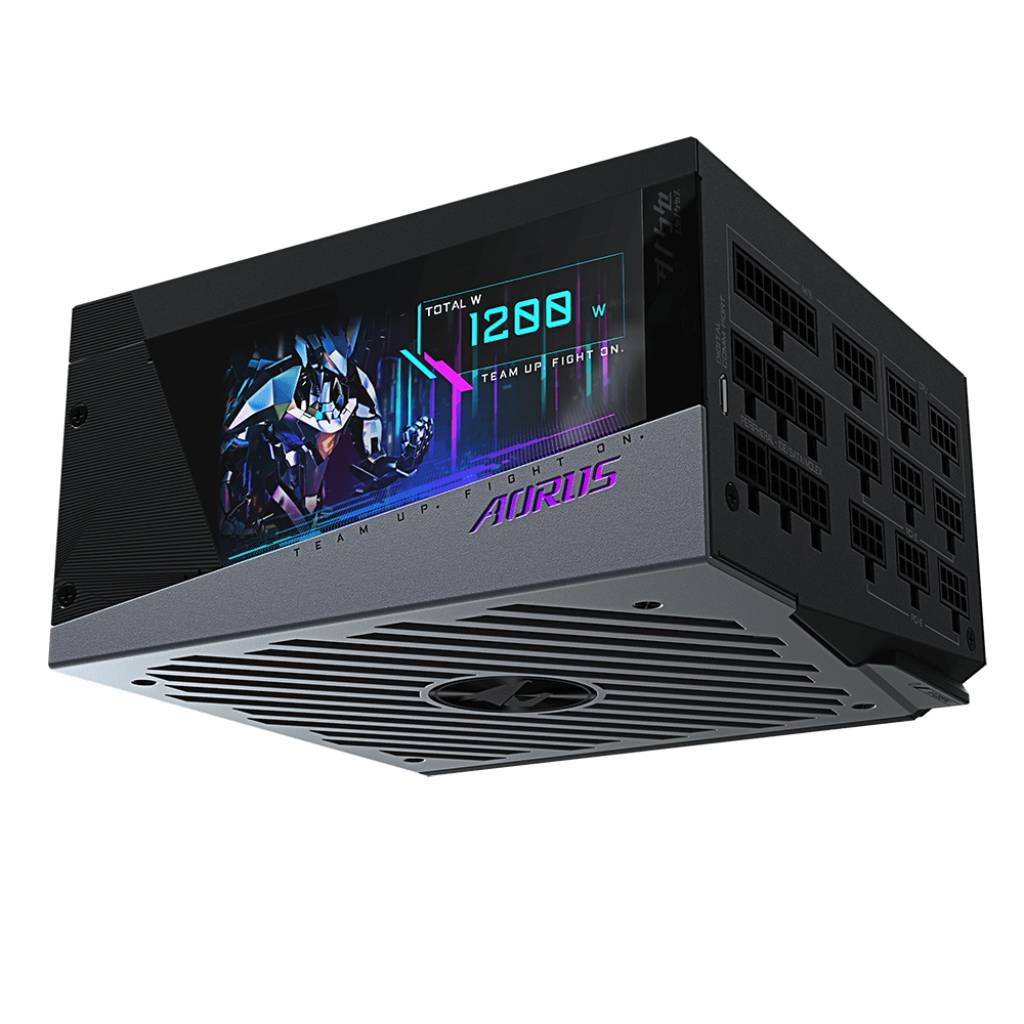

The Digital LCD Monitor can not only display the health status of the power supply in real time, but also display various texts, pictures, GIFs and MP4. You can also adjust the lighting effect through RGB FUSION 2.0 software.
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
Quality is the top priority of AORUS design. AORUS ensures that the power supply can continuously supply high-quality power, thereby enhancing the performance of the computer and prolonging its service life.
With the help of engineers’ excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, AORUS has reduced the size of a 1200W power supply that is generally designed to be 200 mm long to an amazing 160 mm, so it can be easily installed in any chassis without space constraints.

SPECIFICATIONS
Brand	Gigabyte
Series	LCD AP1200PM Series
Model	GP-AP1200PM
Type	ATX
Maximum Power	1200W
Fan Size	140mm
Fan Type	140mm Double ball bearing Fan
Performance
Efficiency	92% at typical load
Power Good Signal	100-150ms
Protections	OVP/OPP/SCP/UVP/OCP/OTP
PFC	Active PFC (>0.9 typical)
Hold up time	>16ms
Ratings	80 Plus Platinum


MTBF	>100,000 hours
Connectors
	ATX/MB 20+4 Pin x 1 : 610mm x 1
	CPU/EPS 4+4 Pin x 2 : 650mm x 2
	PCI-e 6+2 Pin x 10 : 650mm+150mm4/650mm2
	SATA x 16 : 650mm+150mm+150mm+150mm*4
	4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2


General
Dimensions	150 x 160 x 86mm
Weight




Warranty Information
Warranty	10 Year Warranty
