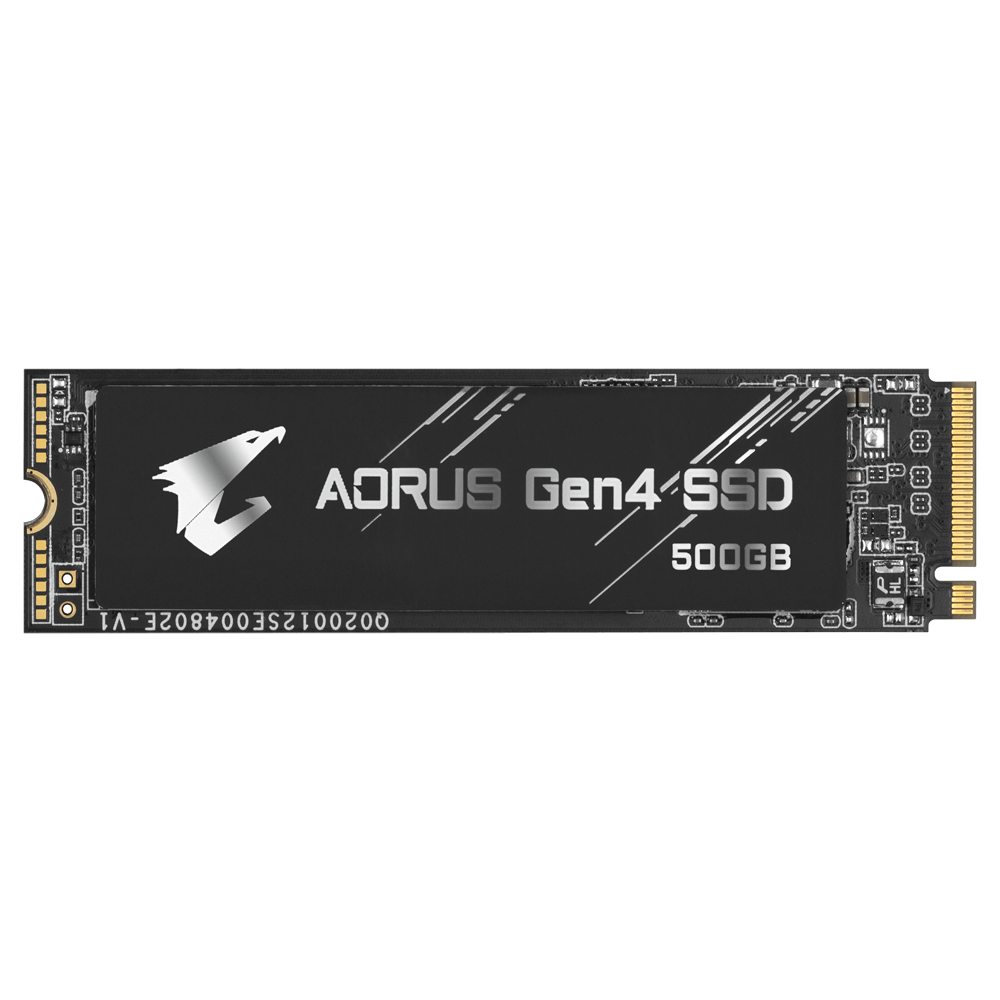

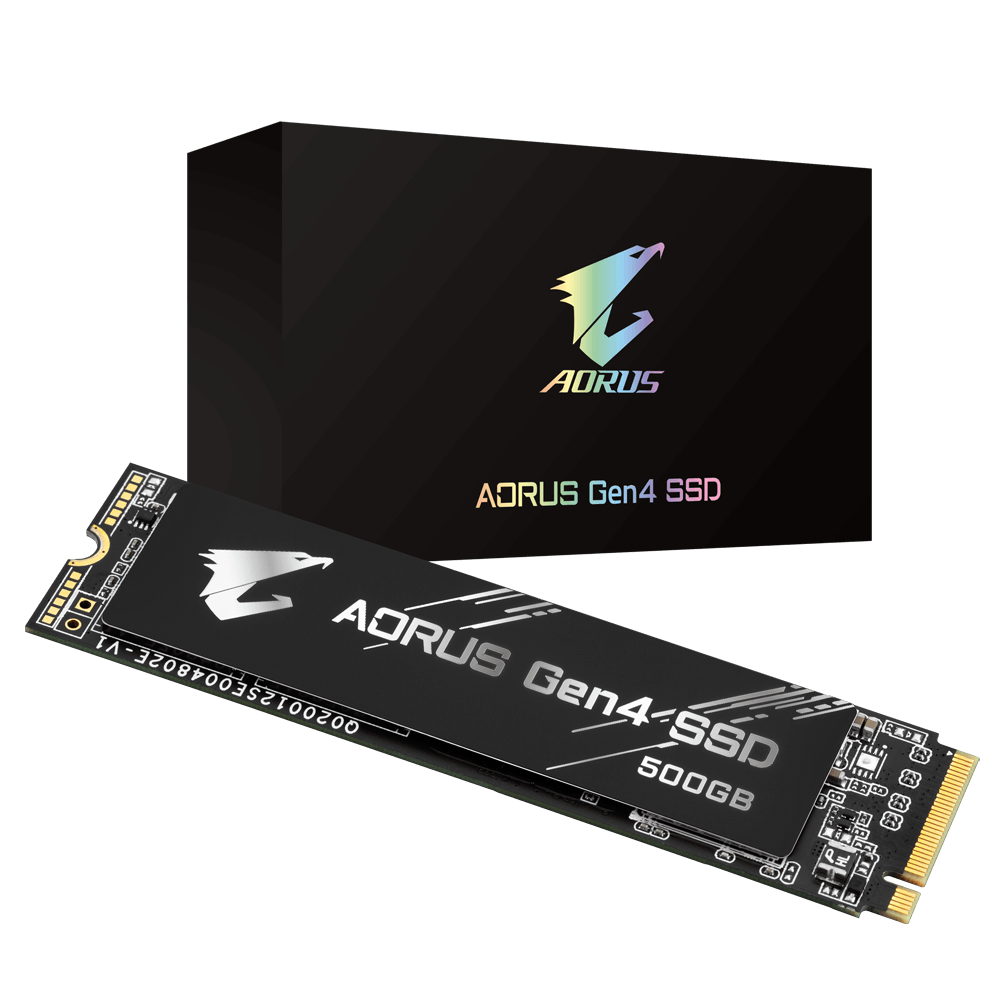

Gigabyte Aorus Gen4 500GB SSD

R1,649.00

Gigabyte Aorus Gen4 500GB SSD

  • Form Factor: M.2 2280
  • Interface: PCI-Express 4.0 x4, NVMe 1.3
  • Total Capacity: 500GB*
  • Sequential Read Speed : up to 5000 MB/s**
  • Sequential Write speed : up to 2500 MB/s**
  • Wear Levelling, Over-Provision technologies
  • TRIM & S.M.A.R.T supported

Description

Gigabyte Aorus Gen4 500GB SSD

Full description Gigabyte.

  • Form Factor: M.2 2280
  • Interface: PCI-Express 4.0 x4, NVMe 1.3
  • Total Capacity: 500GB*
  • Sequential Read Speed : up to 5000 MB/s**
  • Sequential Write speed : up to 2500 MB/s**
  • Wear Levelling, Over-Provision technologies
  • TRIM & S.M.A.R.T supported

*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.

World First PCIe 4.0×4 Controller
The World First PCIe 4.0×4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0×4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Levelling, Over-Provision technologies to improve reliability and durability of SSDs.
NAND Flash Selected for High Quality and Performance
Selected High Speed 3D TLC NAND Flash (800MT/s)
The selected and high quality NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS Gen 4 SSD far exceeds that of PCIe 3.0×4 devices for superior storage performance.
Xtreme Storage Performance
With the new PCIe 4.0 controller, AORUS Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 2,500MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
Weight & dimensions
Width 80.5
Depth 23.5
Height 11.4
Power
Power consumption (idle) 0.01321
Average power consumption (read) 5.9
Average power consumption (write) 4.5
Features
Component for PC
SSD form factor M.2
SSD capacity 500
Interface PCI Express 4.0
Memory type 3D TLC NAND
NVMe Y
Hardware encryption N
Read speed 5000
Write speed 2500
Random read (4KB) 400000
Random write (4KB) 550000
Mean time between failures (MTBF) 1770000
TBW rating 850
PCI Express interface data lanes x4
S.M.A.R.T. support Y
TRIM support Y
NVMe version 1.3
Operational conditions
Operating temperature (T-T) 0 – 70
Storage temperature (T-T) -40 – 85

Gigabyte Aorus Gen4 500GB SSD

Contact us if you would like to enquire about this product

Additional information

SSD Capacity

480 – 512GB

SSD Form Factor

M.2 2280

SSD Interface

M.2 PCIe v4.0 NVMe

SSD Lighting

None

SSD Manufacturer

Gigabyte
