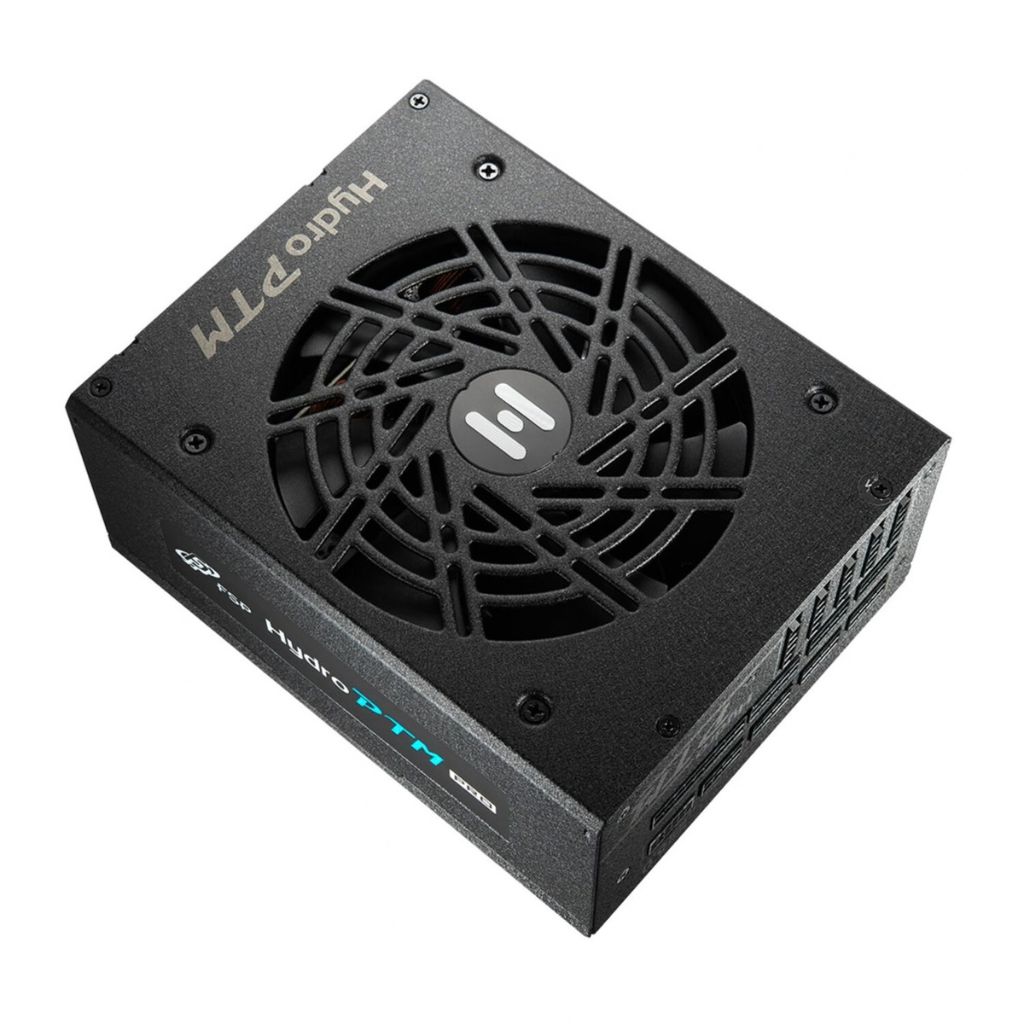

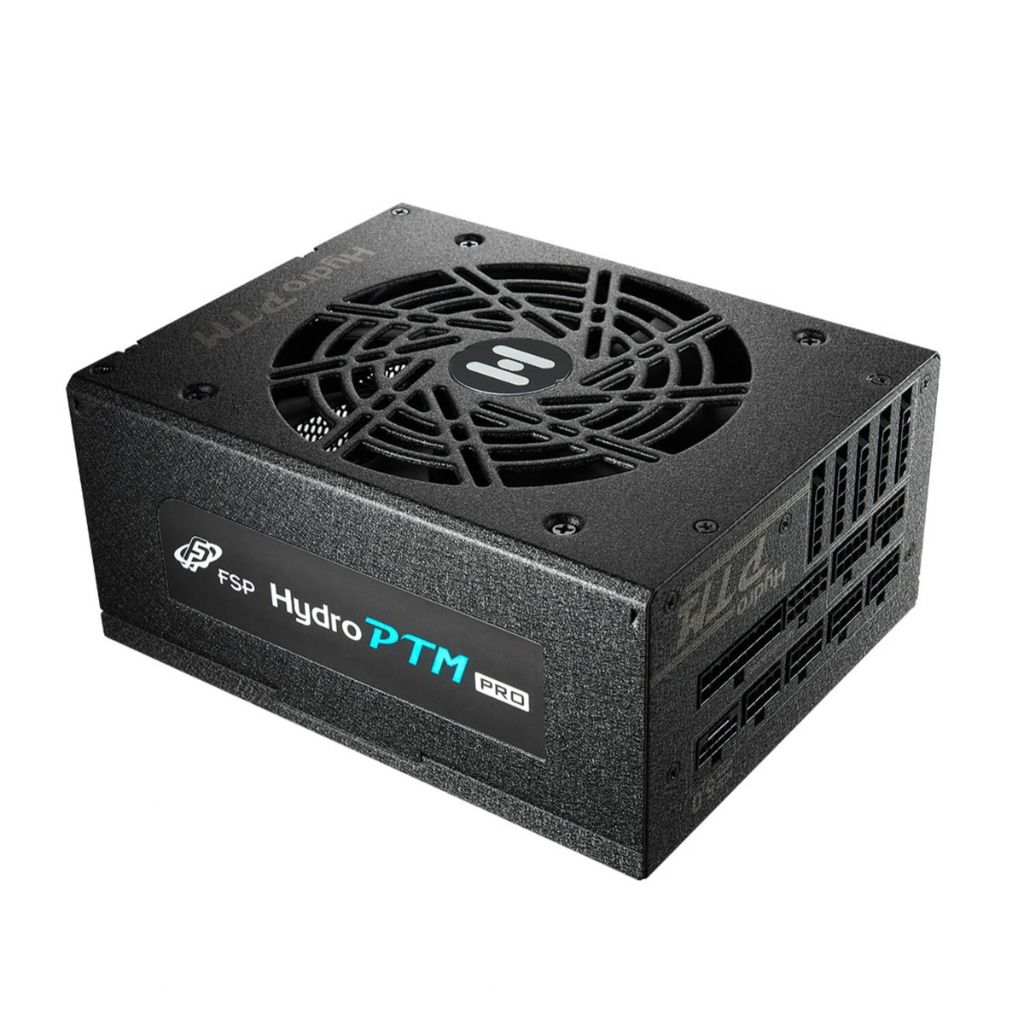

FSP Hydro PTM Pro 1200w Fully Modular 80 PLUS Platinum ATX3.0 Power Supply – PPA12A1012
Full description FSP.
- The FSP Hydro PTM Pro 1200W is a high-performance fully modular ATX power supply designed for demanding gaming and workstation builds, offering strong 1200W output and 80 PLUS Platinum efficiency.
- Built to the ATX 3.0 standard, this PSU is ready for modern high-power systems, with PCIe Gen 5 support and a dedicated 12V-2×6 / 12VHPWR connector for compatible graphics cards.
- The fully modular cable design lets users connect only the cables needed for their build, helping reduce cable clutter, improve airflow, and create a cleaner internal PC layout.
- A 135mm cooling fan provides effective thermal management for high-load systems, while the black chassis and compact ATX dimensions make it suitable for performance-focused desktop PC builds.
- Connectivity includes ATX 20+4 pin, 3x CPU 4+4 pin, 6x PCI-E 6+2 pin, 14x SATA, 5x Molex, 1x Floppy, PCIe Gen 5 power support, and 10 Year Warranty.
| Specifications | |
|---|---|
| Brand | FSP |
| Series | Hydro PTM Pro |
| Model | PPA12A1012 |
| Colour | Black |
| Power | |
| Wattage | 1200W |
| Form Factor | ATX |
| ATX Standard | ATX 3.0 |
| Efficiency Rating | 80 PLUS Platinum |
| Modularity | Fully Modular |
| PCIe Gen 5 Ready | Yes |
| 12V-2×6 / PCIe Gen 5 Connector | Yes |
| Cooling | |
| Fan Size | 135mm |
| Connectors | |
| Main Power | ATX 20+4 pin x1 |
| CPU Power | 4+4 pin x3 |
| PCIe Gen 5 Power | 12VHPWR x1 |
| PCIe Power | PCI-E 6+2 pin x6 |
| SATA | SATA x14 |
| Peripheral | Molex x5 |
| Floppy | Floppy x1 |
| Dimensions | |
| Product Dimensions | 15 x 19 x 8.6cm |
| Warranty Information | |
| Warranty | 10 Year Warranty |
FSP Hydro PTM Pro 1200w Fully Modular 80 PLUS Platinum ATX3.0 Power Supply – PPA12A1012
Contact us if you would like to enquire about this product.
