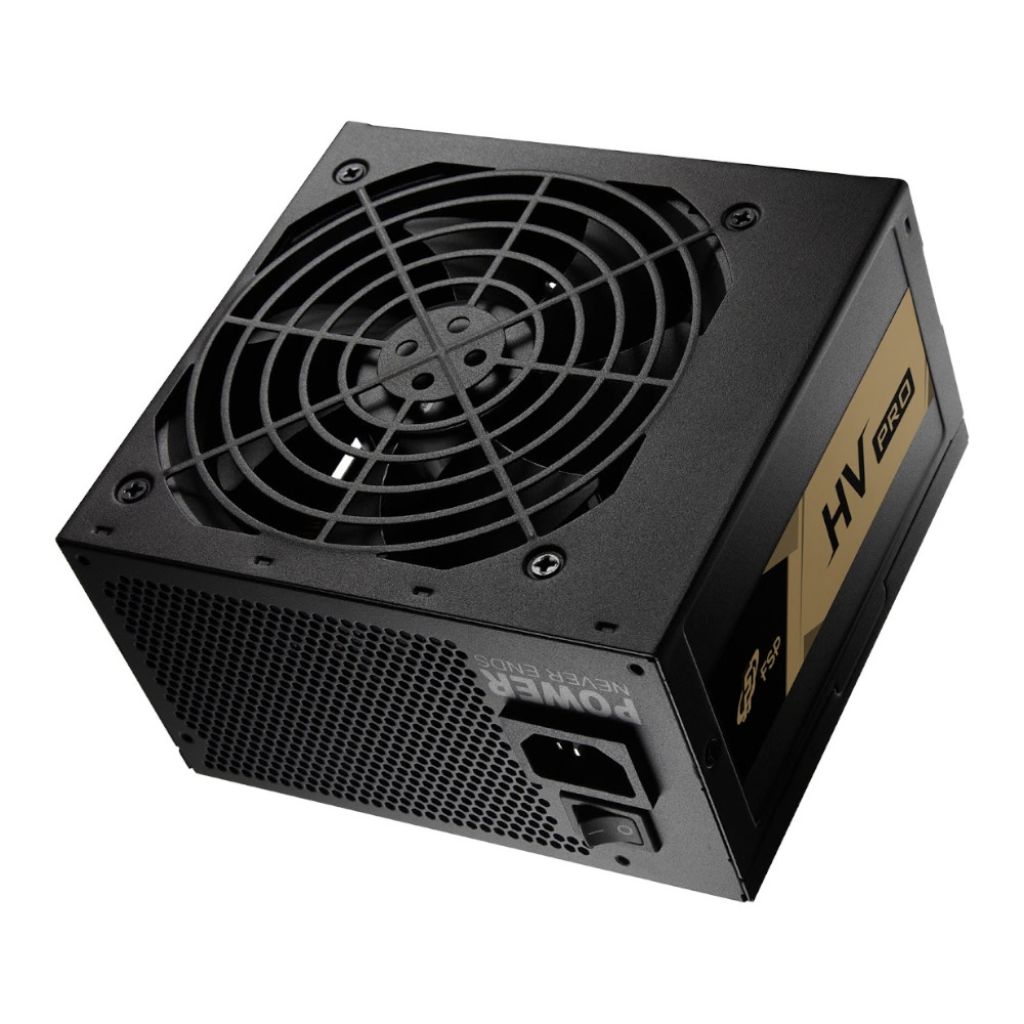

FSP HV Pro 650W 80 PLUS Non-Modular Desktop Power Supply – PPA6505406
Full description FSP.
- The FSP HV Pro 650W is a reliable non-modular ATX desktop power supply designed for everyday PC builds, offering stable 650W output, 80 PLUS 230V EU certification, and dependable power delivery for compatible systems.
- Built to meet ATX12V v2.52 and EPS12V v2.92 standards, this power supply supports modern desktop configurations while maintaining efficient operation with 85% efficiency at typical load under 230V EU conditions.
- The +12V single-rail design provides consistent power delivery for core system components, while the DC-to-DC module design for +5V and +3.3V rails helps maintain reliable voltage regulation.
- A 120mm silent long-life sleeve fan provides cooling for the power supply while helping keep noise levels controlled, making it suitable for everyday gaming, office, and general desktop builds.
- Protection features include OCP, OVP, OPP, and SCP, helping protect against overcurrent, overvoltage, overpower, and short-circuit conditions, with Active PFC, compact dimensions, and 3 Year Warranty.
| Specifications | |
|---|---|
| Brand | FSP |
| Series | HV Pro |
| Model | PPA6505406 |
| Colour | Black |
| Power | |
| Rated Output Power | 650W |
| Form Factor | ATX |
| ATX Standard | ATX12V v2.52 |
| EPS Standard | EPS12V v2.92 |
| 80 PLUS Certification | 230V EU Standard |
| Efficiency | ≥85% at typical load |
| Active PFC | Yes, ≥0.9 |
| Hold Up Time | >17ms at 80% load |
| Input | |
| Input Voltage | 200–240V |
| Input Current | 5A |
| Input Frequency | 50–60Hz |
| DC Output | |
| +3.3V Output | 20A / 100W |
| +5V Output | 20A / 100W |
| +12V Output | 54.1A / 649.2W |
| -12V Output | 0.3A / 3.6W |
| +5Vsb Output | 2.5A / 12.5W |
| Cooling | |
| Fan Type | 120mm Silent Long-Life Sleeve Fan |
| Protections | |
| Protection Features | OCP OVP OPP SCP |
| Connectors | |
| Main Power | MB 20+4 pin x1 |
| CPU Power | 4+4 pin x2 |
| PCIe Power | PCI-E 6+2 pin x2 |
| SATA | SATA x4 |
| Peripheral | Molex x2 |
| Floppy | Floppy x1 |
| Dimensions | |
| Product Dimensions | 15 x 14 x 8.6cm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
