SKU DEYE SUN-8K-SG01LP1-EU Categories , ,

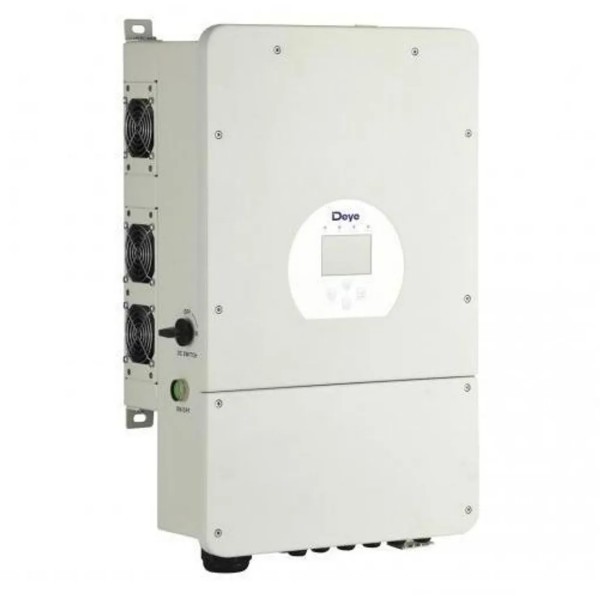

Deye Sun 8K 8KVA/8KW Grid Tied Inverter

R41499,00 Inc. VAT

  • Colorful touch LCD, IP65 protection degree
  • Max. charging/discharging current of 190A
  • Frequency droop control, Max.16pcs parallel
  • 6 time periods for battery charging/discharging
  • DC AC Normal Alarm
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator

Out of stock

Browse More Products

Description

Deye Sun 8K 8KVA/8KW Grid Tied Inverter

DEYE SUN-8K-SG01LP1-EU

Full description Deye.

The series, SUN 8K-SG, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.

Features:

  • Colorful touch LCD, IP65 protection degree
  • Max. charging/discharging current of 190A
  • Frequency droop control, Max.16pcs parallel
  • 6 time periods for battery charging/discharging
  • DC AC Normal Alarm
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

Specifications:

Model SUN-8K-SG01LP1-EU
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40~60V
Max. Charging Current (A) 190A
Max. Discharging Current (A) 190A
Charging Curve 3 Stages / Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 10400W
PV Input Voltage (V) 370V (100V~500V)
MPPT Range (V) 125V-425V
Start-up Voltage (V) 150V
PV Input Current (A) 22A+22A
No.of MPPT Trackers 2
No.of Strings Per MPPT Tracker 2+2
AC Output Data
Rated AC Output and UPS Power (W) 8000W
Max. AC Output Power (W) 8800W
Peak Power (off  grid) 2 times of rated power, 10 S
AC Output Rated Current (A) 35A
Max. AC Current (A) 38.5A
Max. Continuous AC Passthrough (A) 50A
Output Frequency and Voltage 50 / 60Hz; 230Vac (single phase)
Grid Type Single Phase
Current Harmonic Distortion THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
PV Input Lightning Protection Integrated
Anti-islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Detection Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection Integrated
Surge protection DC Type II / AC Type II
Certifications and Standards
Grid Regulation VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727
Safety Regulation IEC62109-1, IEC62109-2
EMC EN61000-6-1, EN61000-6-3, FCC 15 class B
General Data
Operating Temperature Range (℃) -25~60℃, >45℃ Derating
Cooling Smart cooling
Noise (dB) <30 dB
Communication with BMS RS485; CAN
Weight (kg) 32
Size (mm) 420W×670H×233D
Protection Degree IP65
Installation Style Wall-mounted

Deye Sun 8K 8KVA/8KW Grid Tied Inverter

DEYE SUN-8K-SG01LP1-EU

Contact us if you would like to enquire about this product
