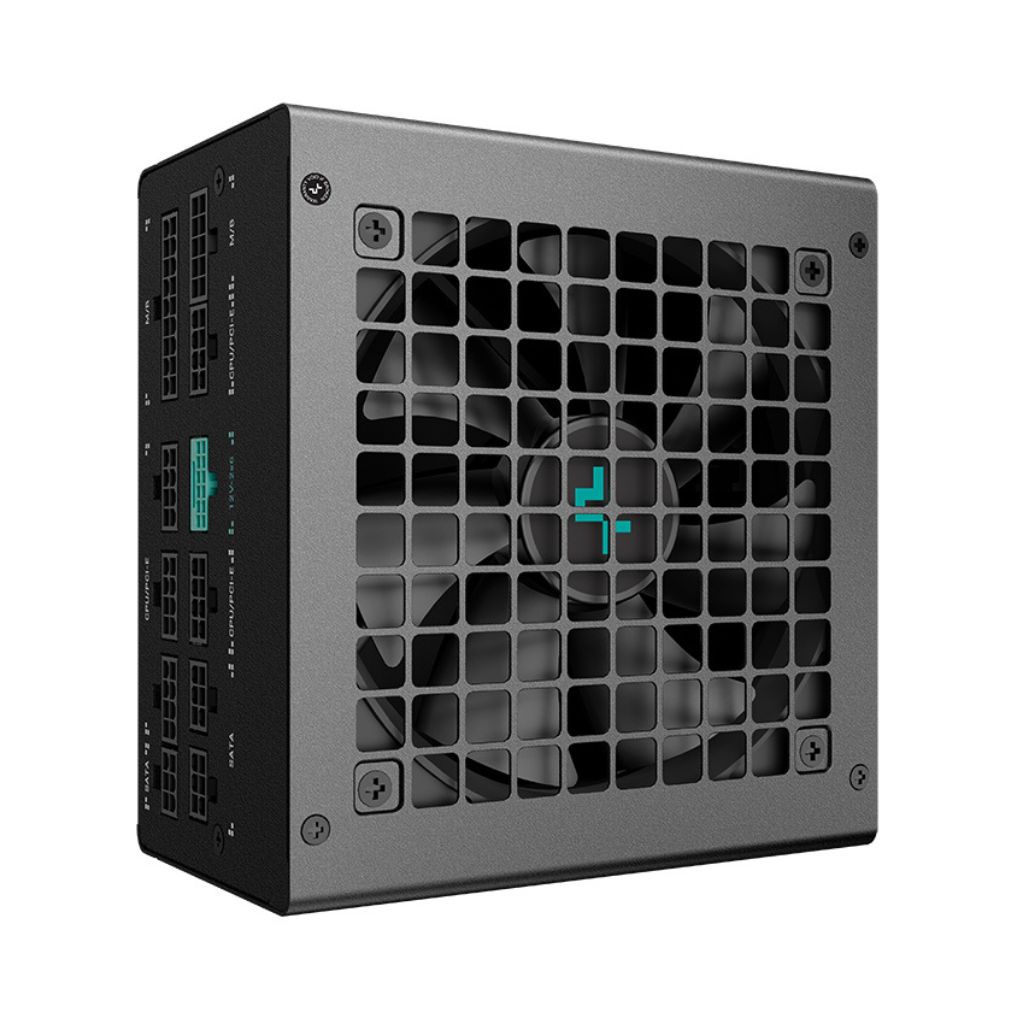

DeepCool PN850M 850W 80 Plus Gold Fully Modular ATX 3.1 Desktop Power Supply – Black
Full description DeepCool.
- The DeepCool PN850M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard.
- With a dedicated 12V-2×6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components.
- With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue.
- The PN850M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
| Specifications | |
| Brand: | DeepCool |
| Series: | PN Series |
| Model: | (R-PN850M-FC0B-EU) PN850M |
| Technical Specs | |
| Modularity: | Fully-Modular |
| Certifications: | 80 Plus Gold |
| Continuous Power: | 850w |
| ATX Version: | ATX 3.1 |
| Fan Specs | |

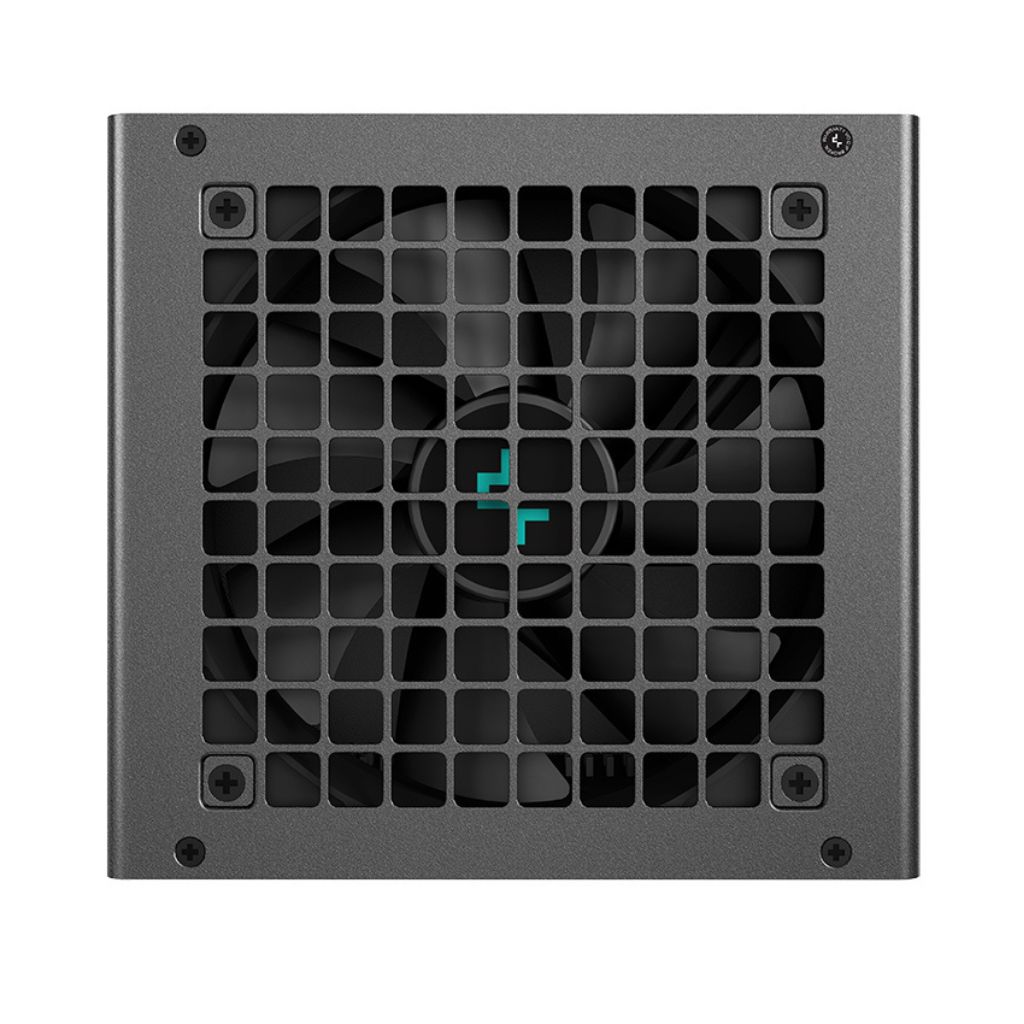

| Fan Size: | 120mm |
| Bearing Technology: | Fluid Dynamic Bearing |
| Zero RPM Quiet Mode: | Yes, temperature controlled |
| Software & Features | |
| Software: | – |
| Features: | Dynamic 120mm FDB fan that will adjust its speed based on the cooling needs |
| PN850M has been outfitted with sleeved cables right out of the box | |
| 6AWG copper-core embossed 12V-2×6 cable | |
| Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology | |
| 80 Plus Gold certified to meet a high level of power efficiency | |
| General | |

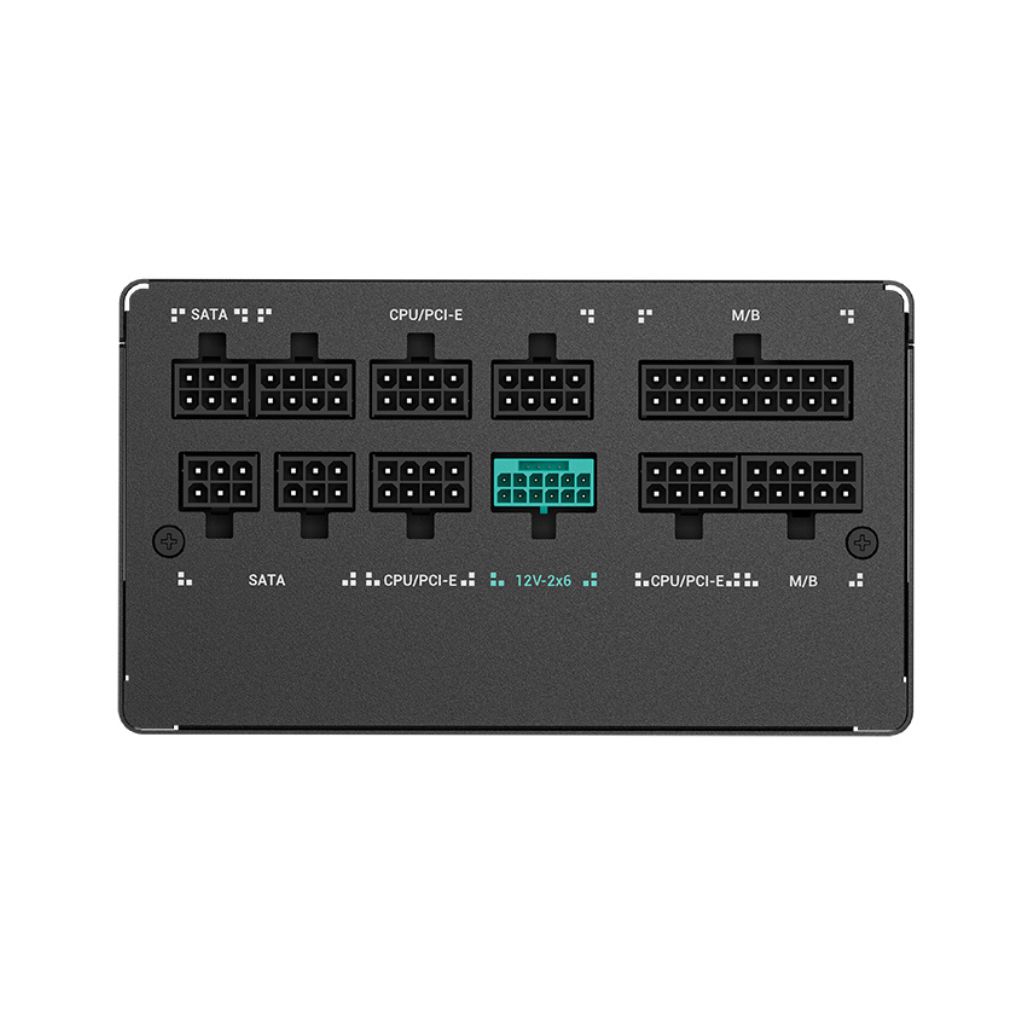

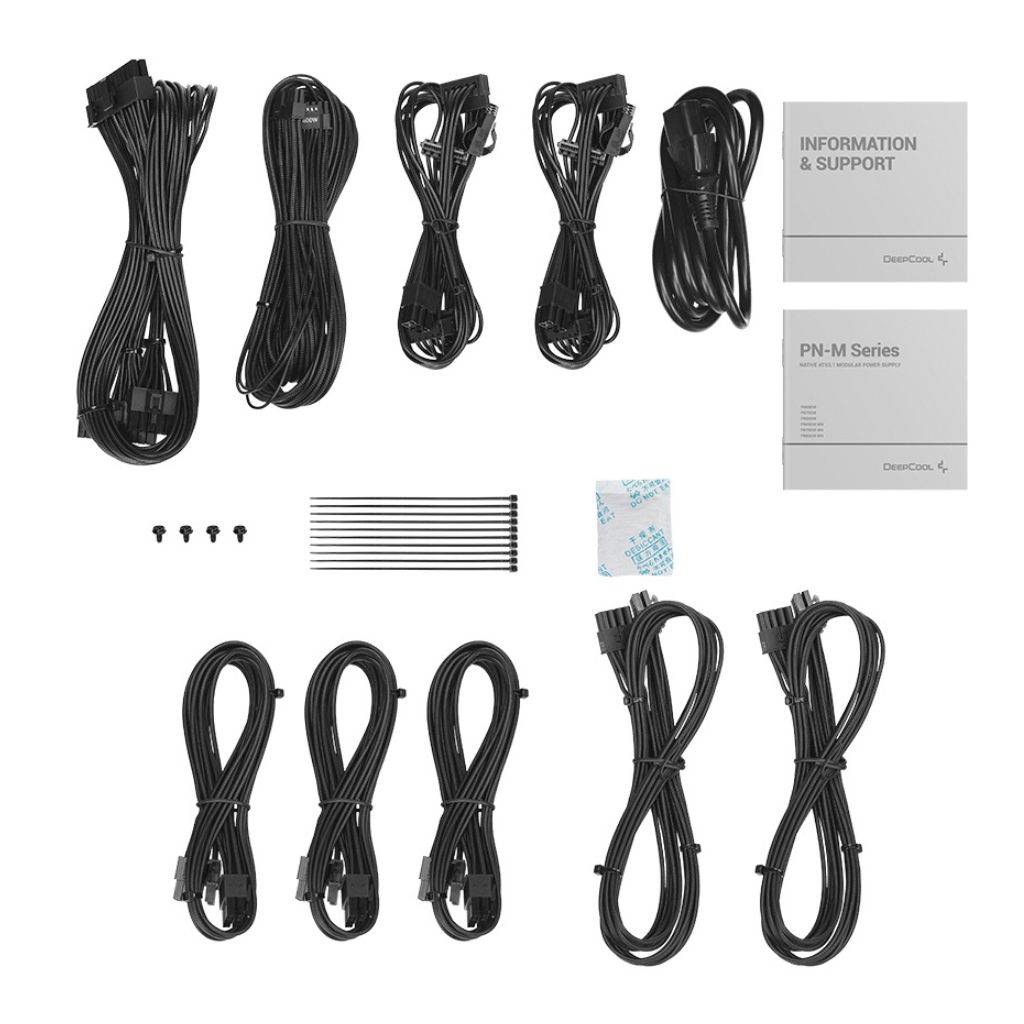

| Cables Included: | 1x 24-Pin ATX 12V Cable (550mm) 2x 8-Pin (4 4) EPS 12V CPU Cables (700mm) 1x 12VHPWR PCIe Gen5 16-pin Cable (600mm) 3x 8-Pin (6 2) PCIe Cables (550mm) 8x SATA Connectors 2x Molex Connectors |
| MTBF Hours: | 100,000 Hours |
| Form Factor: | ATX |
| Dimensions: | 150×140×86mm (W x L x H) |
| Weight: | – |
| Colour: | Black |
| Warranty Information | |
| Warranty: | 10 Year Warranty |
