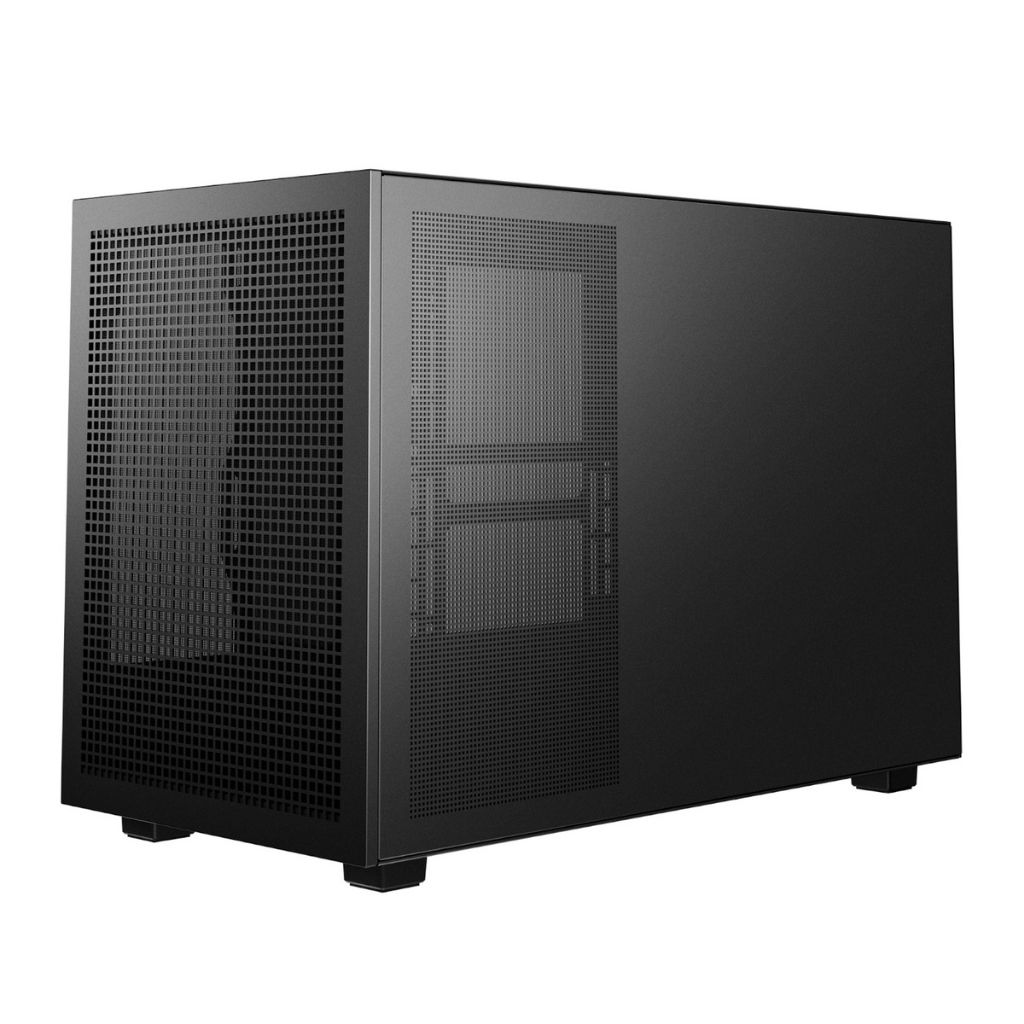

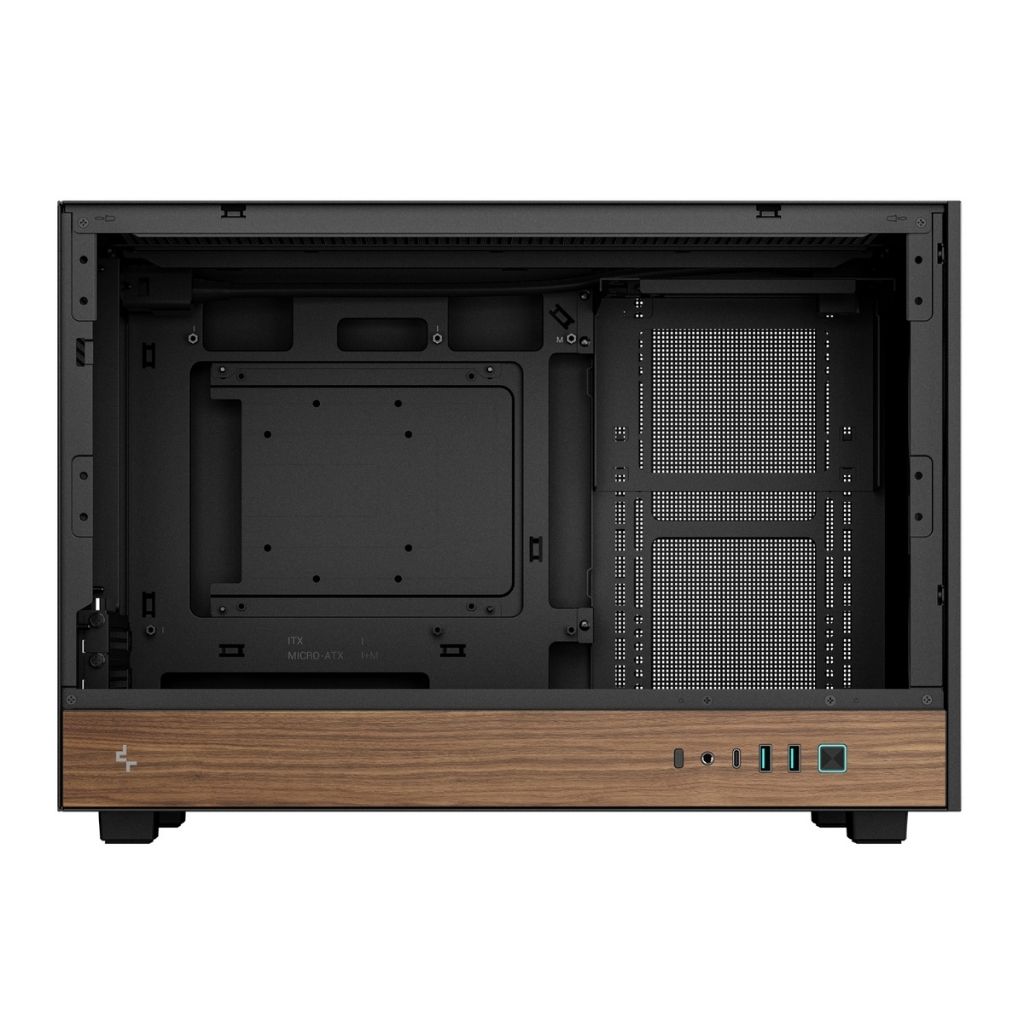

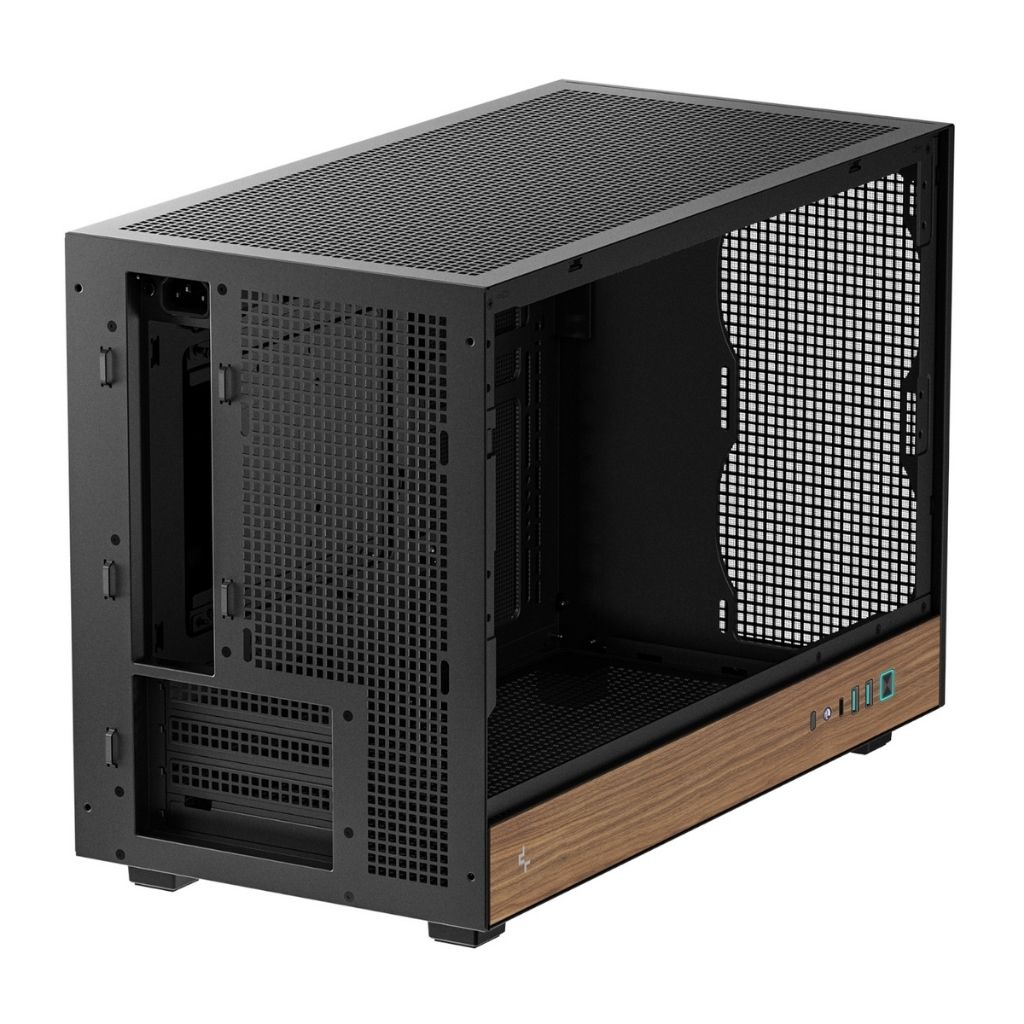

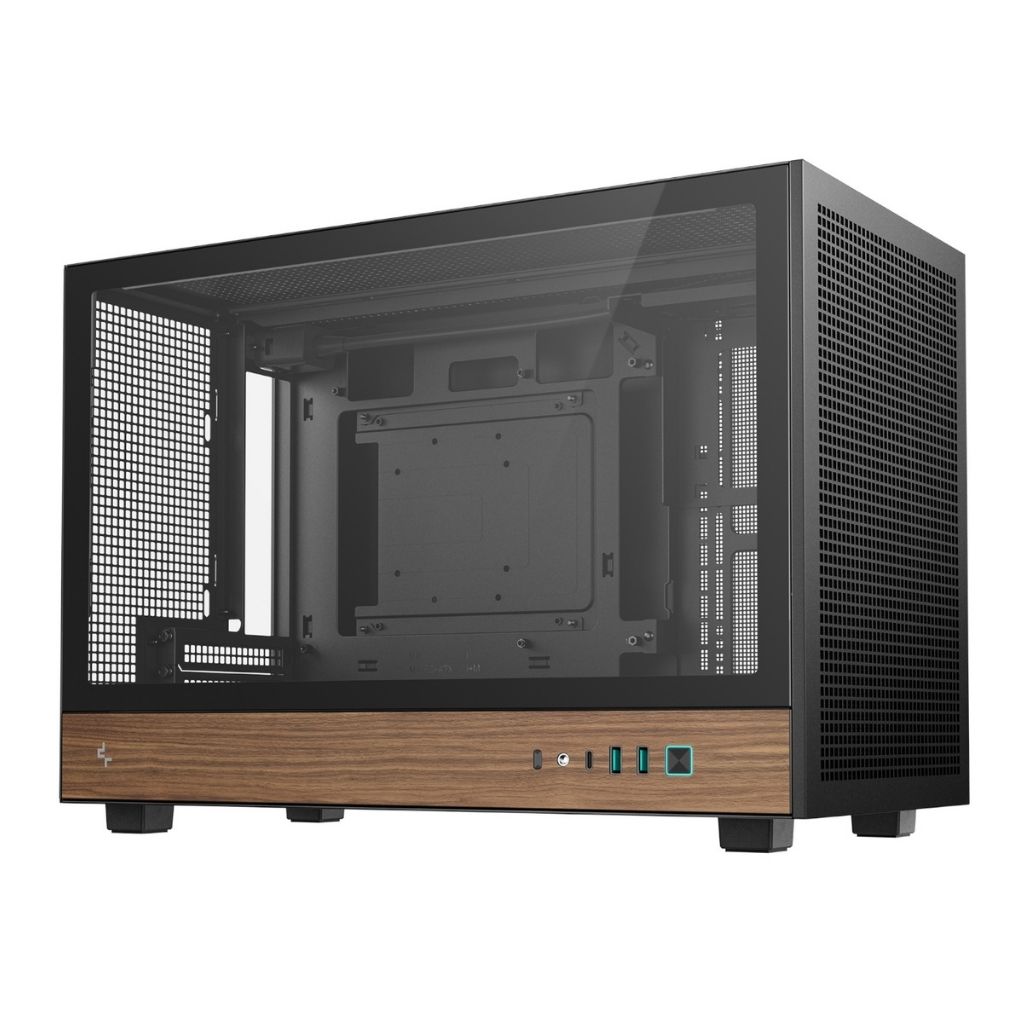

DeepCool CH260 Wood Tempered Glass Micro-ATX Desktop Gaming PC Case Black – R-CH260-BKNWM0-G-1
Full description DeepCool.
- The DeepCool CH260 Wood is a compact Micro-ATX desktop gaming case designed for clean modern builds, combining a black chassis, tempered glass styling, wood-accent aesthetic, and practical hardware support in a smaller footprint.
- Motherboard support includes Mini-ITX, Micro-ATX, and Micro-ATX rear-connector boards, giving builders flexibility for standard layouts or cleaner hidden-cable builds with compatible reverse-connector motherboard designs.
- Despite its compact size, the case supports graphics cards up to 388mm, or up to 413mm without front fans, along with CPU coolers up to 174mm for capable gaming and performance PC configurations.
- Cooling support includes 2x 120mm front fan mounts, top support for 3x 120mm or 2x 140mm fans, rear 120mm fan support, and radiator support up to 360mm on the top panel.
- Practical build features include 2x USB 3.0 ports, 1x Gen2 Type-C port, audio/mic combo, 4 expansion slots, dedicated 3.5-inch and 2.5-inch drive bays, compact dimensions, and 2 Year Warranty.
| Specifications | |
|---|---|
| Brand | DeepCool |
| Series | CH |
| Model | CH260 Wood |
| Product Code | R-CH260-BKNWM0-G-1 |
| Colour | Black |
| Case Design | |
| Case Type | Micro-ATX Desktop Gaming PC Case |
| Materials | ABS, SPCC, Tempered Glass |
| Motherboard Support | Mini-ITXMicro-ATXMicro-ATX rear connector |
| Expansion Slots | 4 slots |
| Cooling Support | |
| Fan Support | Front: 2x 120mmTop: 3x 120mm / 2x 140mmRear: 1x 120mm |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360mmRear: 120mm |
| Hardware Support | |
| Maximum GPU Length | 388mm / 413mm without front fans |
| Maximum CPU Cooler Height | 174mm |
| Power Supply Support | ATX PS2 up to 150mm |
| 3.5″ Drive Bays | 1 |
| 2.5″ Drive Bays | 1 |
| Front I/O Ports | |
| USB Ports | 2x USB 3.01x Gen2 Type-C |
| Audio | 1x Audio / Mic combo jack |
| Dimensions & Weight | |
| Product Dimensions | 438 x 225 x 312.5mm |
| Product Weight | 5.3kg |
| EAN | 6933412765653 |
| Warranty Information | |
| Warranty | 2 Year Warranty |
