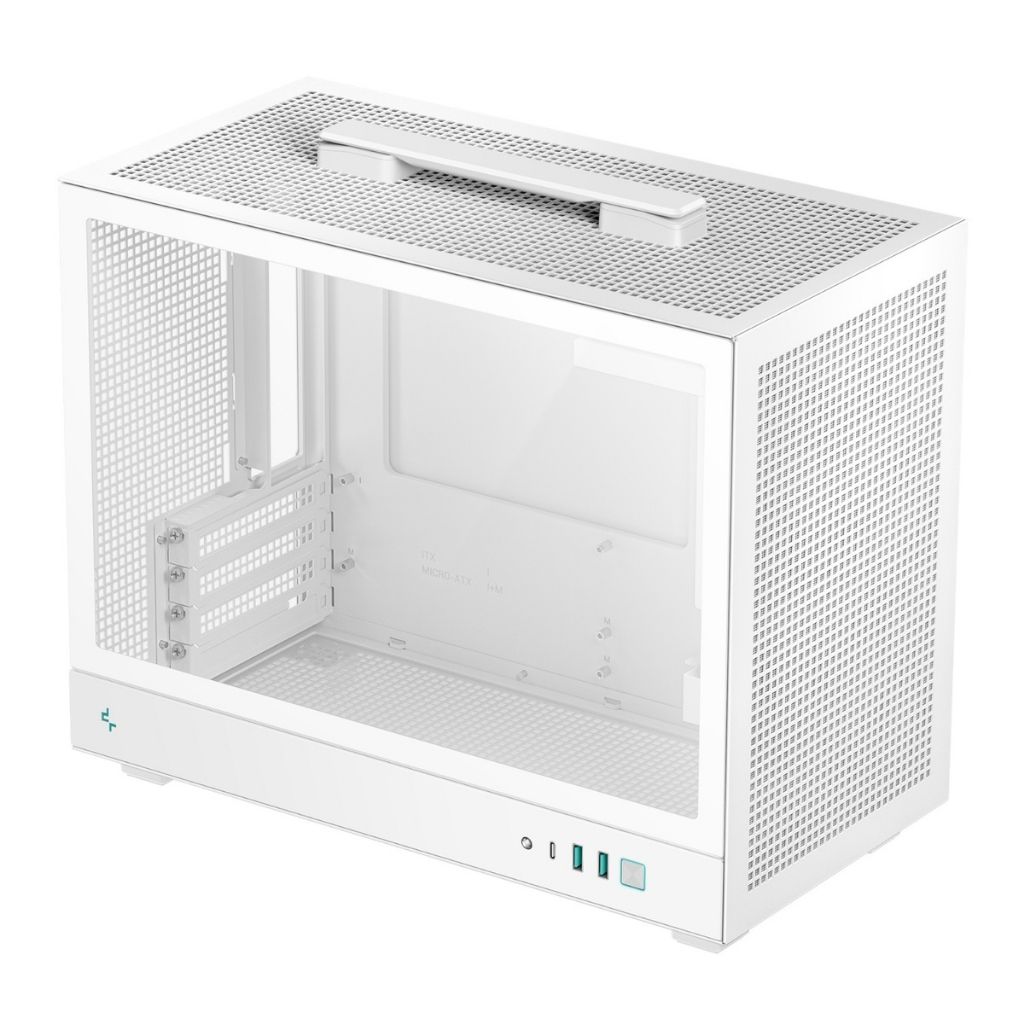

DeepCool CH160 PLUS Tempered Glass Steel Micro-ATX Mini-Tower Desktop PC Case White Pixel Bits – R-CH160-WHNGM0-G
Full description DeepCool.
- The DeepCool CH160 PLUS White Pixel Bits is a compact Micro-ATX mini-tower PC case designed for clean desktop builds, combining tempered glass styling, steel construction, and a space-saving footprint for modern gaming or productivity systems.
- With support for Mini-ITX and Micro-ATX motherboards, the chassis gives builders flexibility for compact setups while still offering practical expansion, storage, cooling, and hardware clearance for everyday PC builds.
- Despite its compact size, the case supports graphics cards up to 342mm and CPU air coolers up to 164mm, giving users room for capable gaming hardware and performance-focused components.
- Cooling support includes front 120mm / 140mm fan support with SFX PSU, dual 120mm top fan support, rear 120mm fan support, and radiator support up to 240mm on the top panel.
- Practical features include 2x USB 3.0 ports, 1x Gen2 Type-C port, audio/mic combo, 4 expansion slots, 3.5-inch and 2.5-inch drive support, and 2 Year Warranty.
| Specifications | |
|---|---|
| Brand | DeepCool |
| Series | CH |
| Model | CH160 PLUS |
| Product Code | R-CH160-WHNGM0-G |
| Colour | White Pixel Bits |
| Case Design | |
| Case Type | Micro-ATX Mini-Tower Desktop PC Case |
| Materials | ABS, SPCC, Tempered Glass |
| Motherboard Support | Mini-ITXMicro-ATX |
| Expansion Slots | 4 slots |
| Cooling Support | |
| Fan Support | Front: 1x 120mm / 1x 140mm with SFX PSUTop: 2x 120mmRear: 1x 120mm |
| Radiator Support | Top: 120 / 240mmRear: 120mm |
| Hardware Support | |
| Maximum GPU Length | 342mm |
| Maximum CPU Cooler Height | 164mm |
| Power Supply Support | ATX PS2 up to 140mm, SFX, SFX-L |
| 3.5″ Drive Bays | 1 |
| 2.5″ Drive Bays | 1 + 1 |
| Front I/O Ports | |
| USB Ports | 2x USB 3.01x Gen2 Type-C |
| Audio | 1x Audio / Mic combo jack |
| Dimensions & Weight | |
| Product Dimensions | 375 x 195 x 323.5mm |
| Product Weight | 4.2kg |
| Included in the Box | |
| Included Items | DeepCool CH160 PLUS Micro-ATX Mini-Tower Desktop PC Case – White Pixel Bits x1 |
| Warranty Information | |
| Warranty | 2 Year Warranty |
DeepCool CH160 PLUS Tempered Glass Steel Micro-ATX Mini-Tower Desktop PC Case White Pixel Bits – R-CH160-WHNGM0-G
Contact us if you would like to enquire about this product.
