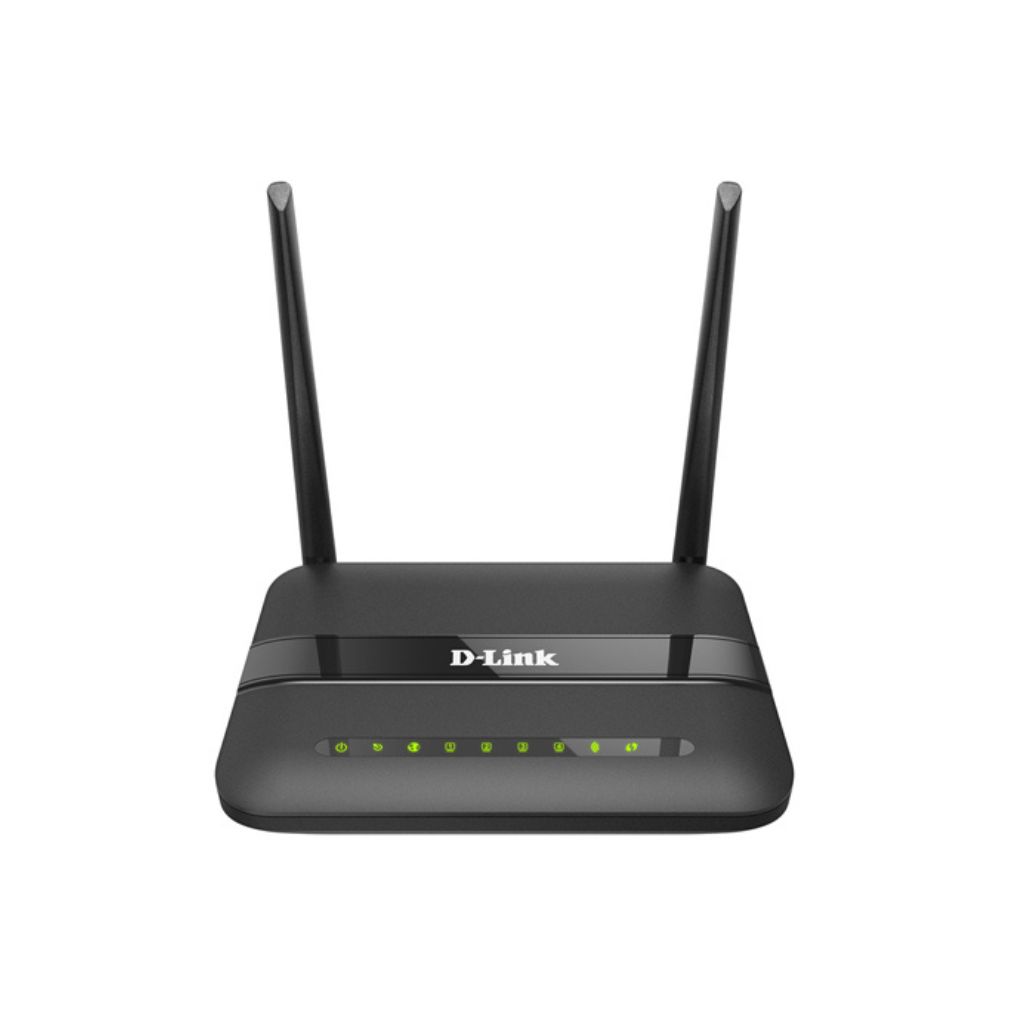

D-Link DSL-124 Wireless N300 ADSL2+ Modem Router
Full description D-Link.
The DSL-124 Wireless N300 ADSL2+ Modem Router is a versatile, high-performance router for a home or small office. With integrated ADSL2/2+, supporting download speeds up to 24 Mbps, firewall protection, Quality of Service (QoS), 802.11n wireless LAN, and four Ethernet switch ports, the Wireless N300 ADSL2+ Modem Router provides all the functions that a user needs to establish a secure and high-speed link to the Internet.
- 4x 10/100 Fast Ethernet ports
- Quality of Service (QoS)
- Auto MDI/MDIX
- Built-in NAT firewall with SPI and NAT
SPECIFICATIONS |
|
| Brand | D-Link |
| Series | Routers |
| Model | DSL-124 |
| Device Interfaces | RJ-11 ADSL Port |
| 4x RJ-45 10/100BASE-TX Ethernet Ports with Auto MDI/MDIX | |
| Factory Reset Button | |
| Built-in 802.11n Wireless LAN | |
| WPS Button | |
| Power On/Off Switch | |
| ADSL Standards | Multi-Mode |
| ANSI T1.413 Issue 2 | |
| ITU G.992.1 (G.dmt) Annex A | |
| ITU G.992.2 (G.lite) Annex A | |
| ITU G.994.1 (G.hs) | |
| ADSL2 Standards | ITU G.992.3 (G.dmt.bis) |
| Annex A/L/M, ITU G.992.4 (G.lite.bis) Annex A | |
| ITU G.992.5 Annex L/M (Optional) | |
| Wireless Features | 802.11n/g/b Standards |
| Wireless Speed: Up to 54 Mbps (802.11g), 300 Mbps (802.11n) | |
| Frequency Range: 2.4 GHz to 2.484 GHz | |
DSL Features |
G.dmt: 8 Mbps Downstream, 832 Kbps Upstream |
| G.lite: 1.5 Mbps Downstream, 512 Kbps Upstream | |
| ADSL2: 12 Mbps Downstream, 1 Mbps Upstream | |
| ATM Forum UNI3.1/4.0 PVC (Up to 8 PVCs) | |
| ADSL2 : 24 Mbps Downstream, 1 Mbps Upstream | |
| VC and LLC Based Multiplexing | |
| PPP Over Ethernet (PPPoE) | |
| PPP Over ATM (RFC 2364) | |
| ITU-T I.610 OAM F4/F5 | |
| ATM Adaptation Layer Type 5 (AAL5) | |
| ATM QoS (Traffic Shaping) | |
| Bridged or Routed Ethernet Encapsulation | |
| Router Features | NAT & NAPT |
| DHCP Server/Client/Relay | |
| Static Routing, RIP v.1, v.2 | |
| Universal Plug and Play (UPnP) Compliant | |
| Dynamic Domain Name System (DDNS) | |
| SNTP, DNS Proxy and IGMP Proxy | |
| Built-in NAT Firewall | |
| Stateful Packet Inspection (SPI) | |
| DoS Attacks Prevention | |
| Packet Filtering (IP/ICMP/TCP/UDP) | |
| Supports IPv6 | |
| Virtual Private Network (VPN) | Multiple PPTP/IPSec/L2TP Pass-Through |
| Device Configuration/Management | Installation Wizard |
| Web-Based GUI for Configuration, Firmware Upgrade | |
| Telnet | |
| Syslog Monitoring | |
| Quality of Service | 802.1p (0 to 7) Traffic Tagging |
| IGMP Snooping with 32 Multicast Groups | |
| PVC/VLAN Port Mapping (Bridge Mode) | |
| Security | IGMP |
| PVC/VLAN Port Mapping (Bridge Mode) 64/128 bits | |
| WEP Data Encryption | |
| WPA/WPA2 (Wi-Fi Protected Access) Security | |
| MAC Address-Based Access Control | |
| WPS | |
| Status | LEDs, Power, LAN (1 to 4), WLAN, WPS, DSL, Internet |
| Power | Input: 100 to 240 V AC, 50/60 Hz |
| Output: 12 V DC 0.5 A (via External Adapter) | |
| Temperature | Operating: 0 to 40 °C |
| Storage: -20 to 65 °C | |
| Humidity | Operating: 0% to 90% Non-Condensing |
| Storage: 5% to 95% Non-Condensing | |
| Certifications | CE, LVD |
| Dimensions | 160 x 115 x 30 mm |
| Weight | 145 g |
| Warranty Information | |
| Warranty | 3 Year Warranty |
D-Link DSL-124 Wireless N300 ADSL2+ Modem Router
Contact us if you would like to enquire about this product.
