Cooler Master MasterBox TD500 Mesh V2 Mid-Tower Gaming Chassis- White
Full description Cooler Master.
- MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.
- MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!
- USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
- The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

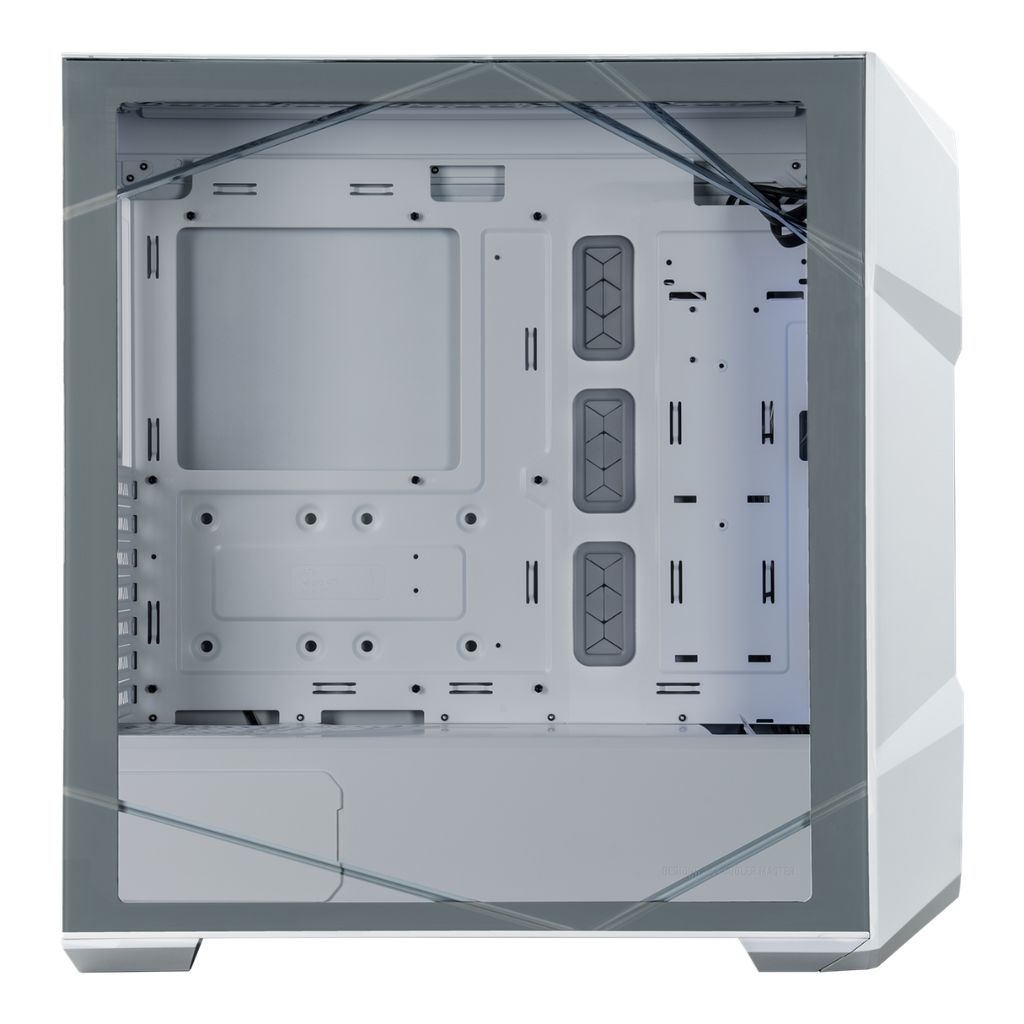

- Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.
- MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
SPECIFICATIONS |
|
| Brand | Cooler Master |
| Series | MasterBox Series |
| Model | MasterBox TD500 V2 (TD500V2-WGNN-S00) |
| Physical Details | |
| Colour | White |
| Materials | Steel |
| Plastic | |
| Tempered Glass | |
| Side Panel | Clear Tempered Glass Side Panel |
| Front I/O | 1x Front-Panel USB 10Gb/s Type-C Port |
| 2x Front-Panel USB 5Gb/s Type-A Ports | |
| 1x 3.5mm Combination Audio Jack | |
| Motherboard Support | Supports SSI CEB, E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards |
| E-ATX and SSI-CEB support with clearance of 304.8 x 271.7mm (H x W) | |
| Expansion Slots | 7x PCI Slots |
| Drive Bays | 3x 2.5″ HDD/SSD Drive Bays |
| 2x 3.5″ Drive Bays | |
| PSU Support | ATX |
| Dimensions | 499 × 210 × 500mm (D x W x H) |
| Weight | 7.7kg |
| Pre-Installed Fans | |
| Front | 3x Cooler Master CF120 120mm ARGB Fans |
| Top | N/A |
| Rear | N/A |
| Fan Support | |
| Front | 3x 120mm Fans or 2x 140mm Fans |
| Top | 3x 120mm Fans or 2x 140mm Fans |
| Rear | 1x 120mm Fan |
| Radiator Support | |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm Radiator |
| Top | 120mm, 140mm, 240mm, 280mm, 360mm Radiator (55mm thickness clearance) |
| Rear | 120mm Radiator |
| Clearance | |
| CPU Cooler Height Limitation | 165mm |
| GPU Length Limitation | 410mm |

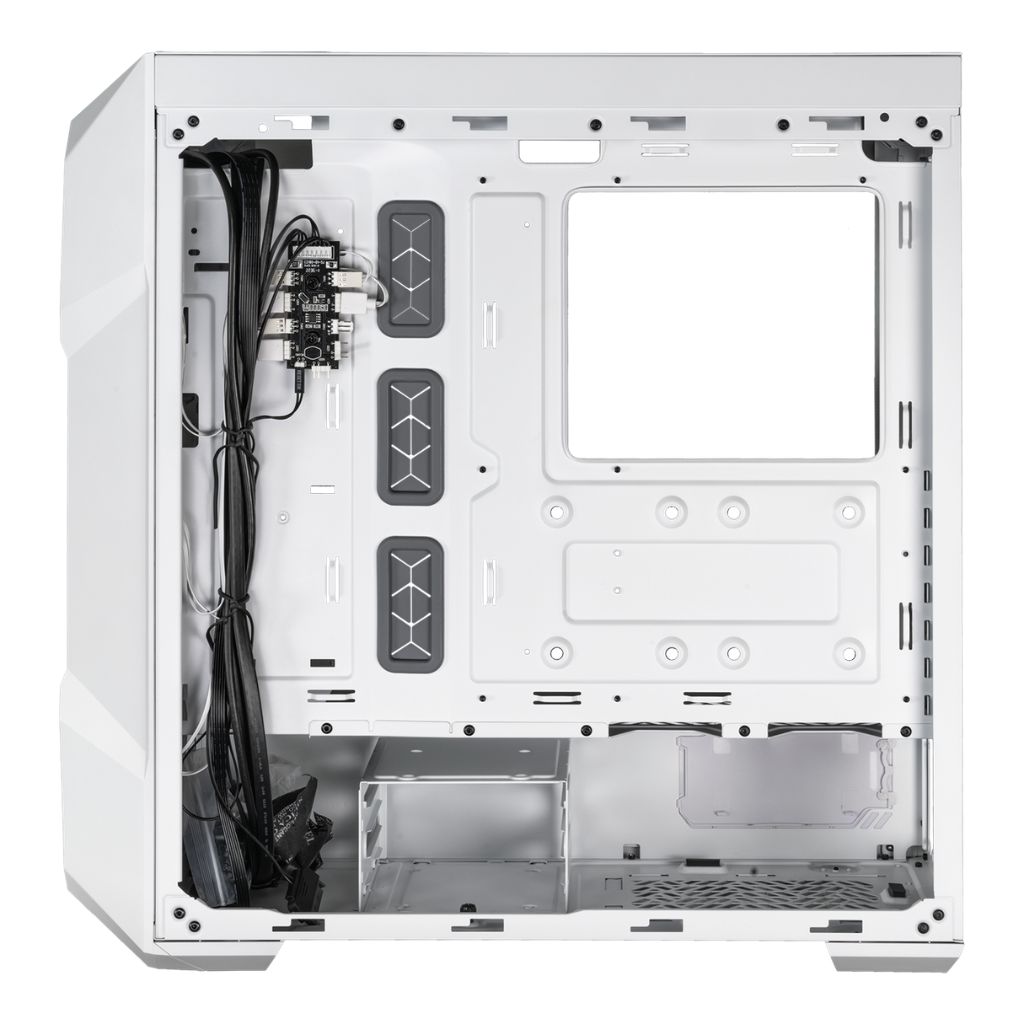

| Cable Management | Yes, with rubber grommets |
| PSU Length Limit | Up to 200mm (up to 170mm recommended for cabling) |
| General | |
| Dust Filters | Yes, Front, Top, Bottom PSU dust filters |
| Chassis Lighting | 4-Way ARGB & PWM Fan Hub |
| RGB Fans support 5V ARGB headers | |
| Warranty Information | |
| Warranty | 2 Year Warranty |
Cooler Master MasterBox TD500 Mesh V2 Mid-Tower Gaming Chassis- White
Contact us if you would like to enquire about this product.
