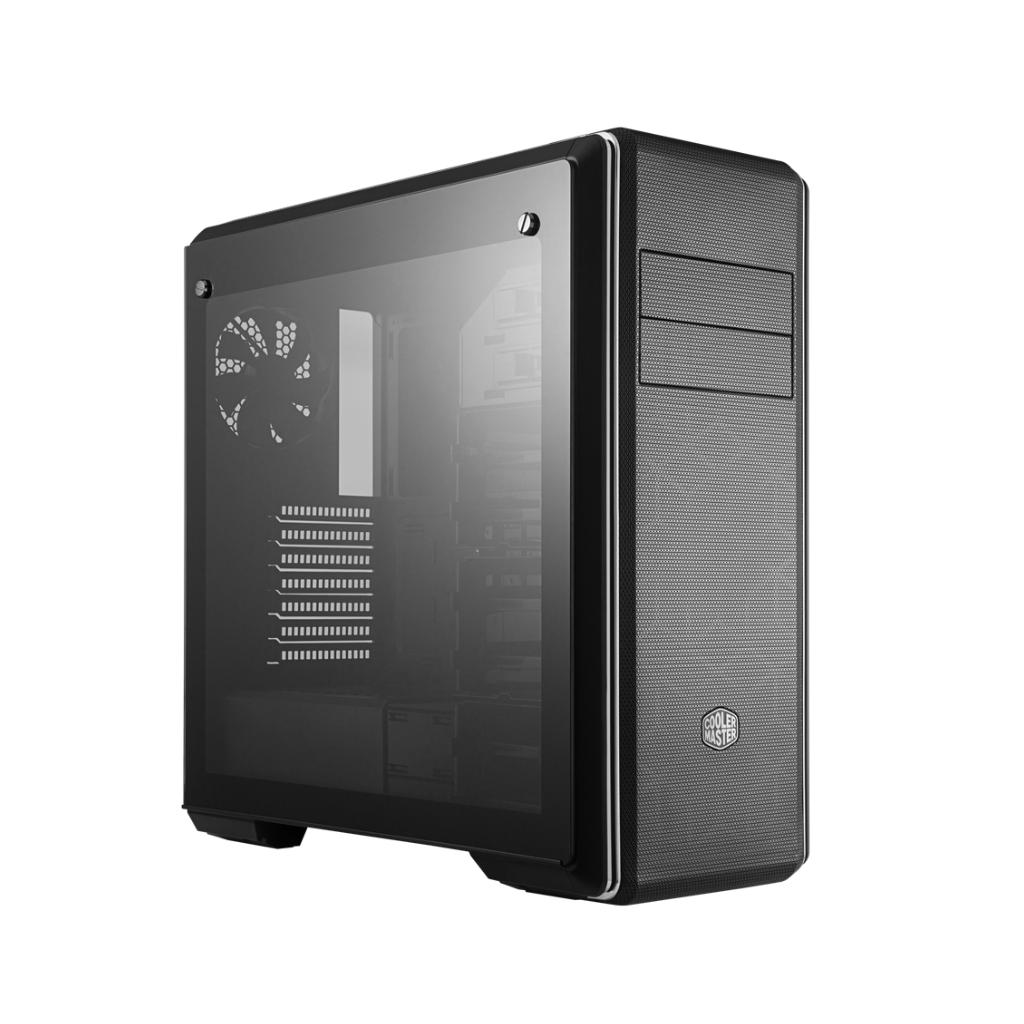

Cooler Master MasterBox CM694 Mesh Mid-Tower Desktop Chassis – Black
Full description Cooler Master.

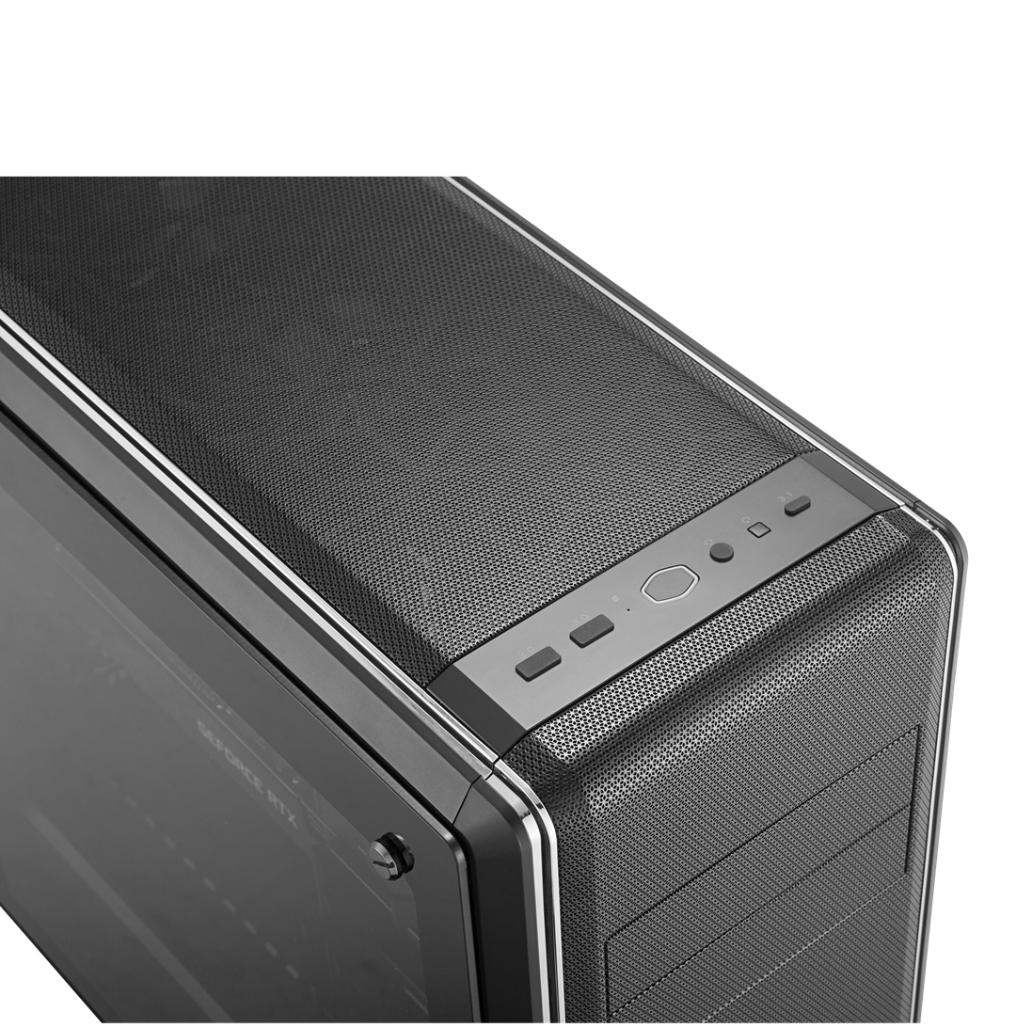

- The top and front panel are entirely mesh, featuring the iconic CM690 curve and Cooler Master’s signature rhombus pattern. The fine mesh on the CM694 achieves optimal airflow while also filtering out dust with a single layer.

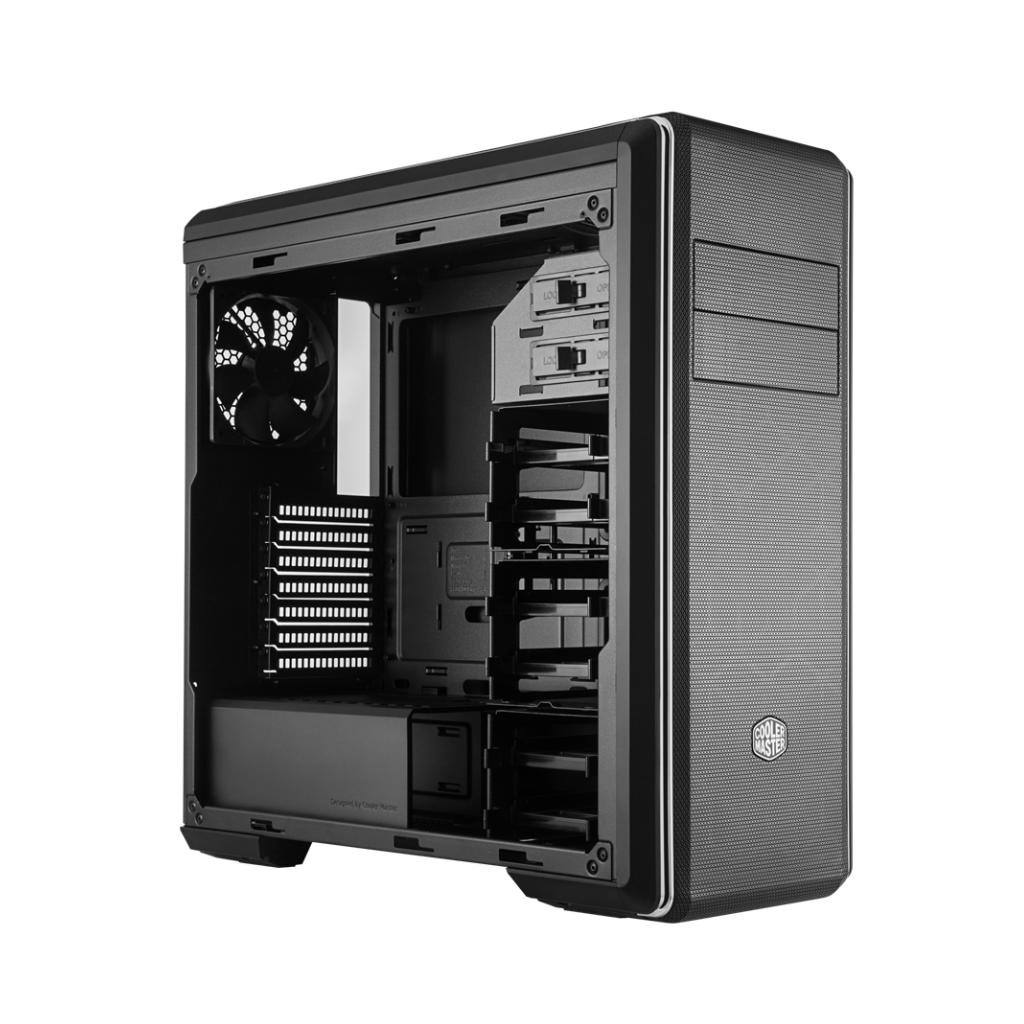

- 3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.
- The dust-proof I/O Panel features rubber shields, 2 x USB 3.0 ports, a USB 3.1 (Gen 2) Type-C port, and a 4 pole headset jack.

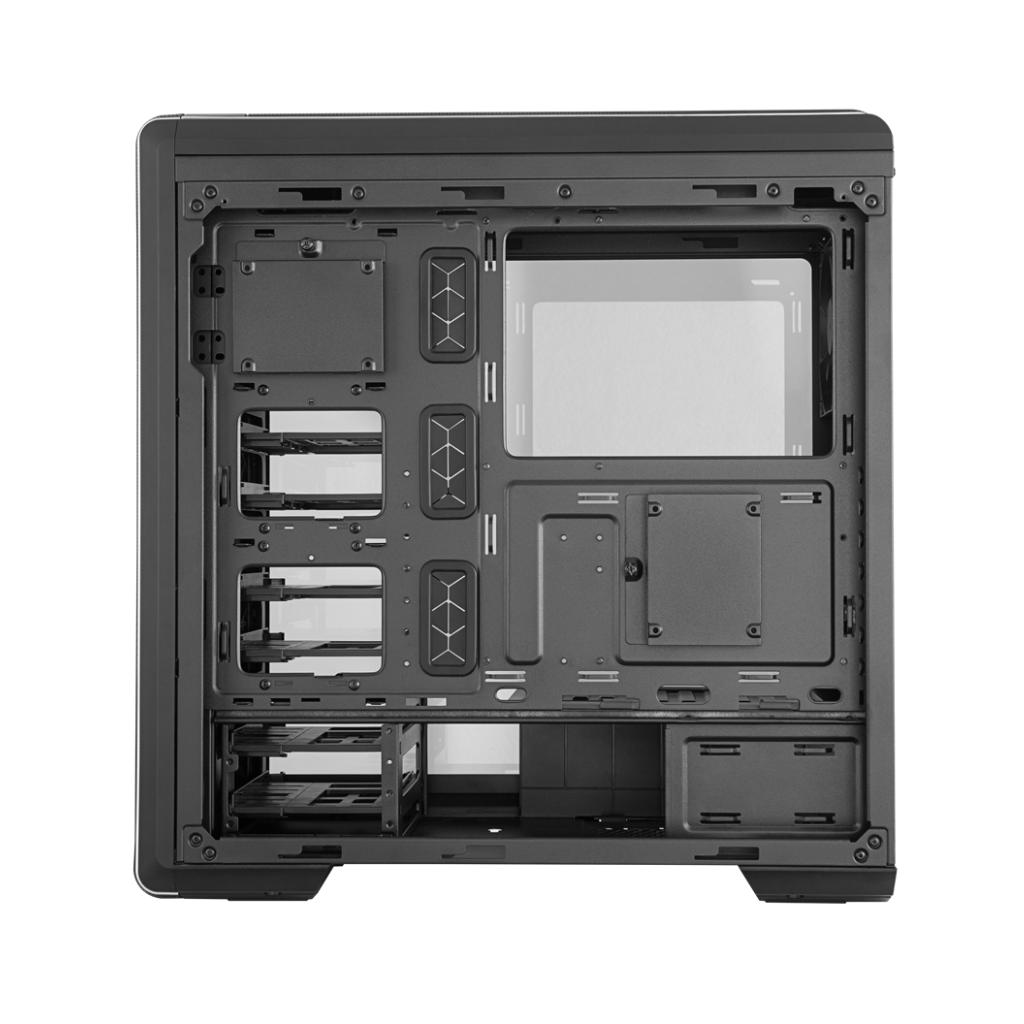

- Simultaneous support for 6 x 3.5” HDDs and 8 x 2.5” SSDs ensure substantial storage capabilities.
Specifications |
|
| Brand: | Cooler Master |
| Series: | MasterBox Series |
| Model: | MCB-CM694-KG5N-S00 |
| Technical Specs | |
| Motherboard Support: | Mini ITX, Micro ATX, ATX, E-ATX |
| Drive Bays: | 5.25″ Drive Bays 2 2.5″ / 3.5″ Drive Bays (Combo) 6 (3x drive cages) |
| 2.5″ Drive Bays 8 (2 + 6 combo) | |
| Expansion Slots: | 7 |
| Dust Filters: | Top, Front, Bottom |
| Front I/O: | 2x USB 3.0 Type A 1x USB 3.1 Type-C 1x 3.5mm Headset Jack (Audio+Mic) |
| Side Panel: | Tempered Glass |
| Fan Specs | |
| Pre-Installed Fans: | – Pre-installed Fans – Front 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector) – Pre-installed Fans – Rear 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector) |
| Fan Support: | – Front 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD) – Top 3x 120mm, 2x 140mm – Rear 1x 120mm |
| Radiator Support | |
| Front: | 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage) |
| Top: | 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility) |
| Rear: | 120mm |
| Side: | – |
| Chassis Clearance Specs | |
| Cooler Height Clearance: | 171mm |
| GPU Length Clearance: | 410mm/16.1″, 350mm (with stabilizer) 280mm (with stabilizer + drive cage) |
| PSU Length Limit: | Bottom Mount, ATX PS2 |
| Software & Features | |
| Software Support: | – |
| Features: | Massive storage support |
| Wide range motherboard support | |
| GPU Stabilizer | |
| The top and front panel are entirely mesh | |
| Rich Connectivity (I/O Panel) | |
| General | |
| Chassis Lighting: | – |
| PSU Support: | Bottom Mount, ATX PS2 |
| Dimensions: | 493mm x 224mm x 506mm |
| Weight: | Not specified |
| Colour: | Black |
| Warranty Information | |
| Warranty: | 2 Year Warranty |
