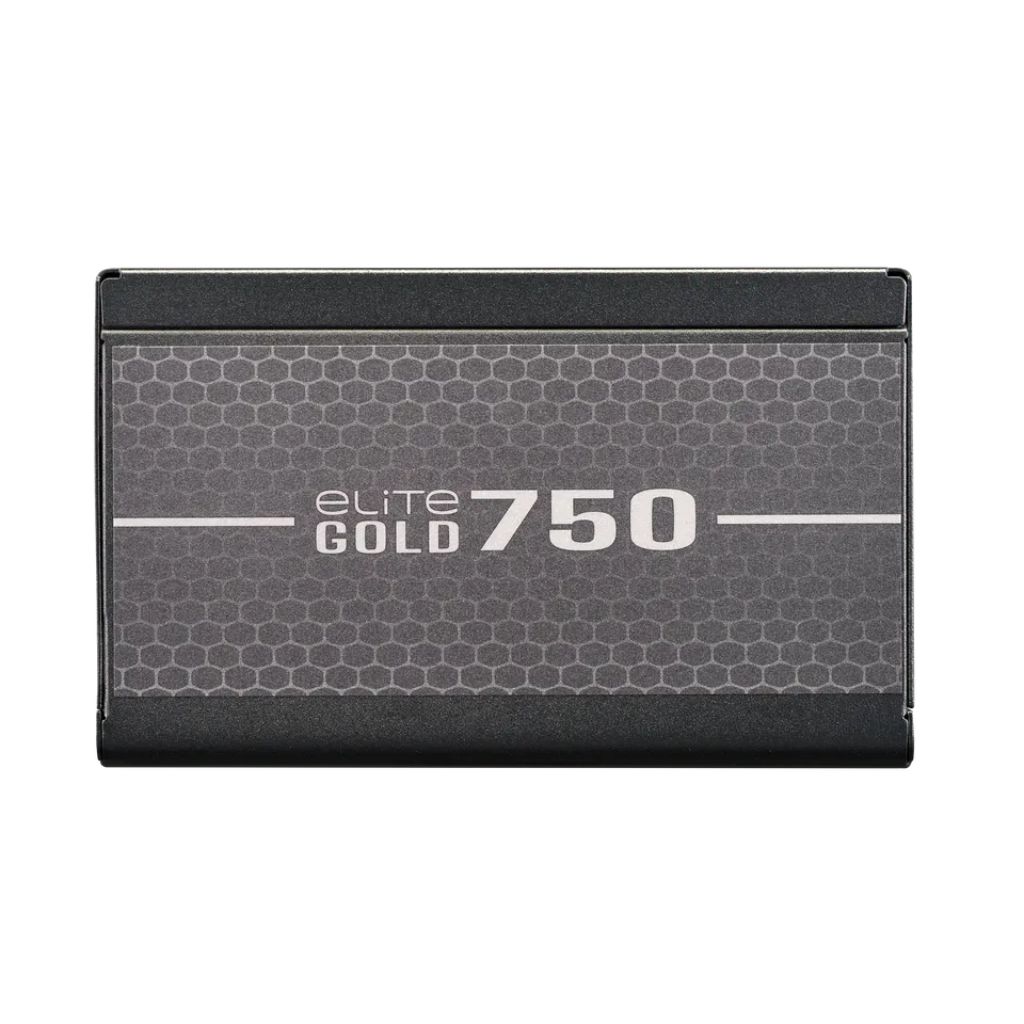

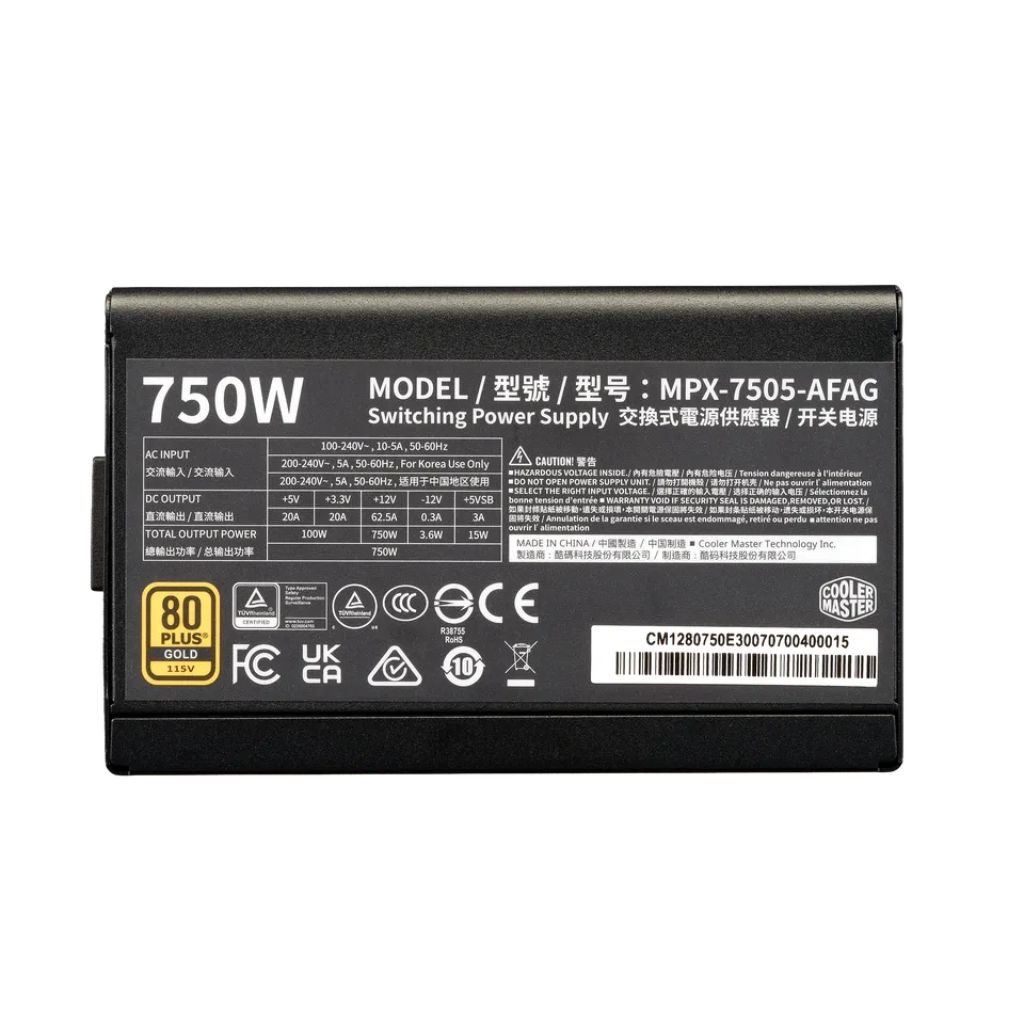

Cooler Master Elite Gold 750 750w 80 PLUS Gold Gen 5.1 ATX 3.1 Desktop Power Supply Black – MPX-7505-AFAG-BEU
Full description Cooler Master.
- Power modern gaming and productivity systems with 750W output and ATX 3.1 / Gen 5.1 readiness, giving this power supply the stable headroom needed for current desktop hardware, demanding workloads, and reliable everyday performance.
- Improve efficiency and reduce wasted energy with 80 PLUS Gold certification and ≥90% efficiency at typical load, helping your system run cooler and more effectively while supporting lower excess heat during sustained gaming or work sessions.
- Build cleaner, easier-to-manage systems with a fully modular cable design, allowing you to connect only the cables you need for neater routing, improved airflow, and a tidier internal layout in modern ATX desktop builds.
- Support current-generation graphics hardware with a native 12+4 pin connector, dual PCI-E 6+2 pin connectors, and dual EPS 4+4 / 8-pin CPU connectors, giving the PSU strong compatibility for performance-focused gaming systems and future upgrades.
- Designed for dependable long-term use, the Cooler Master Elite Gold 750 combines a 120mm rifle bearing fan, comprehensive protection features, over 100,000 hours MTBF, and a reassuring 10 Year Warranty for lasting system confidence.
| Specifications | |
|---|---|
| Brand | Cooler Master |
| Series | Elite Series |
| Model | MPX-7505-AFAG-BEU |
| Colour | Black |
| Power Supply | |
| Rated Output Power | 750W |
| Form Factor | ATX |
| Modularity | Fully Modular |
| ATX Version | ATX 12V Ver. 3.1 |
| Certification | 80 PLUS Gold |
| Efficiency | ≥90% @ Typical Load |
| PFC | Active PFC |
| ErP 2014 Lot 3 | Yes |
| Hold Up Time | ≥ 11ms @ 100% Load |
| MTBF | >100,000 hours @ 25°C ambient |
| Cooling | |

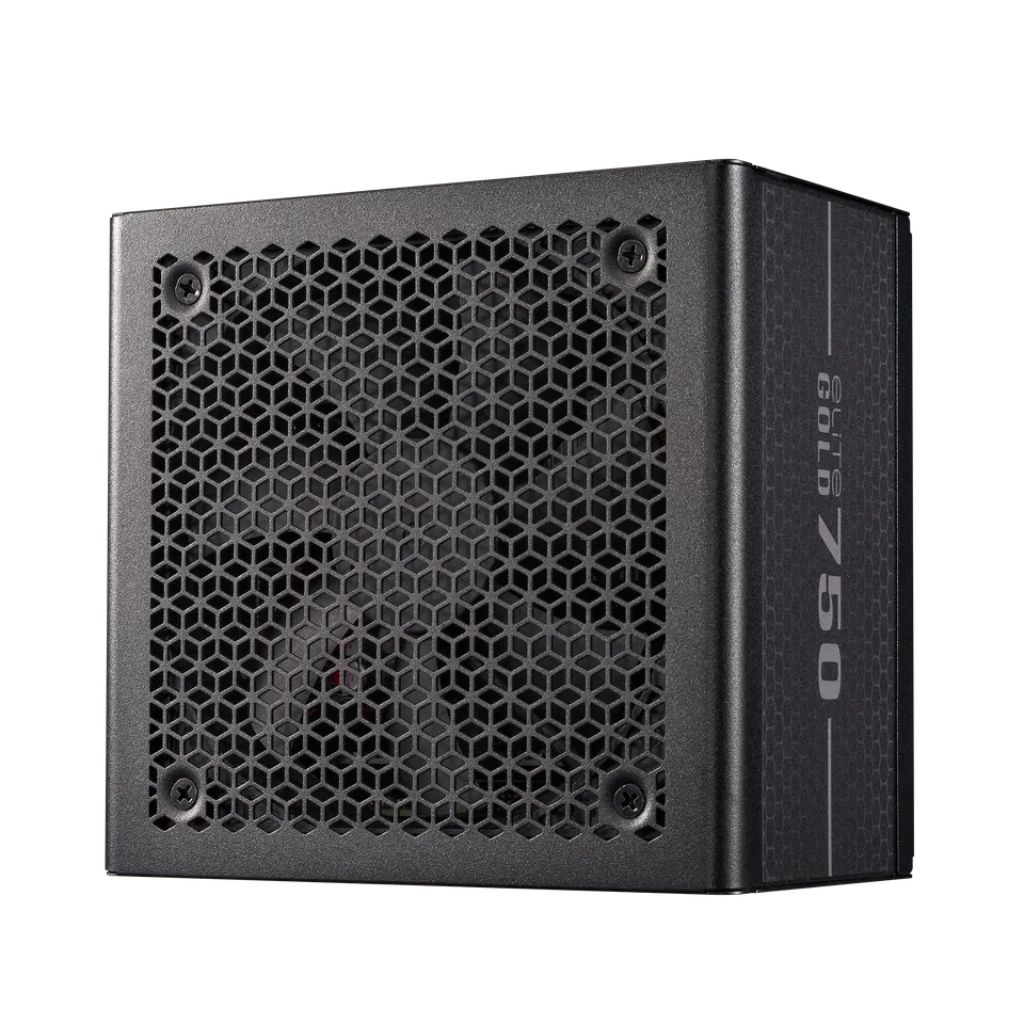

| Fan Size | 120mm |
| Fan Bearing | Rifle Bearing |
| Protection | |
| Protection | UVP / OVP / OPP / OTP / SCP |
| Connectors | |
| ATX 24 Pin | 1 |
| EPS 4+4 Pin / EPS 8 Pin | 2 |
| PCI-E 6+2 Pin | 2 |
| 12+4 Pin | 1 |
| SATA & Peripheral 4 Pin | 4 SATA + 2 Peripheral |
| Compliance | |
| Regulatory | cTUVus, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0 |
| Physical | |
| Dimensions | 140 x 150 x 86 mm |
| Warranty Information | |
| Warranty | 10 Year Warranty |
Cooler Master Elite Gold 750 750w 80 PLUS Gold Gen 5.1 ATX 3.1 Desktop Power Supply Black – MPX-7505-AFAG-BEU
Contact us if you would like to enquire about this product.
Wesley (verified owner) –
Upgraded from the old GX750, solid build and modular keeps case clutter free. Cooler Master never disappoints
