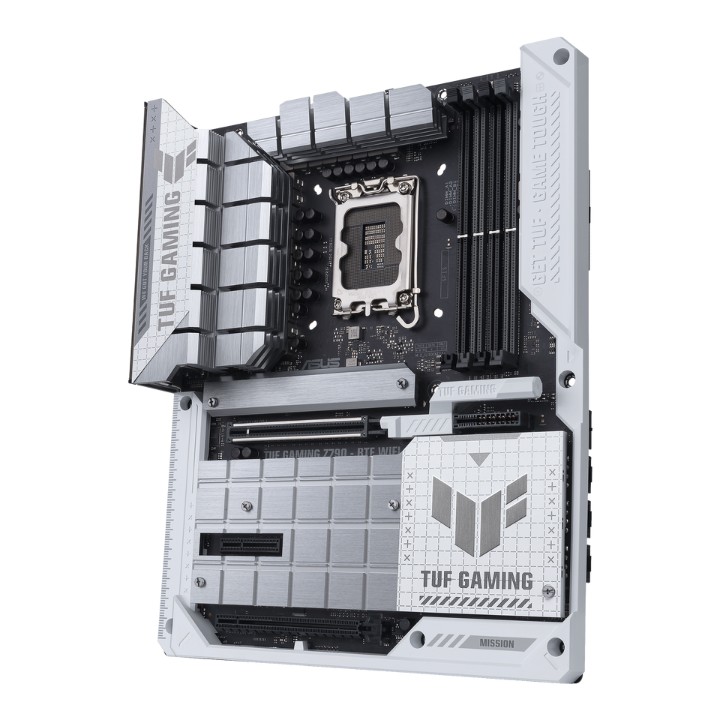

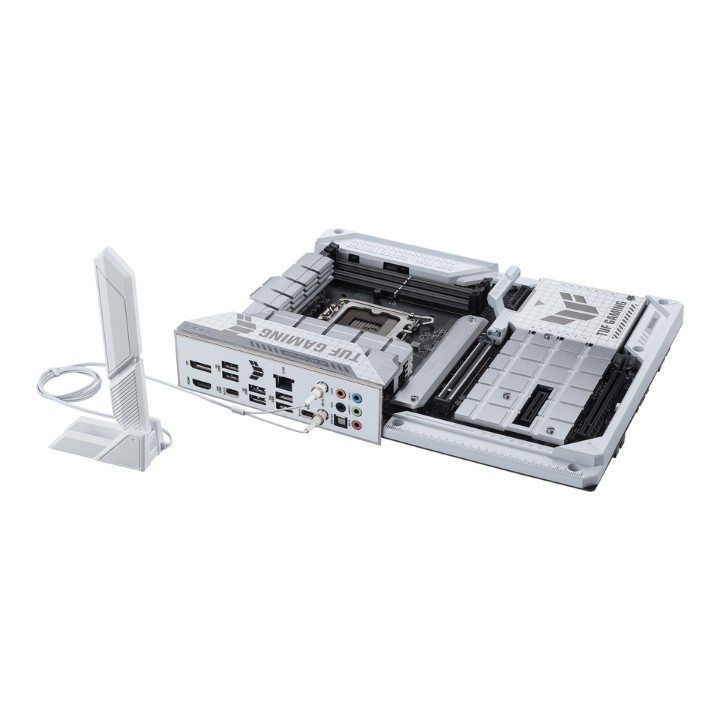

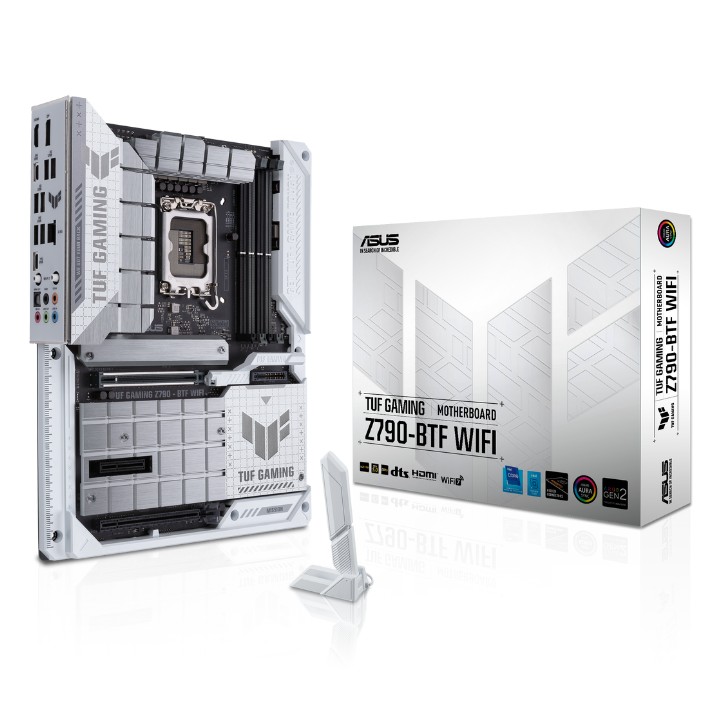

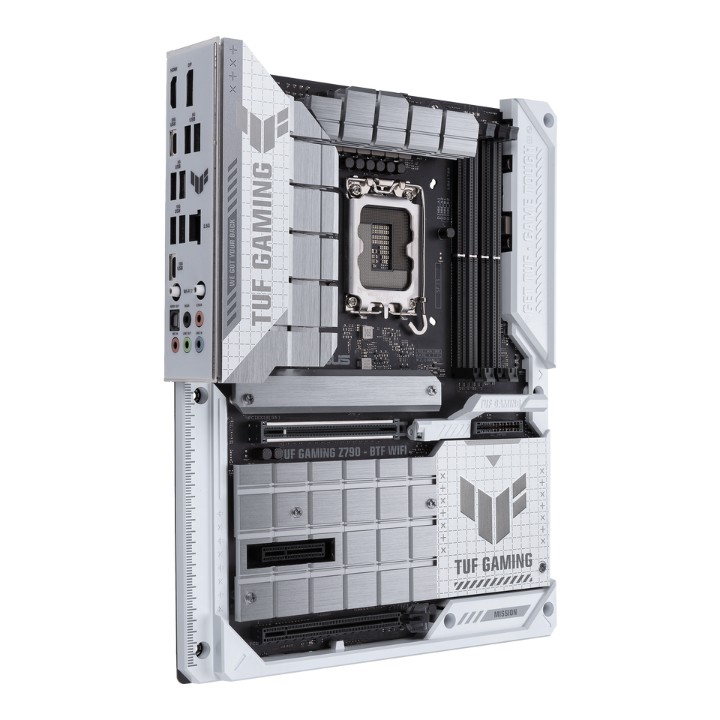

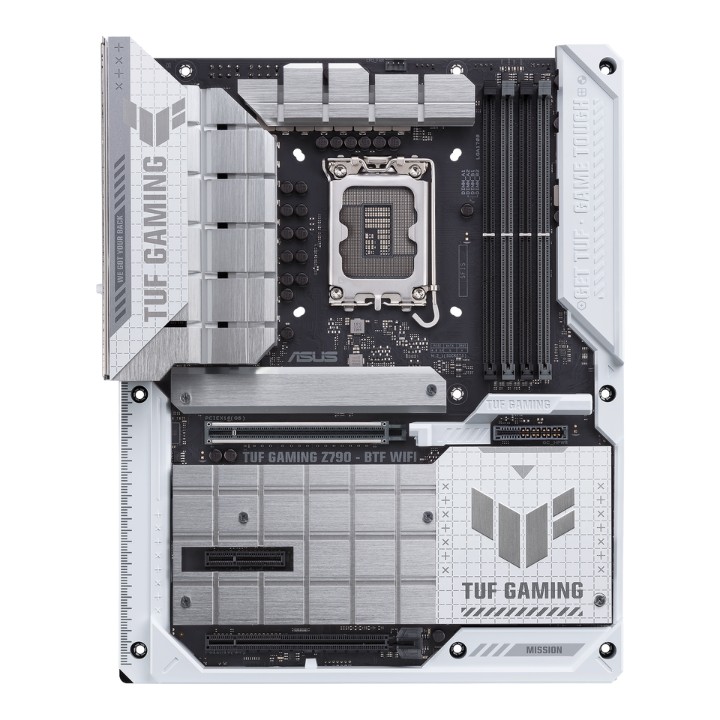

ASUS TUF Gaming Z790-BTF DDR5 WiFi LGA1700 ATX Motherboard – White Edition
Full description ASUS.
- TUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.
- “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.
- The TUF GAMING BTF lineup allows easy cable management and setup for builders of all levels. The ASUS BTF Alliance ecosystem confirms compatibility, while Armoury Crate displays hardware information and makes it easy to adjust Fan Xpert 4, Two-Way AI Noise Cancelation, RGB options and peripheral settings.
Specifications |
|
| Brand: | ASUS |
| Series: | Z790-BTF Series |
| Model: | 90MB1GU0-M0EAY0 |
| Technical Specs | |
| CPU Support: | Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Chipset: | Intel® Z790 Chipset |
| Memory: | 4 x DIMM slots, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* – Dual Channel Memory Architecture – Supports Intel® Extreme Memory Profile (XMP) memory module – ASUS Enhanced Memory Profile II (AEMP II) |
| Onboard Graphics: | 1 x DisplayPort 1 x HDMI™ port |
| Audio: | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Audio Shielding – Rear optical S/PDIF out port – Dedicated audio PCB layers – Audio Cover – Unique de-pop circuit |
| Connectivity | |
| LAN: | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| Wireless: | Intel Wi-Fi 7 |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot |
| Storage Interface: | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen)* M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x Graphics Card High-Power slot 1 x 12V-2X6 Auxiliary Power connector 3 x 8-pin PCIe Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt™ (USB4®) header |
| Back Panel Connectors: | 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Software & Features | |
| BIOS: | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software |
| Features: | ASUS TUF PROTECTION |
| ASUS Q-Design | |
| AURA Sync | |
| ASUS EZ DIY | |
| ASUS Thermal Solution | |
| General | |
| Operating System: | Windows® 11, Windows® 10 64-bit |
| Form Factor: | ATX Form Factor ( 30.5 cm x 24.4 cm ) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
