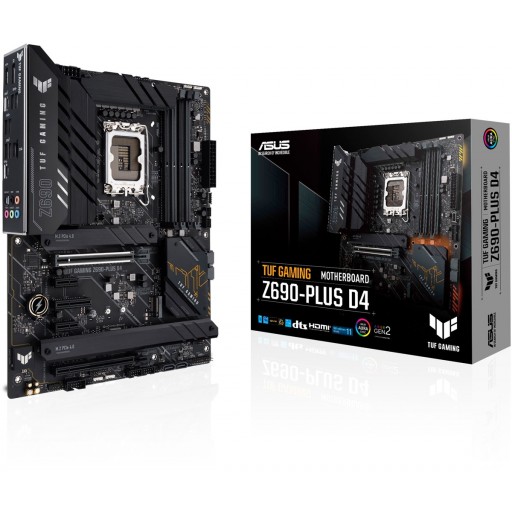

Asus TUF Gaming Z690-PLUS D4 Motherboard

Description

Full description Asus.

Intel® Z690 (LGA 1700) ATX gaming motherboard, 15 DrMOS power stages, PCIe® 5.0, DDR4 memory, four M.2 slots, Intel 2.5 Gb Ethernet, HDMI®, DisplayPort™, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 2 Type C, SATA 6 Gbps, Thunderbolt™ 4 support and Aura Sync RGB lighting

Intel^® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: PCIe^® 5.0, USB 3.2 Gen2x2 Type-C^®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
Made for online gaming: Intel 2.5 Gb Ethernet and TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support

SPECIFICATIONS
Brand	Asus
Series	TUF Gaming
Model	TUF GAMING Z690-PLUS D4 (90MB18U0-M0EAY0)
CPU	Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors*
	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
	*Refer to http://www.asus.com for CPU support list.
	**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z690
Memory	Memory Channels:
	4x DDR4 (Dual channel)
	Max Memory Size: 128GB
	DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel Extreme Memory Profile (XMP)
	OptiMem II
	*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics	1x DisplayPort 1.4
	1x HDMI port 2.1
	*Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
	**Supports max. 4K@60Hz as specified in DisplayPort 1.4
	***Supports 4K@60Hz as specified in HDMI 2.1
	****VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots	Intel 12th Gen Processors*
	1x PCIe 5.0 x16 slot
	Intel Z690 Chipset**
	1x PCIe 3.0 x16 slot (supports x4 mode)
	1x PCIe 3.0 x4 slot
	2x PCIe 3.0 x1 slots
	*Please check PCIe bifurcation table in support site.
	**Supports Intel Optane Memory H Series on PCH-attached PCIe slot.
Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280/22110
	– Intel 12th Gen processors support PCIe 4.0 x4 mode
	Intel Z690 Chipset**
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4x SATA 6Gb/s ports
	*Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
	**Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Ethernet	1x Intel I225-V 2.5Gb Ethernet
Ethernet	TUF LANGuard
USB	Rear USB (Total 8 ports):
	1x USB 3.2 Gen 2×2 port (1x USB Type-C)
	2x USB 3.2 Gen 2 ports (2x Type-A)
	5x USB 3.2 Gen 1 ports (4x Type-A + 1 x USB Type-C)
	Front USB (Total 7 ports):
	1x USB 3.2 Gen 2 connector (supports USB Type-C)
	1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– Supports up to 24-Bit/192 kHz playback
	Audio Features
	– Audio Shielding
	– Rear optical S/PDIF out port
	– Premium audio capacitors
	– Dedicated audio PCB layers
	– Audio Cover
Back Panel I/O Ports	1x USB 3.2 Gen 2×2 port (1x USB Type-C)
	2x USB 3.2 Gen 2 ports (2x Type-A)
	5x USB 3.2 Gen 1 ports (4x Type-A + 1 x USB Type-C)
	1x DisplayPort
	1x HDMI port
	1x Intel 2.5Gb Ethernet port
	5x Audio jacks
	1x Optical S/PDIF out port
Intrernal I/O Connectors	Fan and Cooling related:
	1x 4-pin CPU Fan header
	1x 4-pin CPU OPT Fan header
	1x 4-pin AIO Pump header
	4x 4-pin Chassis Fan headers
	Power related:
	1x 24-pin Main Power connector
	1x 8-pin +12V Power connector
	1x 4-pin +12V Power connector
	Storage related:
	4x M.2 slots (Key M)
	4x SATA 6Gb/s ports
	USB:
	1x USB 3.2 Gen 2 connector (supports USB Type-C)
	1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3x Addressable Gen 2 headers
	1x AURA RGB header
	1x Clear CMOS header
	1x COM Port header
	1x Front Panel Audio header (AAFP)
	1x 20-3 pin System Panel header with Chassis intrude function
	1x Thunderbolt header
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables:
	2x SATA 6Gb/s cables
	Miscellaneous:
	2x M.2 Rubber Packages
	1x M.2 SSD screw package
	1x TUF GAMING sticker
	Installation Media:
	1x Support DVD
	Documentation:
	1x TUF Certification card
	1x User guide
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	ATX
Form Factor	30.5cm x 24.4cm
Warranty Information
Warranty	3 Year Warranty
