Asus TUF Gaming H570-PRO Wifi

Description

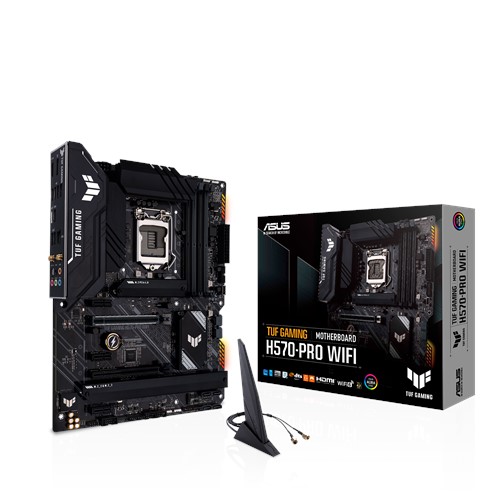

ASUS TUF GAMING H570-PRO WIFI

Full description ASUS.

Asus TUF Gaming H570-PRO Wifi is an Intel® H570 (LGA 1200) ATX gaming motherboard with PCIe 4.0, three M.2 slots, 8+1 DrMOS power stages, Intel® WiFi 6, Realtek 2.5 Gb Ethernet, HDMI 2.0, DisplayPort™, rear USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type C®, Thunderbolt™ 4 support, SATA 6 Gbps and Aura Sync RGB lighting.

Intel^® LGA 1200 socket: Ready for 11th and 10th Gen Intel^®Core™ processors
Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility
Next-gen connectivity: PCIe 4.0, rear USB 3.2 Gen 2×2 Type-C^®, front panel header for USB 3.2 Gen 1 Type-C^® and Thunderbolt 4™ support

CPU

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to http://www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

H570

Memory

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)
/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz
Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133
natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists),
and memory frequency support depends on the CPU types.
