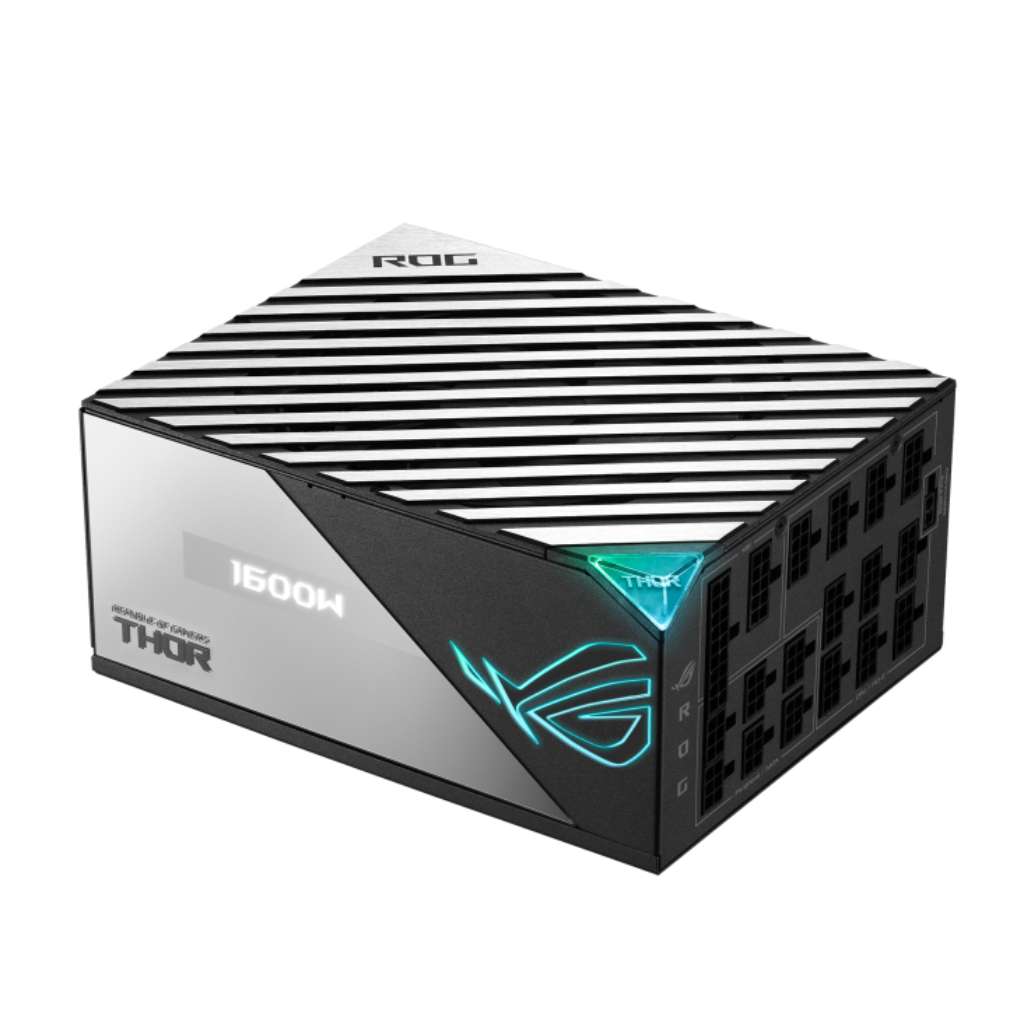

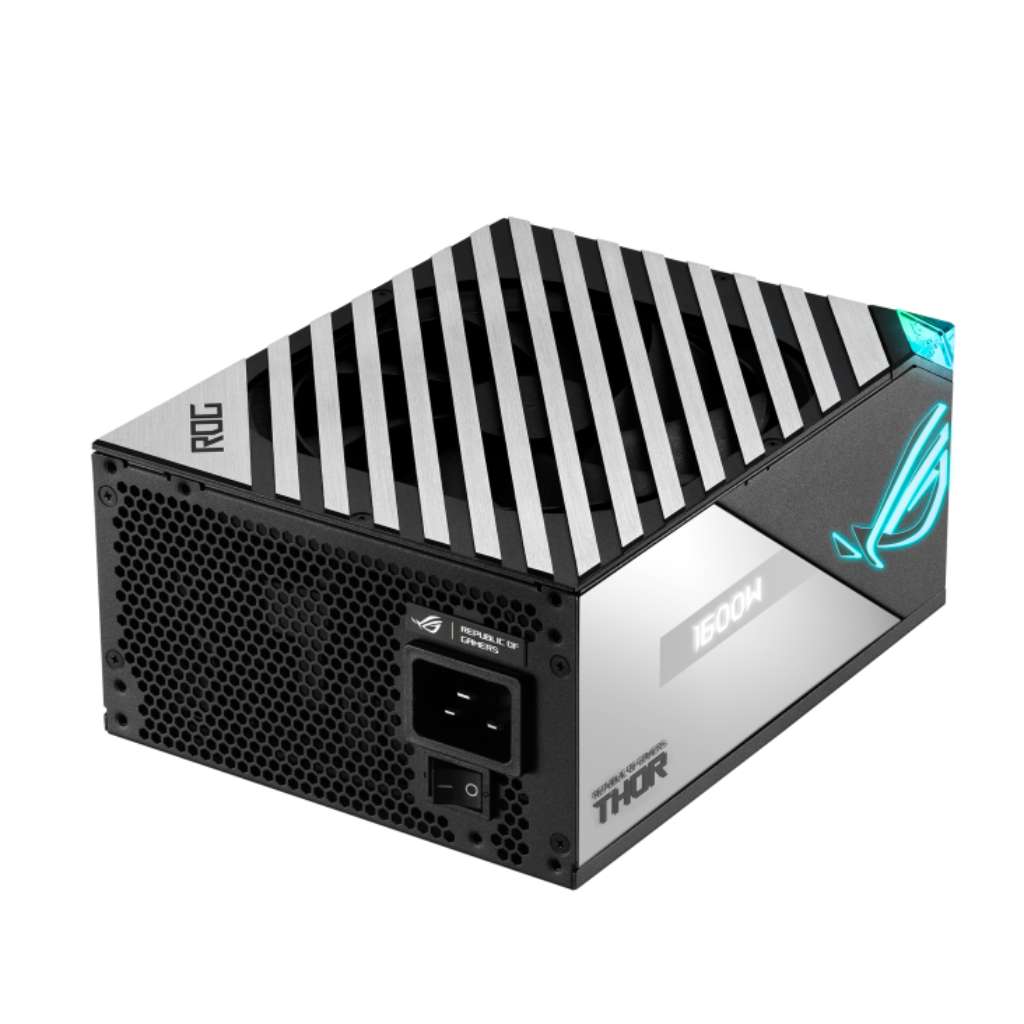

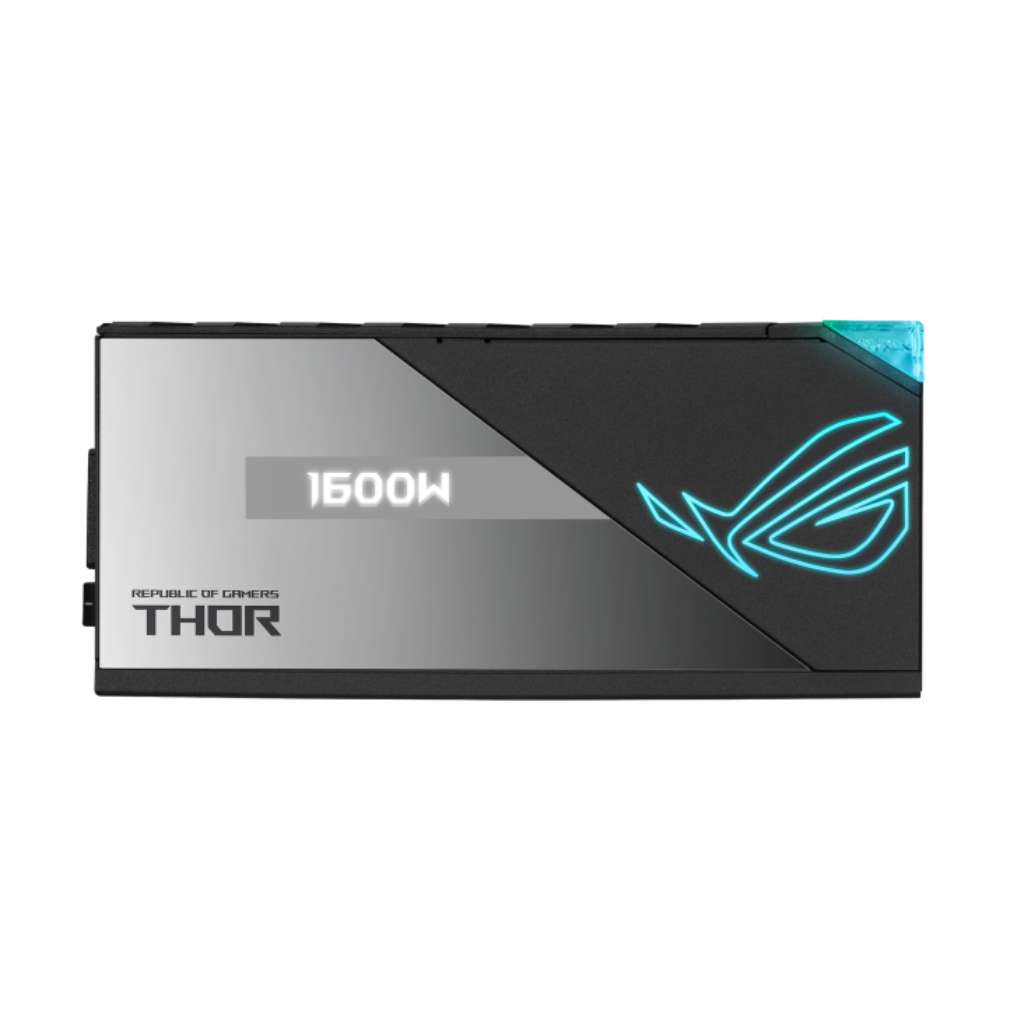

ASUS ROG THOR 1600T 1600w Titanium Fully Modular Power Supply
Full description ASUS.
- The ultimate expression of Thor wields a redesigned core that brings higher power efficiency, improved cooling, and lower noise to monstrous rigs that slay everything in their path.
- Gallium nitride MOSFETs are the source of Thor’s power. Boasting lower switching losses and improved efficiency compared to conventional silicon transistors, GaN FETs allow the 1600W Thor to swing massive amounts of current without being needlessly wasteful.
- Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying Thor to reliably fuel your build for years to come.
- Integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the PSU, further extending component lifespan.
- Thor Titanium cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
- Each ROG Thor 1600W Titanium PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | ROG THOR Power Supply |
| Model | ROG THOR 1600W (90YE00K0-B0NA00) |
| Certifications | 80 Plus Titanium Certified |
| Cybenetics Platinum Efficiency Rating (21PS1876A) | |
| Cybenetics Lambda A Noise Rating (21PS1876A) | |
| ROHS Certified | |
| Power | |
| AC Input Range | 100-240Vac |
| Thermal Features | ROG Thermal Solution |
| DC Output Voltage | 3.3V 5V 12V -12V 5Vsb |
| Maximum Load | 25A 25A 100A 0.3A 3A |
| Combined Load | 100W 100W 1600W 3.6W 15W |
| Total Output | 1600W |

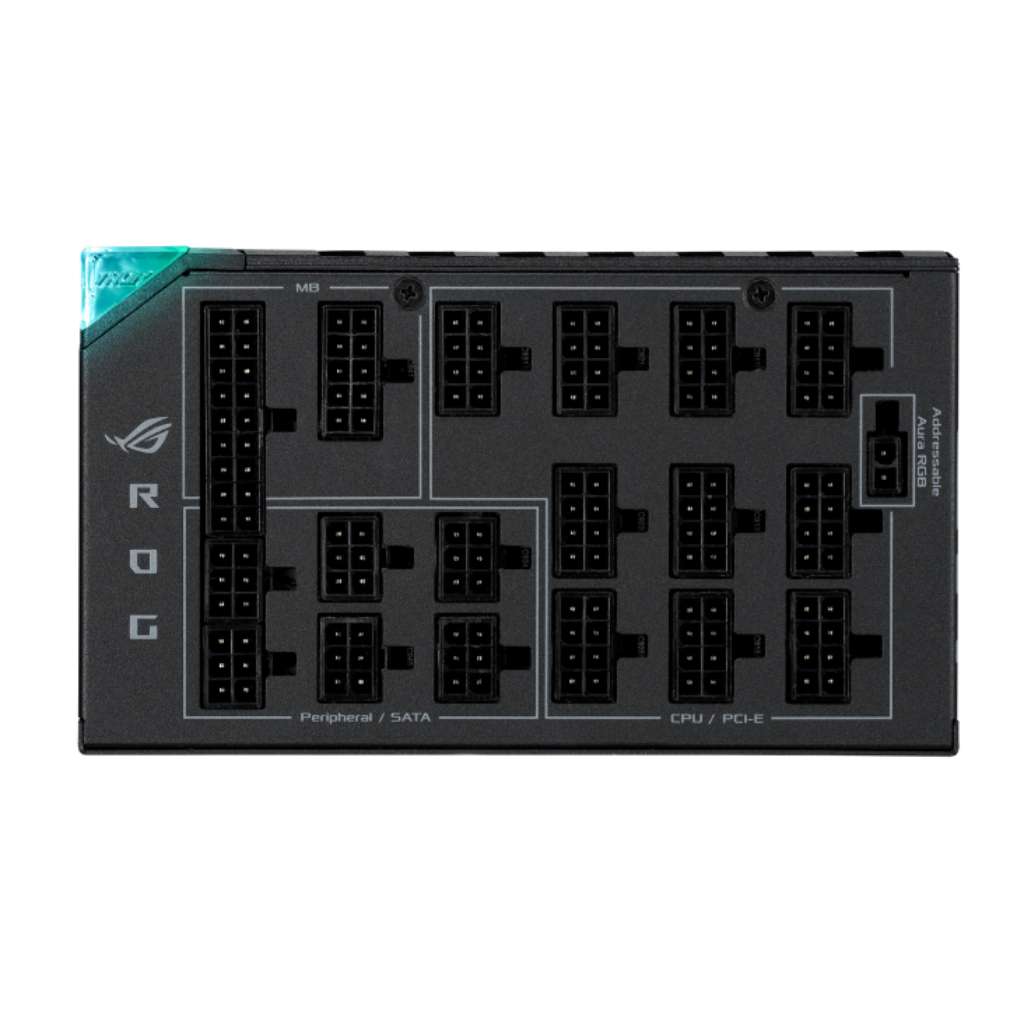

| Connectors | 1x ATX 12V 24-Pin Motherboard Power |
| 2x ATX EPS 12V 8-Pin CPU Power | |
| 1x PCIe 5.0 12VHPWR PCIe 16-Pin Power | |
| 10x 8-Pin PCIe Power | |
| 12x SATA Power | |
| General | |
| Dimensions | 190 x 150 x 86mm (D x W x H) |
| Weight | 2.37kg |
| AURA SYNC | Yes, ARGB |
| 0dB Fan Button | Yes |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Package Contents | 1x Power Cord |
| 1x ATX 12V 24-Pin Motherboard Power Cable | |
| 2x ATX EPS 12V CPU Cable | |
| 1x PCIe 5.0 12VHPWR PCIe 16-pin Cable | |
| 4x 8-Pin Single PCIe Cables (1-to-1) | |
| 2x 8-Pin Double-Headed PCIe Cables (1-to-2) | |
| 3x 4-Chain SATA Power Cables (1-to-4) | |
| 1x 4-Pin Addressable RGB cable | |
| ROG sticker x 1 | |
| ROG cable tie pack | |
| 4x Sleeved Cable Combs (6-pin) | |
| 10x Sleeved Cable Combs (8-pin) | |
| 2x Sleeved Cable Combs (24-pin) | |
| 1x Chassis Screws Package | |
| Cable Ties | |
| User Manual | |
| Warranty Information | |
| Warranty | 10 Year Warranty |
