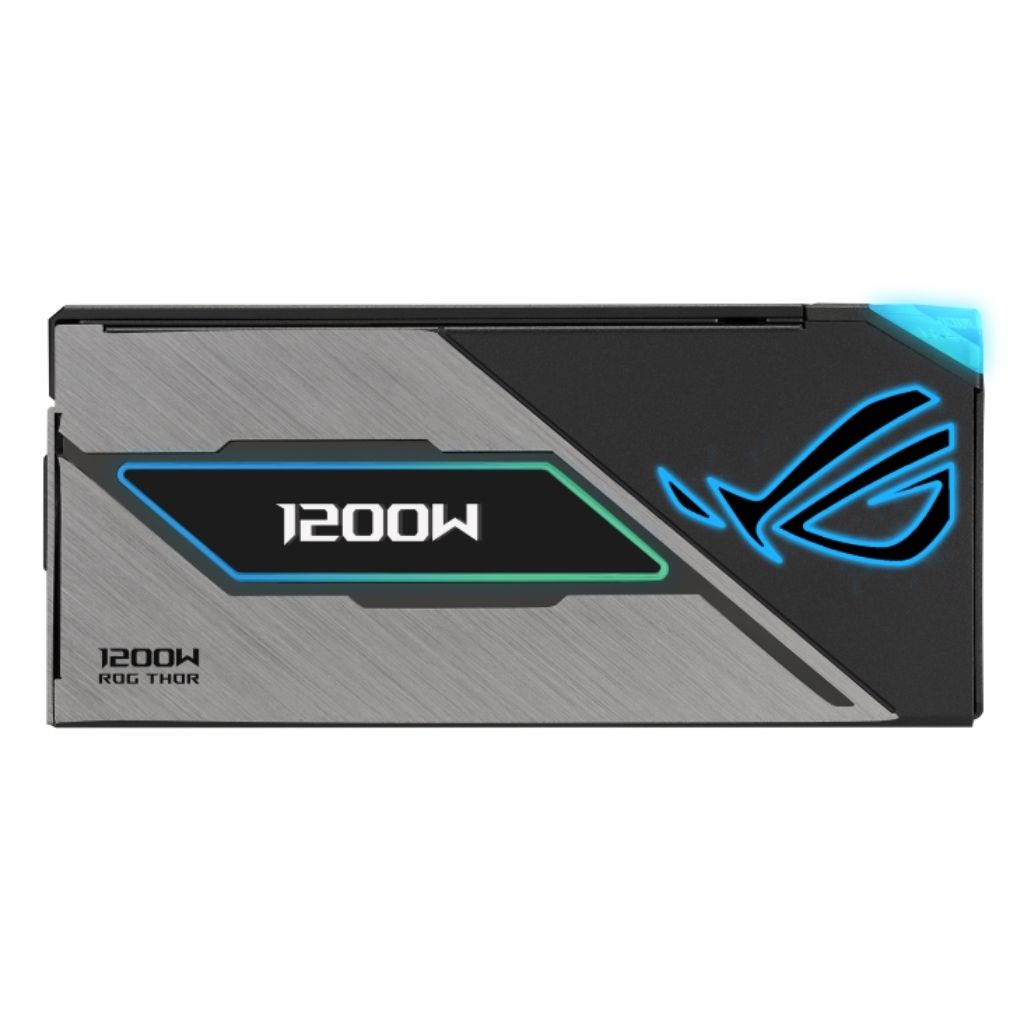

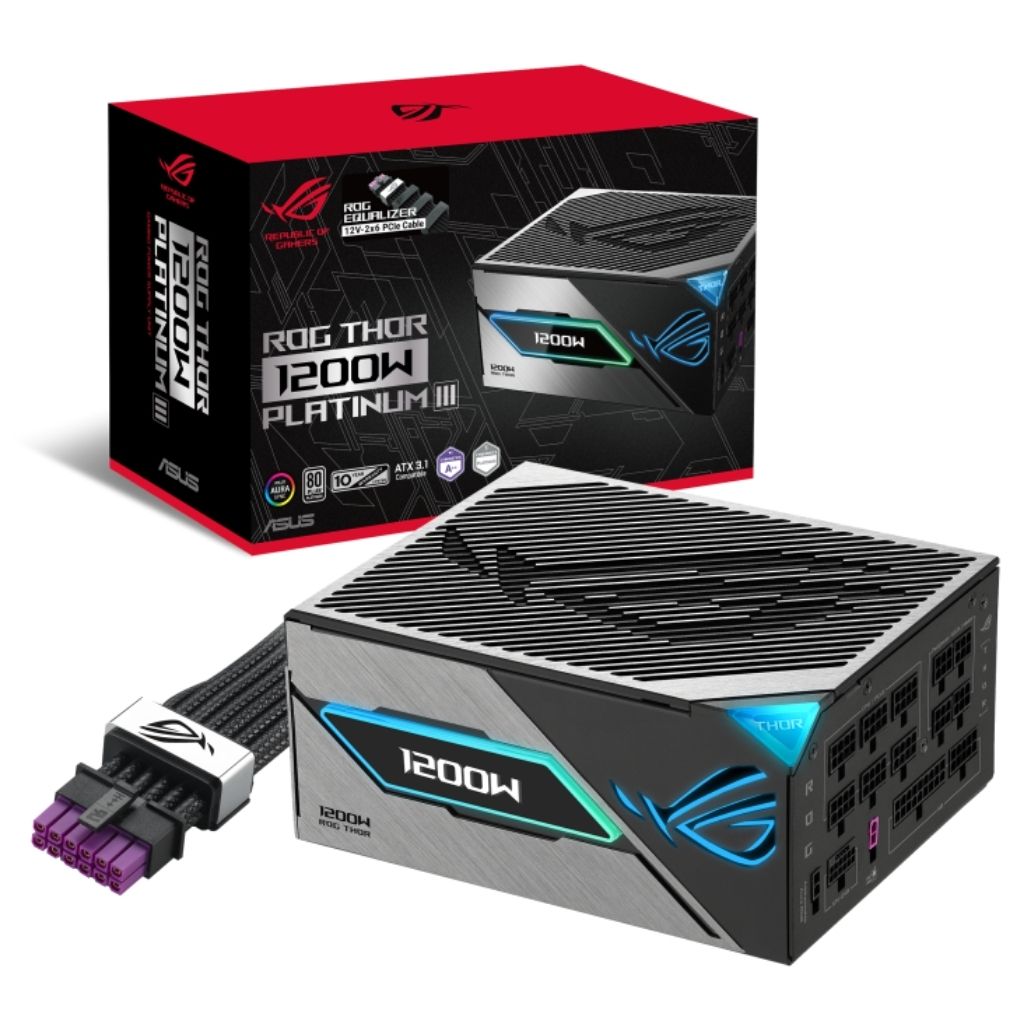

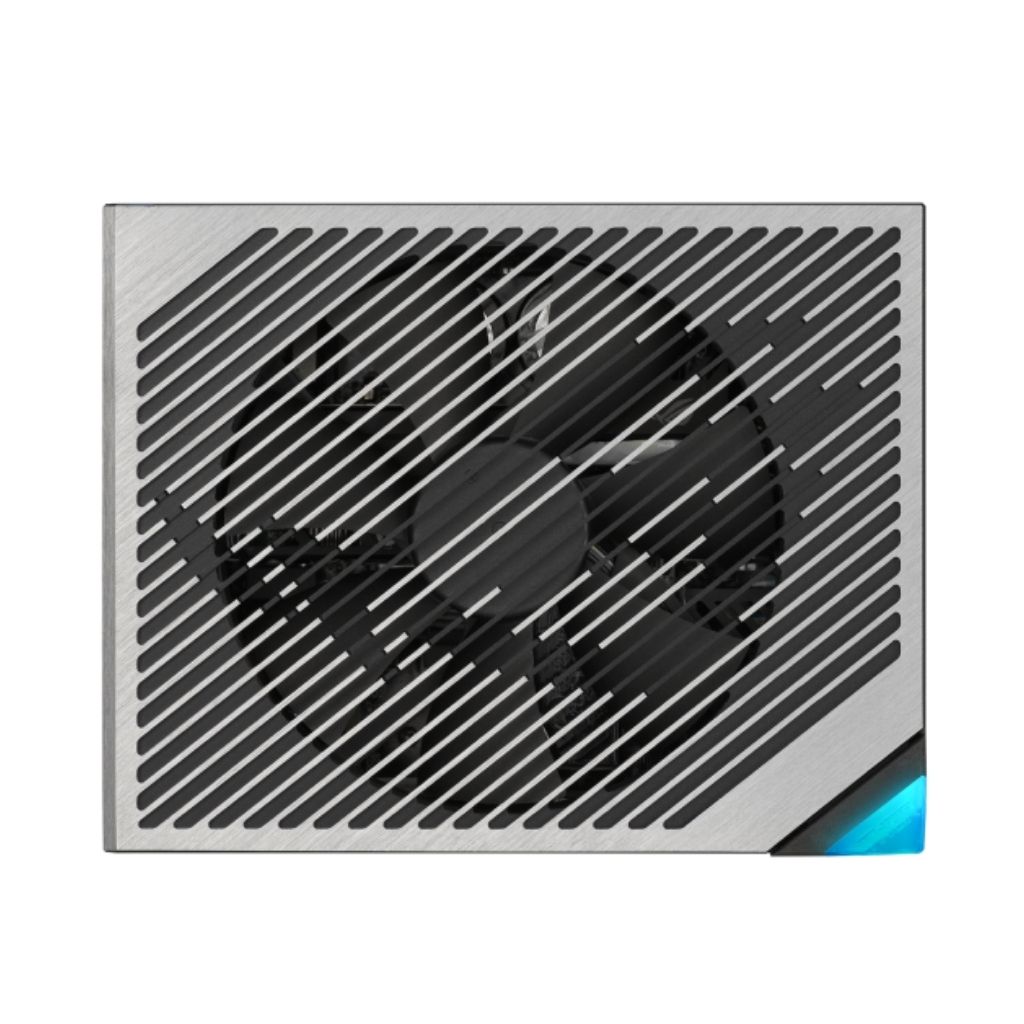

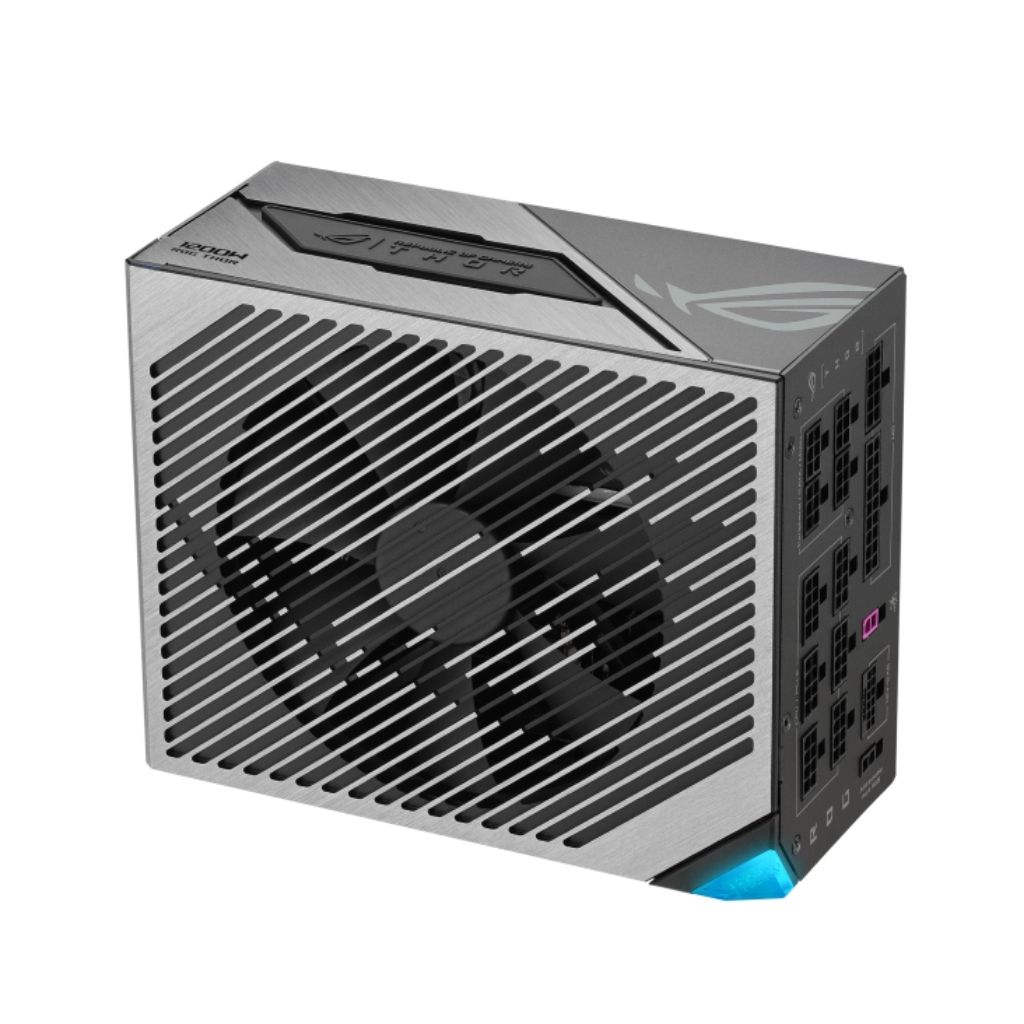

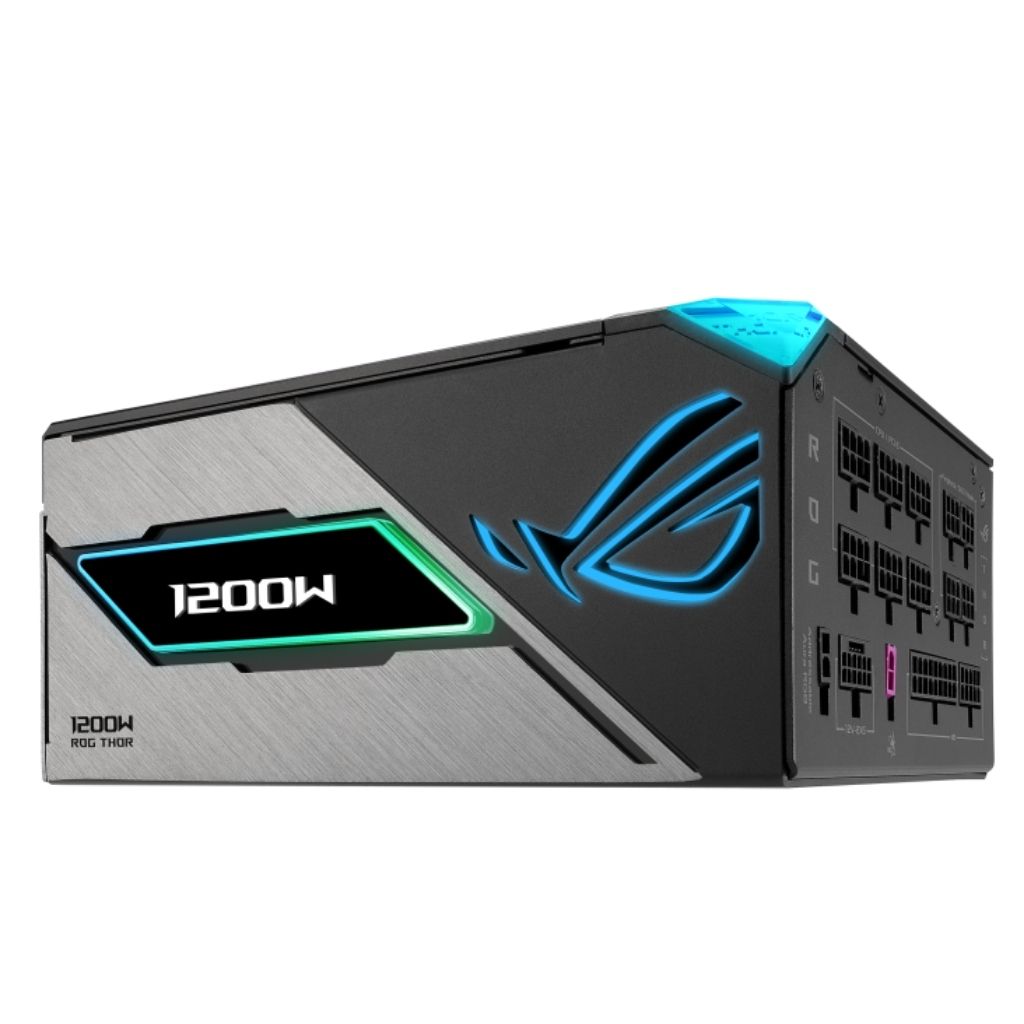

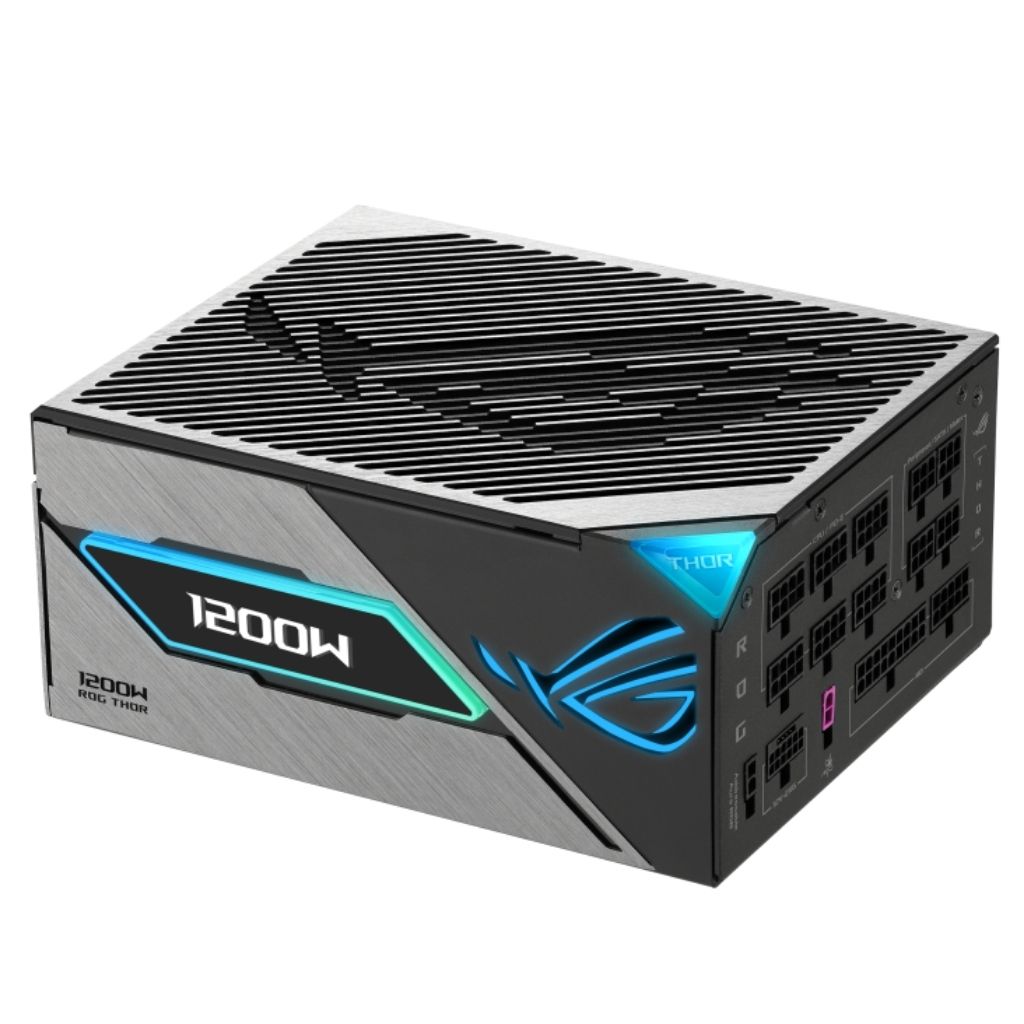

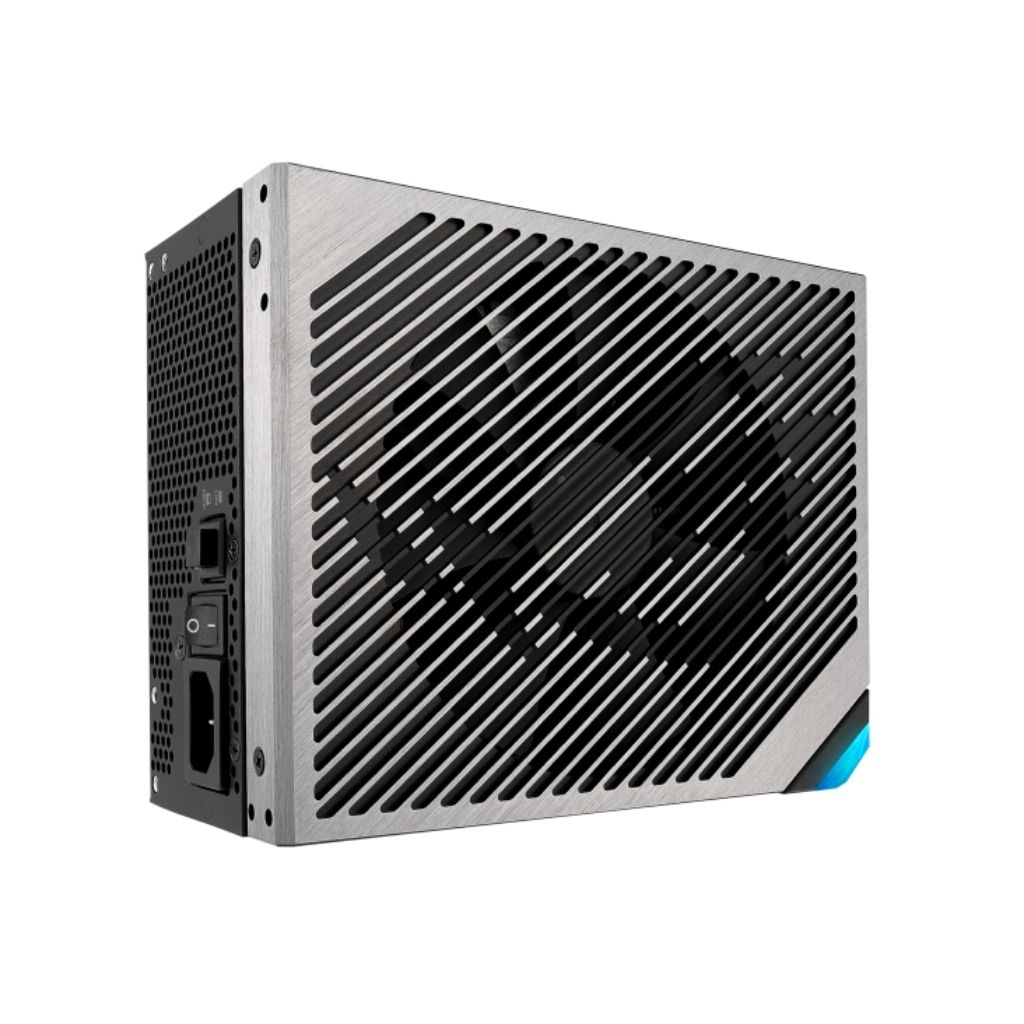

ASUS ROG Thor 1200W 80 Plus Platinum III Fully Modular Desktop Power Supply – ROG-THOR-1200P3-GAMING
Full description ASUS.
- The ASUS ROG Thor 1200W Platinum III is a premium fully modular desktop power supply built for high-end gaming and workstation PCs, delivering 1200W total output, ATX 3.1 support, and strong power stability.
- With 80 Plus Platinum efficiency and Active PFC, this PSU is designed to deliver efficient, reliable power for demanding CPUs, modern graphics cards, storage, cooling, and performance-focused desktop builds.
- Modern GPU support includes a PCI-E 16-pin connector, four PCI-E 6+2-pin connectors, dual CPU 4+4-pin connectors, seven SATA connectors, and six peripheral connectors for flexible, high-performance component compatibility.
- Protection features include OPP, OVP, UVP, SCP, OCP, and OTP, helping safeguard your system from overload, voltage, short-circuit, over-current, and temperature-related power issues during demanding use.
- Premium features include Aura Sync ARGB, 0dB fan button support, A++ Cybenetics noise rating, >120,000-hour MTBF at 25°C, fully modular cables, and a 10 Year Limited Warranty for long-term build confidence.
| Specifications | |
|---|---|
| Brand | ASUS |
| Series | ROG Thor |
| Model | ROG-THOR-1200P3-GAMING |
| Colour | Black |
| Power Supply | |
| Total Output | 1200W |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Efficiency | 80 Plus Platinum |
| AC Input Range | 100–240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 30A, 25A, 100A, 0.3A, 3A |
| Combined Load | 125W, 125W, 1200W, 3.6W, 15W |
| Protection Features | OPP, OVP, UVP, SCP, OCP, OTP |
| MTBF | >120,000 hours at 25°C |
| 0dB Fan Button | Yes |
| 0dB Technology | Fan shuts off entirely when the PSU is under certain load |

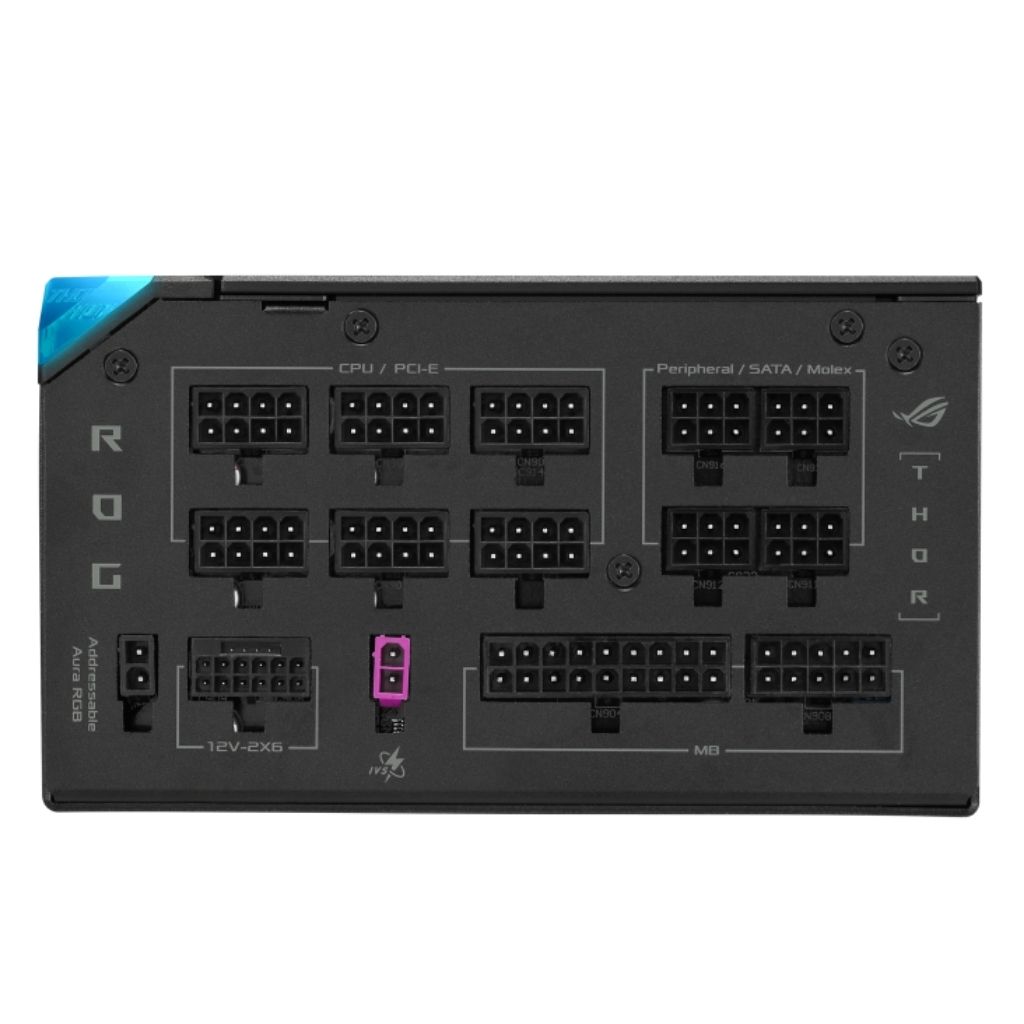

| Cable Connectors | |
| Motherboard Connector | 1x MB 24/20-pin |
| CPU Connector | 2x CPU 4+4-pin |
| PCI-E 16-pin Connector | 1x PCI-E 16-pin |
| PCI-E 6+2-pin Connector | 4x PCI-E 6+2-pin |
| SATA Connector | 7x SATA |
| Peripheral Connector | 6x Peripheral |
| Lighting & Noise | |
| Aura Sync | Yes |
| Lighting | ARGB |
| Cybenetics Noise Level | A++ |
| Dimensions & Weight | |
| Dimensions | 190 x 150 x 86mm |
| Weight | 2.37kg |
| Included in the Box | |
| Included Items | Power cord x1 Motherboard power cable x1, 610mm CPU cable x2, 1000mm PCI-E Gen 5.1 16-pin cable x1, 750mm PCI-E 1-to-1 cable x4, 750mm SATA 1-to-4 cable x1, 400 + 120 + 120 + 120mm SATA 1-to-3 cable x1, 400 + 120 + 120mm Peripheral 1-to-3 cable x2, 400 + 150 + 150mm Addressable RGB cable x1, 800mm ROG sticker x1 ROG cable tie x6 Chassis screws package x1 Cable tie x12 User manual x1 |
| Warranty Information | |
| Warranty | 10 Year Limited Warranty, RGB LEDs subject to 3 Year Warranty |
