ASUS ROG Strix B850-I Gaming WiFi DDR5 Mini-ITX AM5 AMD Motherboard – 90MB1K30-M0EAY0
Full description ASUS.
- The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor.
- It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads.
- Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity.
- This platform delivers the power and connectivity that advanced AI PC applications demand.
| Specifications | |
| Brand: | ASUS |
| Series: | AMD B850 Series |
| Model: | 90MB1K30-M0EAY0 |
| Technical Specs | |
| CPU Support: | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset: | AMD B850 Chipset |
| Memory: | 2 x DIMM slots, max. 96GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8400+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM” Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Flex ASUS Enhanced Memory Profile (AEMP) |
| Onboard Graphics: | 1 x HDMI port 1 x USB 10Gbps ports support USB Type-C display outputs |
| Audio: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel” Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Unique de-pop circuit |
| Connectivity | |
| LAN: | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot(s) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot(s) |
| Storage Interface: | Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors – M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors – M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| On-Board Connectors | |
| USB: | Rear USB (Total 8 ports) 1 x USB 20Gbps port(s) (1 x USB Type-C) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A |
| Internal I/O Connectors: | Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) 1 x Extra Flow Fan header(s) Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (support(s) USB Type-C® ) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |

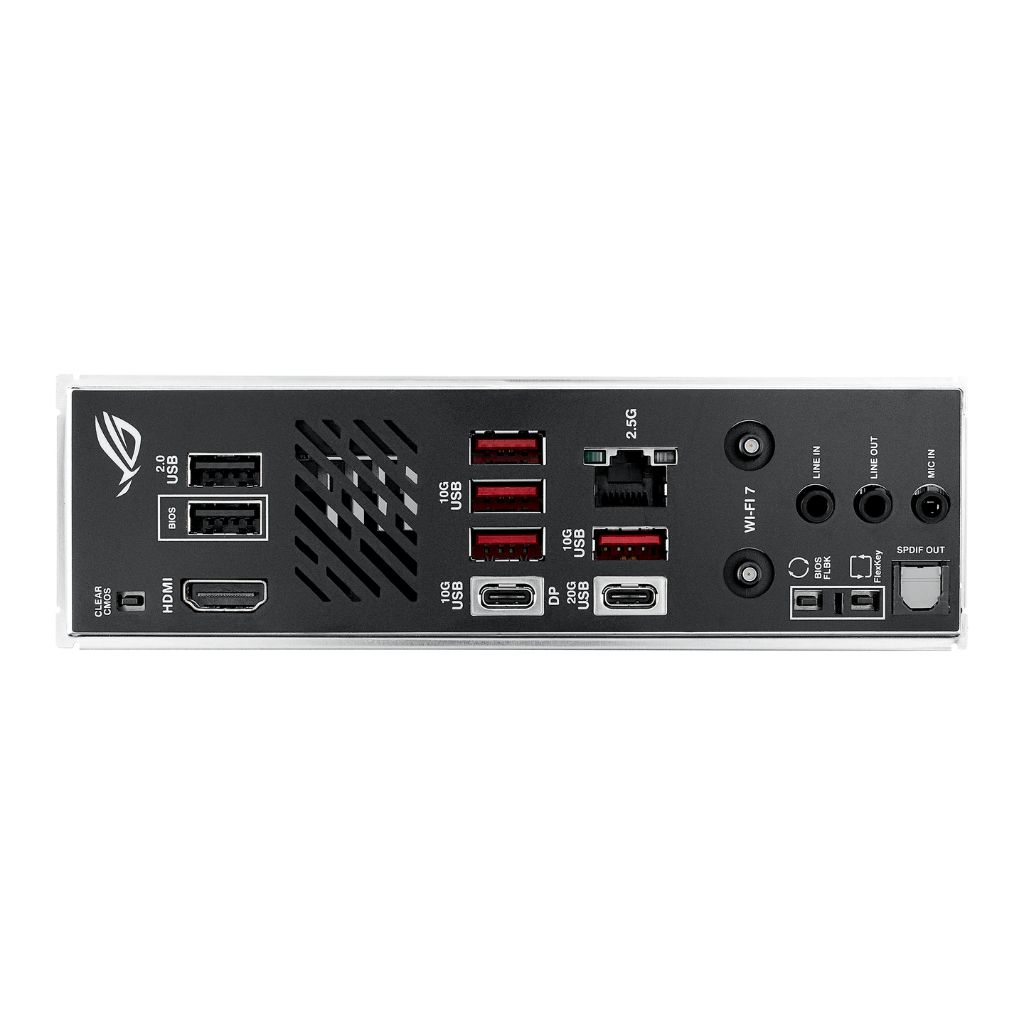

| Back Panel Connectors: | 1 x USB 20Gbps port(s) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 3 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x FlexKey button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS // UEFI AMI BIOS(text-based) |
| Software: | ROG Exclusive Software ASUS Exclusive Software UEFI BIOS |
| Features: | Extreme Engine Digi+ |
| ASUS Q-Design | |
| Aura Sync | |
| ASUS EZ DIY | |
| ASUS Thermal Solution | |
| General | |
| Operating System: | Windows 11, Windows 10 64-bit Windows 11 (22H2 later) |
| Form Factor: | Mini-ITX Form Factor (17 cm x 17 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
