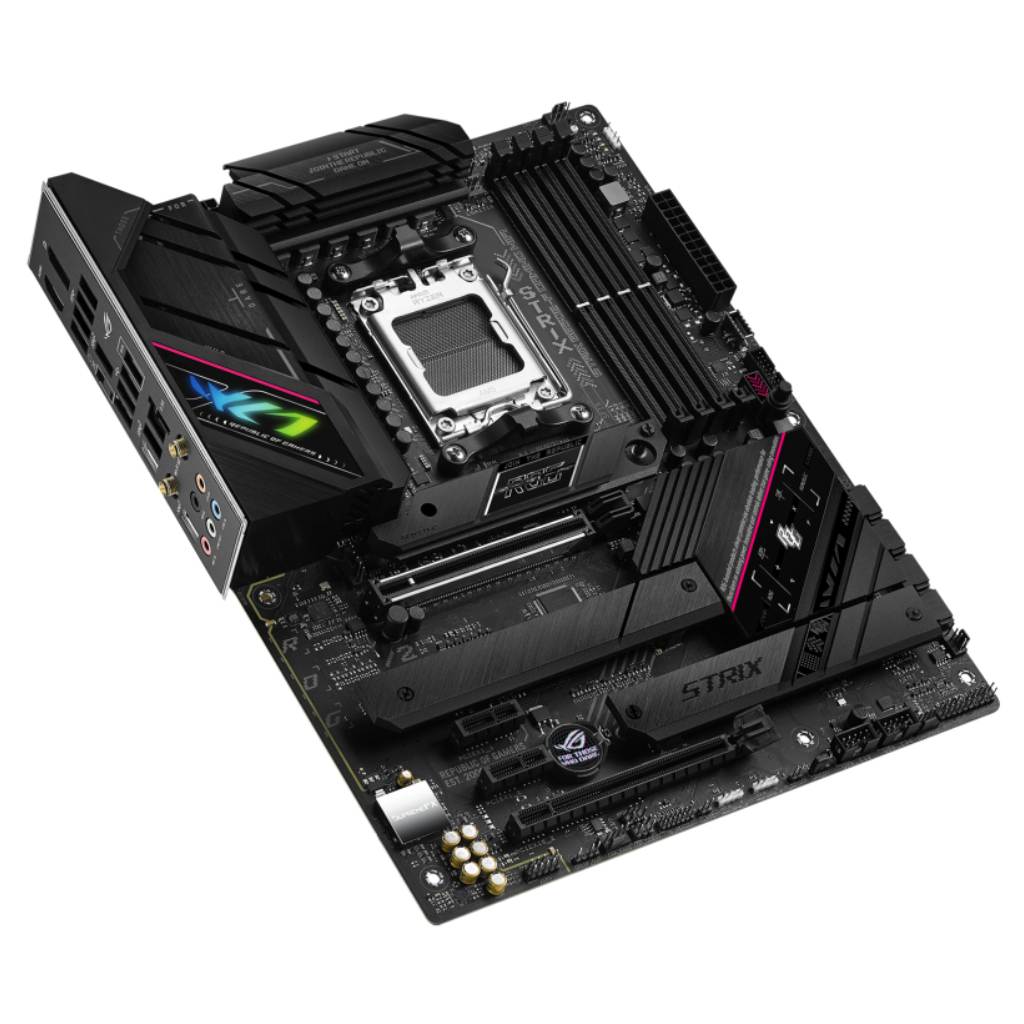

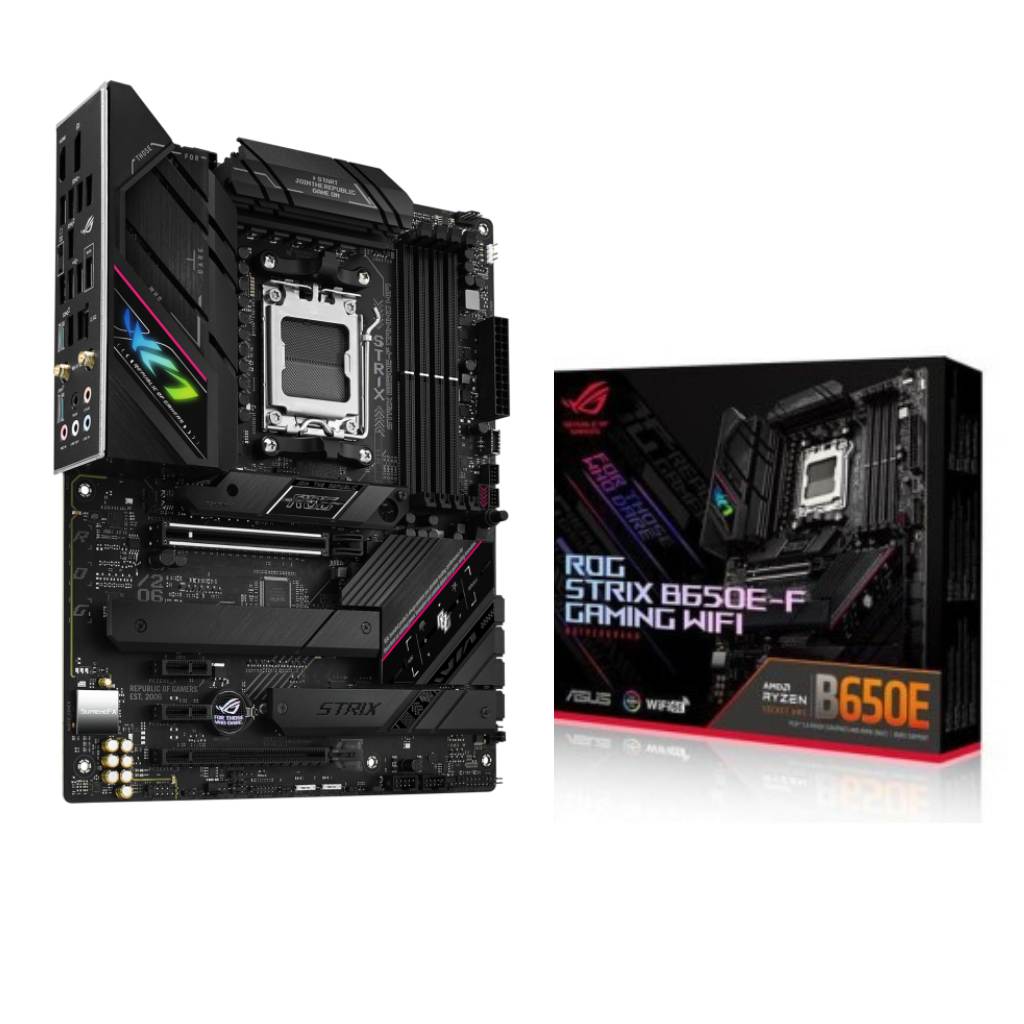

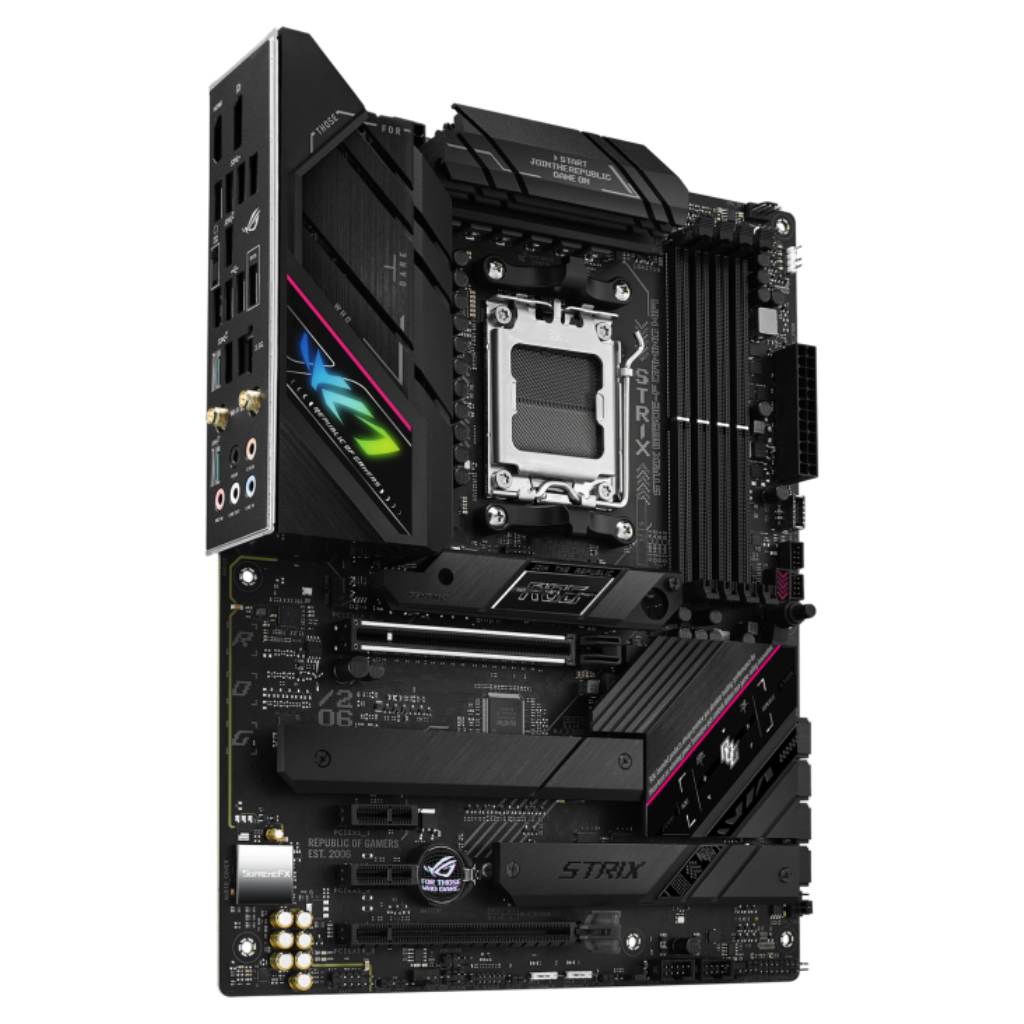

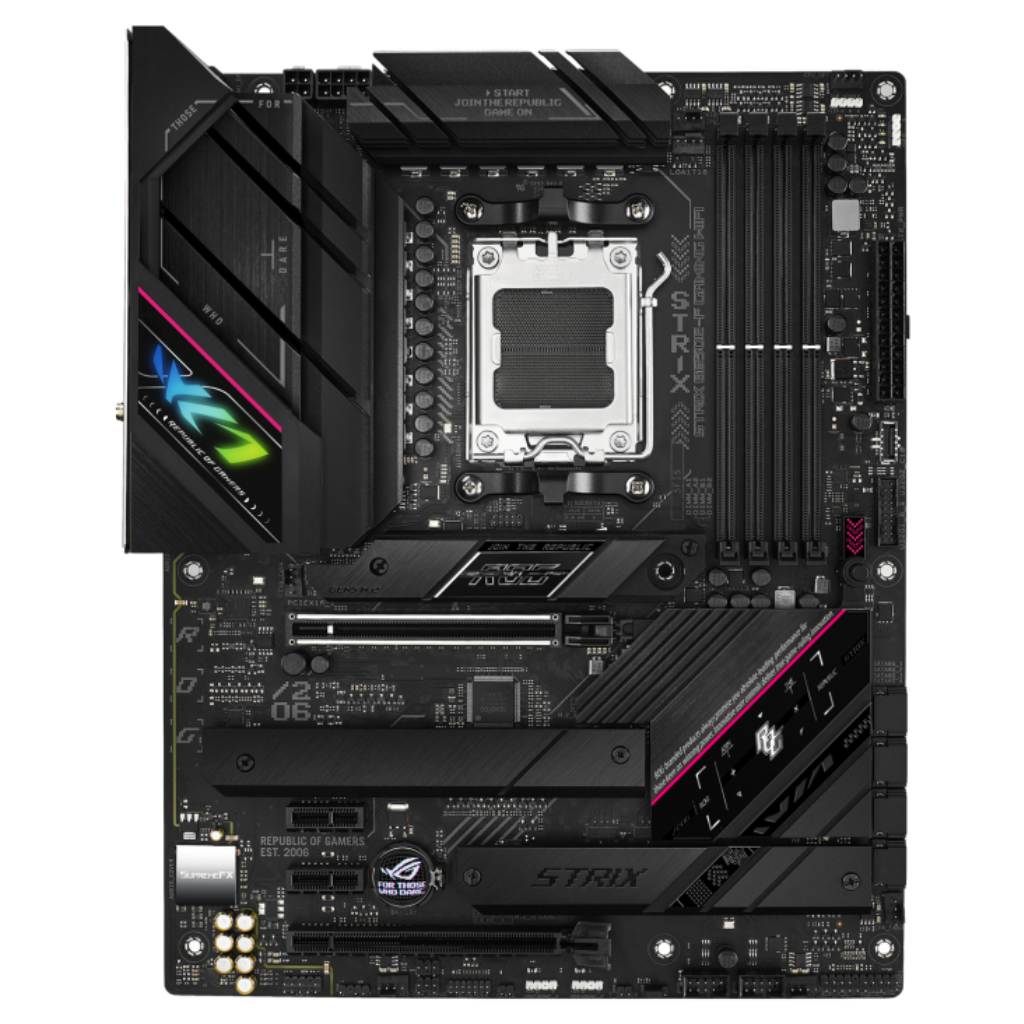

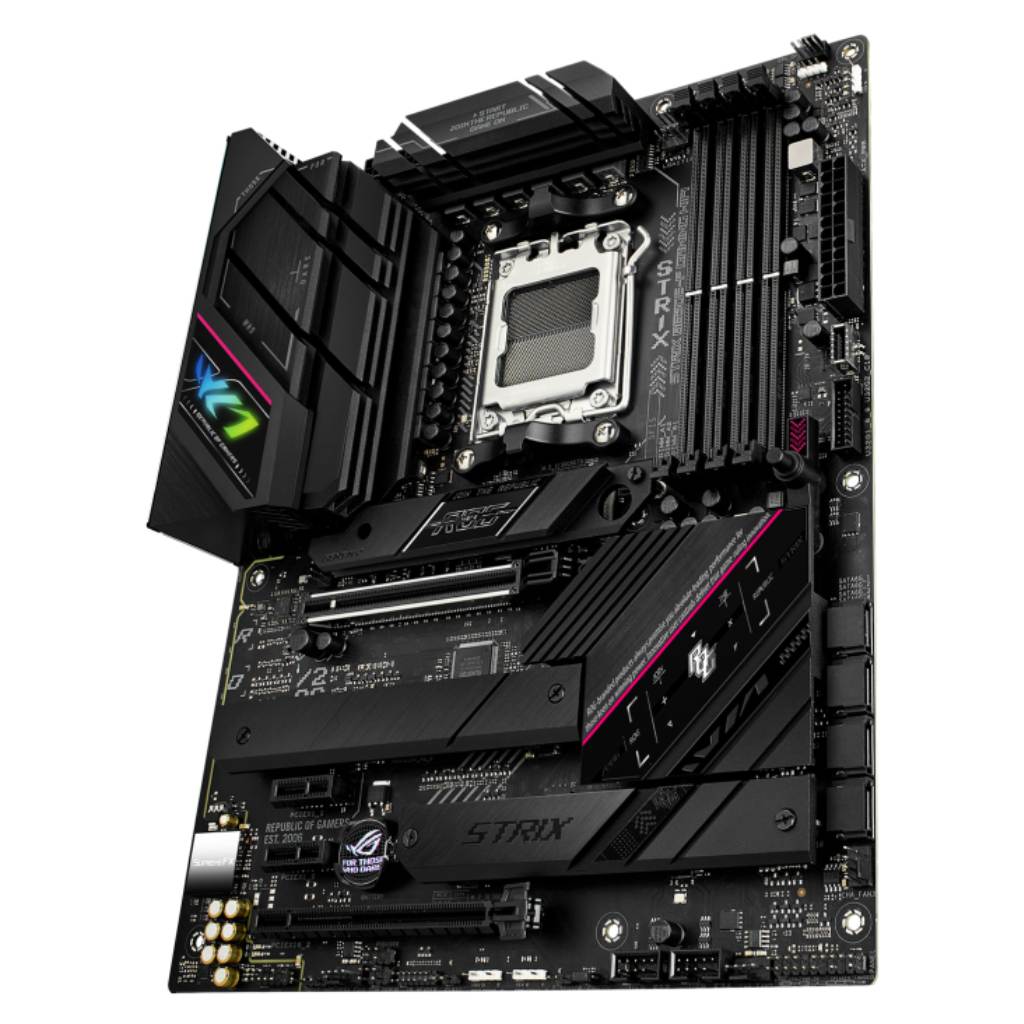

ASUS ROG Strix B650E-F Gaming WiFi DDR5 Motherboard

SKU 90MB1BQ0-M0EAY0 Categories All Products, AMD Asus, AMD Motherboards, Motherboards

ASUS ROG Strix B650E-F Gaming WiFi DDR5 Motherboard

R6949,00

AMD Socket AM5: Ready for AMD Ryzen^™ 7000 Series desktop processors
Robust Power Solution:12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
Optimized Thermal Design:Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
Next-Gen M.2 Support: One PCIe^® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance

In stock

Browse More Products

Description

ASUS ROG Strix B650E-F Gaming WiFi DDR5 Motherboard

Full description ASUS.

AMD Socket AM5: Ready for AMD Ryzen^™ 7000 Series desktop processors
Robust Power Solution:12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
Optimized Thermal Design:Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
Next-Gen M.2 Support: One PCIe^® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance
Advanced Connectivity:One USB 3.2 Gen 2×2 Type-C^® and eleven additional rear USB ports, USB 3.2 Gen 2 Type-C^® front-panel connector, HDMI^® 2.1, DisplayPort^™ 1.4, and one PCIe 5.0 x16 SafeSlot
High-Performance Networking:On-board WiFi 6E (802.11ax), Bluetooth^® 5.2, and Intel^® 2.5G Ethernet with ASUS LANGuard
Intelligent Control:ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking
Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS^® Sound Unbound and Sonic Studio III
Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
DIY-Friendly Design:PCIe^® Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield, and BIOS FlashBack^™ button
Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate RGB and device manager, and bundled 60-day AIDA64 Extreme trial

SPECIFICATIONS
Brand	Asus
Series	Strix Gaming motherboards
Model	ROG STRIX B650E-F GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
CPU	* Refer to http://www.asus.com for CPU support list.
Chipset	AMD B650
Memory	4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports AMD EXTended Profiles for Overclocking (EXPO)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list.
Graphics	1 x DisplayPort*
	1 x HDMI port**
	* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
	**Supports 4K@60Hz as specified in HDMI 2.1
Expansion Slots	AMD Ryzen 7000 Series Desktop Processors
	1 x PCIe 5.0 x16 slot
	AMD B650 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)*
	2 x PCIe 4.0/3.0 x1 slots
	* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	AMD Ryzen 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	AMD B650 Chipset
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
	4 x SATA 6Gb/s port
	*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
	** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.
Ethernet	1 x Intel 2.5Gb Ethernet
Ethernet	ASUS LANGuard
Wireless And Bluetooth	Wi-Fi 6E
	2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5GHz frequency band
	Bluetooth v5.2
	* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be
	ready in Windows 11 or later.
USB	Rear USB (Total 12 ports)
	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	3 x USB 3.2 Gen 2 ports (2 x Type-A 1 x USB Type-C)
	4 x USB 3.2 Gen 1 port (4 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 2 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
	– Impedance sense for front and rear headphone outputs
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	– Supports up to 32-Bit/384 kHz playback
	Audio Features
	– SupremeFX Shielding Technology
	– Savitech SV3H712 AMP
	– Rear optical S/PDIF out port
	– Premium audio capacitors
	– Audio cover

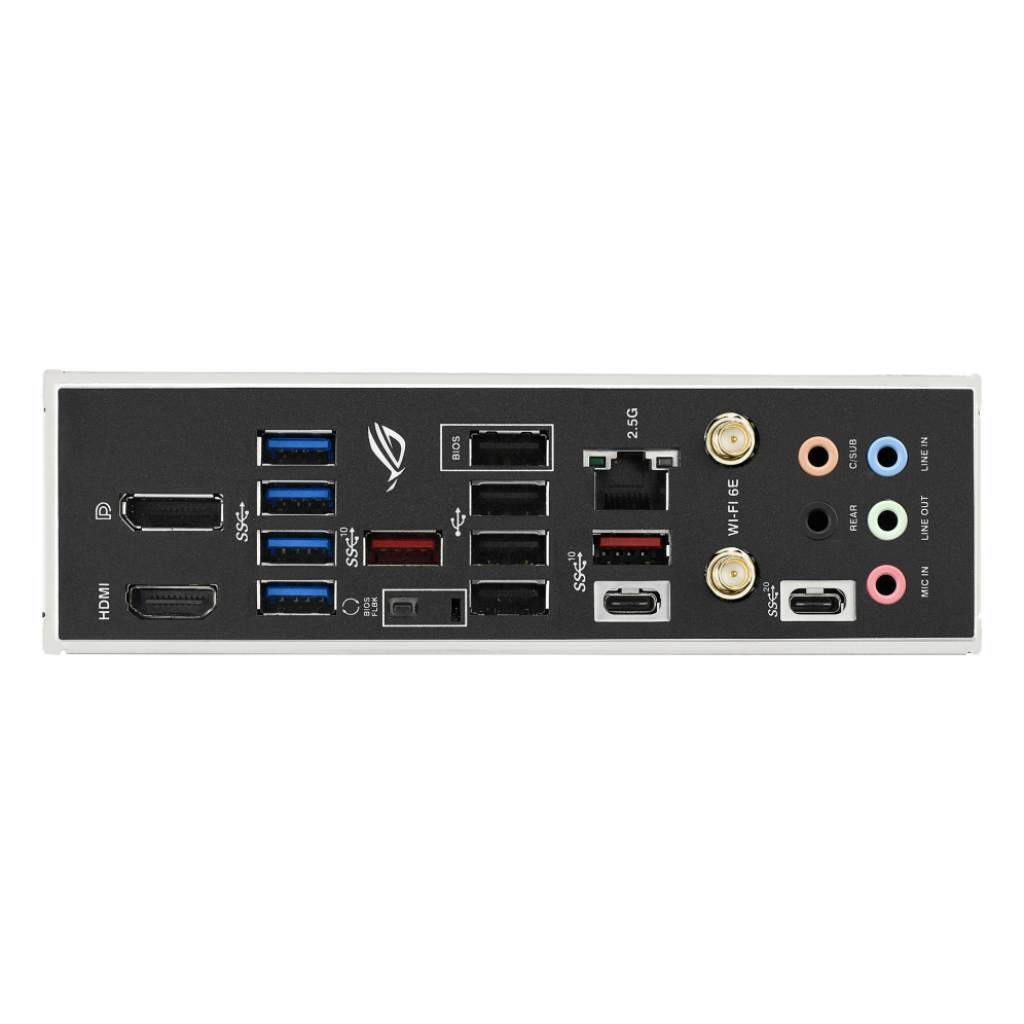

Back Panel I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	3 x USB 3.2 Gen 2 ports (2 x Type-A 1 x USB Type-C)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi Module
	1 x Intel I225-V 2.5Gb Ethernet port
	5 x Audio jacks
	1 x BIOS FlashBack button
Internal i/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin 12V Power connector
	1 x 4-pin 12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers supports additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Clear CMOS header
	1 x CPU Over Voltage jumper
	1 x Front Panel Audio header (AAFP)
	1 x S/PDIF Out header
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thermal Sensor header
	1 x Thunderboltheader
	1 x COM_DEBUGheader
Special Features	Extreme Engine Digi
	– 5K Black Metallic Capacitors
	ASUS Q-Design
	– M.2 Q-Latch
	– PCIe Slot Q-Release
	– Q-LED
	– Q-DIMM
	– Q-Slot
	ASUS Thermal Solution
	– M.2 heatsink
	– VRM heatsink design
	ASUS EZ DIY
	– BIOS FlashBack button
	– BIOS FlashBack LED
	– ProCool
	– Pre-mounted I/O shield
	– SafeSlot
	– SafeDIMM
	AURA Sync
	– AURA RGB header
	– Addressable Gen 2 headers
Software Features	ROG Exclusive Software
	– GameFirst VI
	– ROG CPU-Z
	– Sonic Studio III Sonic Studio Virtual Mixer Sonic Suite Companion
	– Sonic Radar III
	– DTS Sound Unbound
	– Anti-virus software
	ASUS Exclusive Software
	Armoury Crate
	– AIDA64 Extreme (60 days free trial)
	– AURA Creator
	– AURA Sync
	– Fan Xpert 4
	– Power Saving
	– Two-Way AI Noise Cancellation
	AI Suite 3
	– TPU
	– DIGI VRM
	– Turbo app
	– PC Cleaner
	MyAsus
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash 3
	– ASUS UEFI BIOS EZ Mode
	FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Additional Cooling Kit
	1 x Thermal pad for M.2
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x Cable ties pack
	1 x M.2 Q-Latch package
	1 x ROG key chain
	1 x ROG Strix stickers
	1 x ROG Strix thank you card
	2 x M.2 Rubber Packages
	Documentation
	1 x User guide
Operating System	Windows 11 64-bit
Form Factor	ATX Form Factor
Form Factor	30.5 cm x 24.4 cm
Warranty Information
Warranty	3 Year Warranty

ASUS ROG Strix B650E-F Gaming WiFi DDR5 Motherboard

Additional information

AMD MB Manufacturer	Asus
AMD Motherboard Chipset	AMD B650
AMD Motherboard Form Factor	ATX
AMD Motherboard Socket	AM5
