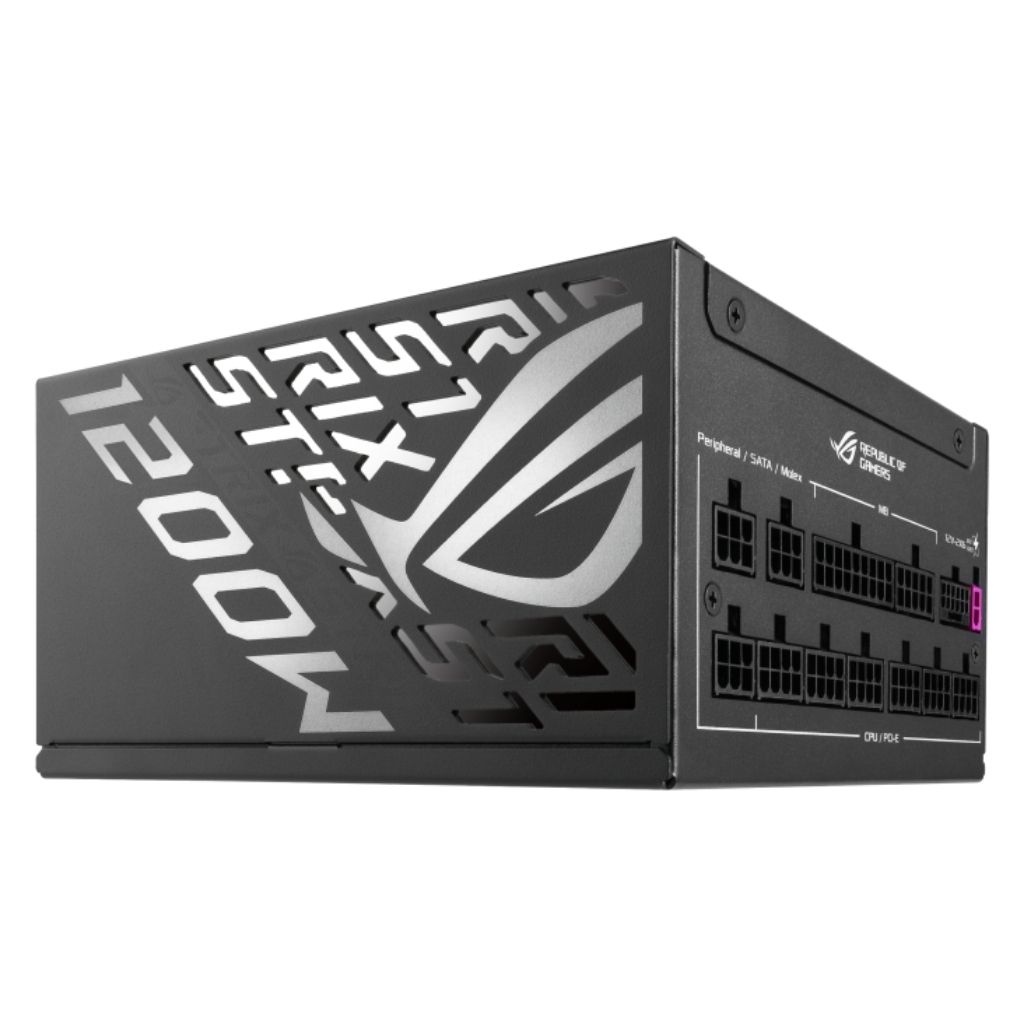

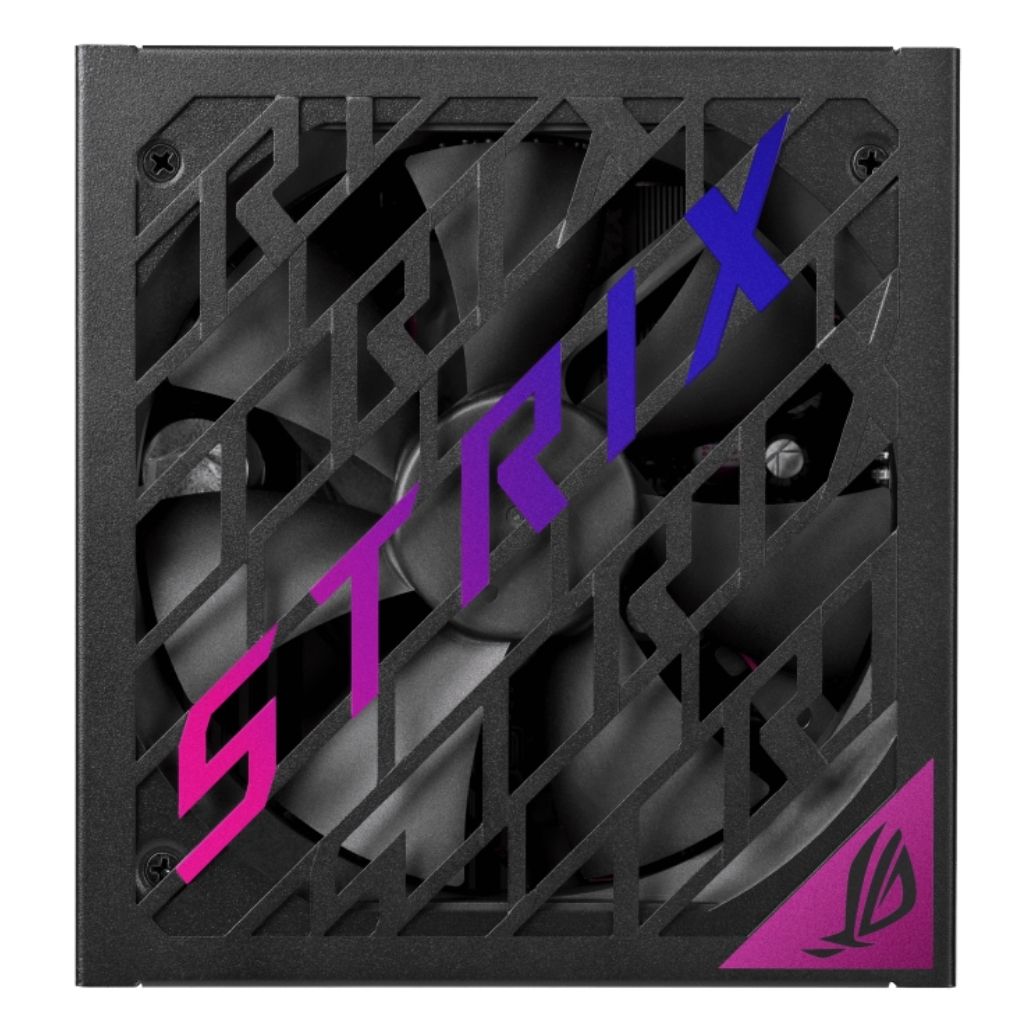

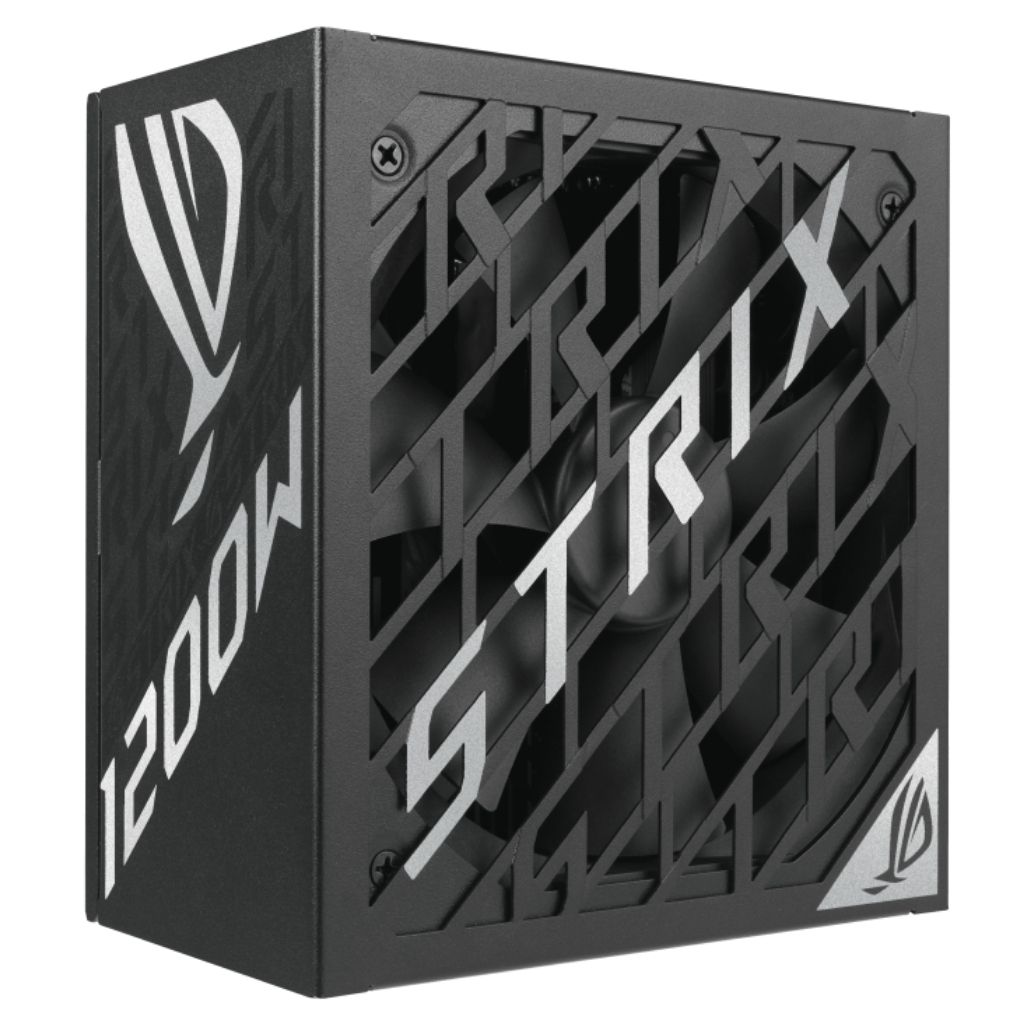

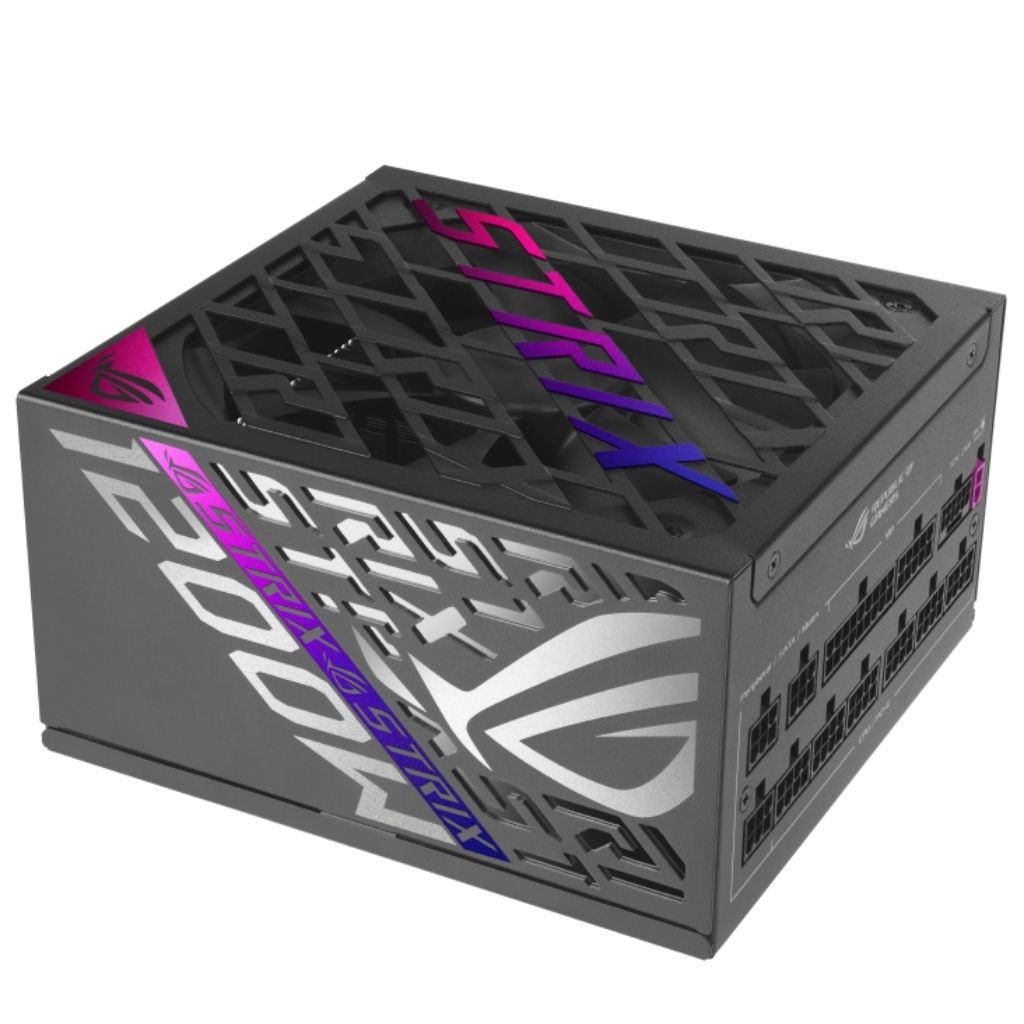

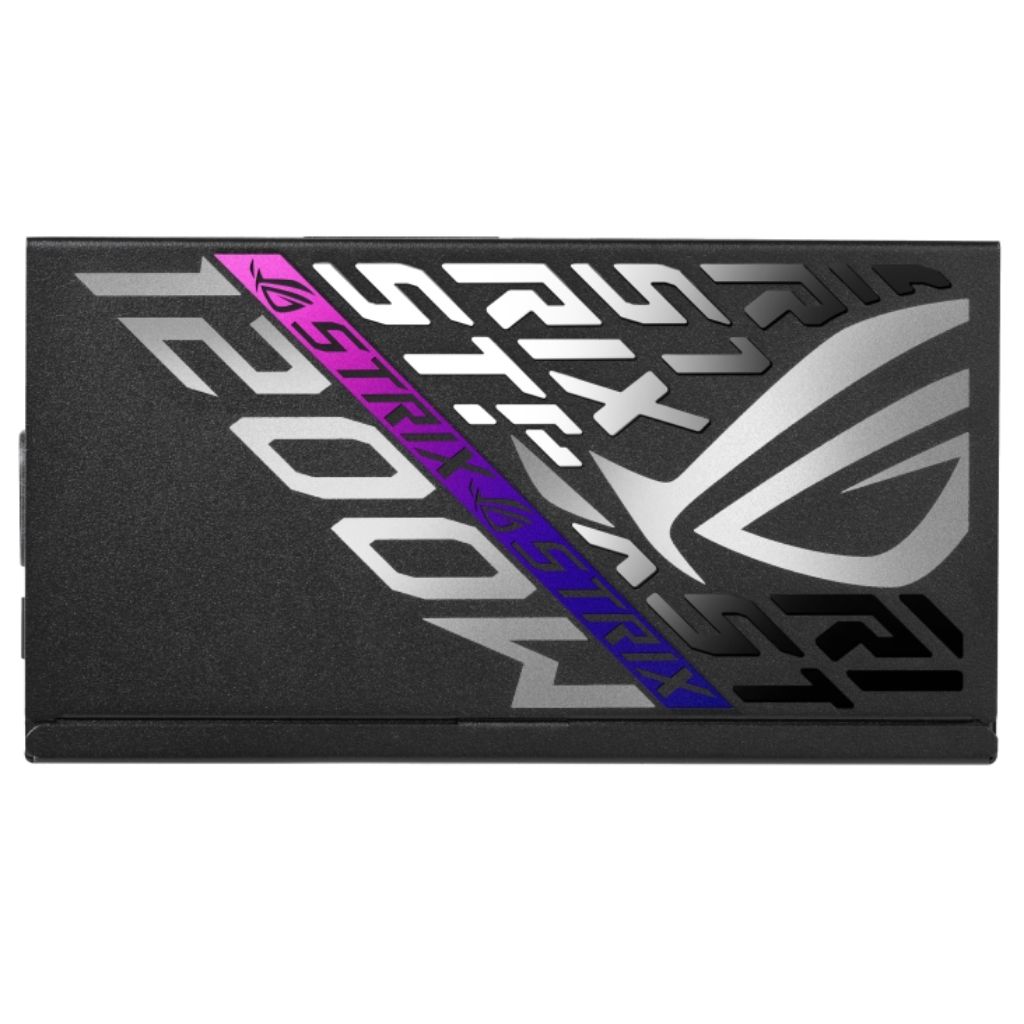

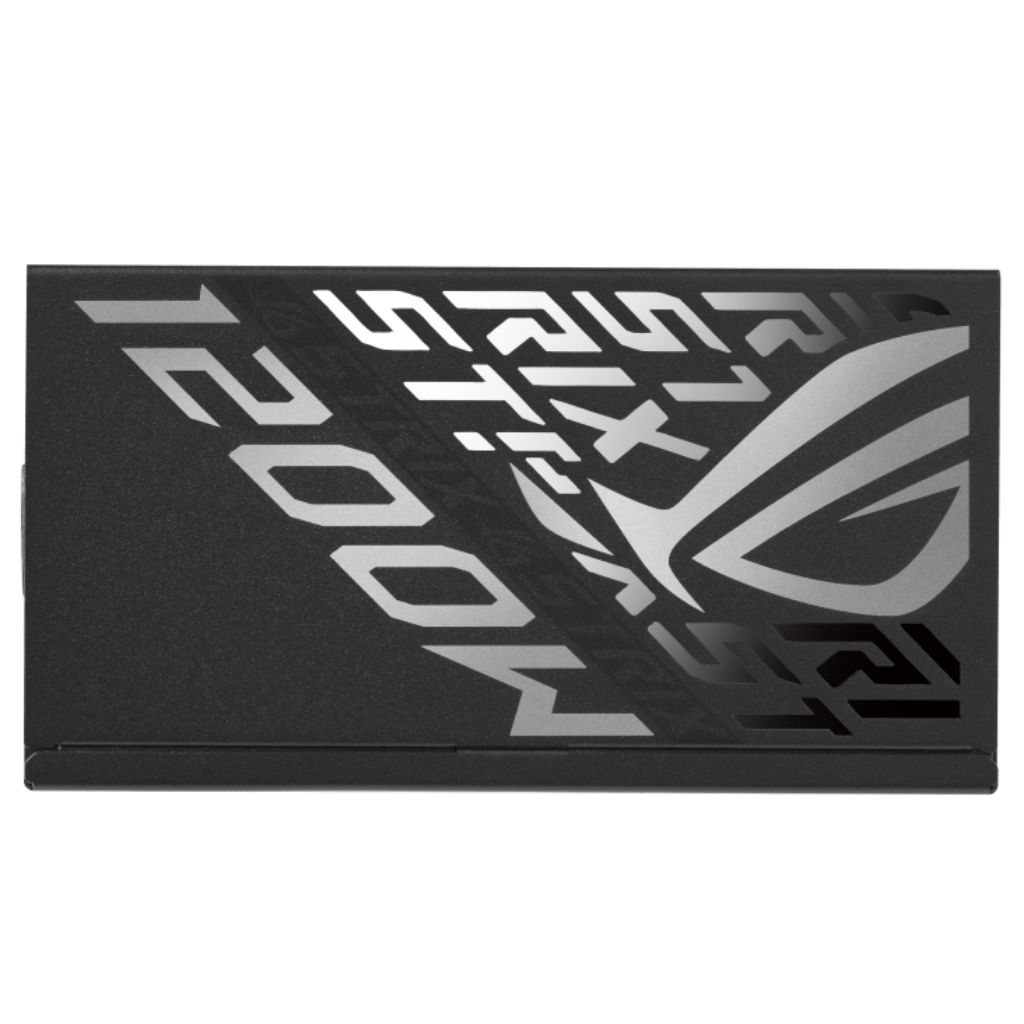

ASUS ROG Strix 1200W Platinum (ROG Equalizer) ATX 3.1 Fully Modular Desktop Power Supply – ROG-STRIX-1200P-GAMING-E
Full description ASUS.
- The ASUS ROG Strix 1200W Platinum ROG Equalizer is a high-performance fully modular desktop power supply designed for premium gaming and workstation builds, delivering 1200W total output, ATX 3.1 support, and efficient power delivery.
- With 80 Plus Platinum efficiency and Cybenetics Platinum efficiency at both 230V and 115V, this PSU is built to provide stable, efficient power for demanding graphics cards, processors, storage, cooling, and high-end components.
- Modern cable support includes PCI-E 16-pin 12V-2×6, four PCI-E 6+2-pin connectors, dual CPU 4+4-pin connectors, six SATA connectors, and three peripheral connectors for flexible system compatibility.
- Protection features include OPP, OVP, UVP, SCP, OCP, and OTP, helping safeguard your components against overload, voltage, short-circuit, over-current, and thermal power-related issues during demanding operation.
- A compact 160 x 150 x 86mm ATX12V design, Active PFC, 0dB fan button support, Cybenetics A noise certification, >120,000-hour MTBF at 25°C, and 10 Year Warranty support long-term build confidence.
| Specifications | |
|---|---|
| Brand | ASUS |
| Series | ROG Strix |
| Model | ROG-STRIX-1200P-GAMING-E |
| Power Supply | |
| Total Output | 1200W |
| Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Efficiency | 80 Plus Platinum |
| Cybenetics Efficiency | Platinum 230V / Platinum 115V |
| AC Input Range | 100–240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 25A, 25A, 100A, 0.3A, 3A |
| Combined Load | 130W, 130W, 1200W, 3.6W, 15W |
| Protection Features | OPP, OVP, UVP, SCP, OCP, OTP |
| MTBF | >120,000 hours at 25°C |
| 0dB Fan Button | Yes |
| 0dB Technology | Fan spins only when the system reaches a certain load when enabled |

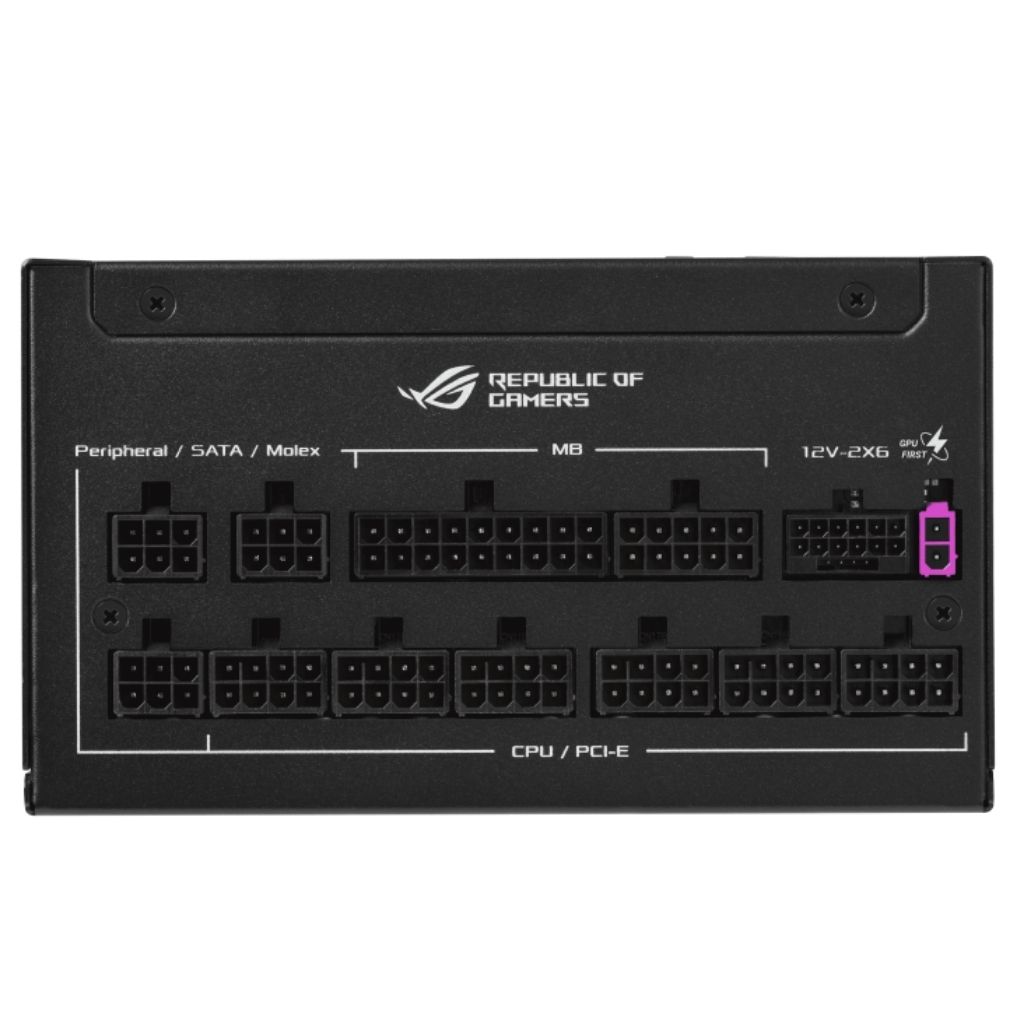

| Cable Connectors | |
| Motherboard Connector | 1x MB 24/20-pin |
| CPU Connector | 2x CPU 4+4-pin |
| PCI-E 16-pin Connector | 1x PCI-E 16-pin 12V-2×6 |
| PCI-E 6+2-pin Connector | 4x PCI-E 6+2-pin |
| SATA Connector | 6x SATA |
| Peripheral Connector | 3x Peripheral |
| Noise & Reliability | |
| Cybenetics Noise Level | A |
| Dimensions & Weight | |
| Dimensions | 160 x 150 x 86mm |
| Weight | 1.84kg |
| Included in the Box | |
| Included Items | Power cord x1 Motherboard power cable x1, 610mm CPU cable x2, 1000mm ROG Equalizer 12V-2×6 PCI-E cable with GPU First x1, 750mm PCI-E 8-pin-to-6+2-pin cable x4, 750mm SATA 1-to-3 cable x2, 400 + 120 + 120mm Peripheral 1-to-3 cable x1, 400 + 150 + 150mm ROG Strix DIY sticker x1 User manual x1 |
| Warranty Information | |
| Warranty | 10 Year Warranty |
