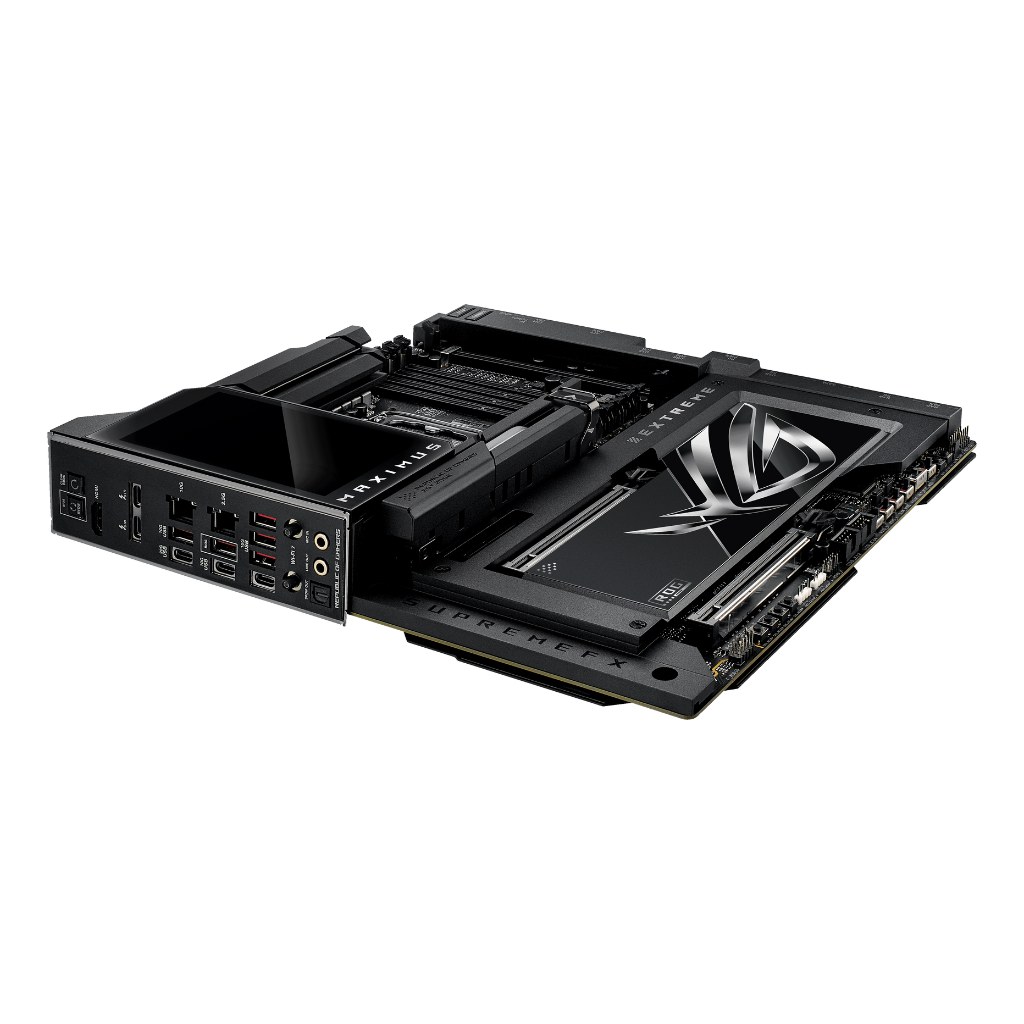

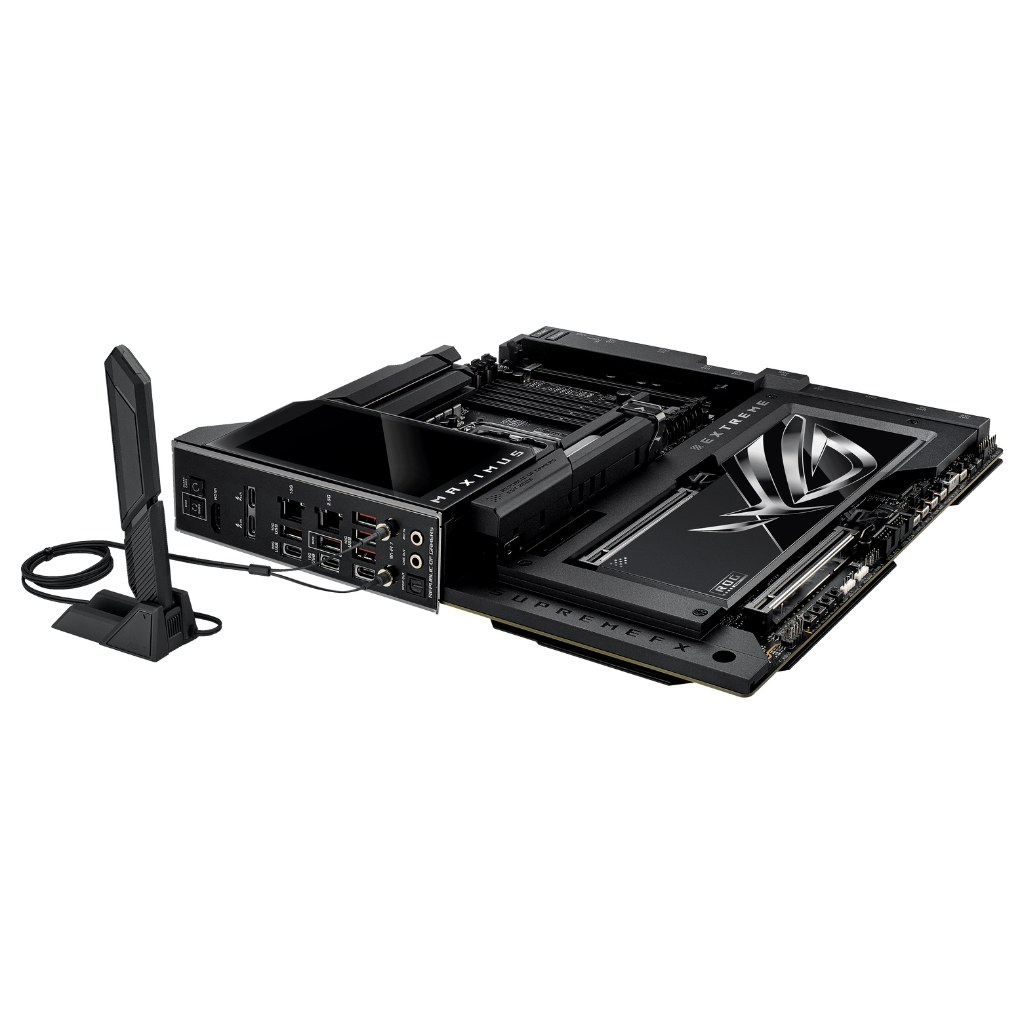

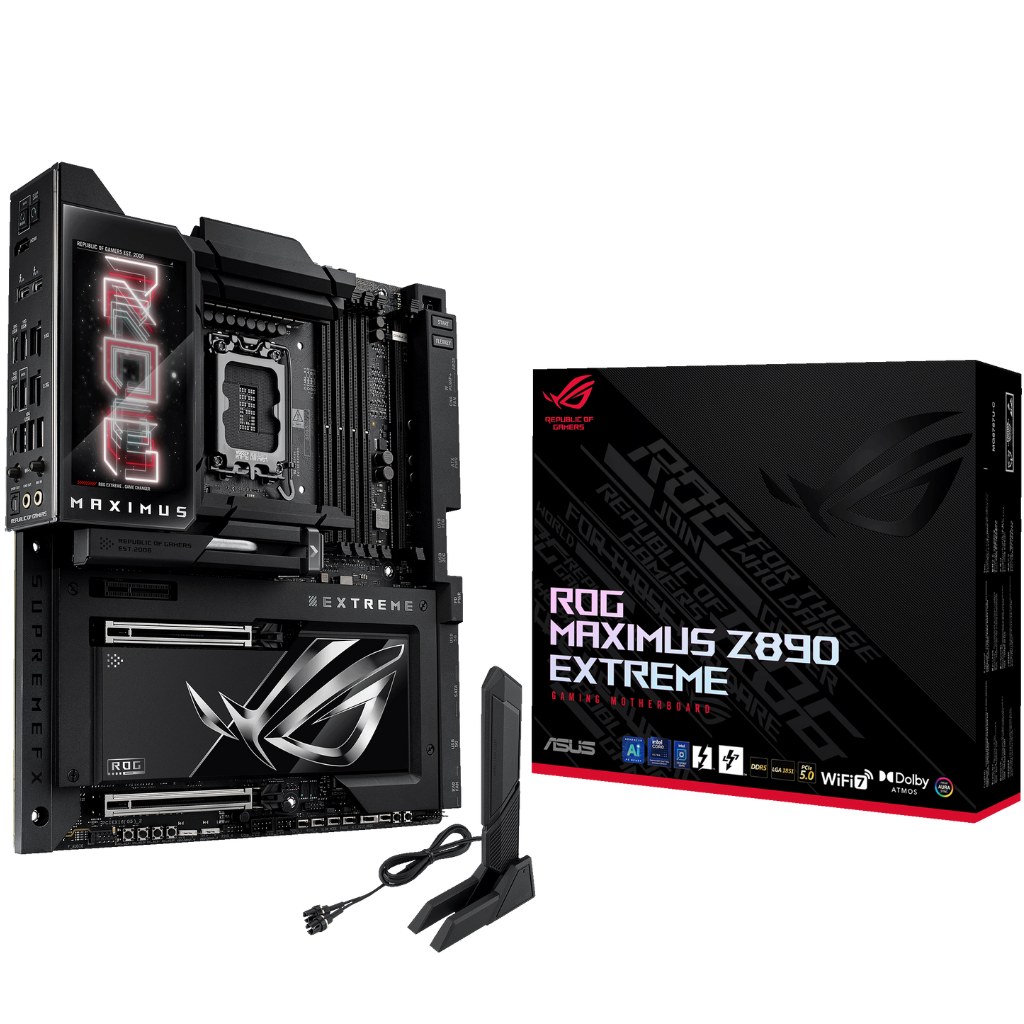

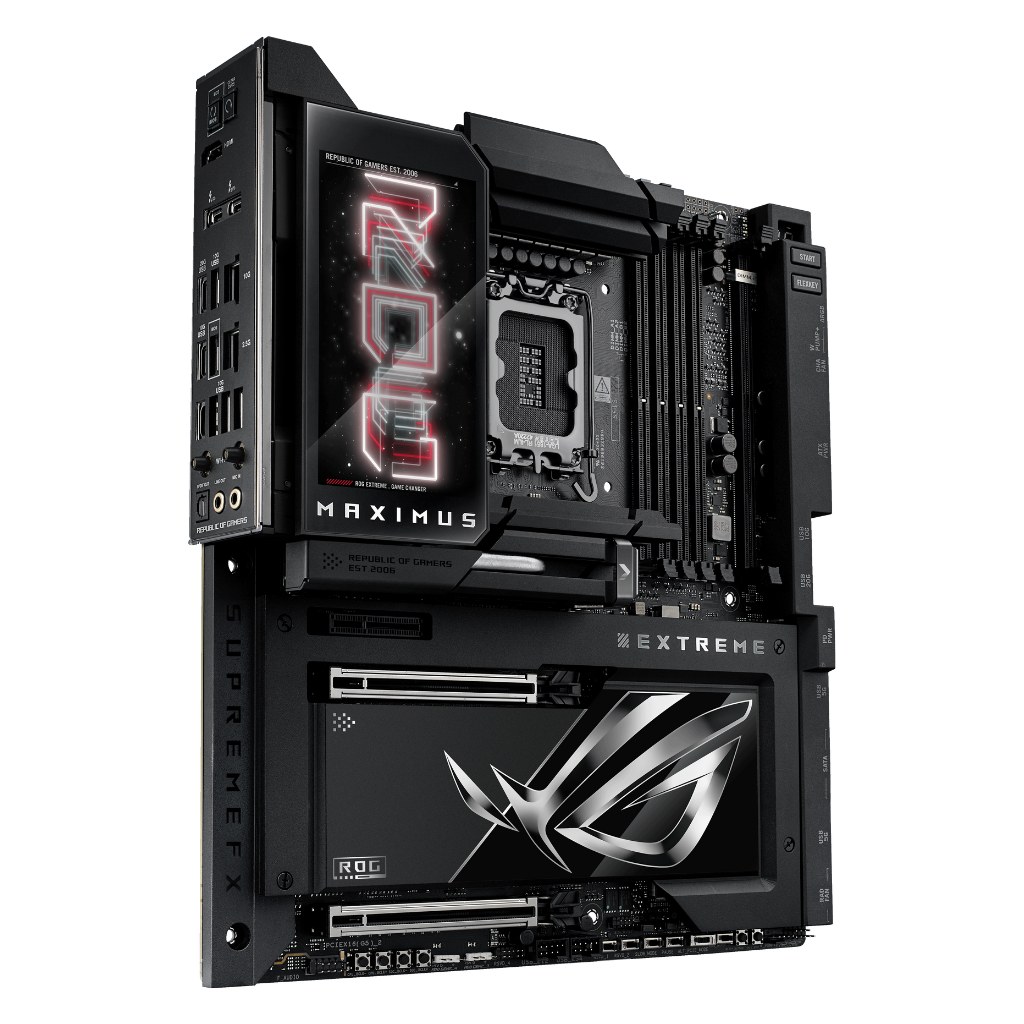

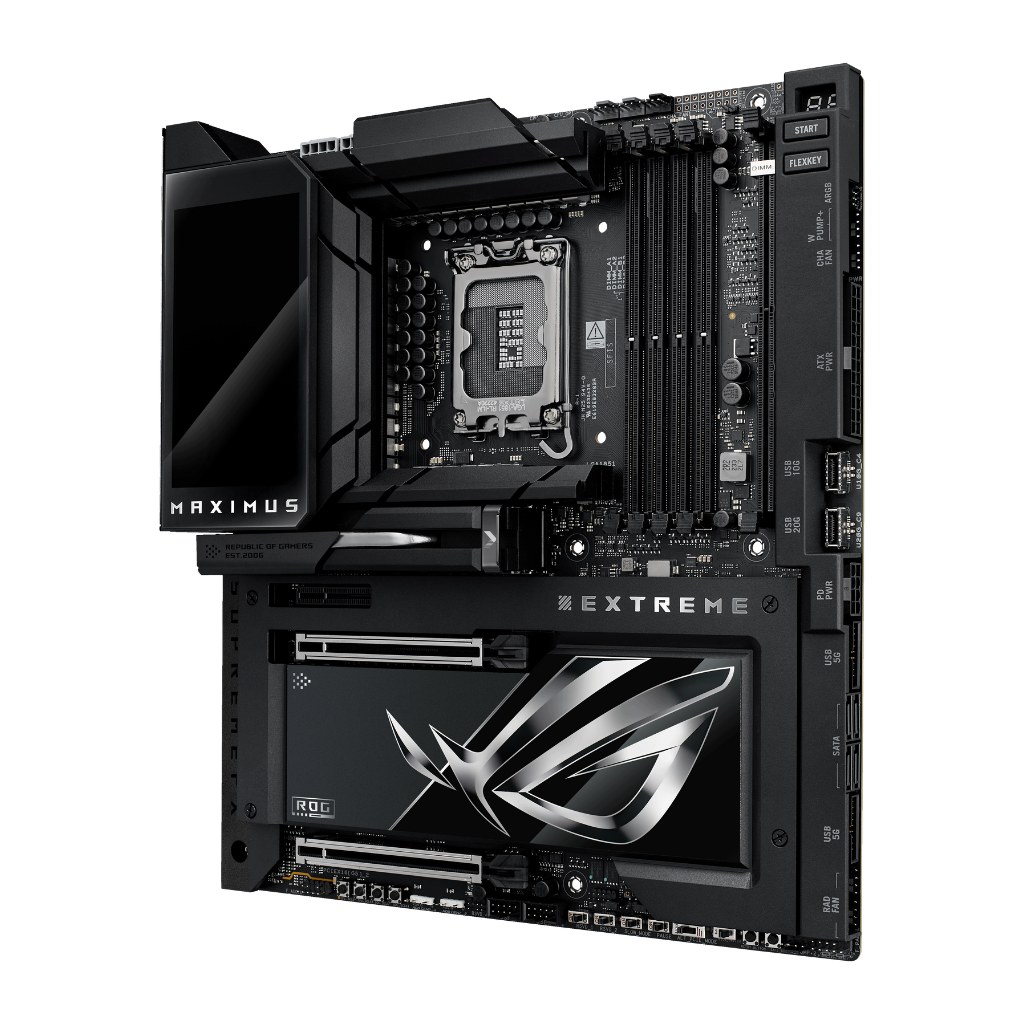

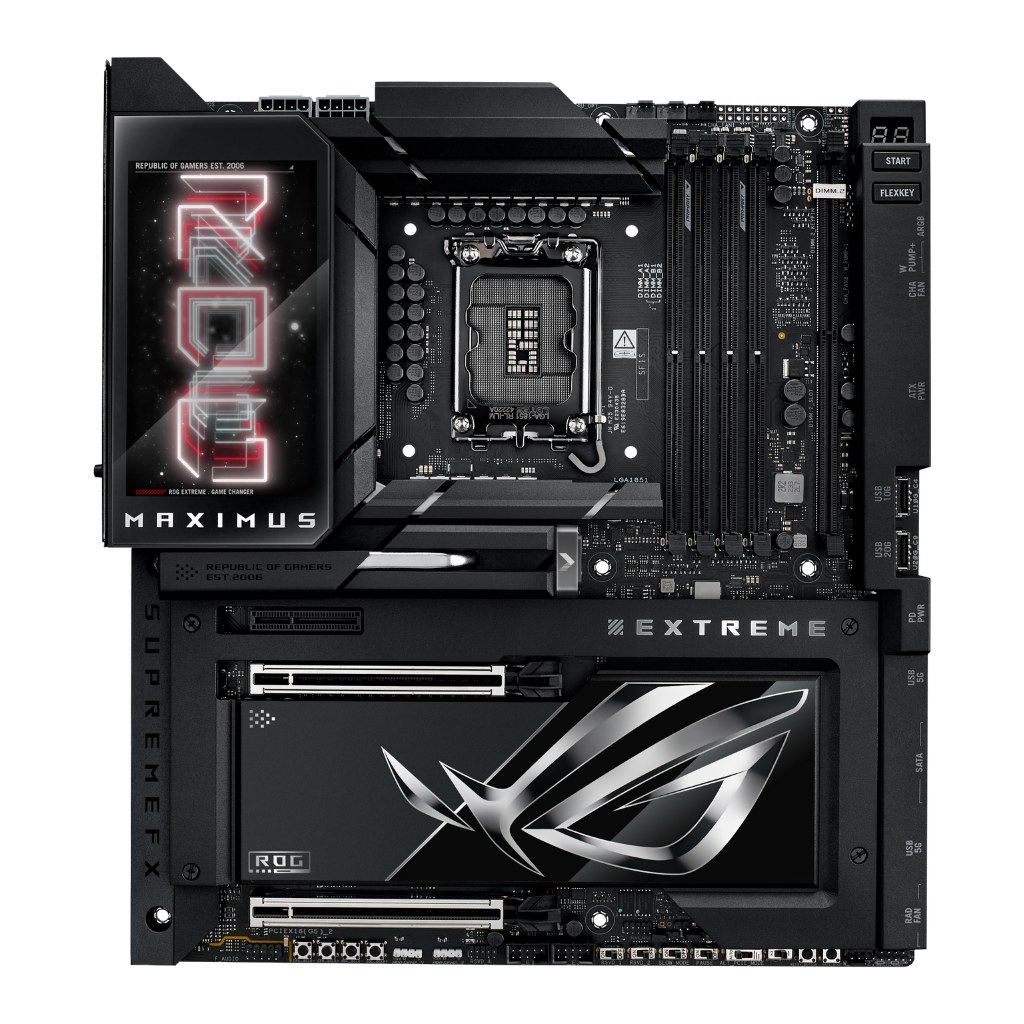

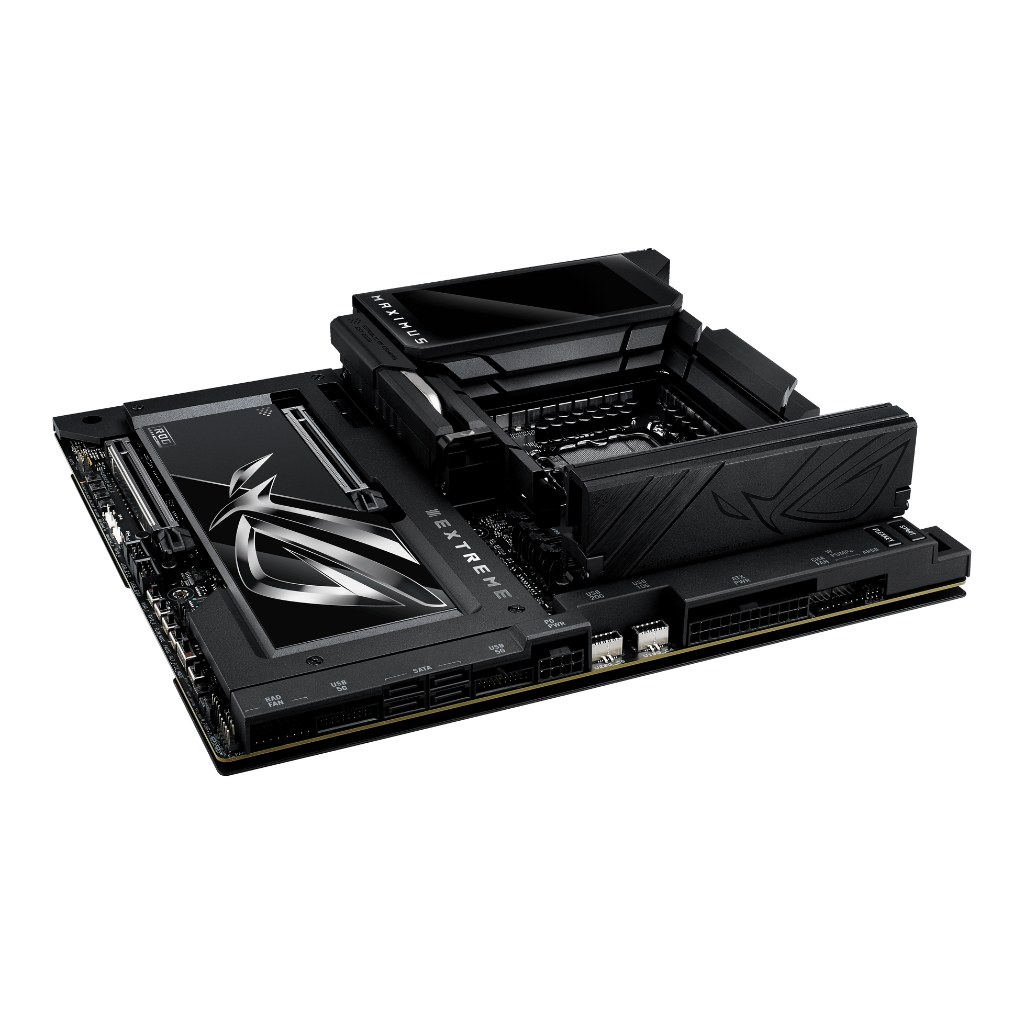

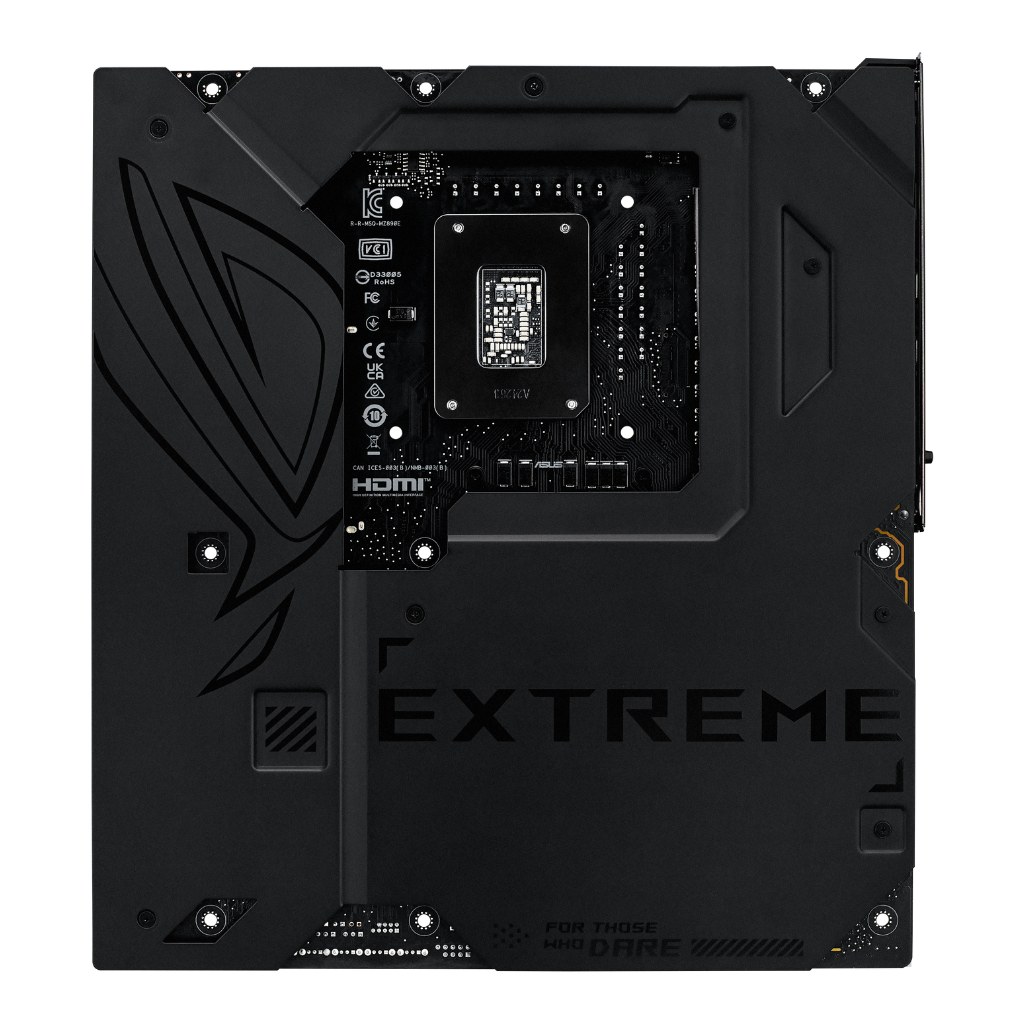

ASUS ROG Maximus Z890 EXTREME DDR5 Wi-Fi 7 LGA 1851 Intel Motherboard – 90MB1IA0-M0EAY0
Full description ASUS.
| Specifications | |
| Brand: | ASUS |
| Series: | Z890 Series |
| Model: | 90MB1IA0-M0EAY0 |
| Technical Specs | |
| CPU Support: | Support Intel Core Ultra Processors (series 2) Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
| Chipset: | Intel Z890 Chipset – LGA 1851 |
| Memory: | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8400+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*” – Dual Channel Memory Architecture – Supports Intel® Extreme Memory Profile (XMP) memory module – ASUS Enhanced Memory Profile III (AEMP III) – Supports DIMM Flex – Supports DIMM Fit – NitroPath DRAM Technology |
| Onboard Graphics: | 1 x HDMITM port 2 x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs |
| Audio: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 10 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – ESS® ES9219 QUAD DAC – LED-illuminated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors |
| Connectivity | |
| LAN: | 1 x Intel 2.5Gb Ethernet 1 x Marvell® AQtion 10Gb Ethernet ASUS LANGuard |
| Wireless: | Intel Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | Intel Core Ultra Processors(series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes) Intel Z890 Chipset 1 x PCIe 4.0×4 slot |
| Storage Interface: | Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports Support Intel Core Ultra Processors (series 2) – M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) – M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes) – M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) Intel Z890 Chipset – DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) – DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) – 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 10 ports) 2 x Thunderbolt 5 ports (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A *USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switchs 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Back Panel Connectors: | 2 x Thunderbolt™ 5 USB Type-C® ports 1 x USB 20Gbps port (1 x USB Type-C®) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®) 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Software & Features | |
| BIOS: | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ROG Exclusive Software ASUS Exclusive Software Armoury Crater |
| Features: | Extreme OC Kit Full Color 5″ LCD Display |
| Aura Sync | |
| Extreme Engine Digi+ | |
| ROG M.2 PowerBoost | |
| Dual BIOS Front Panel USB 20Gbps with Quick Charge 4+ Support |
|
| General | |
| Operating System: | Windows 11, Windows 10 64-bit |
| Form Factor: | E-ATX Form Factor (30.5 cm x 27.7 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASUS ROG Maximus Z890 EXTREME DDR5 Wi-Fi 7 LGA 1851 Intel Motherboard – 90MB1IA0-M0EAY0
Contact us if you would like to enquire about this product.
