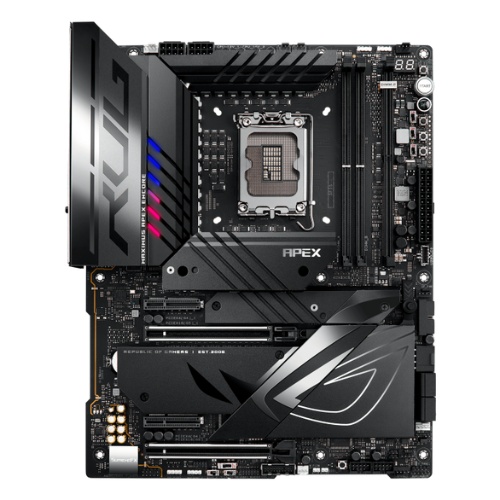

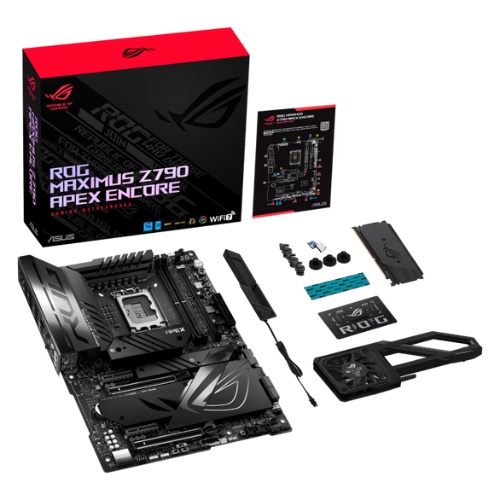

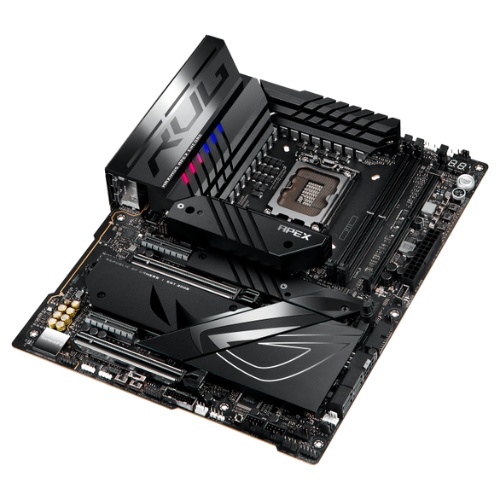

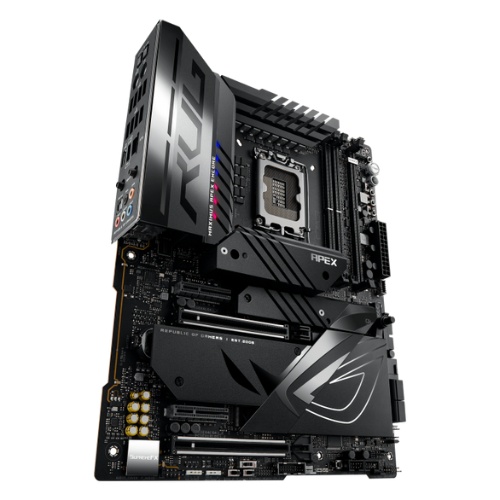

ASUS ROG Maximus Z790 APEX ENCORE WiFi DDR5 LGA1700 ATX Motherboard
Full description ASUS.
- The ROG Maximus Z790 Apex Encore boasts a sleek all-black design, robust appearance, upgraded power solution and an onboard PCIe® 5.0 M.2 slot for lightning-fast storage.
- Meanwhile, the ROG Memory Fan Kit offers active cooling to let tinkerers push DDR5 to the limit.
- Support for Intel® Core™ 14th generation processors lets users set new benchmarks for the wealth of activities that demand peak performance.
- This motherboard is the ultimate choice for enthusiasts and overclockers seeking style and power in their gaming setup.
Specifications |
|
| Brand: | ASUS |
| Series: | Intel Z790 II Series |
| Model: | ASUS ROG MAXIMUS Z790 APEX ENCORE (90MB1FX0-M0EAY0) |
| Technical Specs | |
| CPU Support: | Intel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold |and Celeron Processors Intel Turbo Boost Technology 2.0 Turbo Boost Max Technology 3.0 |
| Chipset: | Intel® Z790 Chipset |
| Memory: | 2 x DIMM, Max. 96GB, DDR5 8400+(OC)/8200+(OC)/8000+(OC)/ 7800(OC)/7600(OC)/7400(OC)/ 7200(OC)/7000(OC)/6800(OC)/ 6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MT/s Non-ECC,Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile II (AEMP II) Supports DIMM Flex |
| Onboard Graphics: | – |
| Audio: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output – 110 dB SNR recording input – up to 32-Bit/384 kHz playback” Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
| Connectivity | |
| LAN: | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | – Intel® Wi-Fi 7* – 2×2 Wi-Fi 7 (802.11be)** – Support 2.4/5/6GHz frequency band – Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. |
| Bluetooth: | Bluetooth® v5.4 |
| Expansion Slots: | Intel® CoreTM Processors (14th & 13th & 12th Gen)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** Intel® Z790 Chipset 2 x PCIe 4.0 x4 slot |
| Storage Interface: |
M.2_1 slot (Key M), type 2242/2260/2280 |
| On-Board Connectors | |
| USB: | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C®)* 5 x USB 10Gbps ports (5 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)** 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header 1 x Extra Flow Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x Addressable Gen 2 headers 1 x Alternative PCIe Mode Switch 1 x Aura RGB header 2 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 1 x Osc sence header 1 x Pause switch 12 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switches 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header 1 x V_Latch switch |

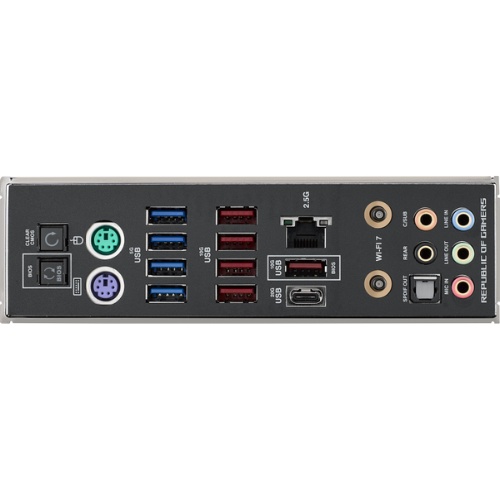

| Back Panel Connectors: | 1 x USB 20Gbps port (1 x USB Type-C®) 5 x USB 10Gbps ports (5 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Software & Features | |
| BIOS: | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | – ROG Exclusive Software – ASUS Exclusive Software – Armoury Crate – AI Suite 3 – MyAsus – USB Wattage Watcher – Intel® Unison™ – WinRAR (40 Days Free Trial) – UEFI BIOS – AI Overclocking Guide – ASUS EZ DIY – BIOS EZ Mode |
| Features: | ASUS Thermal Solution ASUS EZ DIY Extreme OC Kit |
| ASUS Q-Design | |
| Aura Sync | |
| Extreme Engine Digi+ | |
| Dual BIOS | |
| General | |
| Operating System: | Windows® 11, Windows® 10 64-bit |
| Form Factor: | ATX Form Factor – (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
