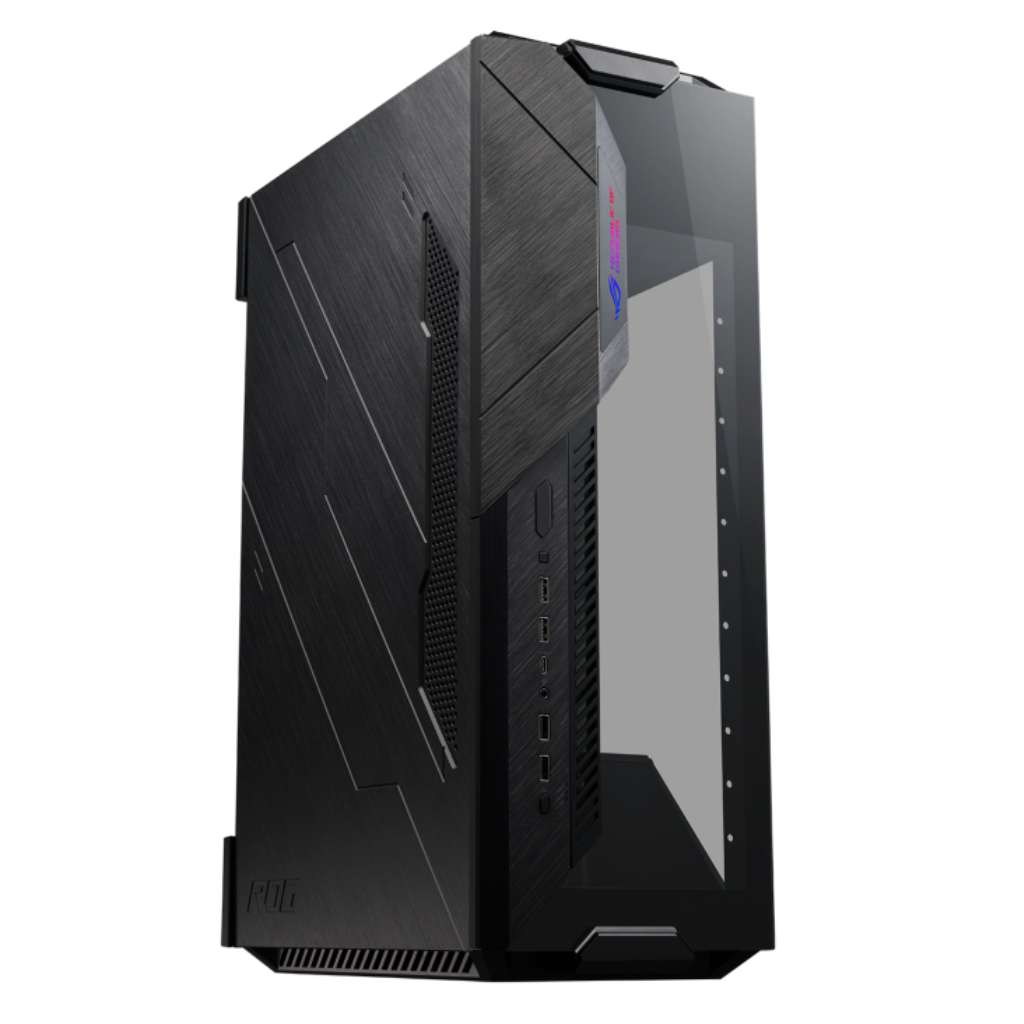

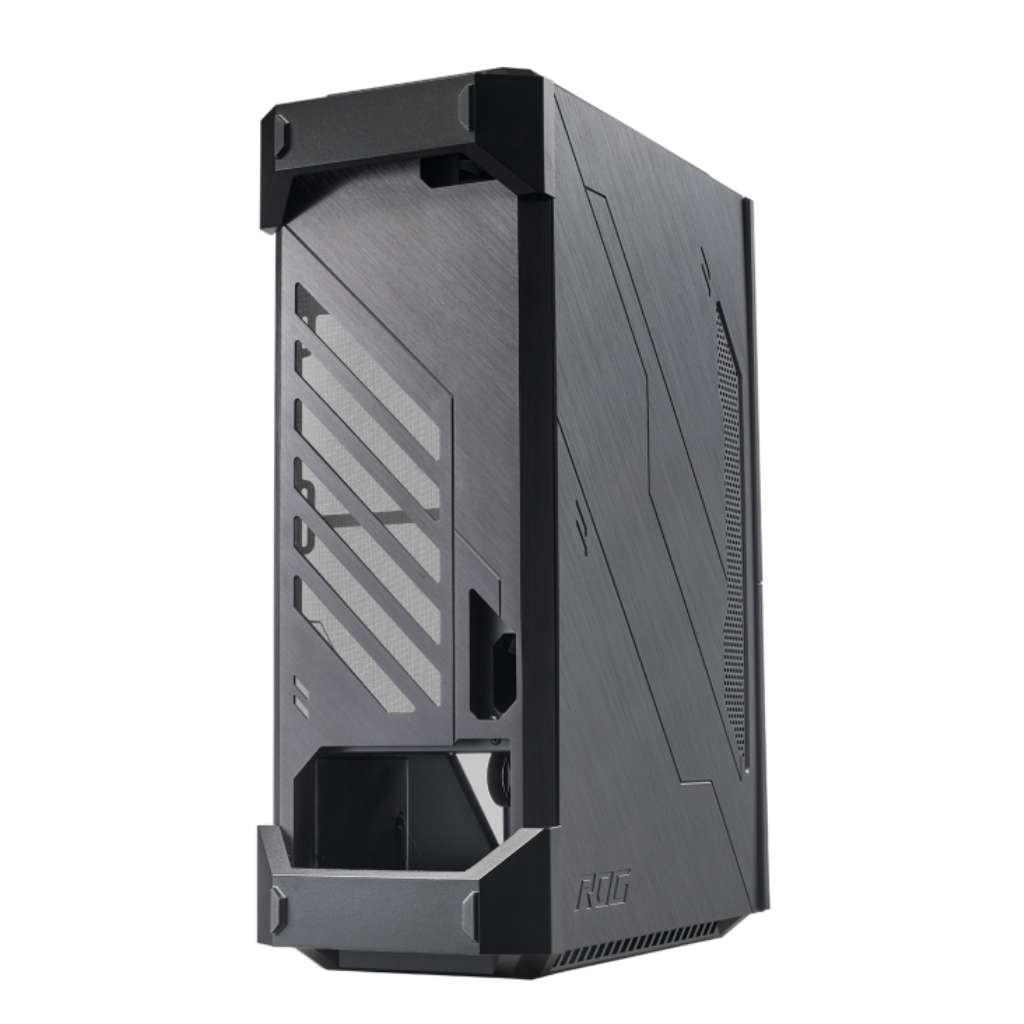

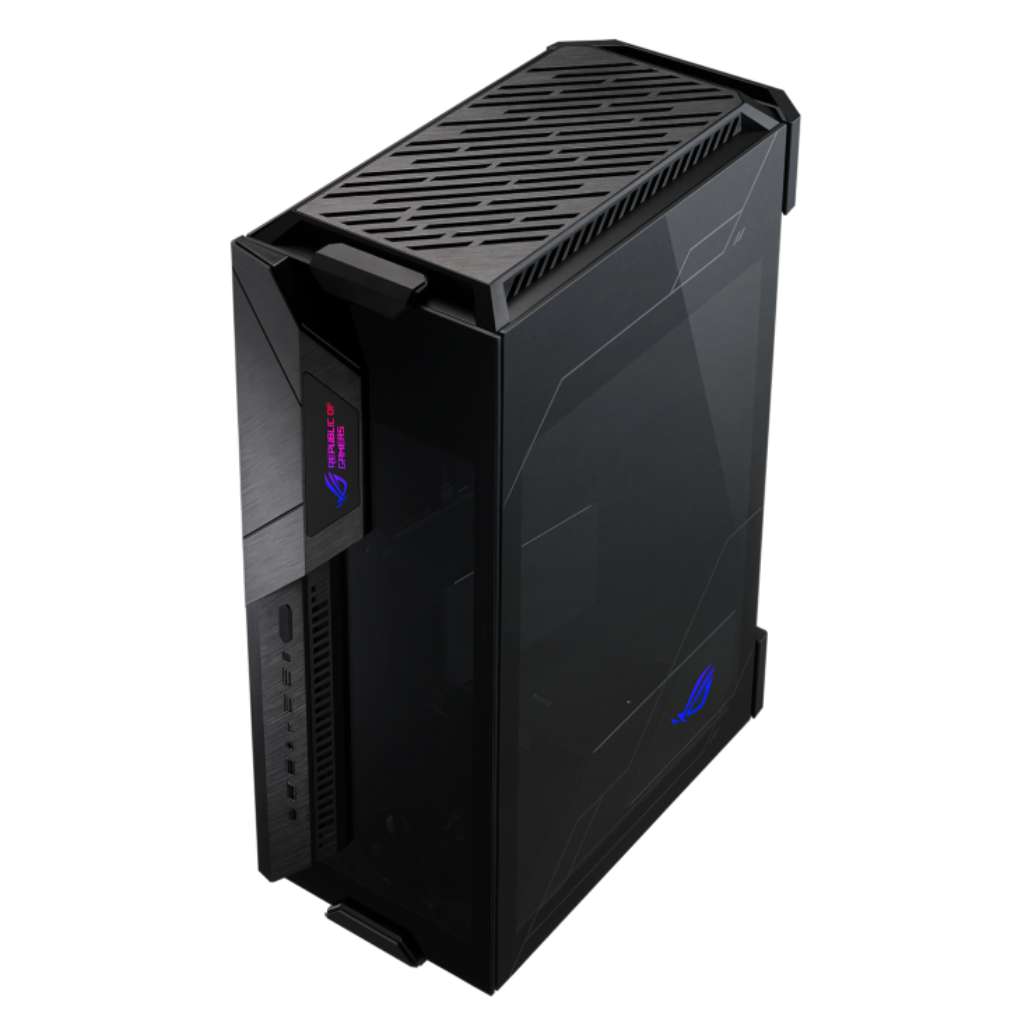

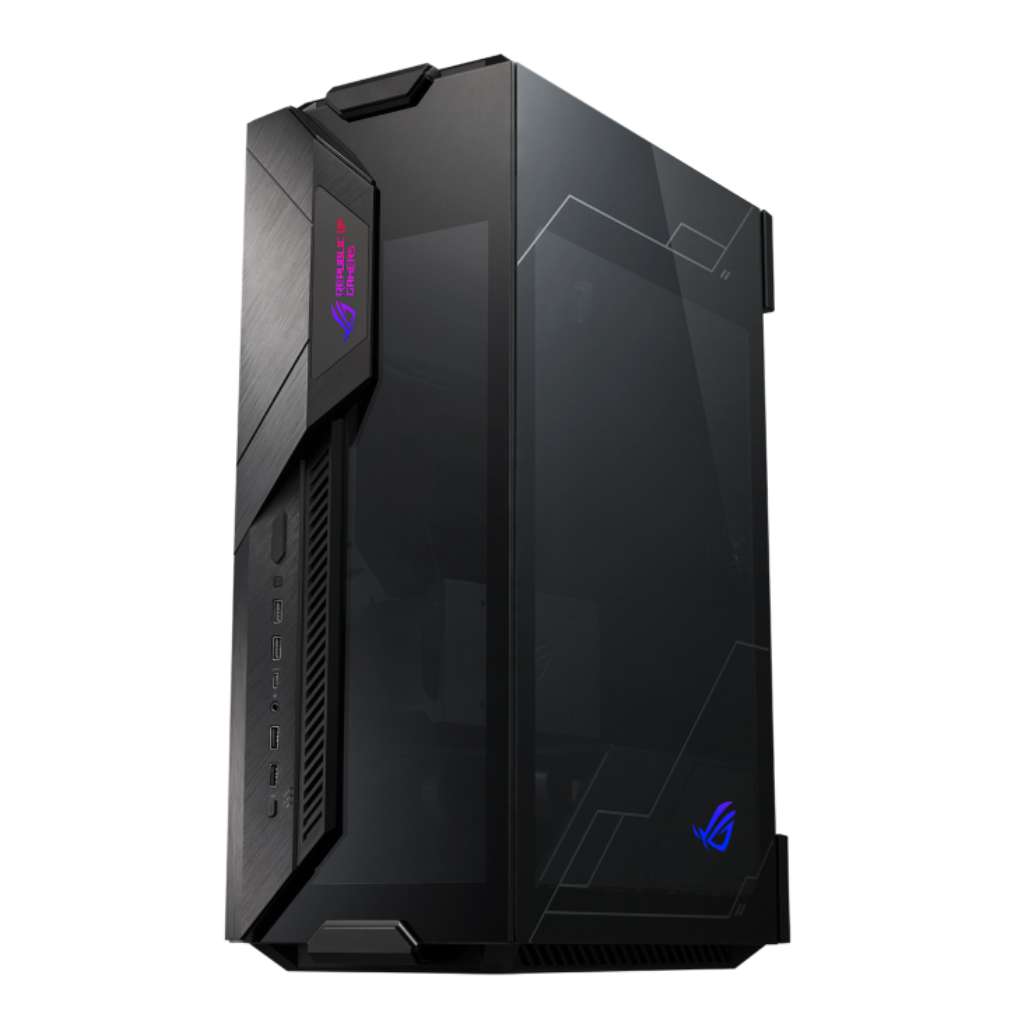

Asus ROG GR101 Z11 Mini-ITX Gaming Chassis
Full description ASUS.
- ROG Z11 is a premium Mini-ITX/DTX case with a sleek and stylish look that rises above the competition by empowering users to showcase compact builds without compromise. Each feature has been designed conscientiously with the user in mind to maximize utility, flexibility and connectivity.
- The patented 11° tilt design provides optimized airflow and heat dissipation to create an innovative solution that maximizes thermal performance with demanding hardware—such as an ATX power supply or a 3-slot graphics card without a riser cable. For fans of water cooling, Z11 offers ample space and the option of a custom liquid cooling loop. Adding style to substance, internal build components are beautifully illuminated by Aura Sync lighting that can be seen through the front and right-side 4 mm gray tempered glass panels.

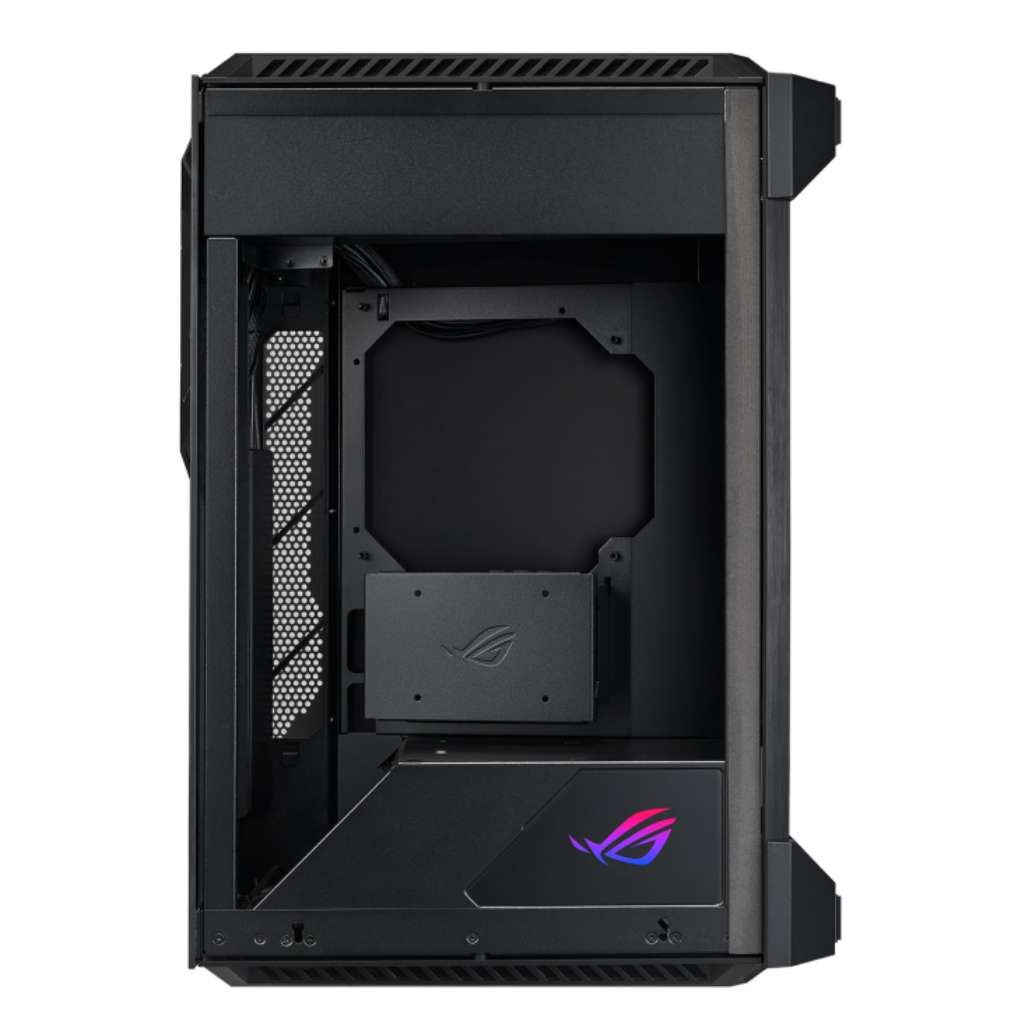

- Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard.
- This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.
SPECIFICATIONS |
|
Brand | Asus |
Series | Republic of Gamers |
Model | ROG Z11 |
Physical Details | |
Colour | Black |
Side Panel | Tempered Glass (Front & Right) |
Front I/O Ports | 2x USB 3.2 Type-A Gen 1 |
1x USB 3.2 Type-C Gen 2 | |
2x USB 2.0 Type-A | |
1x Audio Jack | |
Motherboard Support | Mini-DTX, Mini-ITX |
Expansion Slots | |
Total Slots | 3 |
Drive Bays | 4 x 2.5″ Bay |
1 x 2.5″/3.5″ Combo Bay | |
PSU Support | 160 mm (ATX or SFX) |
Fan Support | |
Top | 2x 120 mm, 2x 140 mm |
Rear | 2x 120 mm |
Radiator Support | |
Rear | Up to 120 mm, Up to 240 mm |
Clearance | |
CPU Cooler Height Limitation | Up to 130 mm |
GPU Length Limitation | Up to 320 mm |
General | |
Removable Dust Filters | Front, Top, Bottom |
Cable Management Space | Up to 40 mm |
Dimensions | 194 x 531 x 386 mm |
Weight | 8.73 kg |
Warranty Information | |
Warranty | 3 Year Warranty |
