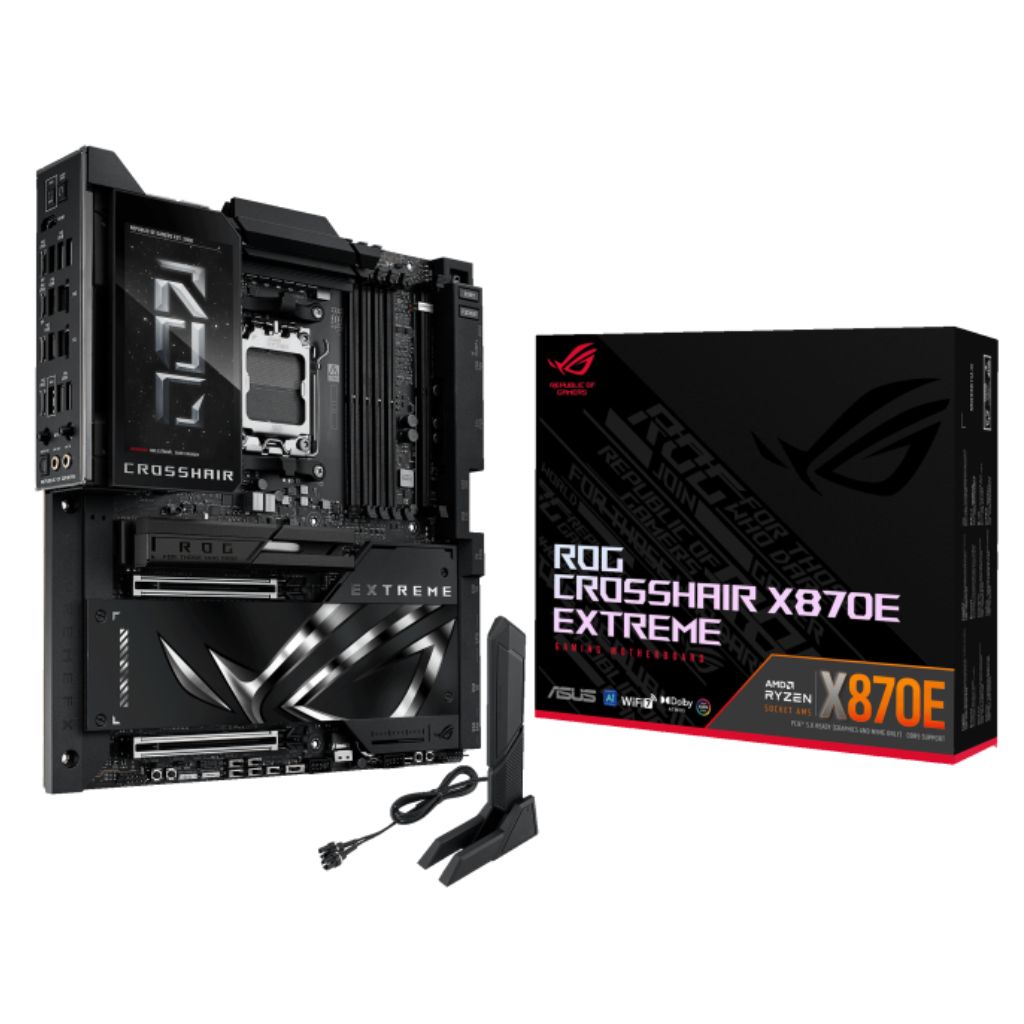

ASUS ROG Crosshair X870E EXTREME E-ATX AM5 AMD Motherboard
Full description ASUS.
- The ASUS ROG Crosshair X870E Extreme is a flagship E-ATX AM5 motherboard built for elite gaming and high-end enthusiast systems, combining premium power delivery, advanced AI tuning features, and next-generation connectivity for demanding performance-focused PC builds.
- Built around the AMD X870E chipset with support for AMD Ryzen 9000, 8000, and 7000 Series desktop processors, it delivers a strong foundation for high-core-count CPUs, overclocking, and premium DDR5 memory performance.
- Storage and expansion are built for extreme-speed systems, with two PCIe 5.0 x16 SafeSlots, three onboard PCIe 5.0 M.2 slots, two additional PCIe 4.0 M.2 slots via ROG Q-DIMM.2, plus SlimSAS PCIe 4.0 x4 support.
- Connectivity is exceptionally rich, featuring dual USB4 Type-C, a 20Gbps front USB Type-C with Quick Charge 4+ up to 60W, Wi-Fi 7, Realtek 5Gb Ethernet, Marvell AQtion 10Gb Ethernet, and HDMI output.
- Premium onboard features such as 20+2+2 power stages, SupremeFX ALC4082 audio with ESS ES9219 Quad DAC, 5-inch full-colour LCD, AI overclocking and cooling tools, plus advanced DIY-friendly design elevate it into true flagship territory.
| Specifications | |
|---|---|
| Brand | ASUS |
| Series | ROG Crosshair |
| Model | X870E Extreme |
| Product Type | E-ATX AM5 Motherboard |
| Platform | |
| CPU Socket | AMD AM5 |
| Supported Processors | AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM |
| Expansion Slots | |
| PCIe x16 Slots | 2 x PCIe 5.0 x16 SafeSlots |
| Storage | |
| M.2 Support | 3 x onboard PCIe 5.0 M.2 |
| Additional M.2 Support | 2 x PCIe 4.0 M.2 via ROG Q-DIMM.2 |
| SlimSAS | 1 x SlimSAS connector with PCIe 4.0 x4 support |
| SATA | 4 x SATA 6Gb/s |
| Networking | |
| Wi-Fi | Wi-Fi 7 |
| Ethernet | Realtek 5Gb Ethernet, Marvell AQtion 10Gb Ethernet |
| USB & Connectivity | |
| Rear USB Type-C | 2 x USB4 Type-C |
| Front USB Type-C | 1 x USB 20Gbps Type-C with Quick Charge 4+ up to 60W, 1 x USB 10Gbps Type-C |
| Additional USB | 10 x additional USB 10Gbps ports |
| Video Output | HDMI |
| Audio | |
| Audio Codec | ROG SupremeFX ALC4082 |
| DAC | ESS ES9219 Quad DAC |
| Audio Playback | Up to 32-Bit/384 kHz |
| Internal I/O Connectors | |
| ARGB Headers | 2 x Gen 2 ARGB headers |
| Additional ARGB Support | 1 x 6-pin Gen 2 ARGB header |
| Back Panel Connectors | |

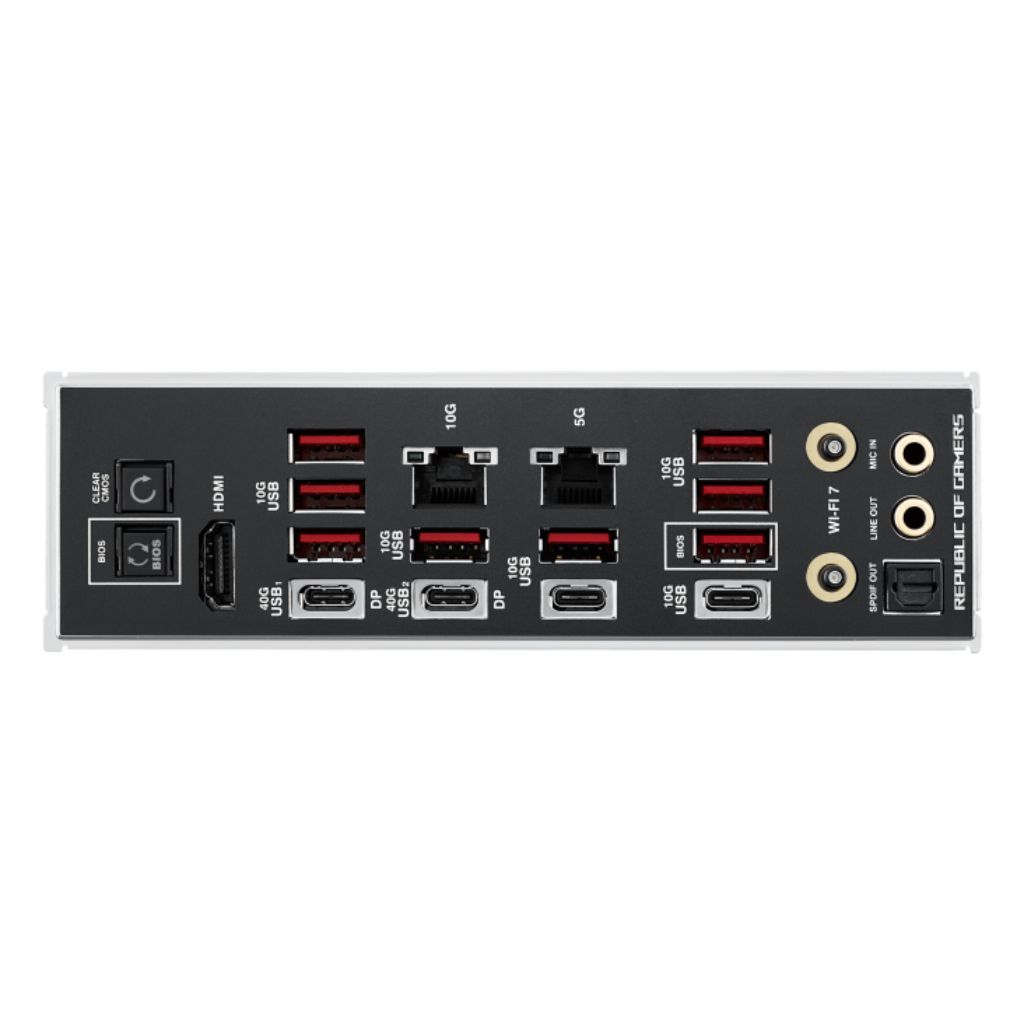

| Rear I/O Highlights | 2 x USB4 Type-C, multiple USB 10Gbps ports, HDMI, Wi-Fi antenna connectors, 5Gb Ethernet, 10Gb Ethernet, audio ports |
| Special Features | |
| Power Stages | 20+2+2 power stages |
| AI Features | AI Overclocking, AI Cooling II, AI Networking II, ASUS AI Advisor |
| Overclocking Features | Dynamic OC Switcher, Core Flex, Asynchronous Clock, PBO Enhancement |
| Display | 5-inch full-colour LCD |
| DIY Features | M.2 Q-Release, M.2 Q-Latch, M.2 Q-Slide, PCIe Slot Q-Release Slim, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey, Start button, BIOS FlashBack, Clear CMOS, pre-mounted I/O shield |
| Software Features | |
| Bundled Software | ASUS DriverHub, Dolby Atmos, TurboV Core, GlideX, HWiNFO, 1-year AIDA64 Extreme subscription |
| Operating System | |
| OS Support | Windows 11 |
| Warranty Information | |
| Warranty | 3 Year Warranty |
ASUS ROG Crosshair X870E EXTREME E-ATX AM5 AMD Motherboard
Contact us if you would like to enquire about this product.
