SKU 90MB1BV0-M0EAY0 Categories All Products, AMD Asus, AMD Motherboards, Motherboards

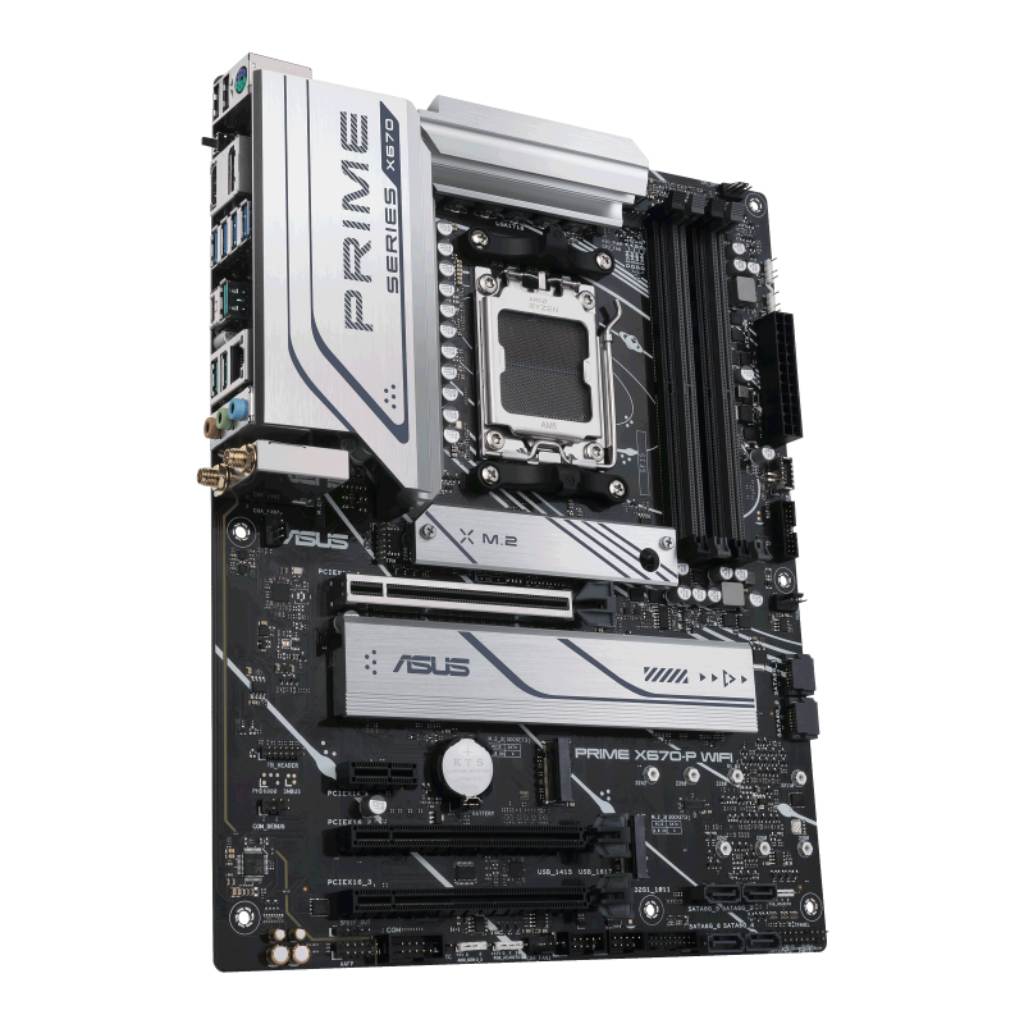

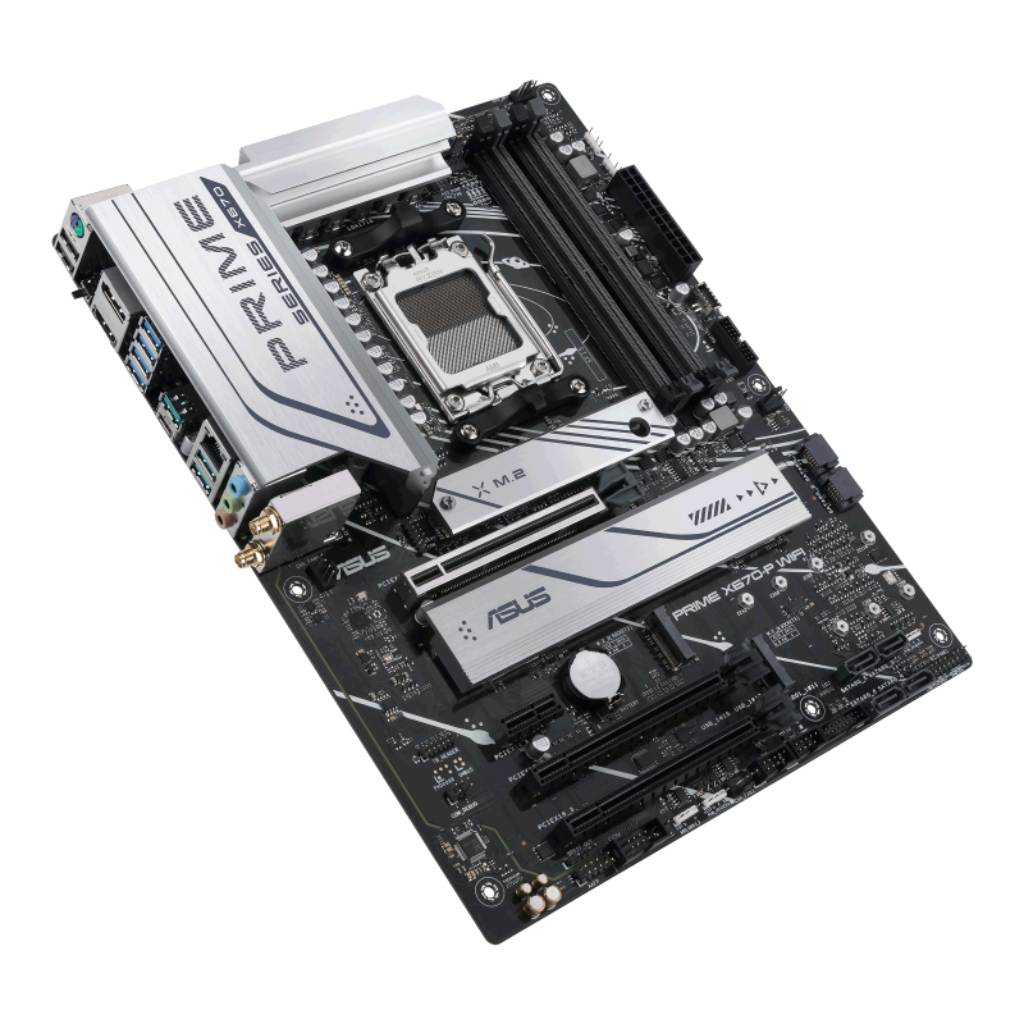

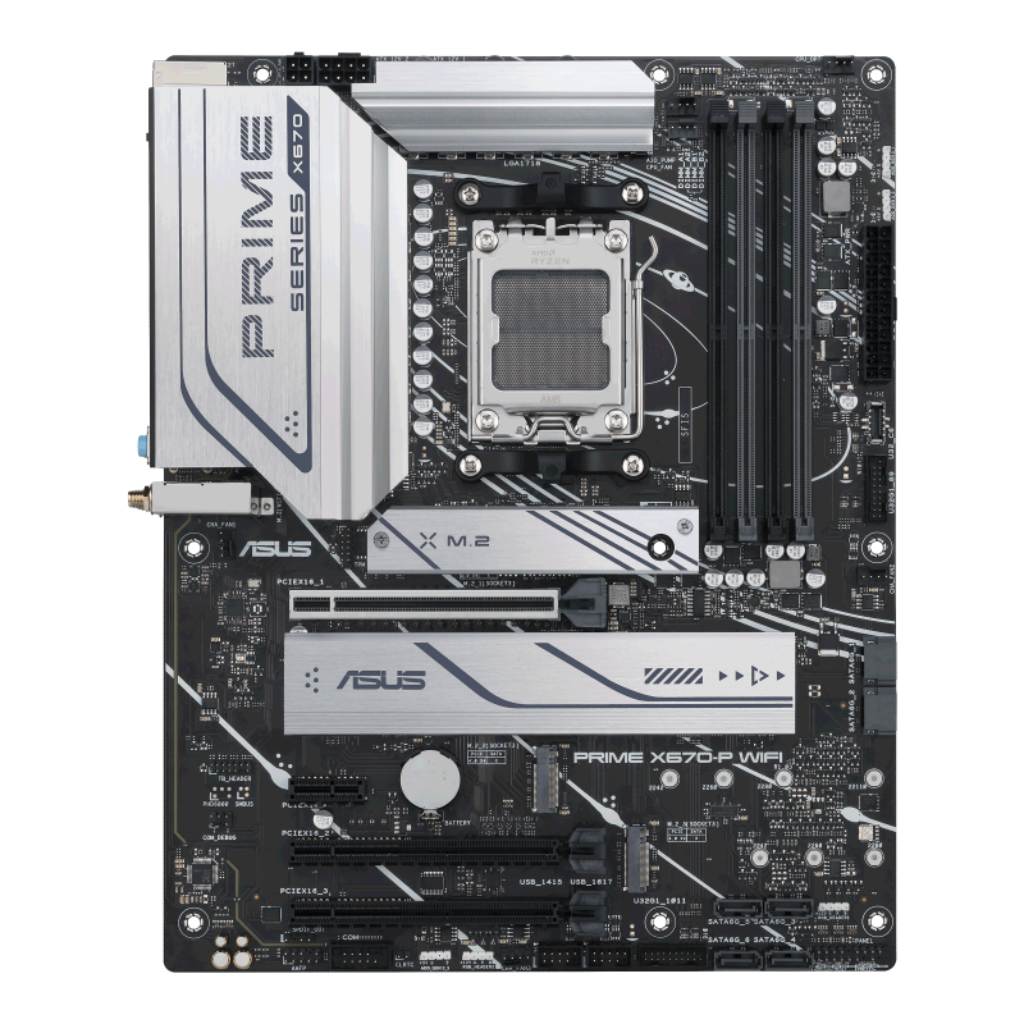

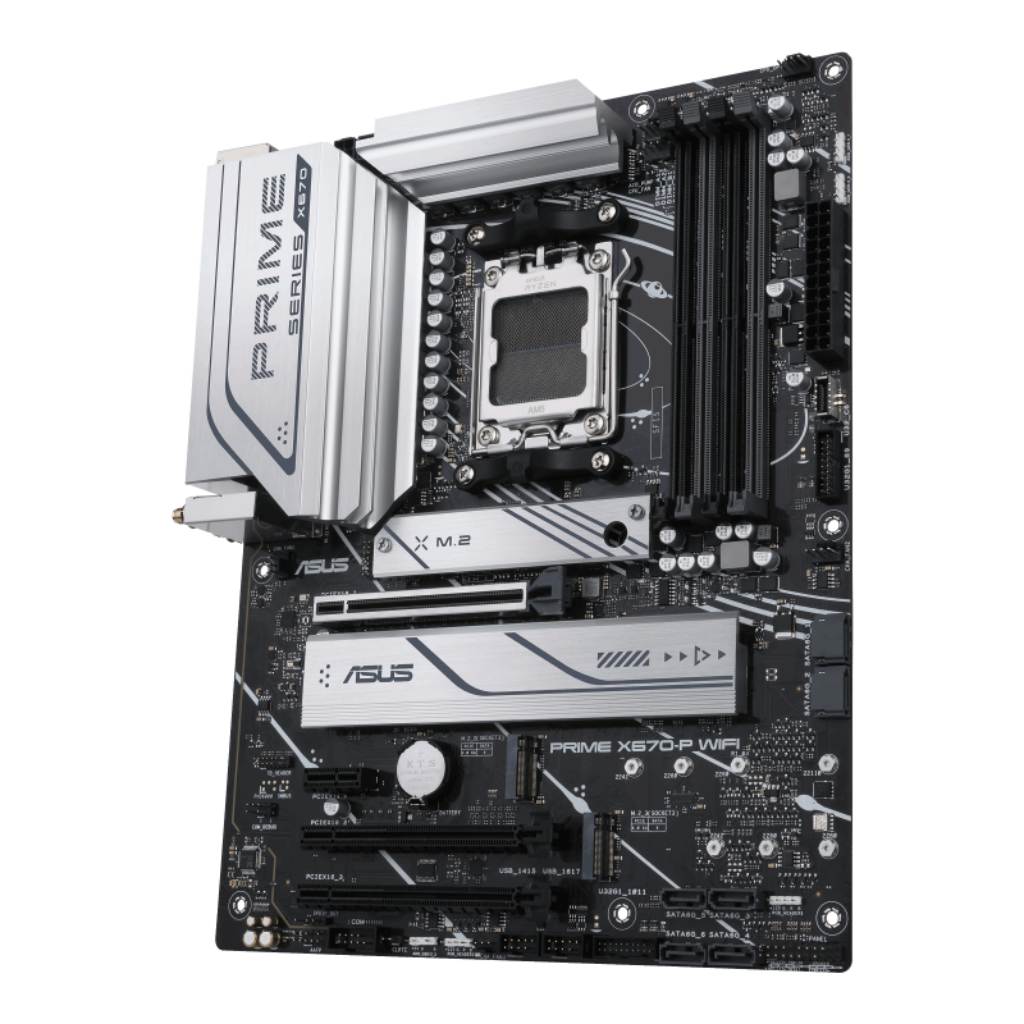

ASUS Prime X670-P WiFi DDR5 Motherboard

R6399,00

Brand: ASUS
Series: PRIME
Model: PRIME X670-P WIFI (90MB1BV0-M0EAY0)
CPU Support: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset: AMD X670

In stock

Browse More Products

Description

ASUS Prime X670-P WiFi DDR5 Motherboard

Full description ASUS.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME X670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

SPECIFICATIONS
Brand	ASUS
Series	PRIME
Model	PRIME X670-P WIFI (90MB1BV0-M0EAY0)
CPU Support	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset	AMD X670
Memory Support
AMD Ryzen 7000 Series	4 x DIMM, Max. 128GB, 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports AMD EXTended Profiles for Overclocking (EXPO)
	OptiMem II
	* Supported memory types, data rate (Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list.
	* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Video
HDMI	1x HDMI 2.1, maximum resolution of 4K 60Hz *
DisplayPort	1x DisplayPort 1.4, maximum resolution of 8K 60Hz *
DisplayPort	**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical Slot
AMD X670 Chipset	2x PCIe 4.0 x16 Physical, x4 Electrical Slot
AMD X670 Chipset	1x PCIe 3.0 x1 Physical Slot
Storage
CPU Direct	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
CPU Direct	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD X670 Chipset	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
	6 x SATA 6Gb/s ports **
	AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
	** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
Networking
LAN	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN
WiFi	AMD WiFi 6E 2×2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.2
Audio
Audio Codec	Realtek 7.1 Surround Sound High Definition Audio CODEC
Codec Features	Impedance sense for front and rear headphone outputs
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Supports up to 24-Bit/192 kHz playback
	Audio Shielding
	Premium audio capacitors
	Dedicated audio PCB layers

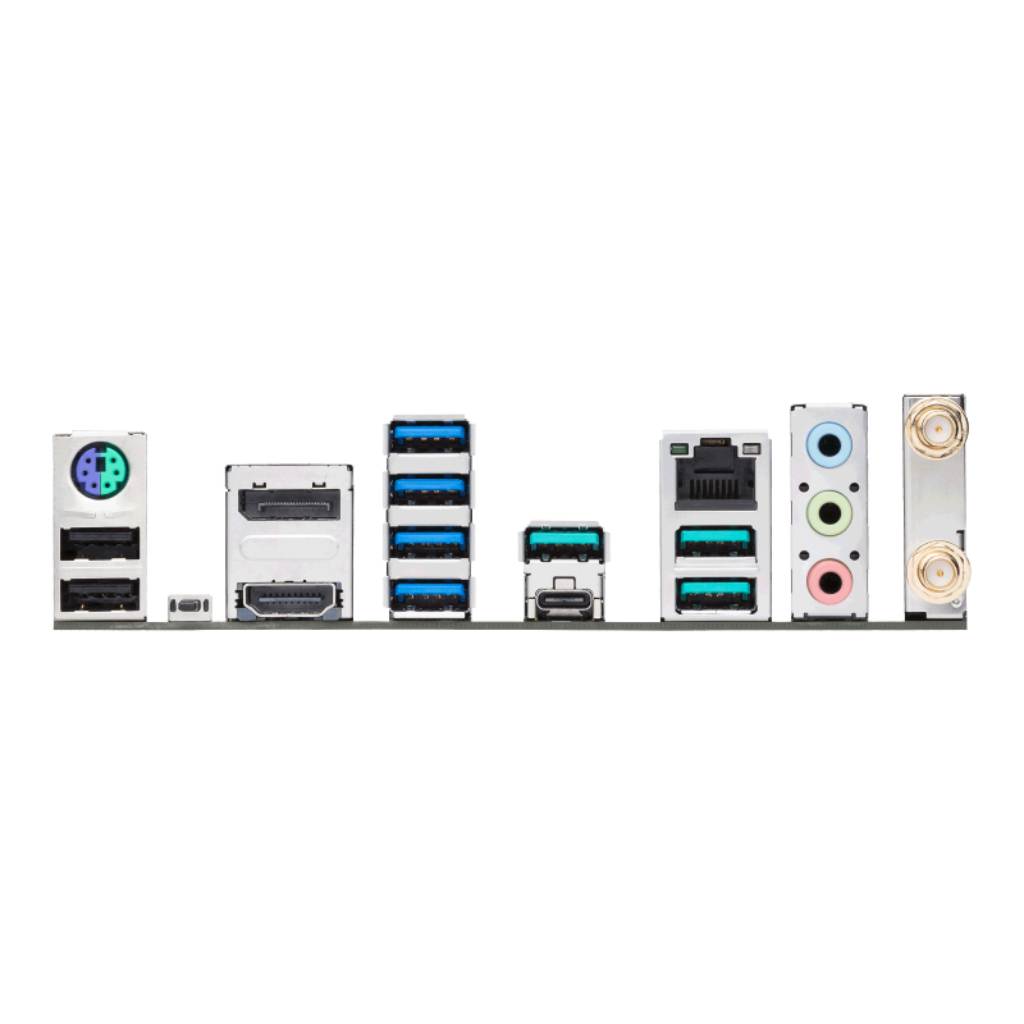

Connectivity
Ports	1x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	3x USB 3.2 Gen 2 ports (3 x Type-A)
	4x USB 3.2 Gen 1 ports (4 x Type-A)
	2x USB 2.0 ports (2 x Type-A)
	1x DisplayPort
	1x HDMI port
	1x Wi-Fi Module
	1x Realtek 2.5Gb Ethernet port
	3x Audio jacks
	1x BIOS FlashBack button
	1x PS/2 Keyboard/Mouse combo port
Buttons	1x BIOS FlashBack button
General
Internal Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3x 4-pin Chassis Fan headers
	Power related
	1x 24-pin Main Power connector
	1x 8-pin 12V Power connector
	1x 4-pin 12V Power connector
	Storage related
	3x M.2 slots (Key M)
	6x SATA 6Gb/s ports
	USB
	1x USB 3.2 Gen 1 connector (supports USB Type-C)
	2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
	2x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3x Addressable Gen 2 headers
	2x Aura RGB headers
	1x Clear CMOS header
	1x COM Port header
	1x Front Panel Audio header (AAFP)
	1x S/PDIF Out header
	1x SPI TPM header (14-1pin)
	1x 20-5 pin System Panel header
	1x Thunderbolt header
LED Displays	N/A
BIOS	256MB UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	ATX Form Factor, 304.8 x 243.84 mm (H x W)
Operating System Support	Windows 11 64-bit

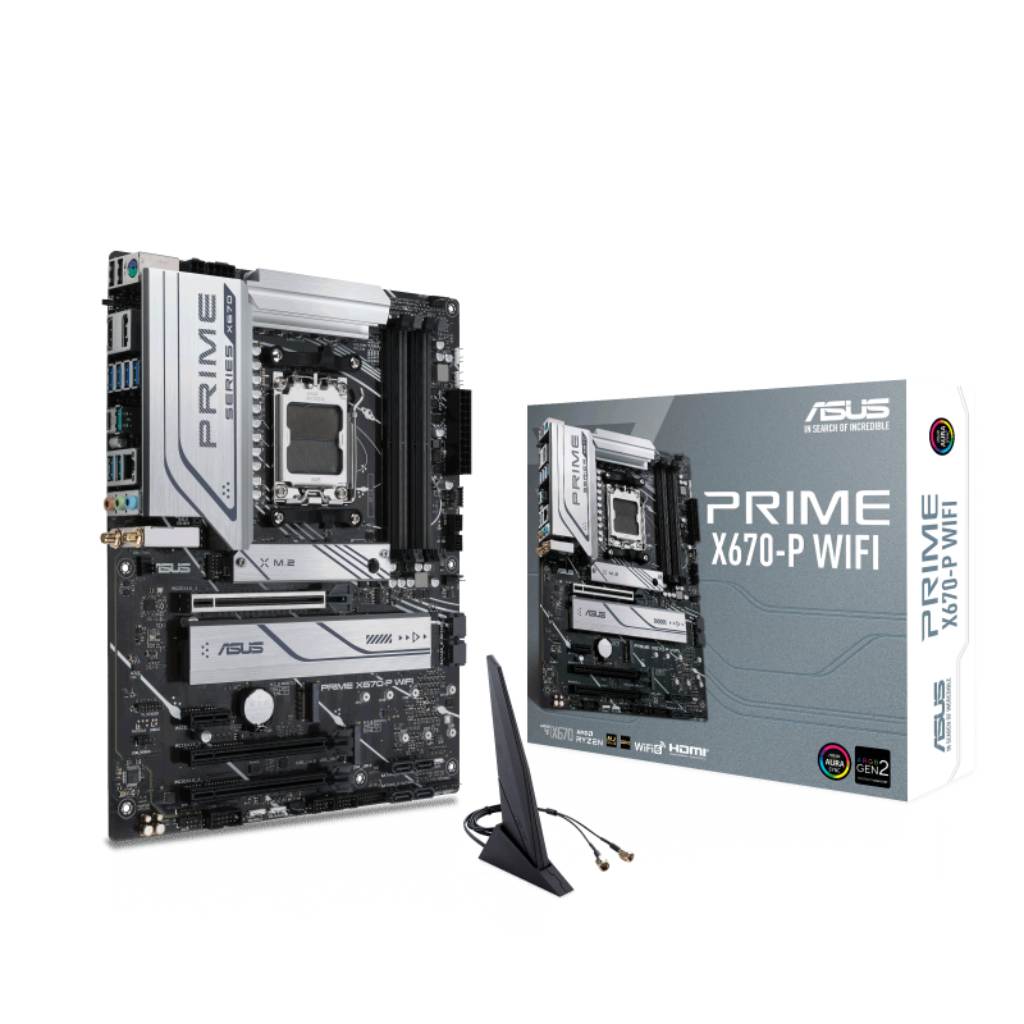

Box Contents	ASUS PRIME X670-P WIFI Motherboard
	2x SATA 6Gb/s cables
	1x ASUS Wi-Fi moving antennas
	1x I/O Shield
	1x Rubber Package for M.2
	2x Screw Packages for M.2 SSD
	1x User guide
Warranty Information
Warranty	3 Year Warranty

ASUS Prime X670-P WiFi DDR5 Motherboard

Additional information

AMD MB Manufacturer	Asus
AMD Motherboard Chipset	AMD X670
AMD Motherboard Form Factor	ATX
AMD Motherboard Socket	AM5
