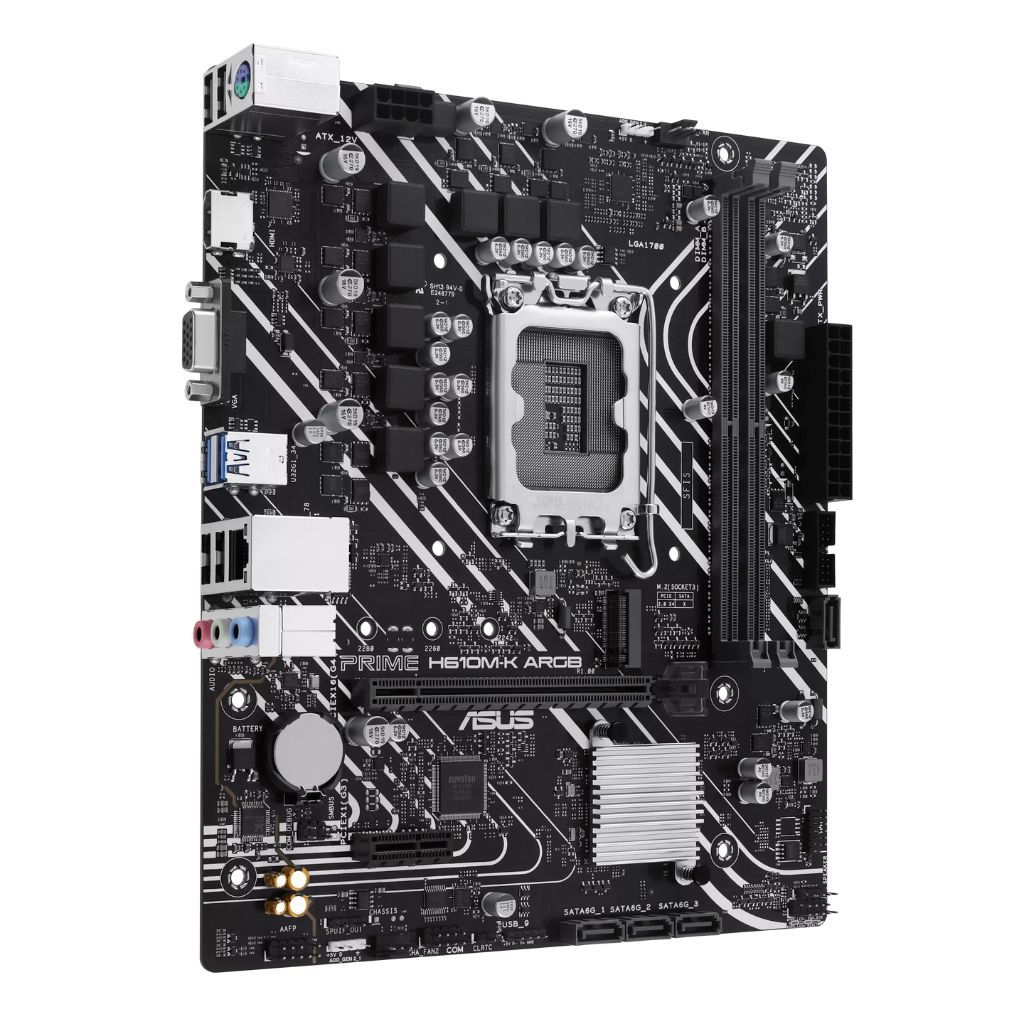

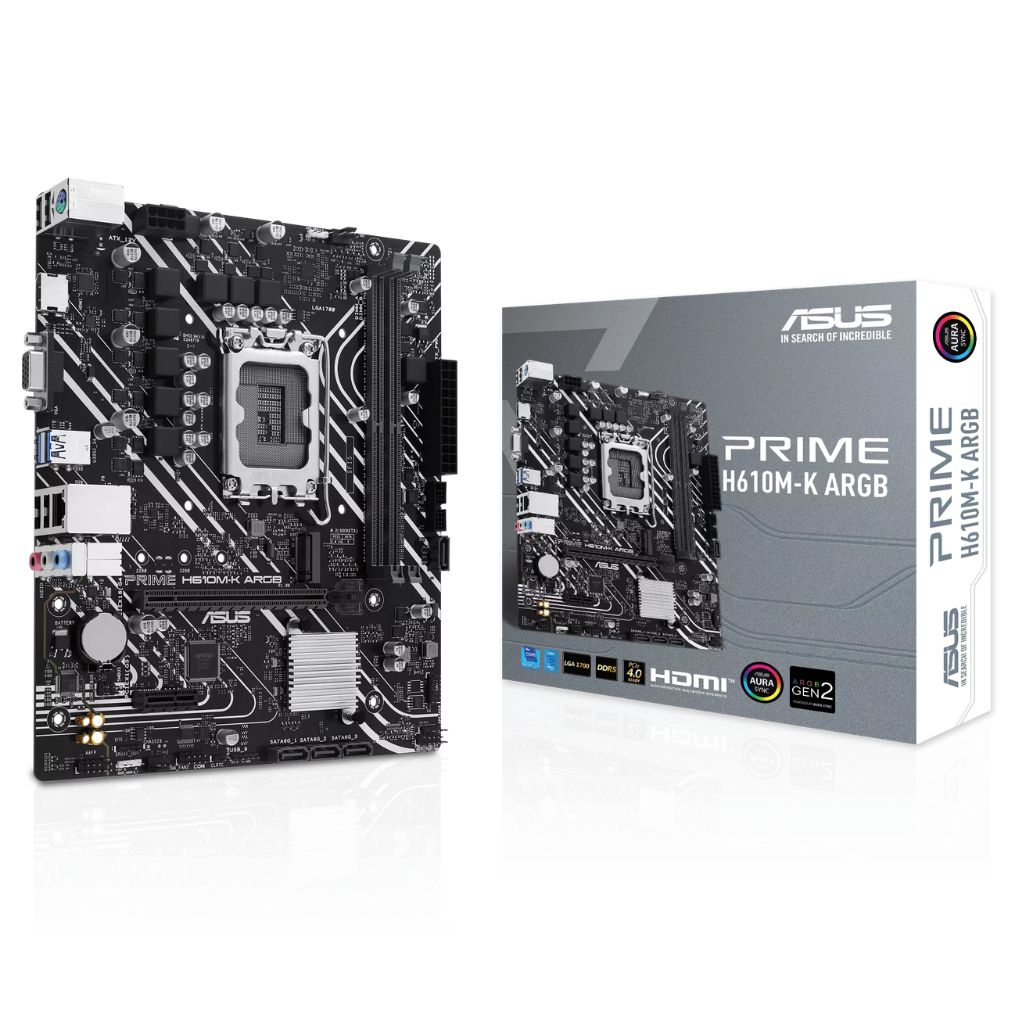

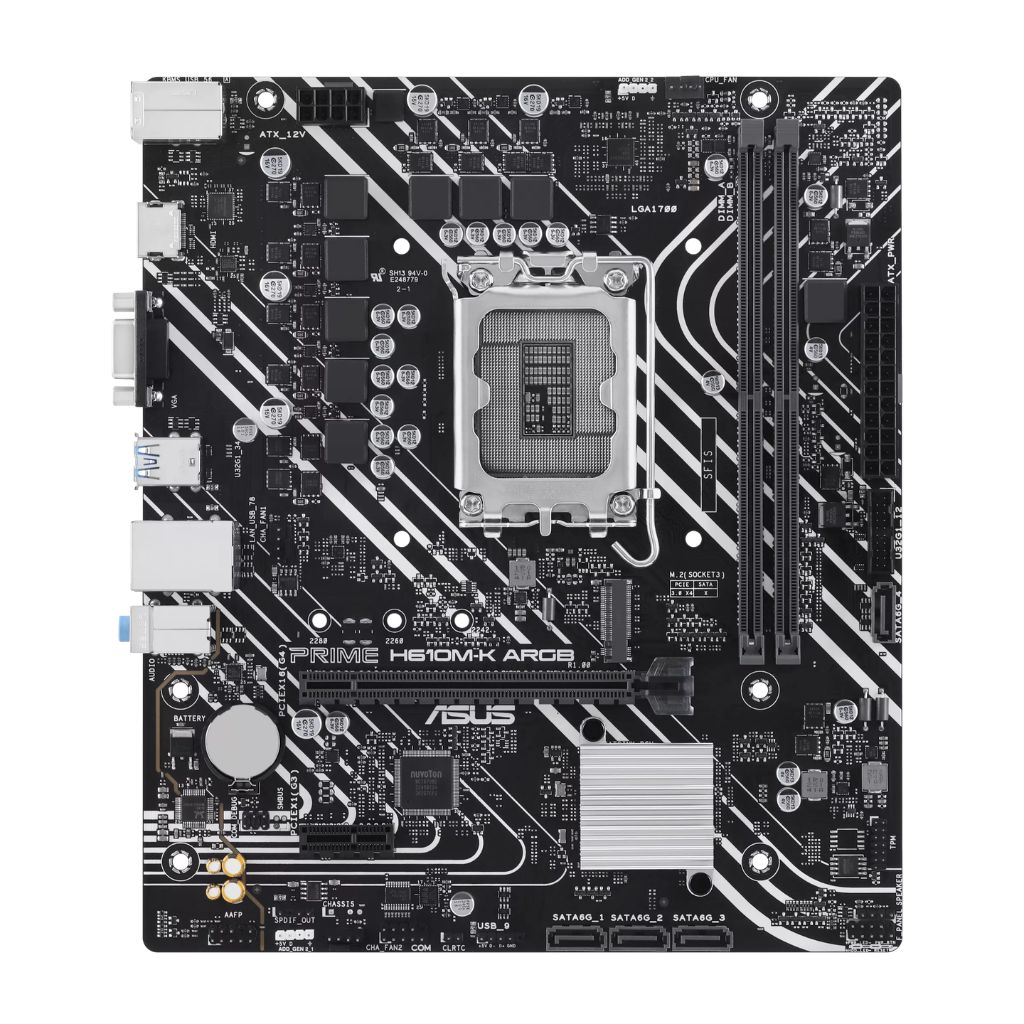

ASUS Prime H610M-K ARGB DDR5 Micro-ATX LGA 1700 Intel Motherboard
Full description ASUS.
- Build a reliable modern Intel system with support for 12th, 13th, and 14th Gen Intel Core processors on the LGA 1700 socket, giving this motherboard the platform flexibility needed for mainstream gaming, office, and productivity-focused desktop builds.
- Support fast everyday performance with DDR5 memory up to 96GB across 2 DIMM slots, plus XMP support, helping users pair newer Intel CPUs with higher-speed memory for smoother multitasking, improved responsiveness, and simpler memory tuning.
- Keep storage and expansion practical with 1 x M.2 PCIe 3.0 x4 slot, 4 x SATA 6Gb/s ports, and a PCIe 4.0 x16 slot, giving the board the core connectivity needed for modern graphics, SSD storage, and balanced mainstream builds.
- Cover essential connectivity with USB 3.2 Gen 1, USB 2.0, Realtek 1Gb Ethernet, HDMI, VGA, and 7.1-channel Realtek audio, making it a strong fit for entry-to-midrange systems that need dependable wired networking and versatile display output options.
- Add practical builder-friendly features with ASUS 5X Protection III, ARGB Gen 2 headers, dedicated cooling headers, and broad Windows 11 and Windows 10 64-bit support, helping the ASUS Prime H610M-K ARGB deliver dependable performance in compact Micro-ATX systems.
| Specifications | |
|---|---|
| Brand | ASUS |
| Series | Prime |
| Model | PRIME H610M-K ARGB |
| Form Factor | Micro-ATX |
| Platform | |
| CPU Socket | LGA 1700 |
| CPU Support | Intel Core 14th, 13th, and 12th Gen, Pentium Gold and Celeron Processors |
| Chipset | Intel H610 |
| Memory | |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 96GB |
| Memory Support | DDR5 5600/5400/5200/5000/4800 |
| Memory Features | Dual Channel, XMP Support |
| Graphics | |
| Display Outputs | 1 x HDMI, 1 x VGA |
| Expansion | |
| PCIe x16 | 1 x PCIe 4.0 x16 slot |
| PCIe x1 | 1 x PCIe 3.0 x1 slot |
| Storage | |
| M.2 Slots | 1 x M.2 Socket 3 (Key M) 2242/2260/2280 |
| SATA Ports | 4 x SATA 6Gb/s |
| Networking | |
| Ethernet | Realtek 1Gb Ethernet |
| USB | |
| Rear USB | 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A |
| Front USB | 1 x USB 3.2 Gen 1 header, 1 x USB 2.0 header |
| Audio | |
| Audio Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Ports | 3 x Audio Jacks |
| Back Panel Connectors | |
| Back Panel I/O | 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0 Type-A 1 x VGA1 x HDMI 1 x Realtek 1Gb Ethernet3 x Audio Jacks1 x PS/2 Keyboard/Mouse Combo Port |
| Internal I/O Connectors | |
| Fan Headers | 1 x 4-pin CPU Fan Header2 x 4-pin Chassis Fan Headers |
| Power Connectors | 1 x 24-pin Main Power Connector1 x 8-pin +12V Power Connector |
| RGB Headers | 2 x Addressable Gen 2 Headers |
| Other Internal Connectors | 1 x Front Panel Audio Header 1 x COM Port Header 1 x S/PDIF Out Header 1 x Speaker Header 1 x SPI TPM Header (14-1 pin) 1 x 10-1 pin System Panel Header 1 x Clear CMOS Header |
| Special Features | |
| Protection | ASUS 5X Protection III |
| Accessories | |
| Included Items | 2 x SATA 6Gb/s Cables1 x I/O Shield1 x M.2 Anchor1 x User Guide |
| Operating System Support | |
| Operating System | Windows 11, Windows 10 64-bit |
| Warranty Information | |
| Warranty | 3 Year Warranty |
