ASUS Prime B860-Plus WiFi DDR5 ATX LGA1851 Intel Motherboard
Full description ASUS.
- LGA1851 Socket with Intel B860 Chipset – Supports Intel Core Ultra processors (Series 2) for next-generation desktop performance.
- DDR5 Memory Support – 4 DIMM slots supporting up to 256GB DDR5 with XMP and AEMP for optimized memory performance.
- PCIe 5.0 Graphics & Storage – PCIe 5.0 x16 slot and PCIe 5.0 M.2 support for cutting-edge GPUs and ultra-fast NVMe SSDs.
- WiFi 6E & 2.5Gb Ethernet – Integrated WiFi 6E and Realtek 2.5Gb LAN for high-speed wired and wireless networking.
- Comprehensive Connectivity – USB 20Gbps Type-C, DisplayPort, HDMI and full internal RGB/ARGB header support.
| Specifications | |
|---|---|
| Brand: | ASUS |
| Series: | Prime |
| Model: | Prime B860-Plus WiFi |
| Chipset: | Intel® B860 |
| Socket: | LGA1851 |
| Form Factor: | ATX |
| CPU Support | |
| Supported Processors: | Intel Core Ultra Processors (Series 2) |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Speed: | Up to 8666+ MT/s (OC) |
| Memory Support: | Dual Channel, XMP, AEMP |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 5.0 x16 |
| PCIe x4 Slot: | 1x PCIe 4.0 x4 |
| PCIe x1 Slots: | 2x PCIe 4.0 x1 |
| Storage | |
| M.2 Slots: | 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0/1/5/10 |
| Networking | |
| LAN: | Realtek 2.5Gb Ethernet |
| Wireless: | WiFi 6E (802.11ax) |
| Bluetooth: | Bluetooth 5.3 |
| Audio | |
| Audio Codec: | Realtek 7.1 Surround HD Audio |

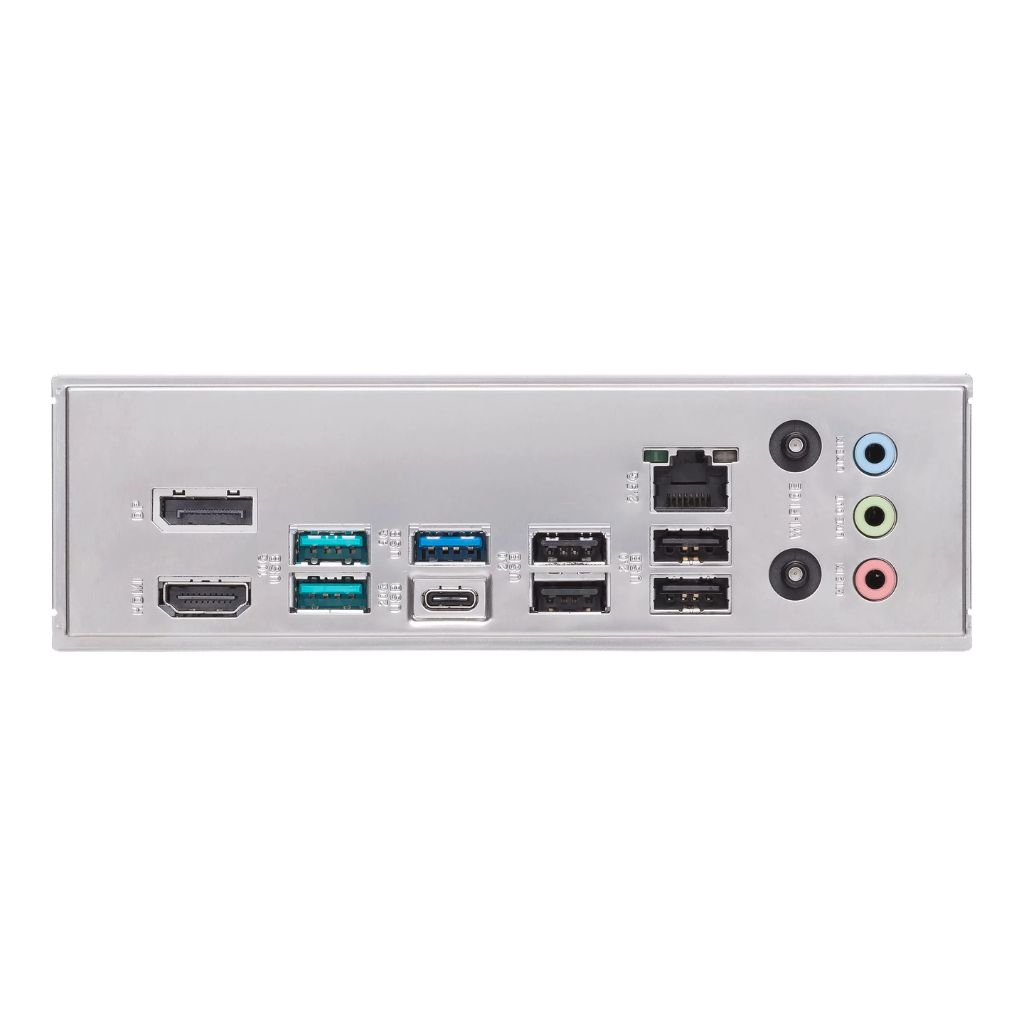

| Back Panel I/O Ports | |
| USB Type-C: | 1x USB 20Gbps (with DP Alt Mode) |
| USB 10Gbps: | 2x USB 3.2 Gen 2 |
| USB 5Gbps: | 4x USB 3.2 Gen 1 |
| Display Outputs: | 1x HDMI, 1x DisplayPort |
| LAN Port: | 1x 2.5Gb Ethernet |
| WiFi Module: | Yes |
| Audio Jacks: | 3x Audio Jacks |
| Internal I/O Connectors | |
| CPU Fan Header: | 1 |
| AIO Pump Header: | 1 |
| Chassis Fan Headers: | 4 |
| M.2 Slots: | 3 |
| USB 3.2 Gen 1 Header: | Yes |
| USB 2.0 Headers: | Yes |
| RGB Header: | Yes |
| Addressable RGB Gen 2: | Yes |
| Thunderbolt Header: | Yes |
| Front Panel Header: | Yes |
| Operating System Support | |
| OS Support: | Windows 11 (22H2 & Later), Windows 10 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASUS Prime B860-Plus WiFi DDR5 ATX LGA1851 Intel Motherboard
Contact us if you would like to enquire about this product.
