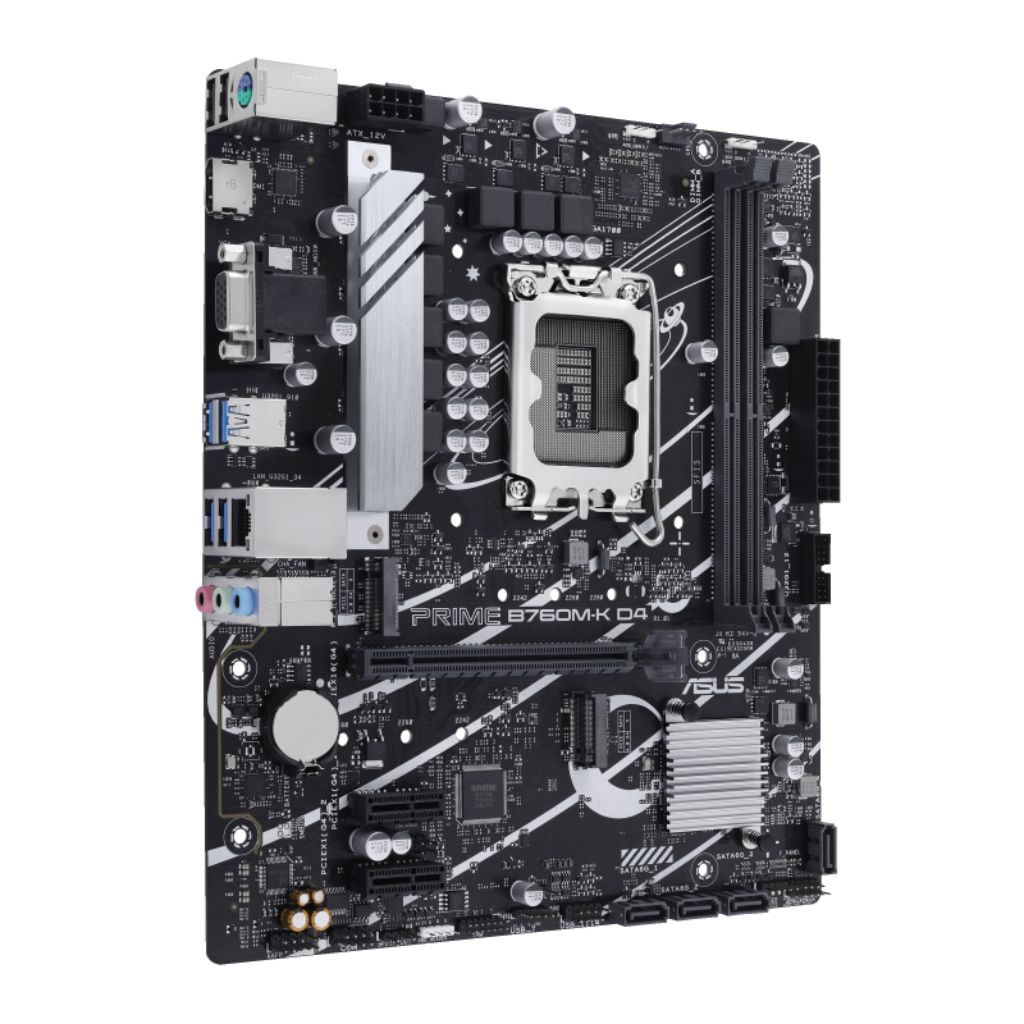

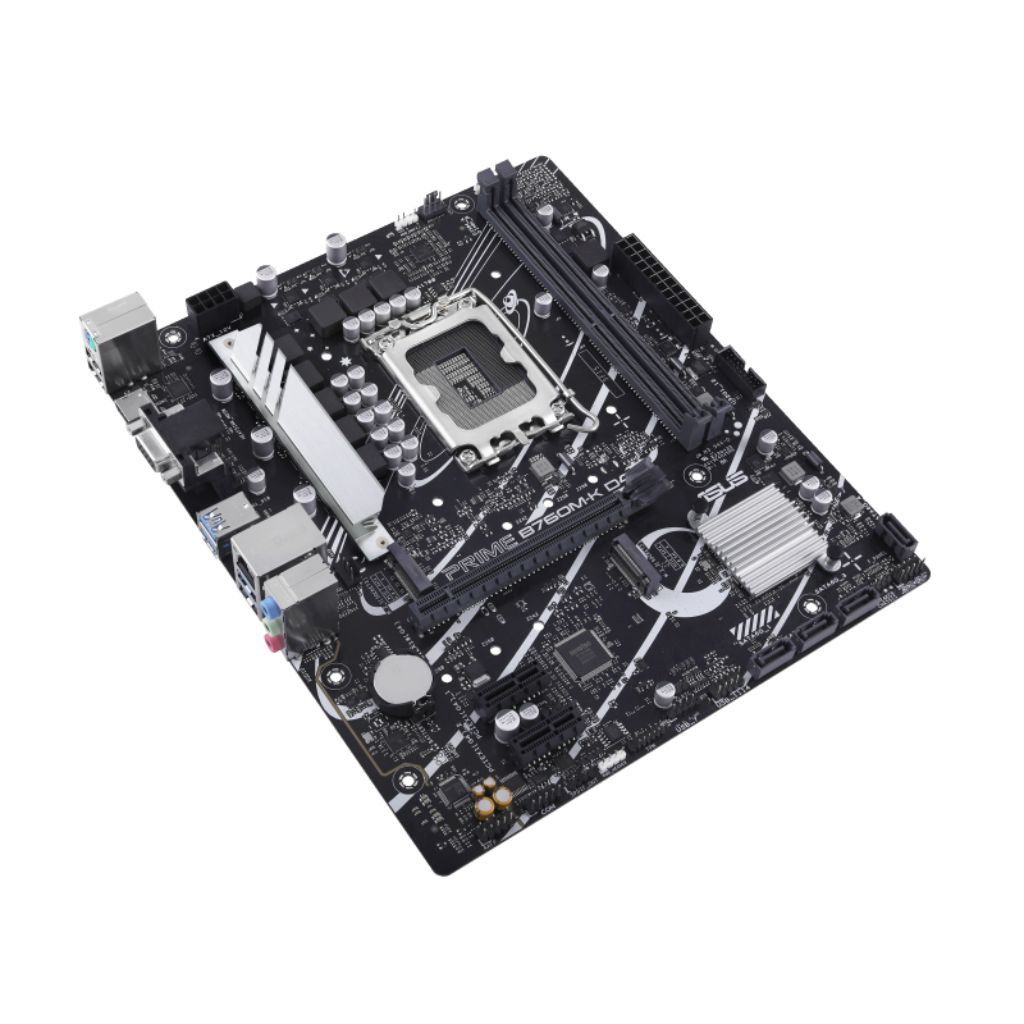

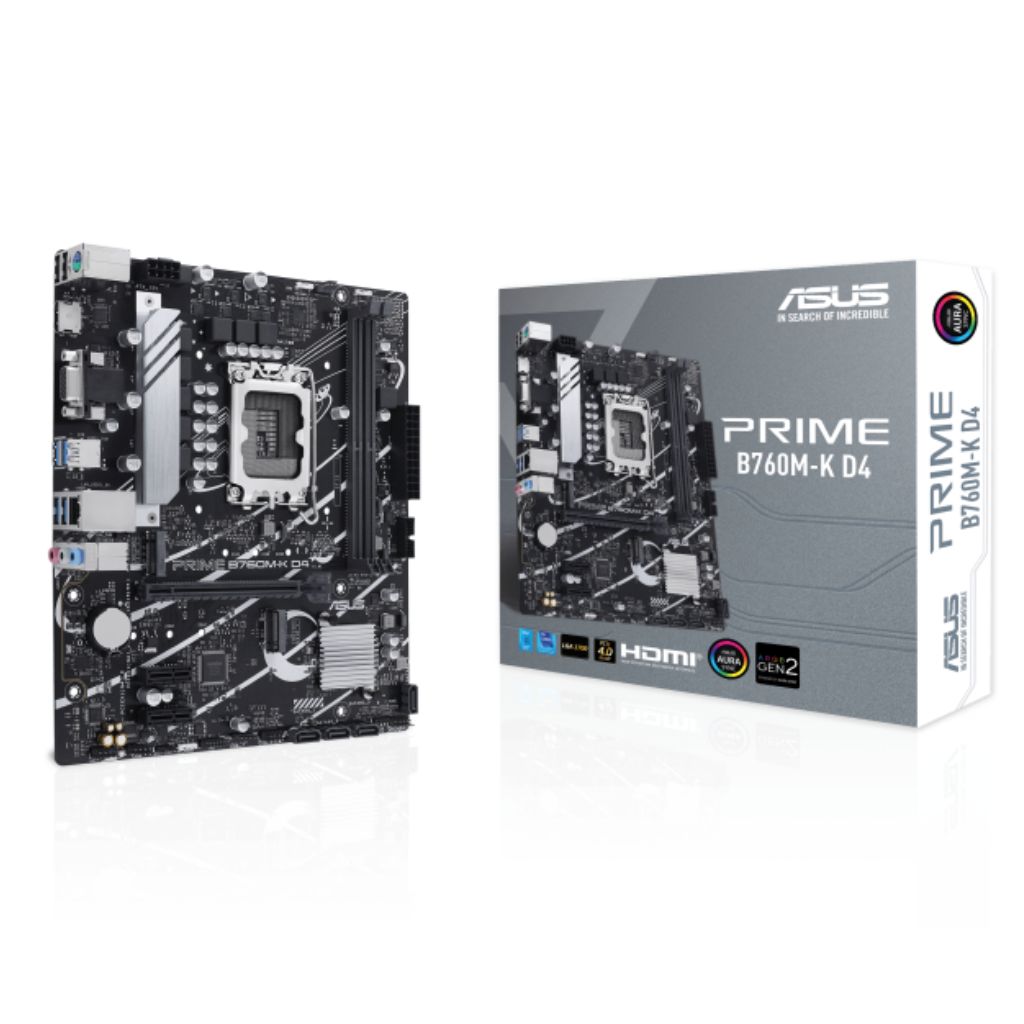

ASUS Prime B760M-K DDR4 Motherboard
Full description ASUS.
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
Specifications |
|
| Brand: | ASUS |
| Series: | B760 Series |
| Model: | 90MB1DS0-M0EAY0 |
| Technical Specs | |
| CPU Support: | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset: | Intel® B760 Chipset |
| Memory: | 2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/ 4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/ 3600(OC)/3466(OC)/3400(OC)/ 3333(OC)/3200/3000/2933/2800/ 2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics: | 1 x VGA port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI® 2.1. |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| Connectivity | |
| LAN: | 1 x Realtek 2.5Gb Ethernet |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots |
| Storage Interface: | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |

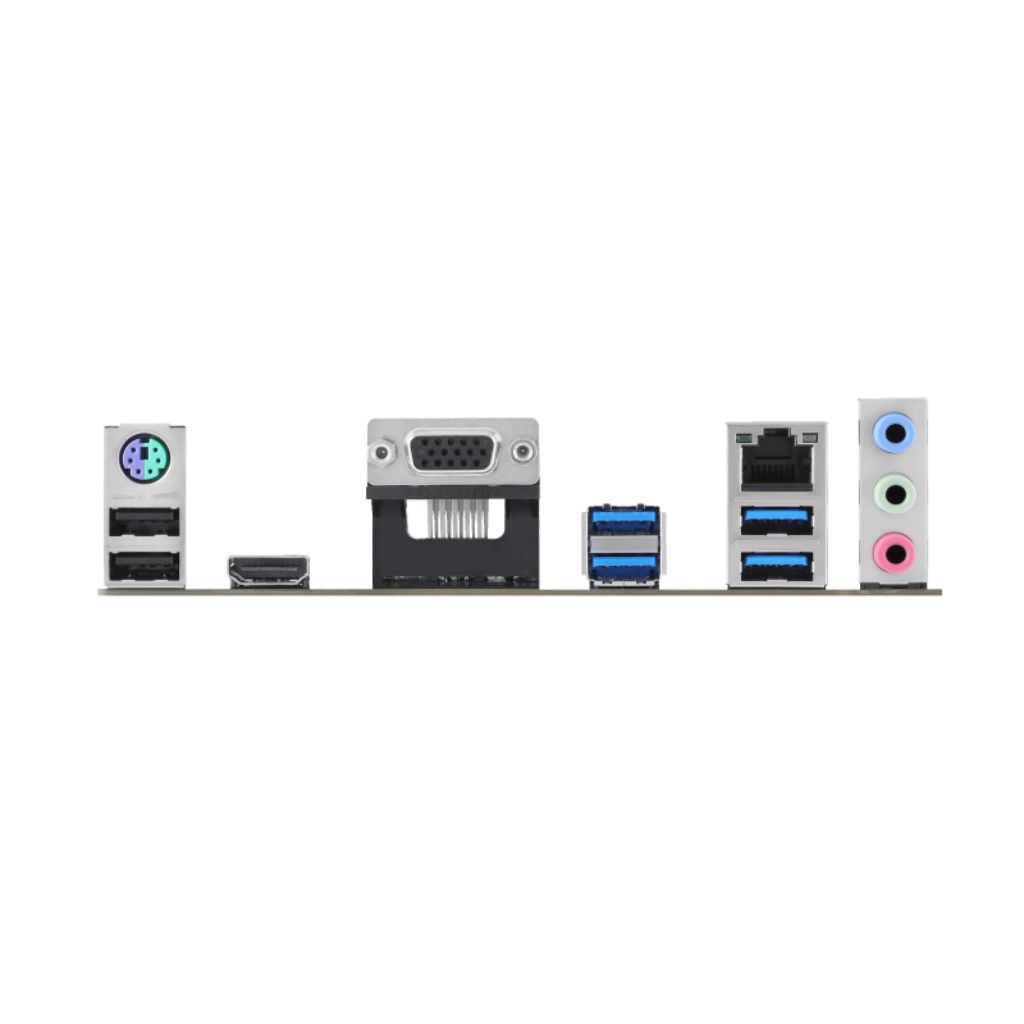

| Back Panel Connectors: | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Software & Features | |
| BIOS: | 128 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software UEFI BIOS |
| Features: | ASUS 5X PROTECTION III |
| ASUS Q-Design | |
| ASUS EZ DIY | |
| ASUS Thermal Solution | |
| Aura Sync | |
| General | |
| Operating System: | Windows® 11, Windows® 10 64-bit |
| Form Factor: | mATX – (24.4cm x 21.1cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
