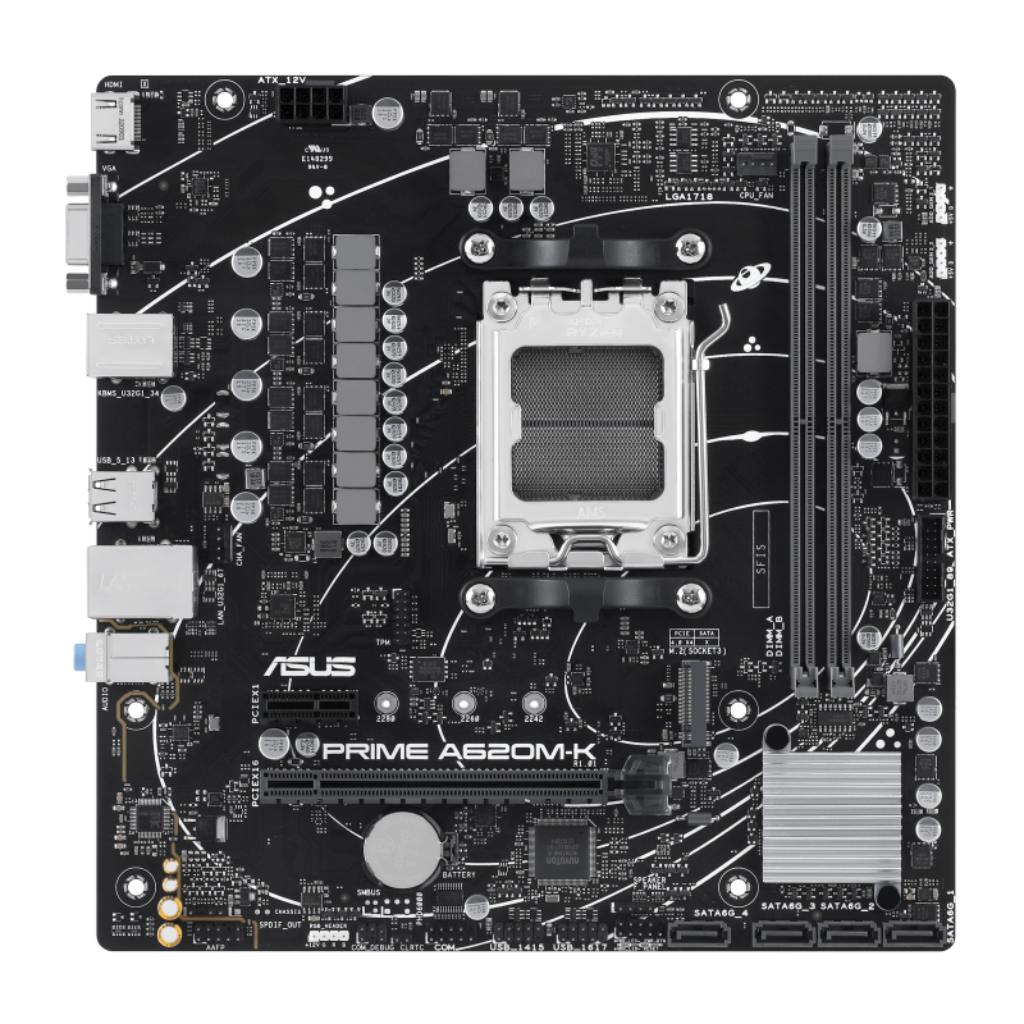

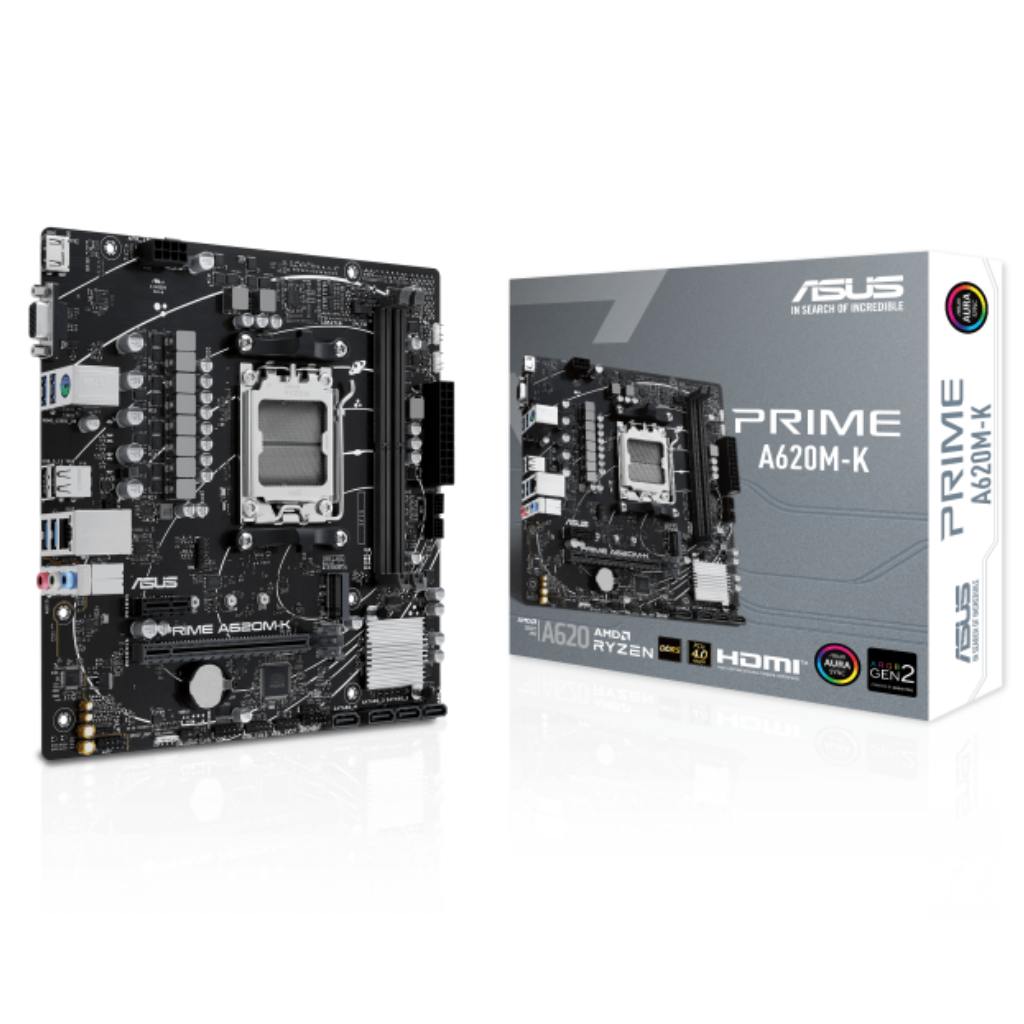

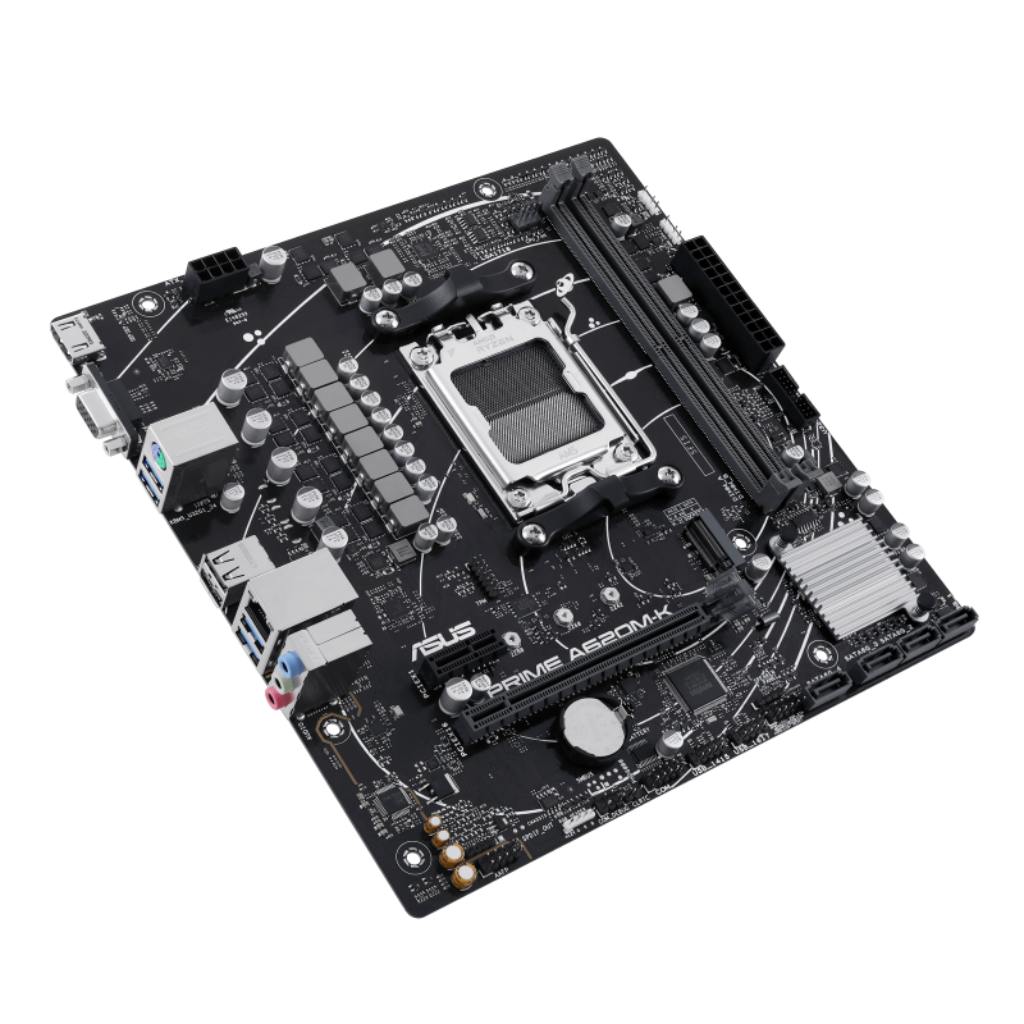

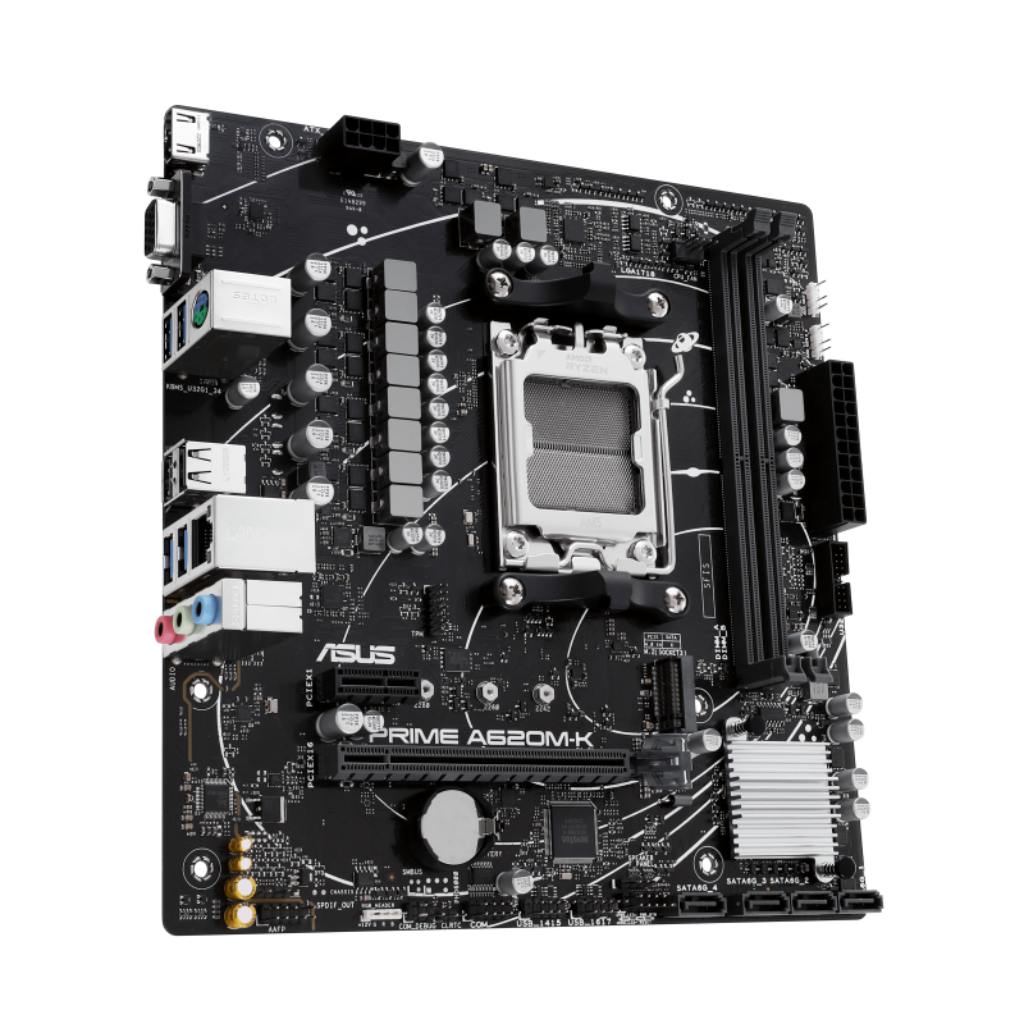

ASUS Prime A620M-K DDR5 AM5 Micro-ATX Motherboard
Full description ASUS.
AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
- Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
- Comprehensive Cooling: PCH heatsink and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Specifications |
|
| Brand: | ASUS |
| Series: | AMD A620 Series |
| Model: | 90MB1F40-M0EAY0 |
| Technical Specs | |
| CPU Support: | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset: | AMD A620 Chipset |
| Memory: | 2 x DIMM slots, Max. 96GB, DDR5 7200(OC)/7000(OC)/6800(OC)/ 6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) |
| Onboard Graphics: | 1 x VGA port 1 x HDMI™ port** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| Connectivity | |
| LAN: | 1 x Realtek 1Gb Ethernet |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD A620 Chipset 1 x PCIe 3.0 x1 slot |
| Storage Interface: | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |

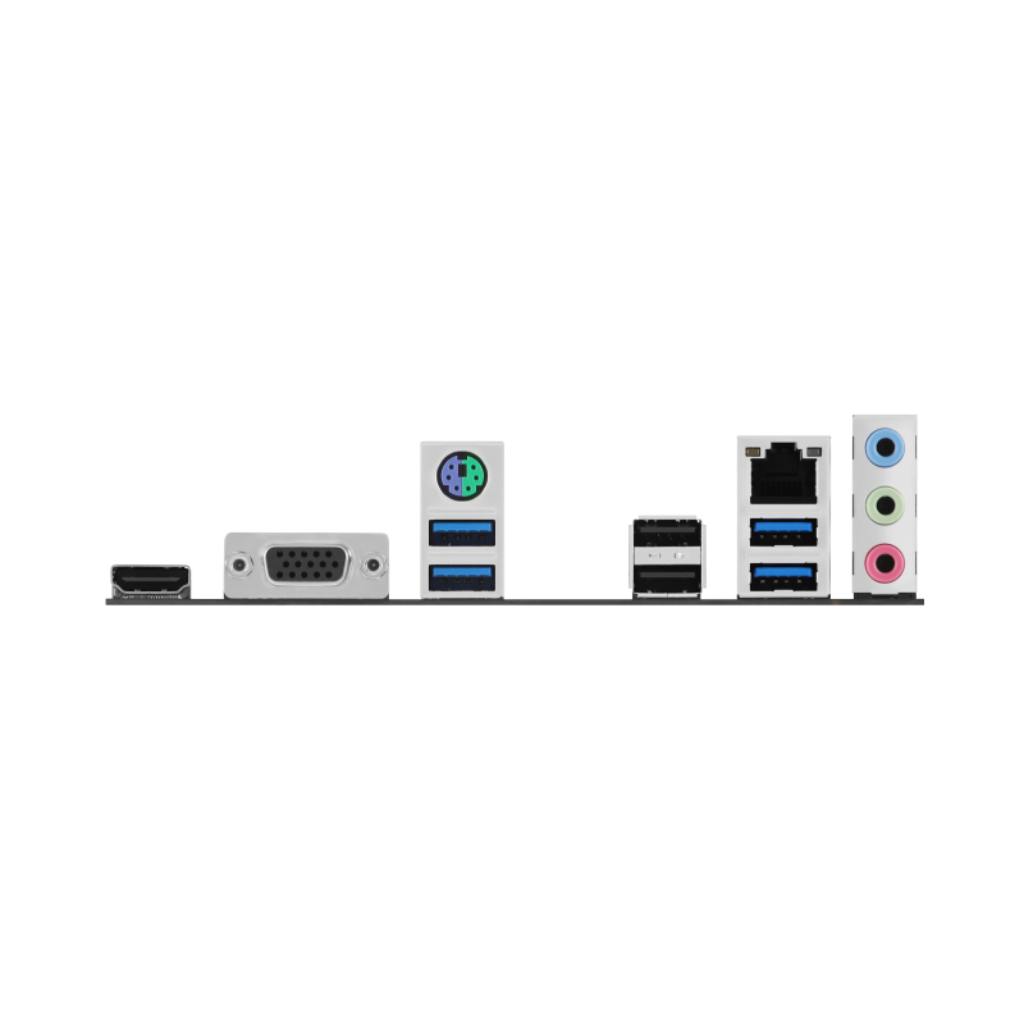

| Back Panel Connectors: | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software Armoury Crate AI Suite 3 UEFI BIOS ASUS EZ DIY |
| Features: | ASUS 5X PROTECTION III |
| ASUS Q-Design | |
| ASUS Thermal Solution | |
| Aura Sync | |
| – | |
| General | |
| Operating System: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor: | micro-ATX Form Factor (22.6 cm x 22.1 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
