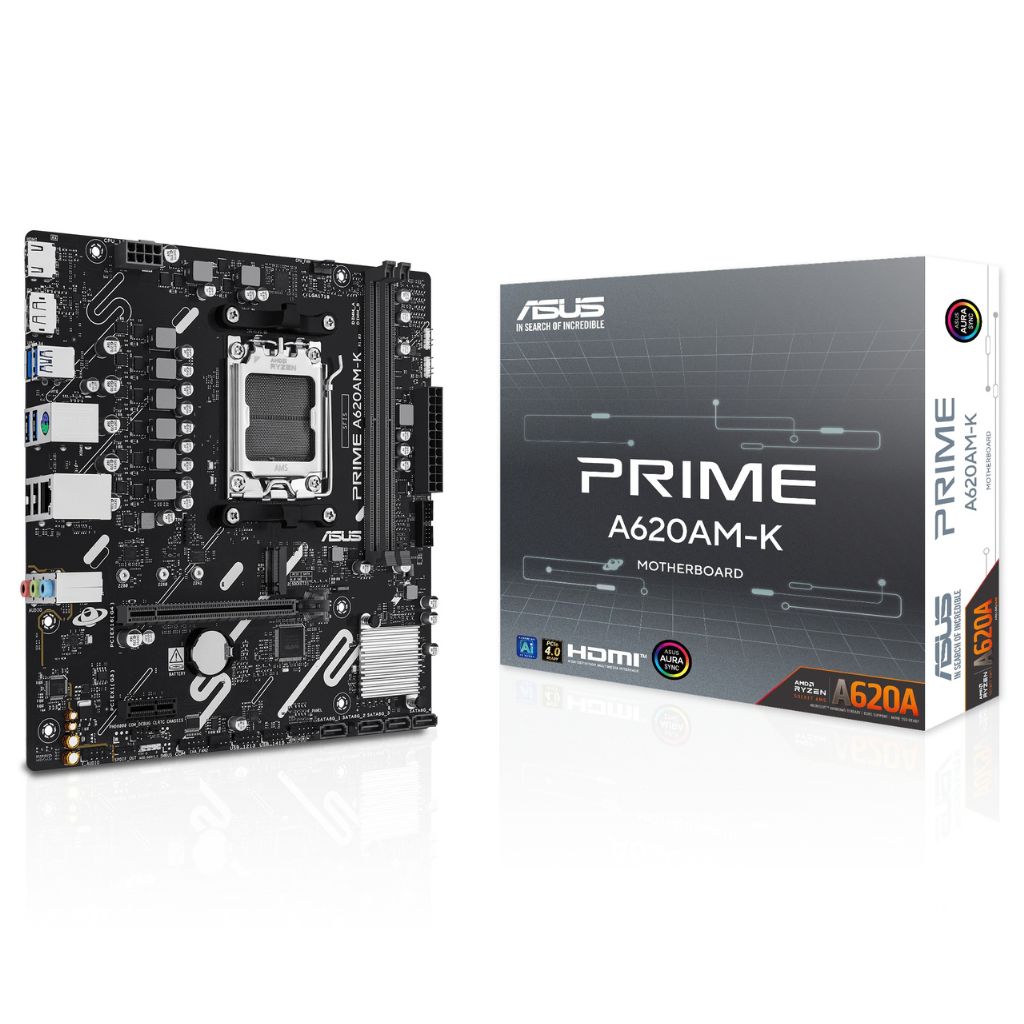

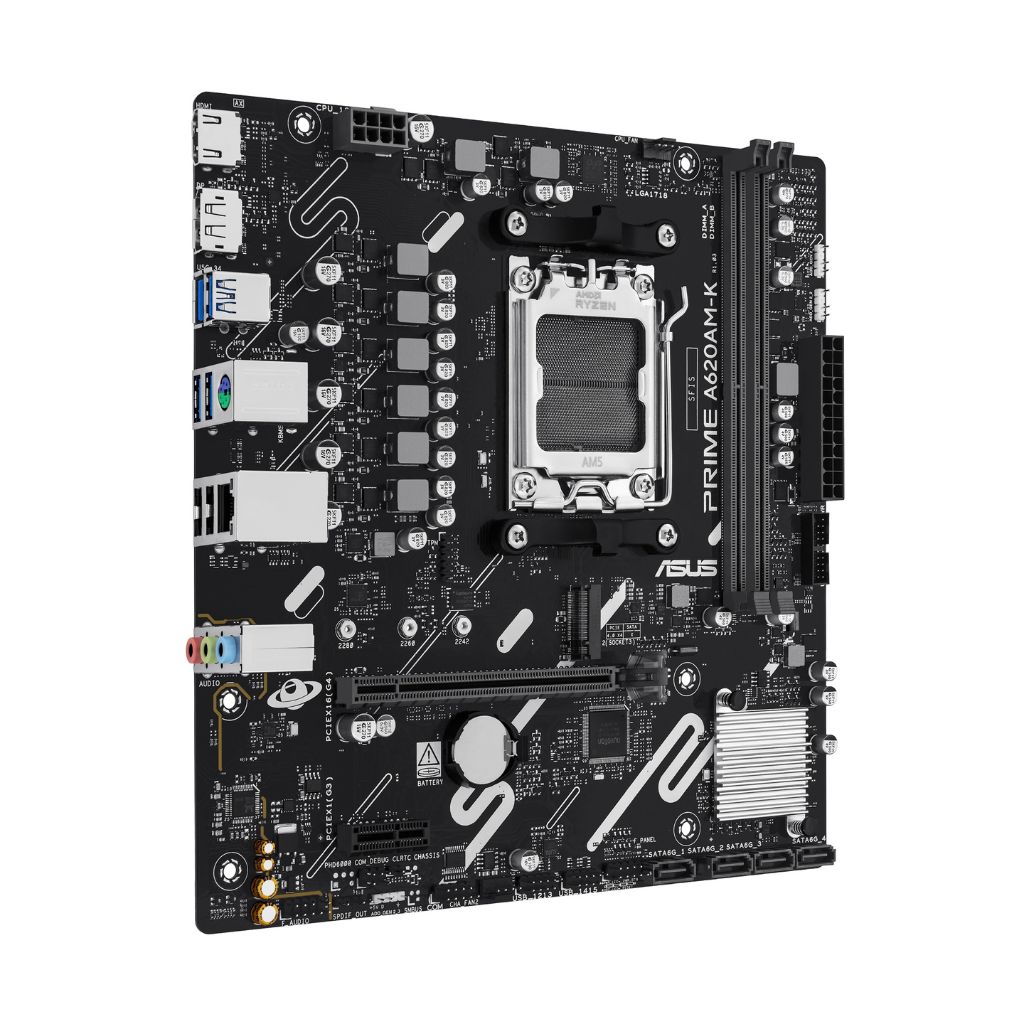

ASUS Prime A620AM-K Micro-ATX DDR5 AM5 Desktop Motherboard – PRIME-A620AM-K
Full description ASUS.
- The ASUS Prime A620AM-K is a Micro-ATX AM5 motherboard designed for modern AMD desktop builds, supporting Ryzen 9000, 8000, and 7000 Series processors with the AMD A620A chipset.
- With 2x DDR5 DIMM slots and support for up to 128GB memory, this board offers dual-channel DDR5 performance, AMD EXPO support, and ASUS Enhanced Memory Profile for compatible high-speed memory modules.
- Expansion support includes a PCIe 4.0 x16 slot, PCIe 3.0 x1 slot, and one M.2 slot for PCIe 4.0 NVMe storage, giving users a practical platform for compact desktop and gaming builds.
- Display connectivity includes DisplayPort and HDMI, with support for up to 8K at 30Hz via DisplayPort and up to 4K at 60Hz via HDMI when paired with a compatible AMD processor.
- Everyday connectivity includes 1Gb Ethernet, USB 5Gbps ports, SATA 6Gb/s storage, 7.1 surround sound audio, ASUS 5X Protection III, included I/O shield, SATA cables, and 3 Year Warranty.
| Specifications | |
|---|---|
| Brand | ASUS |
| Series | Prime |
| Model | PRIME-A620AM-K |
| Processor | |
| CPU Socket | AMD AM5 |
| Processor Support | AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors |
| Maximum CPU Support | Up to 120W CPU |
| Chipset | |
| Chipset | AMD A620A |
| Memory | |
| Memory Slots | 2x DDR5 DIMM |
| Maximum Memory | Up to 128GB |
| Memory Technology | Dual Channel DDR5 |
| Memory Support | Non-ECC unbuffered DDR5 |
| Memory Speed | Up to 7200MT/s OC with Ryzen 9000 / 7000 Series Up to 7600MT/s OC with Ryzen 8000 Series |
| Overclocking Support | AMD EXPO, ASUS Enhanced Memory Profile |
| Graphics Output | |
| DisplayPort | 1x DisplayPort, up to 8K at 30Hz |
| HDMI | 1x HDMI, up to 4K at 60Hz |
| Expansion Slots | |
| PCIe x16 Slot | 1x PCIe 4.0 x16 slot |
| PCIe x1 Slot | 1x PCIe 3.0 x1 slot |
| Storage | |
| M.2 Slot | 1x M.2 slot, PCIe 4.0 x4 |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | AMD RAIDXpert2 Technology |
| Connectivity | |
| Ethernet | 1x Realtek 1Gb Ethernet |
| LAN Protection | ASUS LANGuard |
| USB | |
| Rear USB Ports | 4x USB 5Gbps Type-A 2x USB 2.0 Type-A |
| Internal USB Headers | 1x USB 5Gbps header 2x USB 2.0 headers |
| Audio | |
| Audio Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Features | Audio Shielding, Premium Audio Capacitors, Dedicated Audio PCB Layers |
| Rear I/O Ports | |

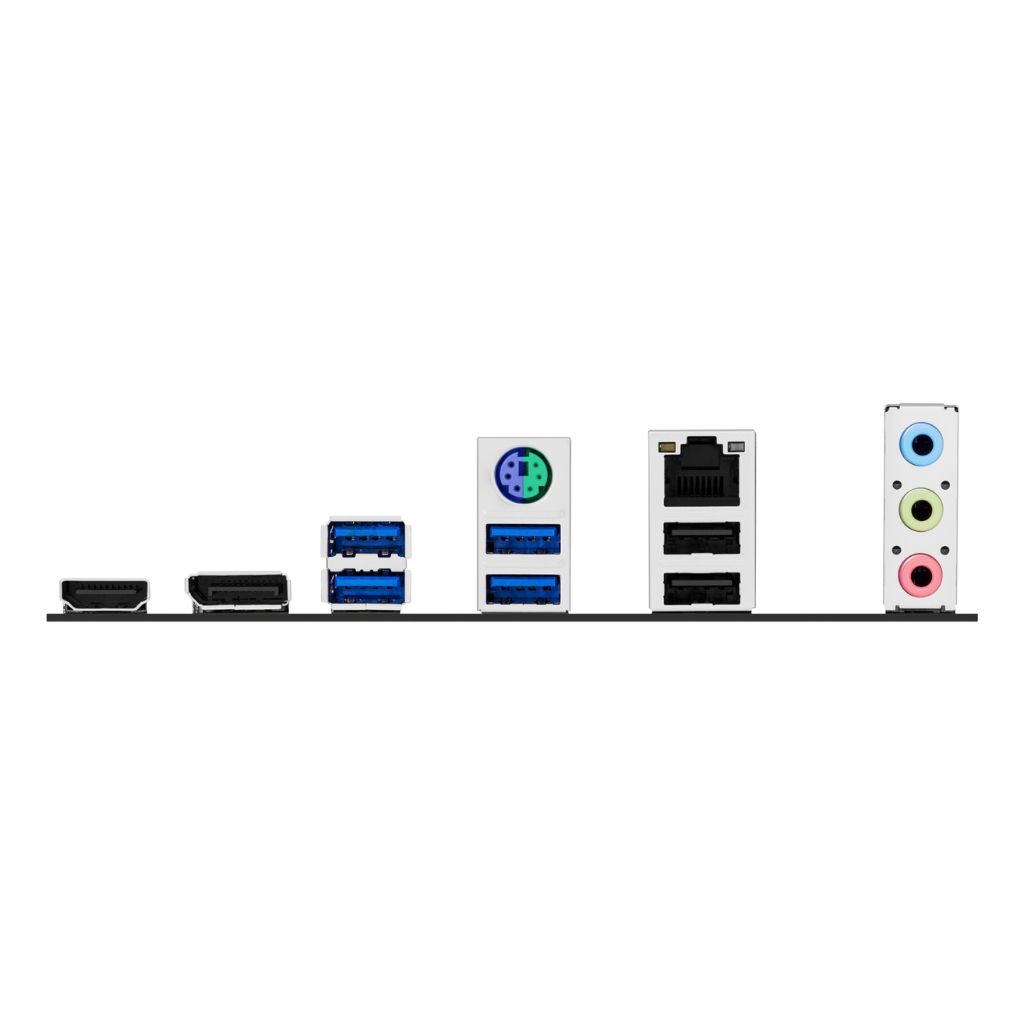

| Rear Ports | 4x USB 5Gbps Type-A 2x USB 2.0 Type-A 1x DisplayPort 1x HDMI 1x Realtek 1Gb Ethernet 3x Audio Jacks 1x PS/2 Keyboard / Mouse Combo Port |
| Internal Headers | |
| Key Headers | 1x 24-pin Main Power Connector 1x 8-pin 12V CPU Power Connector 1x CPU Fan Header 2x Chassis Fan Headers 1x M.2 Slot 4x SATA 6Gb/s Ports 1x Addressable RGB Gen 2 Header 1x Front Panel Audio Header 1x SPI TPM Header 1x 10-1 pin Front Panel Header |
| Special Features | |
| ASUS Protection | ASUS 5X Protection III |
| Build Features | DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O |
| ASUS Q-Design | Q-DIMM, Q-LED Core, Q-Slot |
| Lighting Support | Addressable RGB Gen 2 Header |
| BIOS & Software | |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Software Features | ASUS Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, ASUS DriverHub |
| Operating System | |
| OS Support | Windows 11 Windows 10 64-bit |
| Dimensions | |
| Motherboard Size | 22.6 x 22.1cm |
| Included in the Box | |
| Included Items | I/O Shield x1 SATA 6Gb/s Cables x2 Screw Package for M.2 SSD x1 Quick Start Guide x1 |
| Warranty Information | |
| Warranty | 3 Year Warranty |
